Description

Breakout board for the Ag7300 DC-DC converter

README

AG7300 KiCad Files

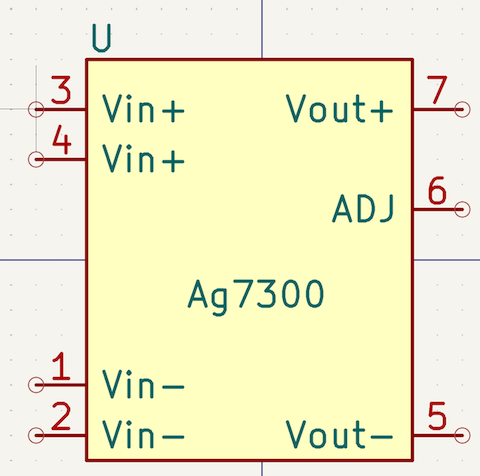

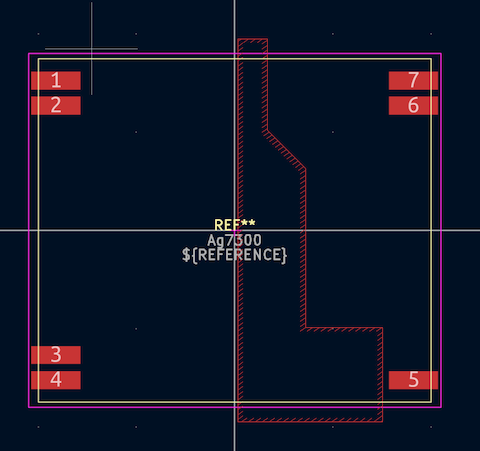

This repository contains a KiCad symbol and footprint for the SilverTel Ag7300 DC-DC converter module.

Usage

To use the AG7300 symbol and footprint in your own KiCad project:

1. Clone this repository or download the symbol and footprint files.
2. Add the .kicad_sym and .kicad_mod files to your project's library paths:
   • Go to Preferences > Manage Symbol Libraries to add the symbol.
   • Go to Preferences > Manage Footprint Libraries to add the footprint.
3. You can now place the AG7300 module in your schematic and PCB layout as needed.

Schematic and PCB

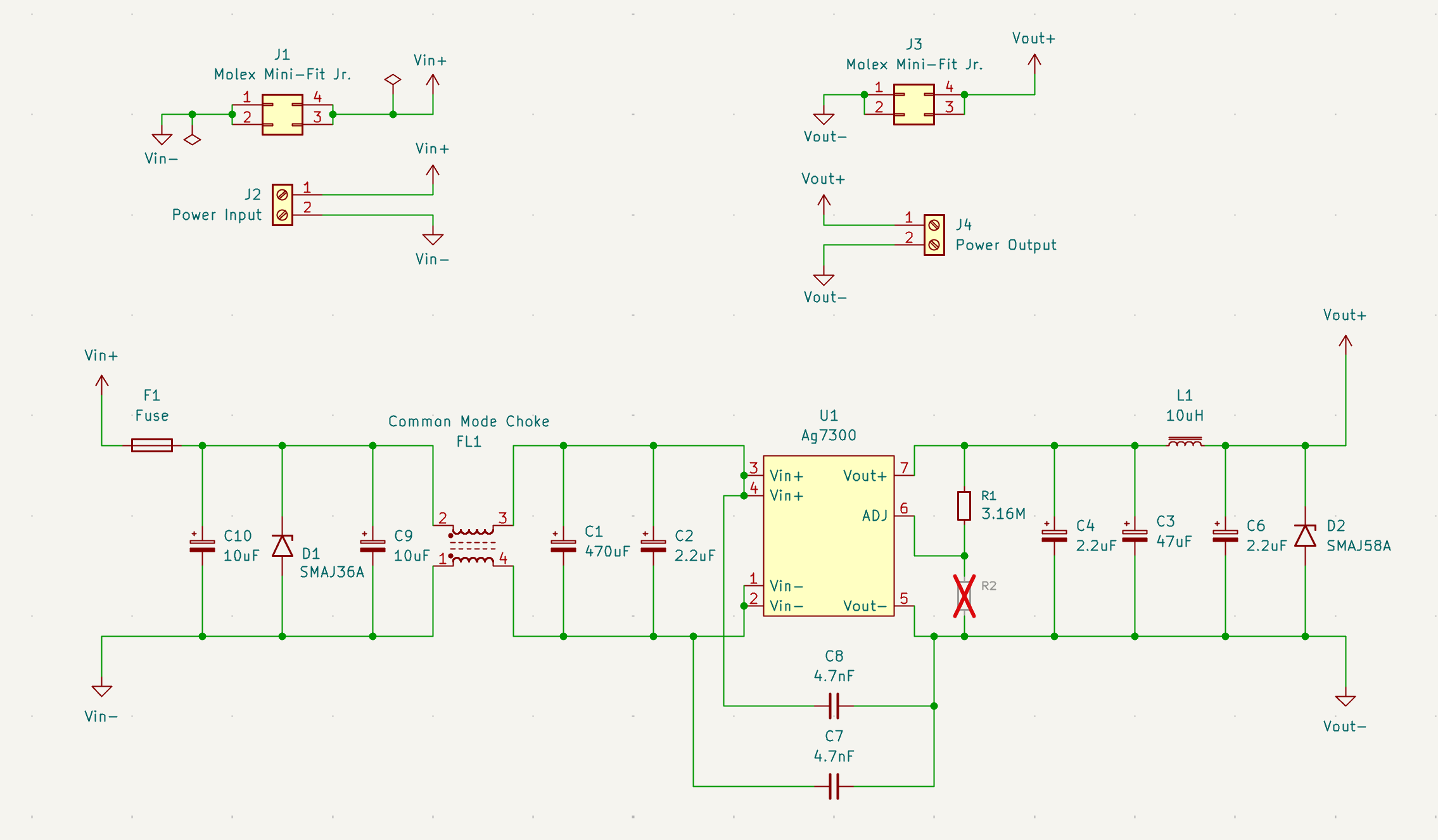

Also included is a schematic similar to the official Ag7300 evaluation board.

I was planning on making a board to install in a Ubiquiti USW-24-POE network switch, which would allow it to operate from a 24V battery:

However, I decided not to proceed further with this design as it was too similar to the evaluation board.

KiCad Version

Tested with KiCad 9.0.1

License

This project is licensed under the MIT License.
