README

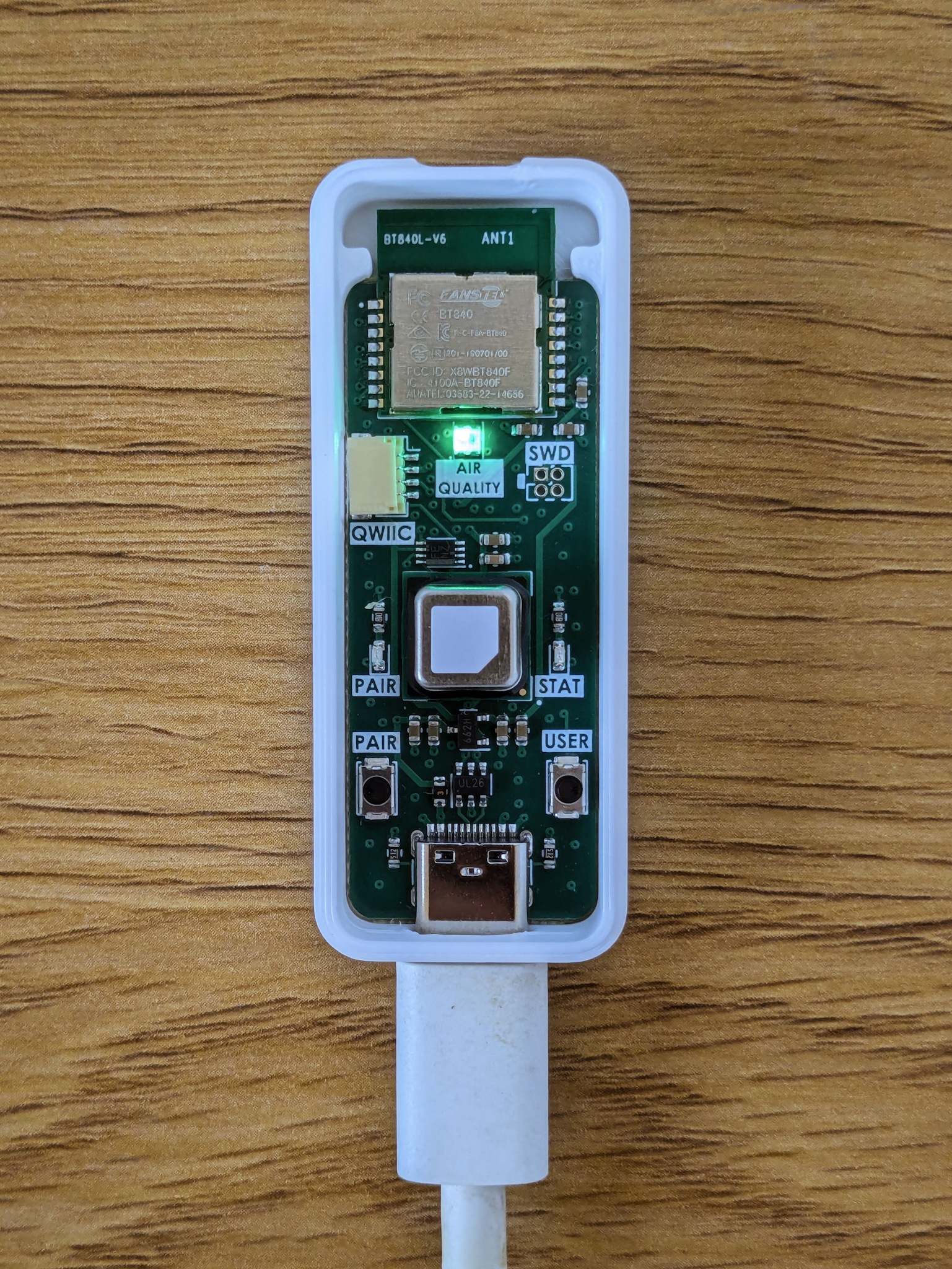

Zigbee air quality monitor board

Opensource HA compatible air quality monitor with CO2, temperature and humidity measurements.

  • KiCAD 8.X required
  • Includes nrf52840 module
  • Includes SCD40/SCD41 module

Firmware

https://github.com/nobodyguy/zigbee_air_quality_monitor_firmware
