SqueezeAMP PoE

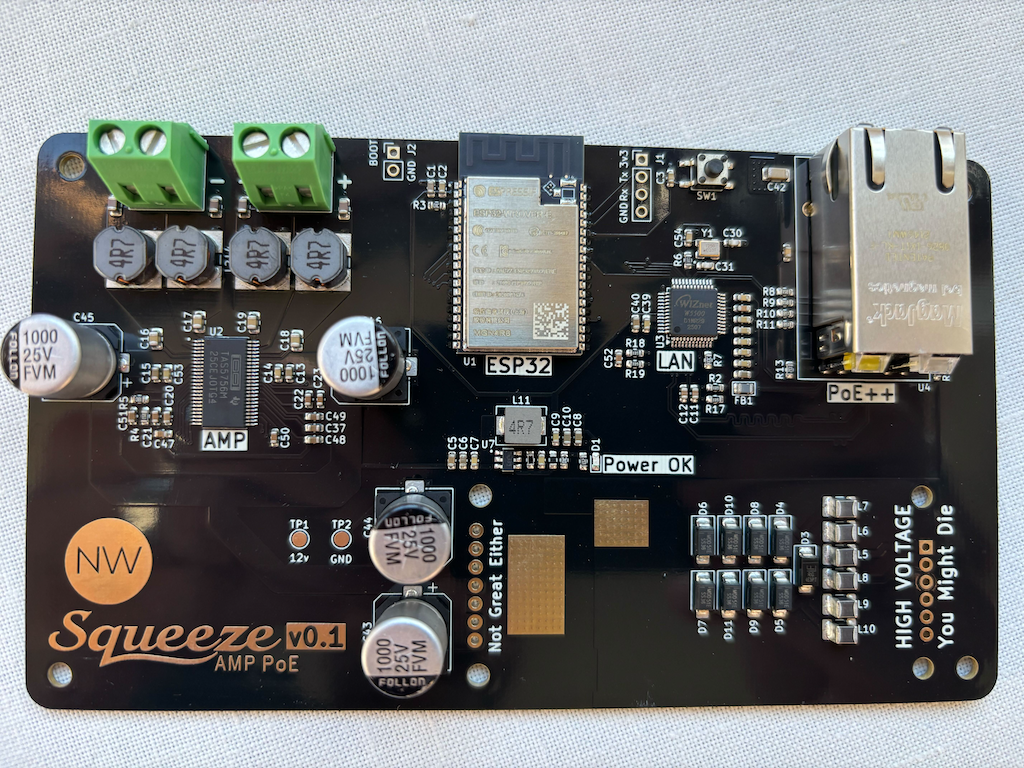

SqueezeAMP PoE is an amplifier driven by an ESP32 designed to run squeezelite-esp32, powered by PoE++.

Features:

• Power over Ethernet 802.3bt 60W (PoE++)
• ESP32 WROOM 4MB Flash 8MB PSRAM
• TAS5756 Amplifier capable of driving stereo 30W 8Ohm speakers

Why

The position of speakers is often not optimal for WiFi, leading to unreliable music streaming. Adding 100Mb ethernet allows more reliable connections with ample bandwidth. Given an ethernet connection, PoE is able to provide power for the device.

The schematic is inspired by the SqueezeAMPagain.

Configuration

Install squeezelite-esp32. The simplest method is to use the installer.

Set the following configuration via the NVS Editor to configure:

dac_config: model=TAS57xx,bck=33,ws=25,do=32,sda=27,scl=26,mute=4:0 eth_config: model=w5500,cs=15,speed=20000000,intr=18,rst=19 spi_config: mosi=13,clk=14,host=1,miso=12,dc=-1 set_GPIO: 2=spkfault

PCB Fabrication and Assembly by PCBWay

I am proudly sponsored by PCBWay, a leading manufacturer specializing in PCB prototyping, low-volume production, and PCB Assembly services. Thanks to PCBWay’s sponsorship, I was able to fabricate and assemble my PCBs with high precision and quality. Their advanced manufacturing capabilities ensured that our design was translated into a robust and functional product.

Why PCBWay?

PCBWay offers:

• High-quality PCB fabrication with multiple layer options, surface finishes, and material choices.
• Fast turnaround times to meet project deadlines efficiently.
• Affordable pricing for both prototyping and mass production.
• Reliable PCB assembly services, including SMT, through-hole, and mixed assembly.
• Exceptional customer support and a user-friendly ordering platform.

Get Your Own PCBs from PCBWay

I highly recommend PCBWay for all your PCB fabrication and assembly needs. Their dedication to quality and customer satisfaction makes them an ideal partner for your projects. If you're looking for a trusted partner for PCB fabrication and assembly, check out PCBWay for your next project.

Special thanks to PCBWay for their generous support!

Changelog

v0.1.0

• Initial schematic and board

v0.1.1

• Fixed W5500 crystal clock not being enabled
