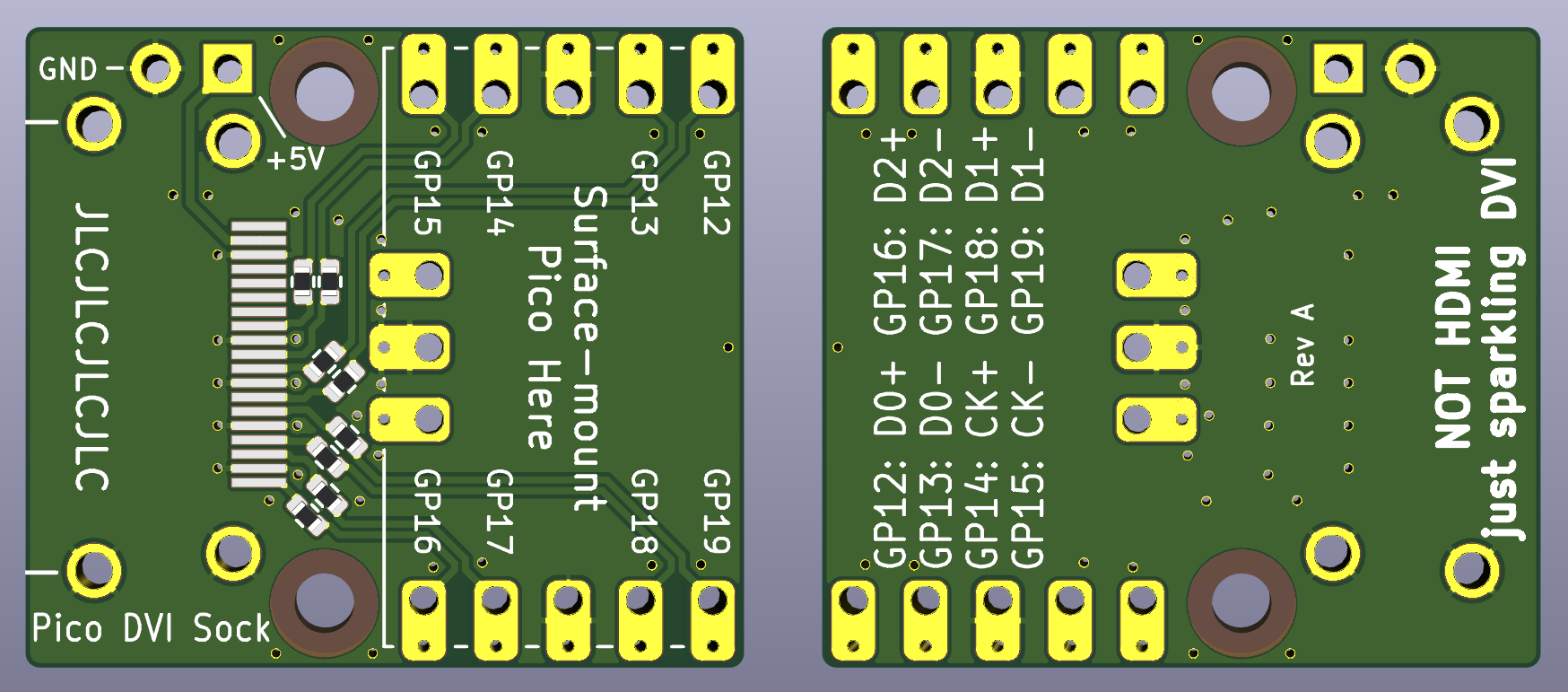

You surface mount solder the Raspberry end of your Pico on top of this board (thanks to the castellations on Pico's header footprints). This gives you an HDMI-shaped socket at the opposite end to the micro USB socket, which you can drive DVI-D video through. The remaining Pico pins can still have headers inserted, so that the board can be inserted into a breadboard.
The PCB layout is compatible with JLCPCB 2-layer prototyping service. Select 1mm board thickness when you check out (no extra cost).
:warning: This board was created with KiCad Nightly (5.99). Exported gerbers are in
gerb/, so you can order PCBs without installing this version of KiCad.

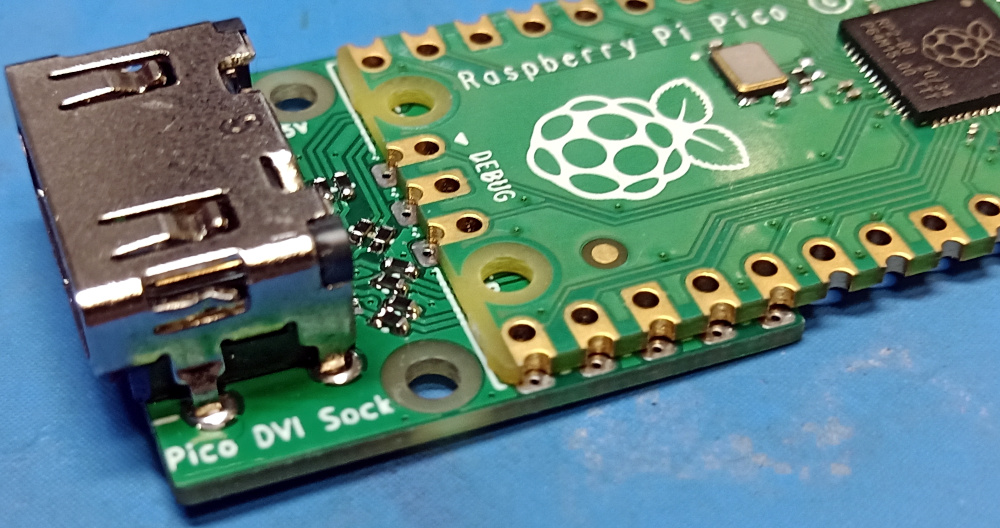

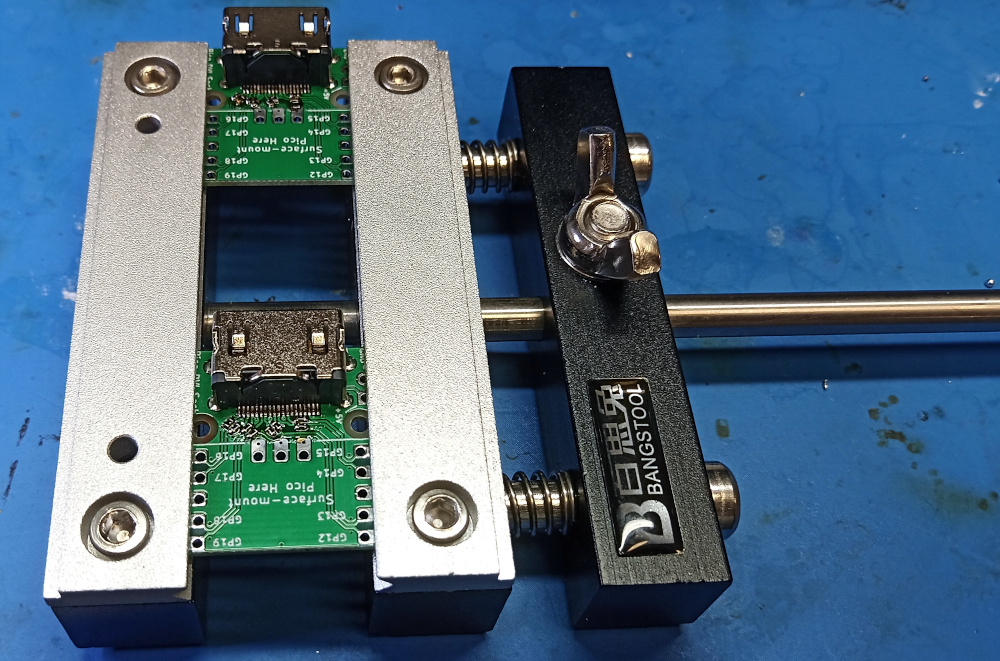

The Raspberry end of Pico should be surface-mount soldered on top of the Sock. The image below shows the correct orientation: the last 5 castellated holes on each long edge of Pico align with 5 pads on the Sock, to connect GP12-19 and GND on Pico to the TMDS pairs and signal ground. The text saying "Surface-mount Pico Here" on top of the Sock should be covered by the Pico.

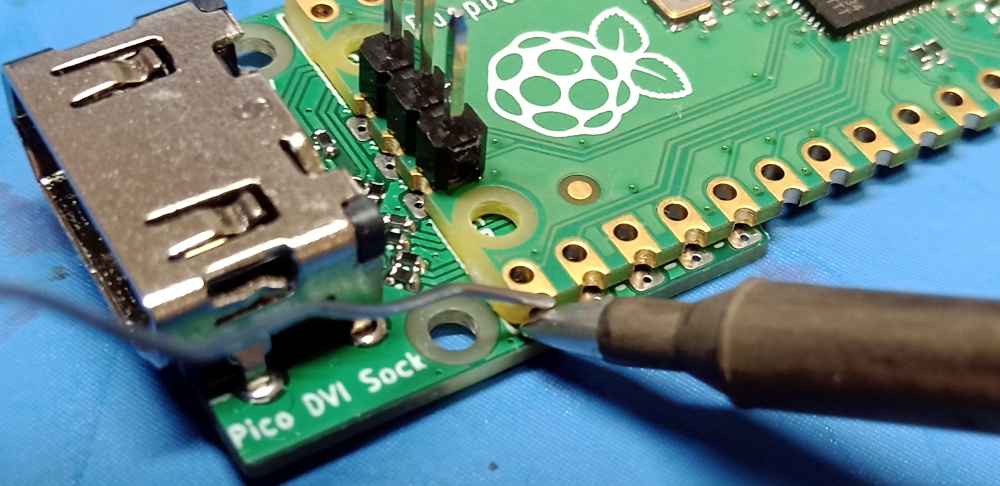

Aligned in this way, there is surface-to-surface contact between each metal pad on the Sock, and the corresponding metal pad on Pico. To successfully solder the two boards, we need to flow solder into the narrow gap between the two pads, in a thin film that wets both surfaces to create a strong mechanical and electrical bond. The trick here is to get both pads hot simultaneously, melt solder onto one of the pads, and let surface tension do the work.
:information_source: To help get the two boards aligned, you might find it helpful to push a 3-pin header through the debug contacts (without soldering it yet), as shown in the next image.
Things to note in the above image:
:warning: I recommend just soldering the 5 pads along each edge, and not the 3 debug pads at this point. It's too easy to get a solder blob on the surface-mount resistors when trying to solder the debug pads.

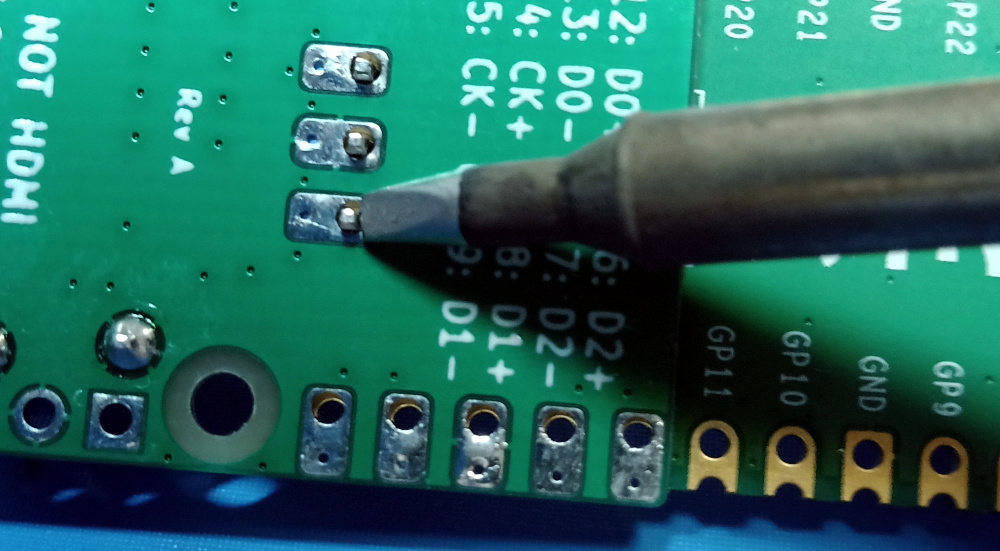

Pico and the Sock are both thinner than usual PCBs (1mm each) so the debug pin header can be pushed through both boards, and through-hole soldered from the back as normal:

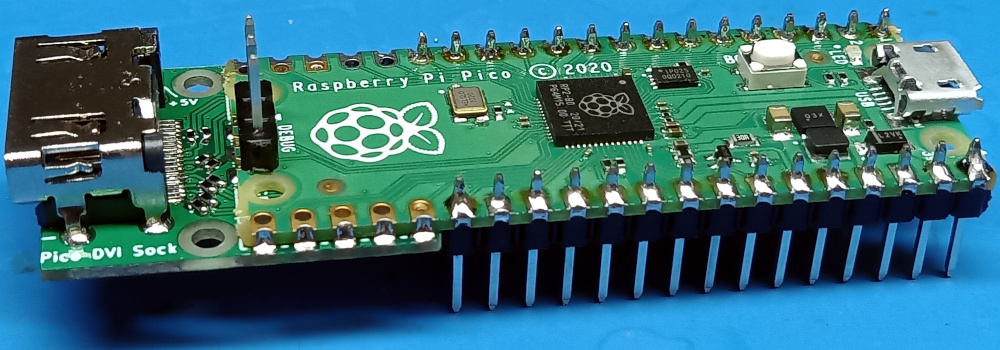

Once the Sock is mounted, you can populate the remaining through-holes on Pico with 2.54 mm headers if you choose, so the board can be pushed into a breadboard.

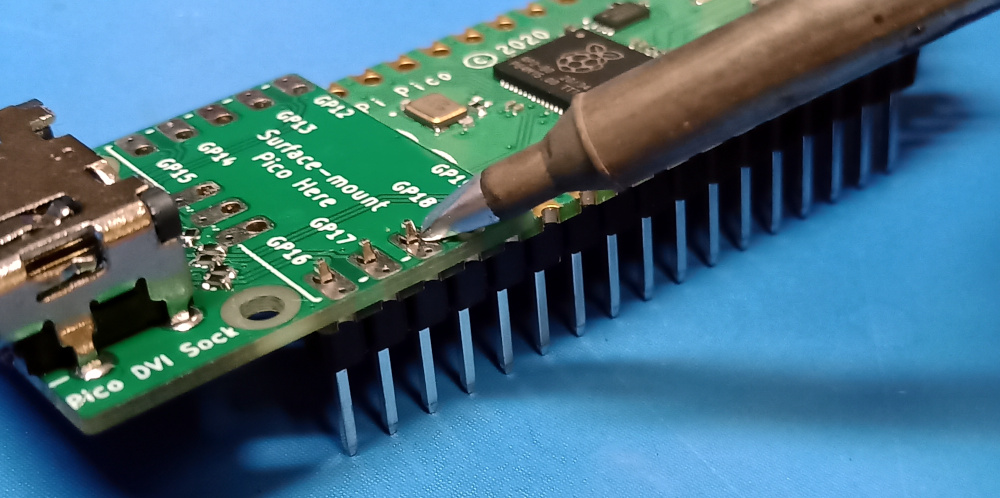

Finally, an alternative if you want to avoid surface mount soldering: you can push headers into Pico from the bottom, sit the Sock onto the stubs of the headers that are sticking through, and then through-hole solder from the top, like shown here:
:warning: You should cut off the last 5 pins on each side (GP12-GP19 and the two GNDs, which connect through the Sock), if you solder the boards this way and intend to plug this board into a breadboard, so that the high-speed serial video signals aren't connected to the breadboard parasitics.
