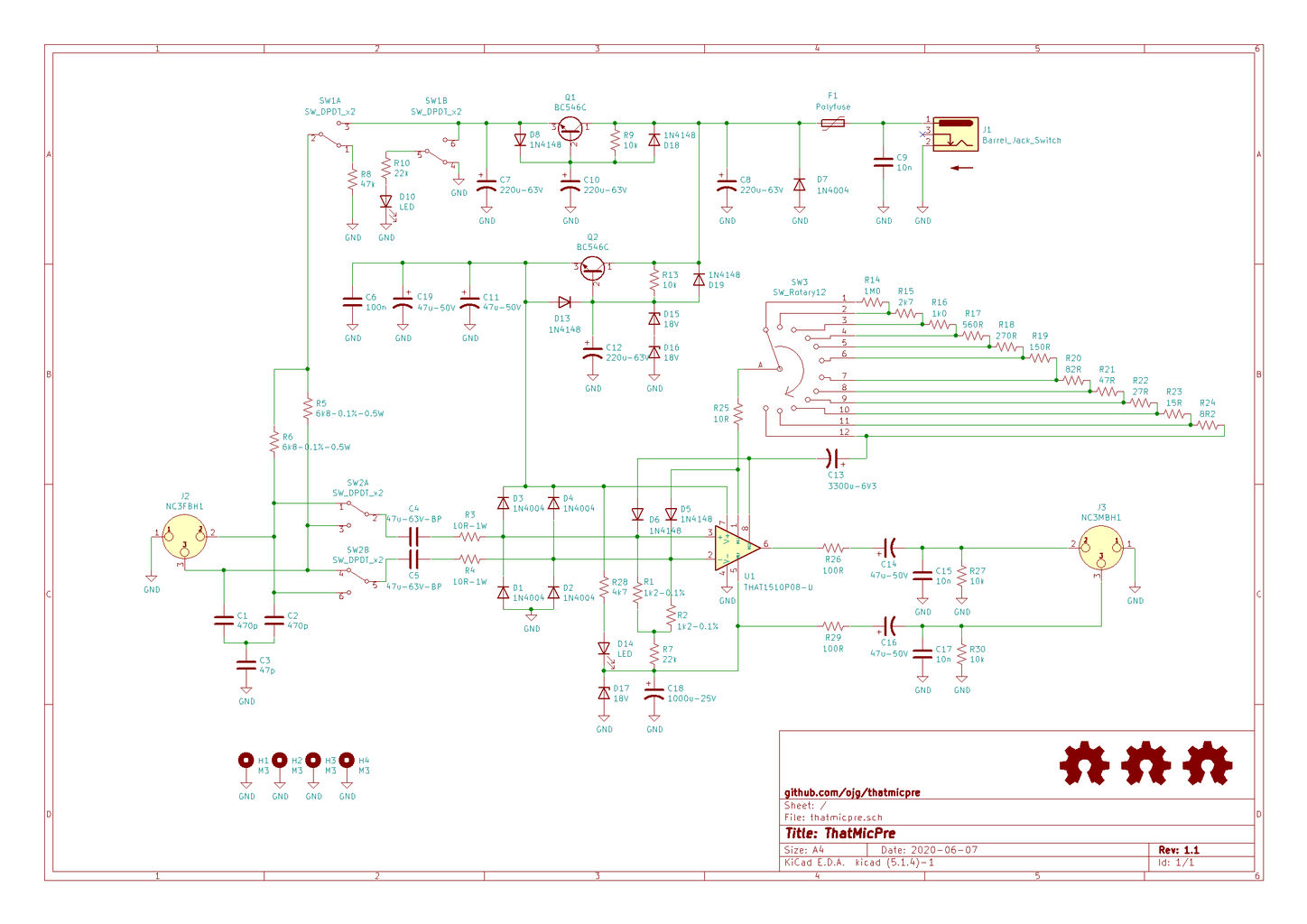

thatmicpre Schematic SVG view

Imported from GitHub: ojg/thatmicpre · commit c973527 · license CC-BY-SA-4.0

Description

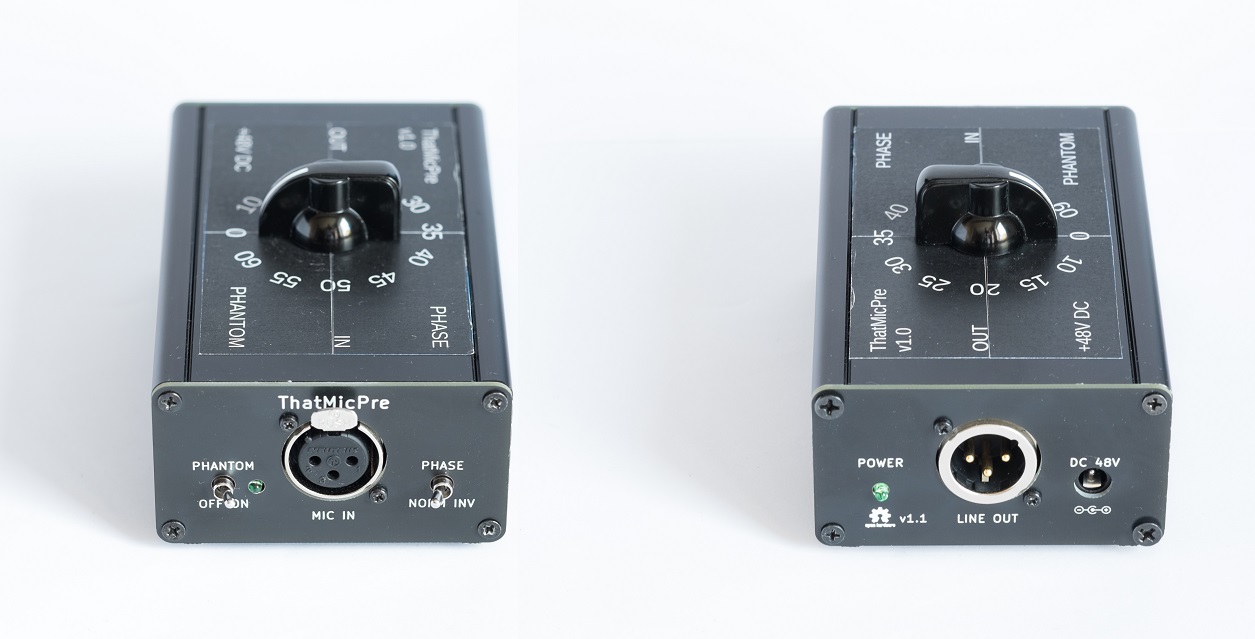

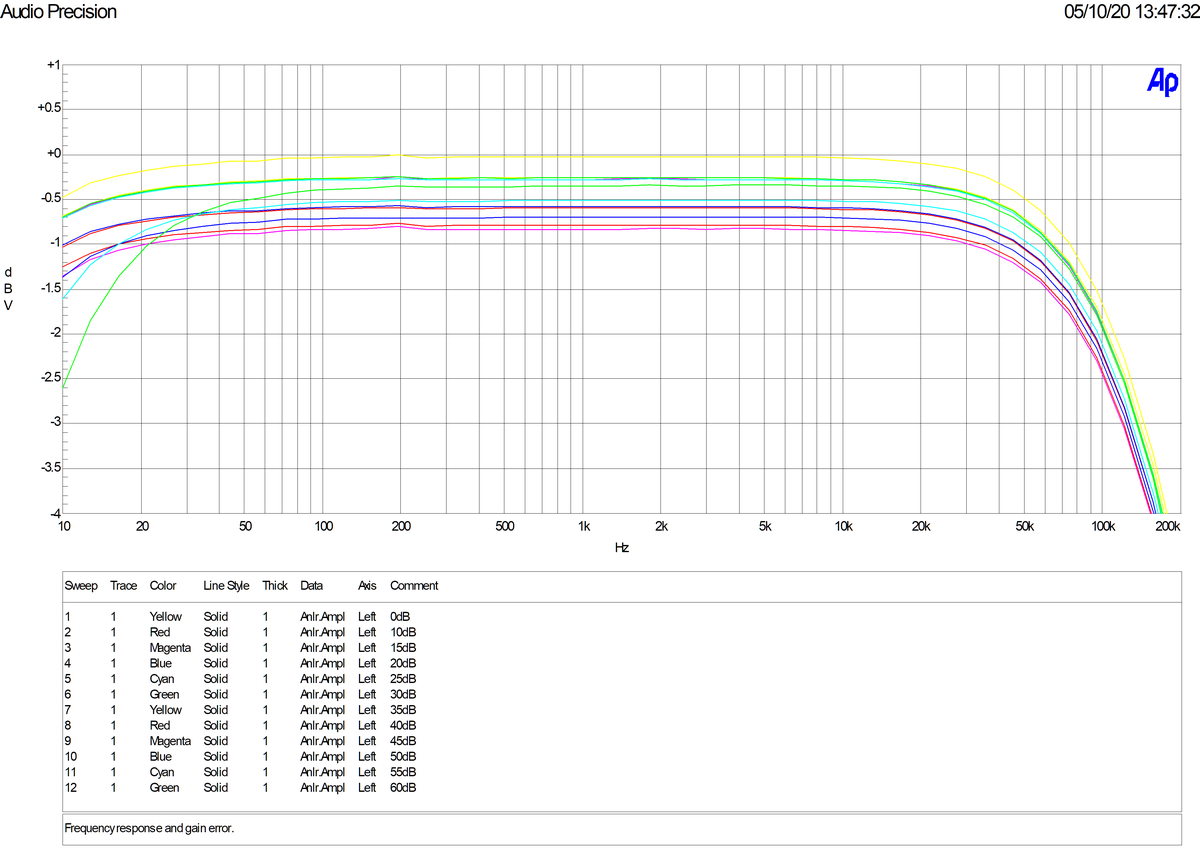

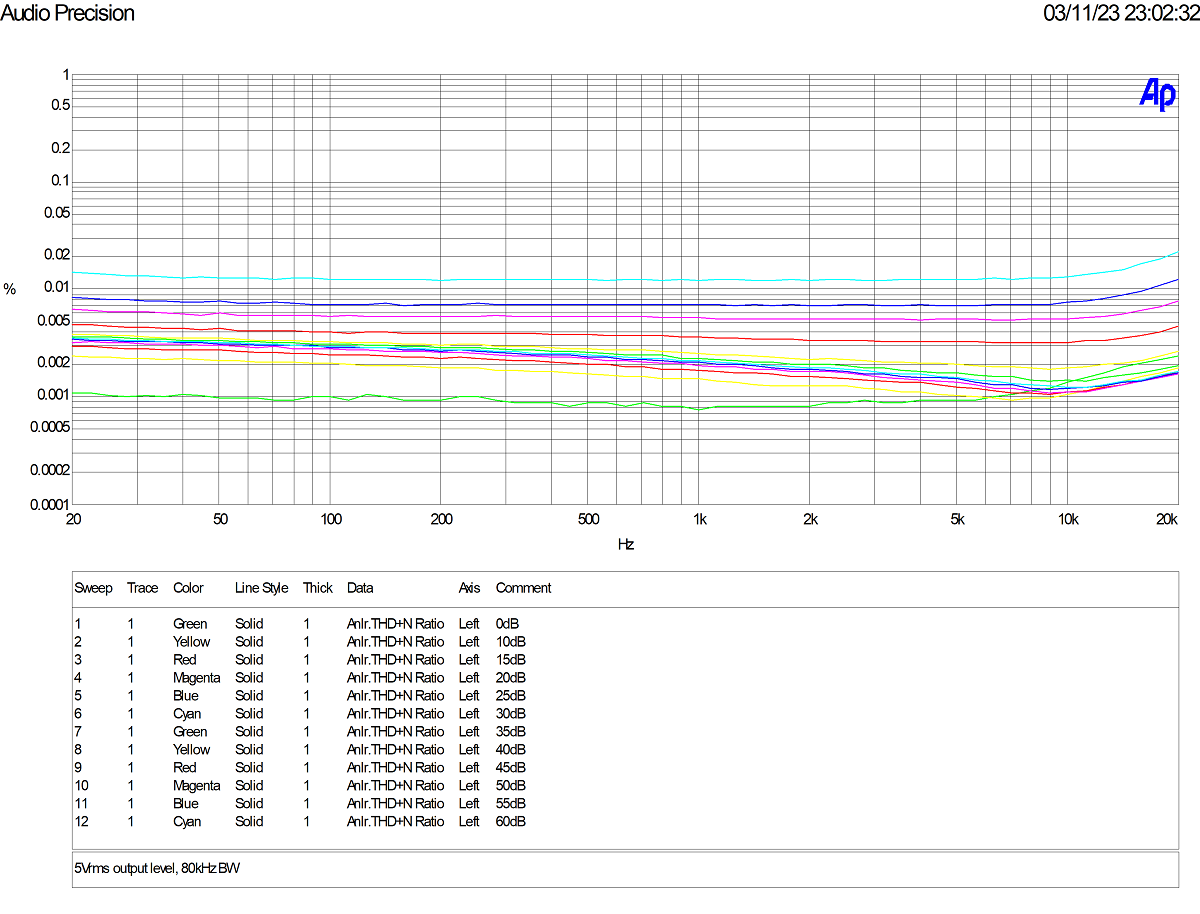

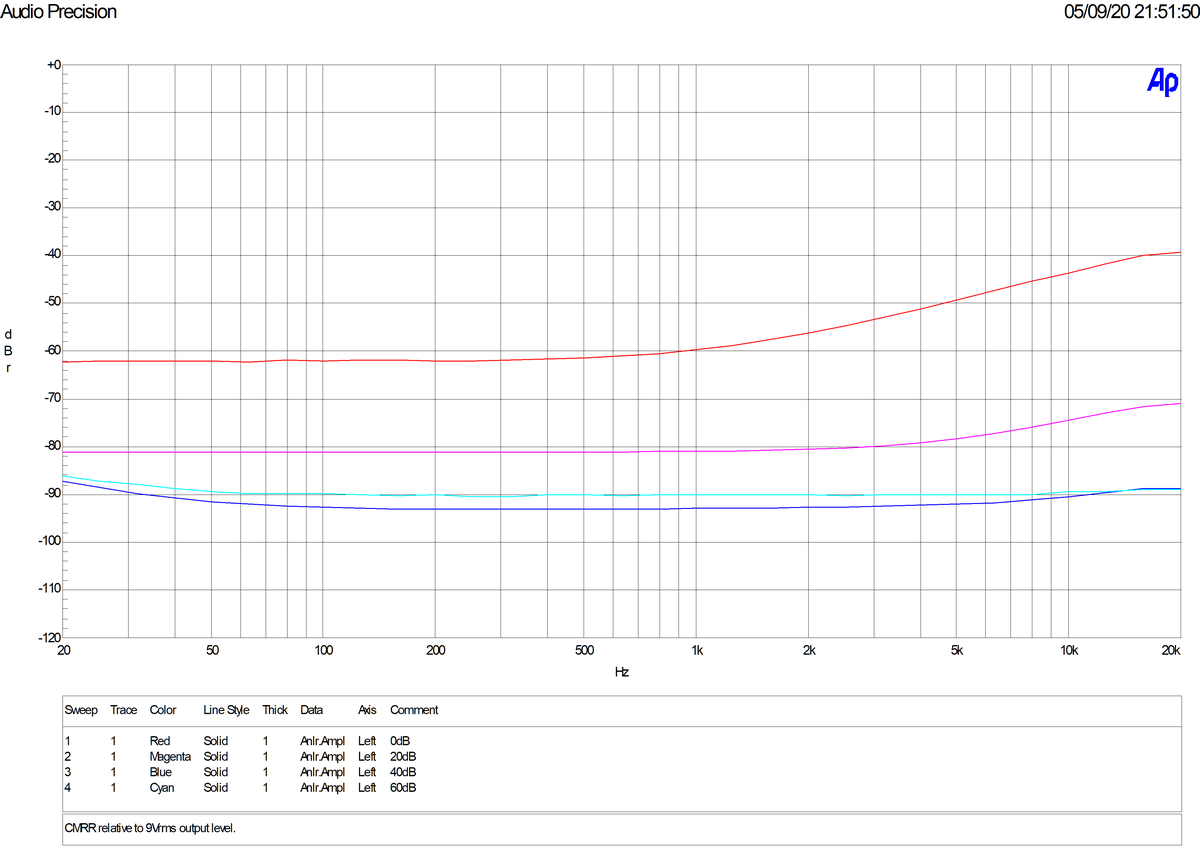

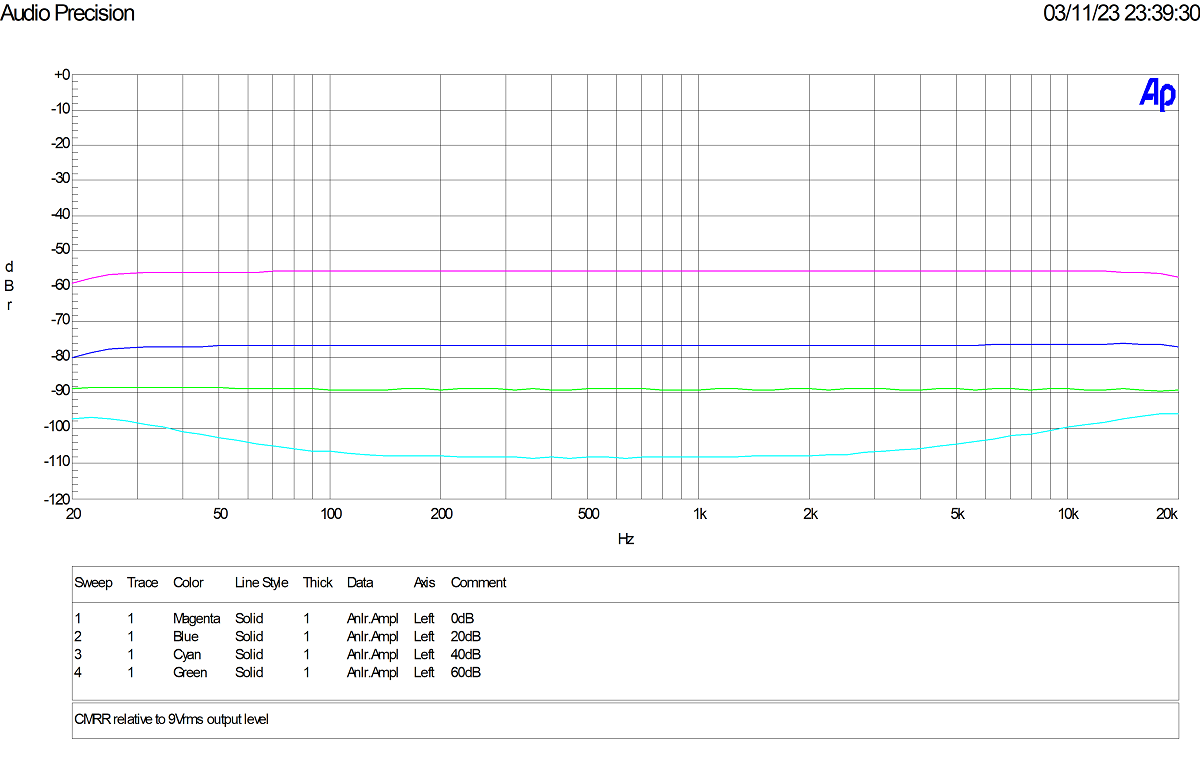

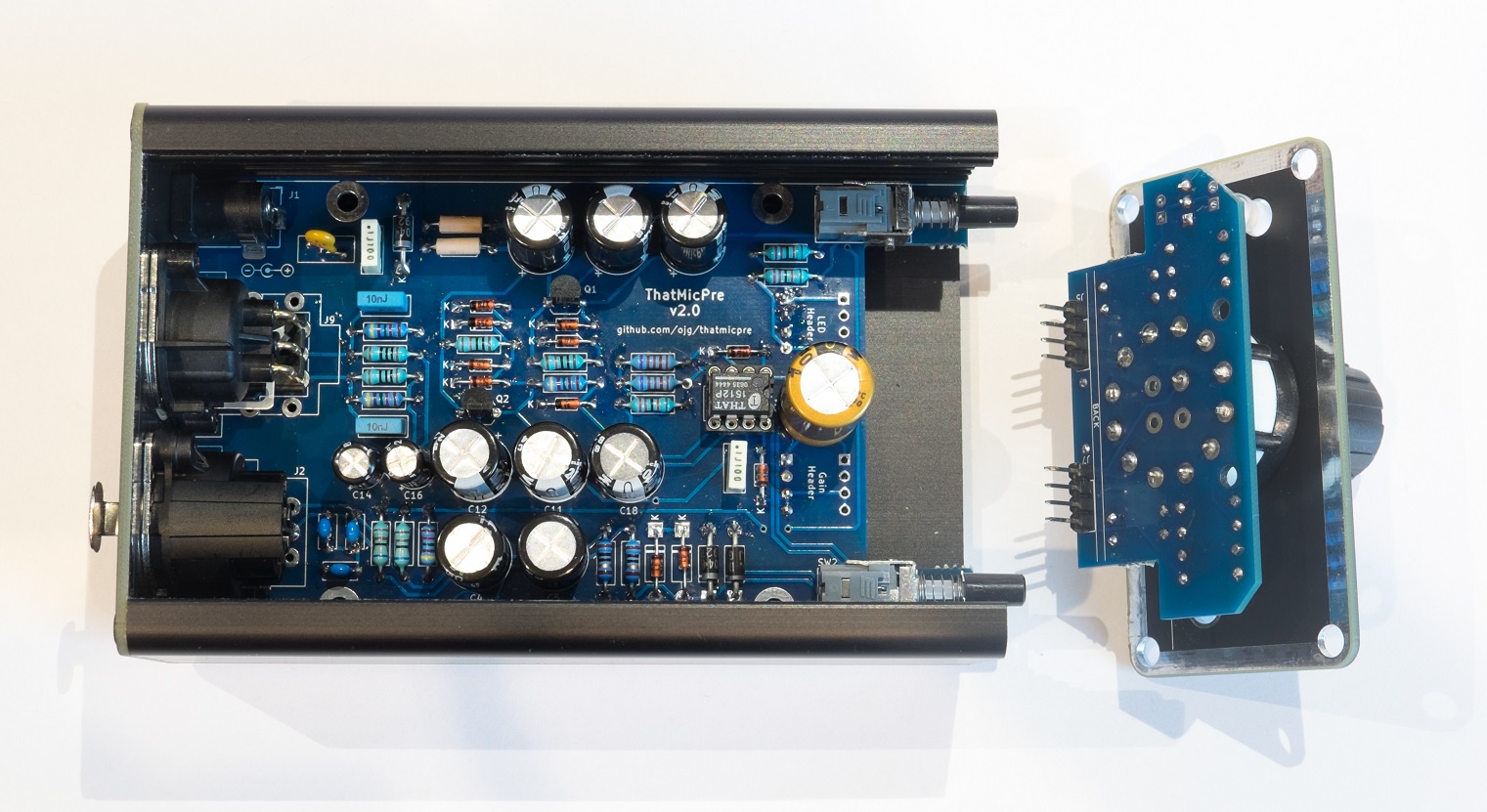

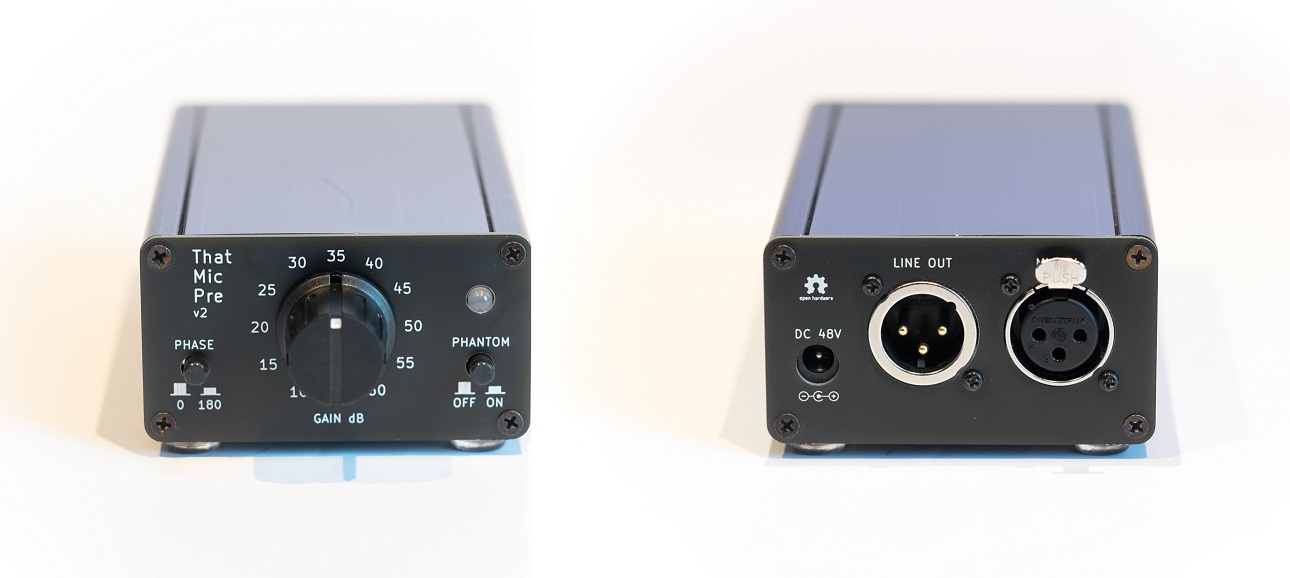

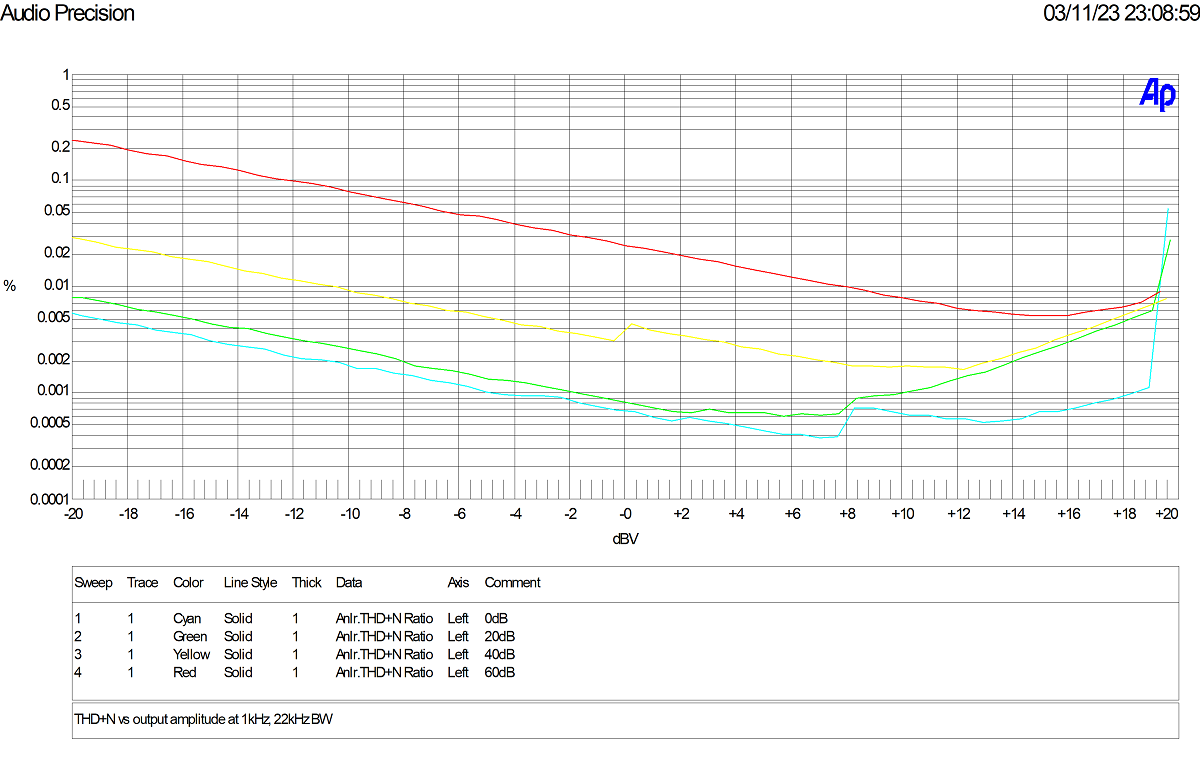

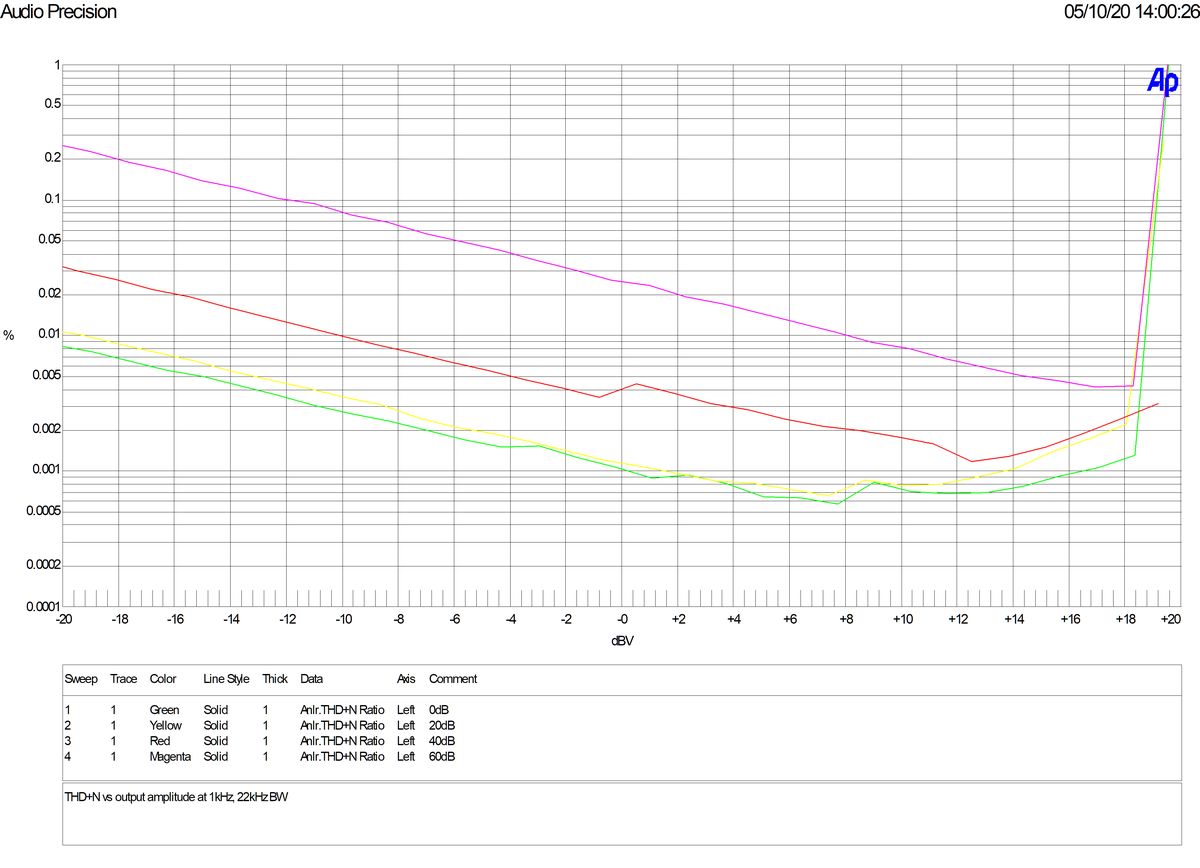

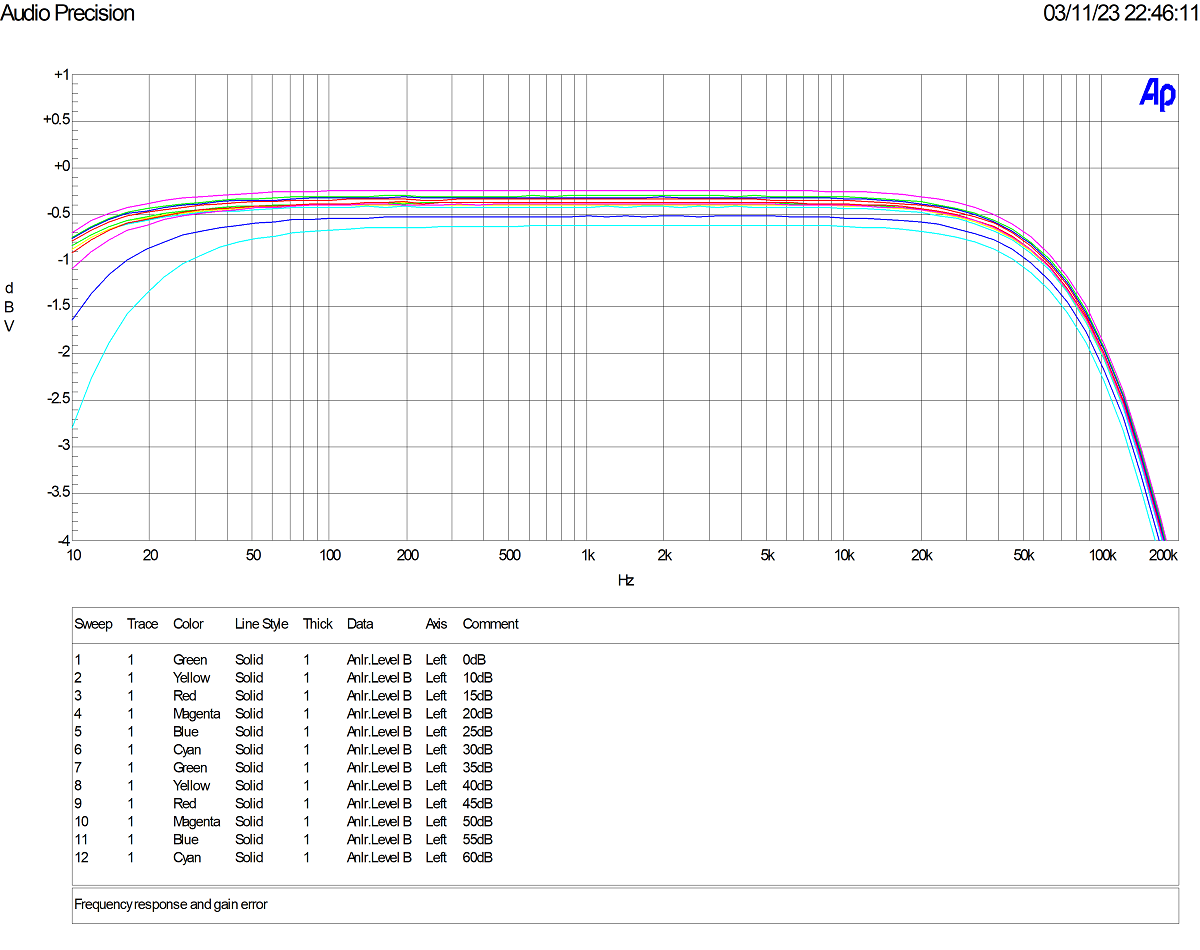

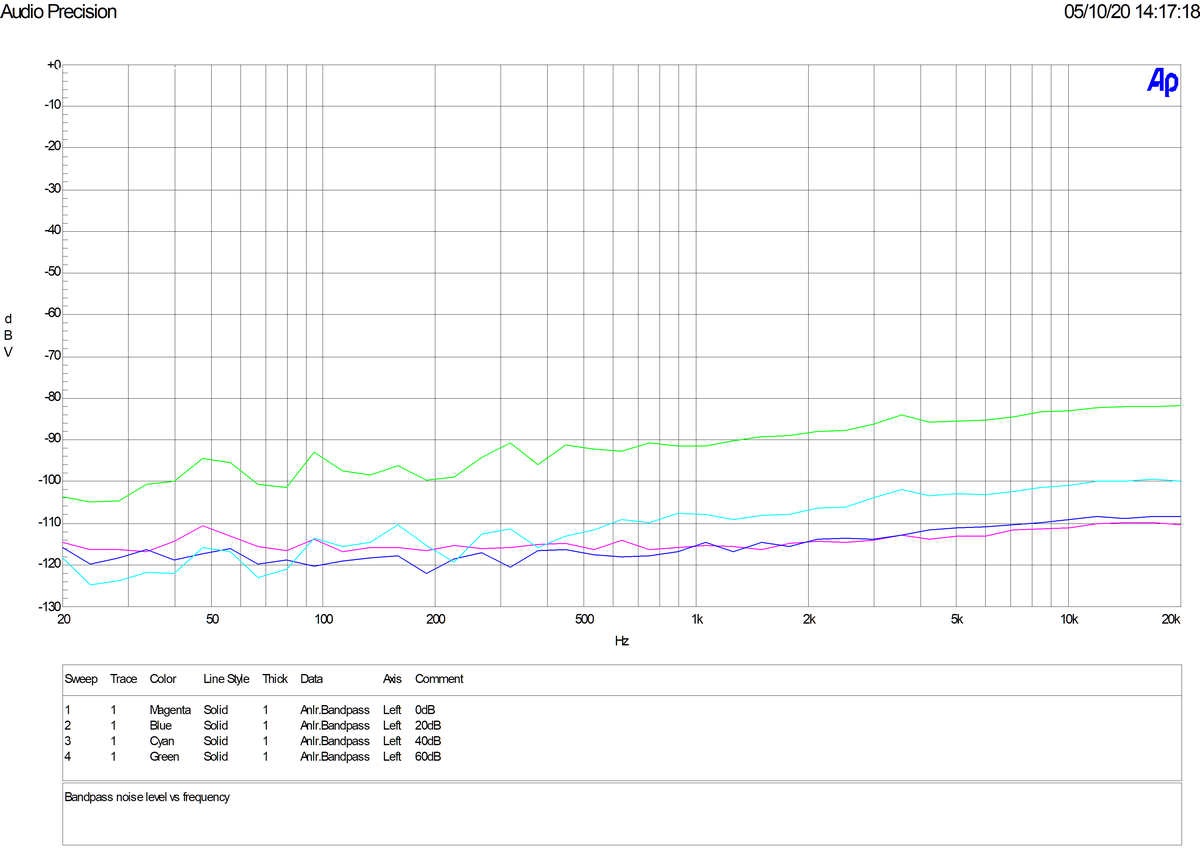

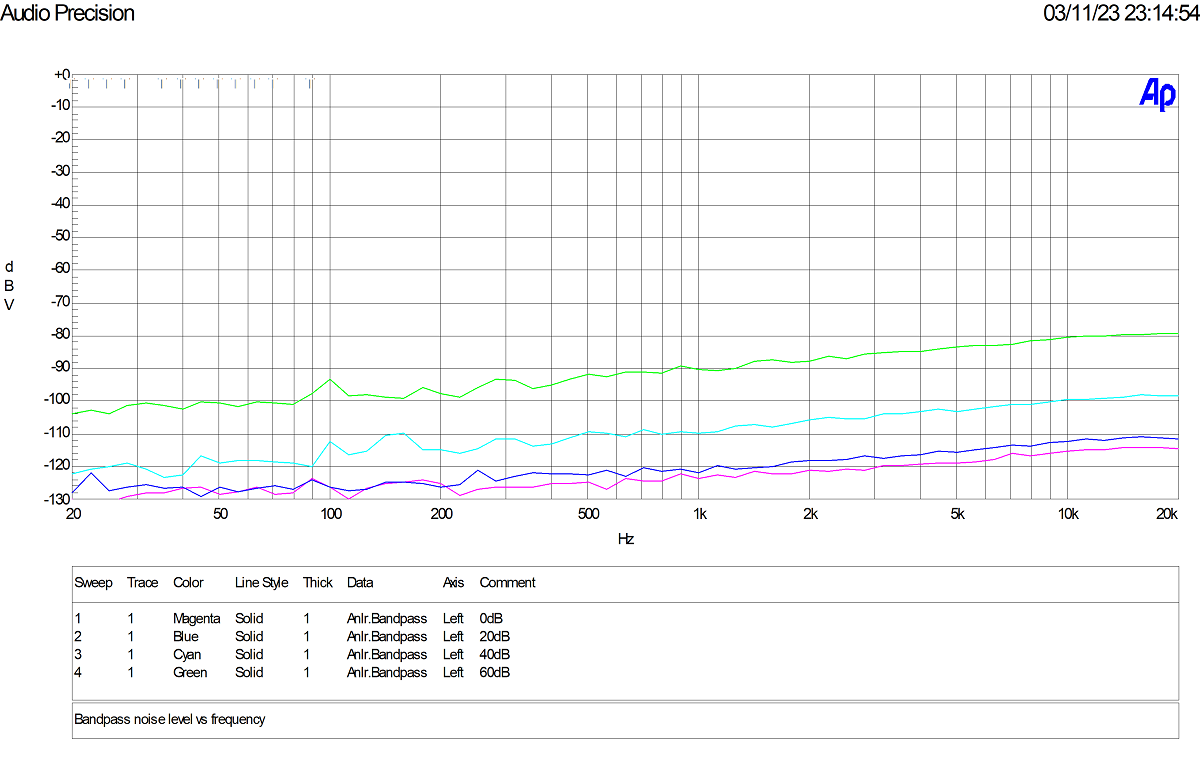

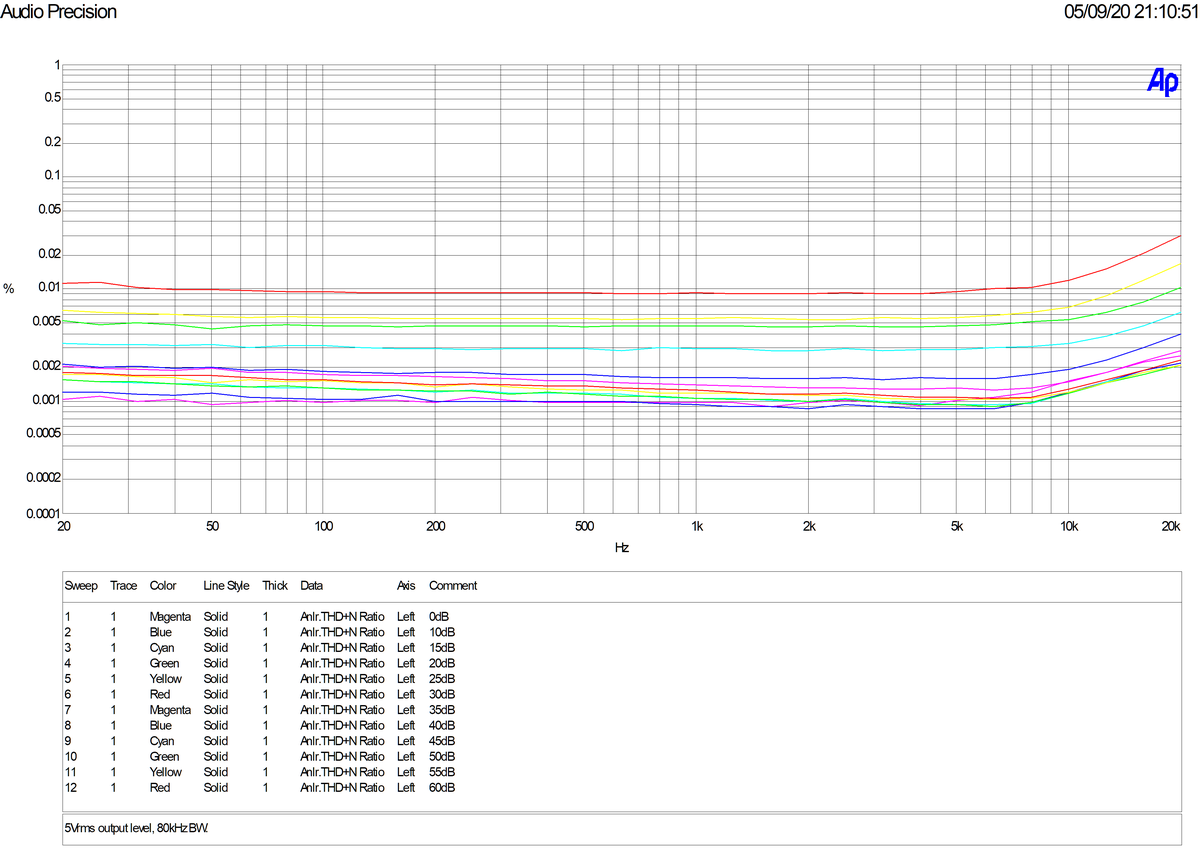

Microphone Pre-amplifier

publicCC-BY-SA-4.0

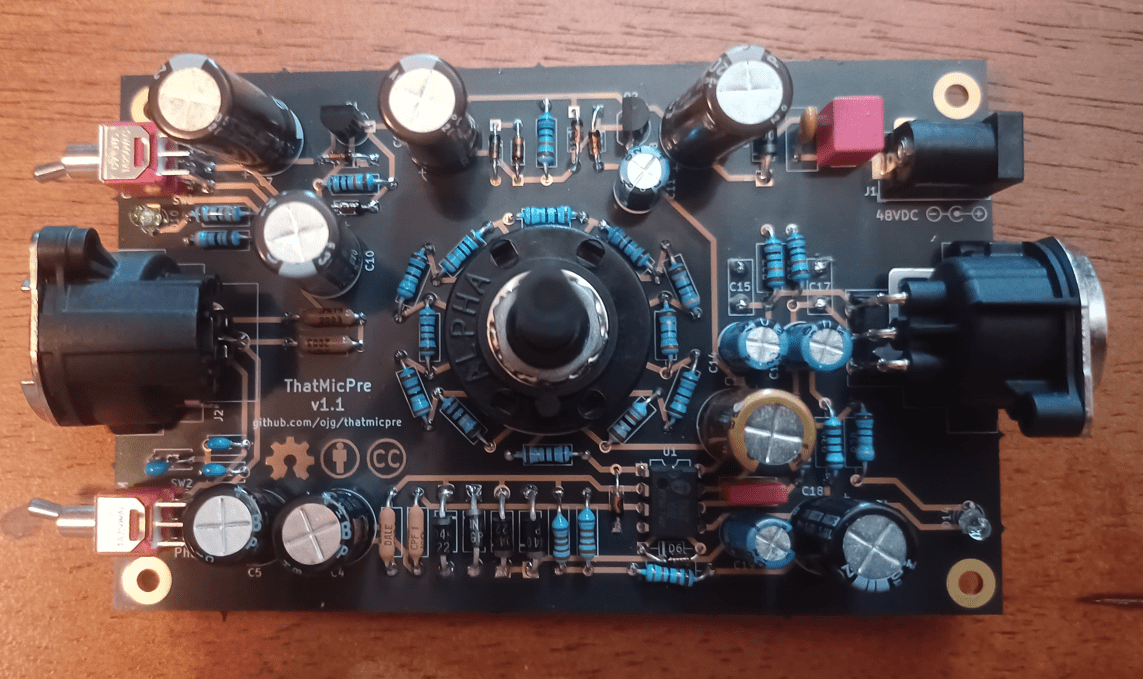

thatmicpre

@ojg

Microphone Pre-amplifier

Tags

amplifieraudiodiykicadmicrophoneopen-source-hardwarecapacitorresistordiodeswitchtransistorledmounting holeconnector

004Sign in to save

Project info

Files5

Source315 KB

Extracted1.5 MB

Source formatKiCad KiCad project format 2

GitHub stars185

Imported fromGitHub

Saves0

Downloads4

UpdatedJun 26, 2026

Downloads

Source packageOriginal hardware design source archive

Original KiCad project zip

315 KB

Fabrication packageManufacturing outputs for the board house

Gerbers and drill zip

44 KB

Review packageSchematics, PCB views, BOM, and extracted files

Schematic PDF

157 KB

Schematic SVG

1.0 MB

PCB SVG

130 KB

BOM CSV

5.9 KB
