OpenTKL

Fully open souce TKL keyboard project

Use as a base for your own designs, renders or order as is (read important info at the bottom).

Details:

• F13 TKL layout supporting ANSI, ISO, stepped and normal CAPS, Split right shift, and split backspace.
• Jane V2 CE plate.
• 3 optional internal weight pieces can be filled with foam for dampening or metal for more heft.
• 7 degree typing angle.
• Hiney h88c support.
• Flush USB-C connector built into the PCB, no need for a daughterboard (though the PCB supports it).
• Skuf feet.
• Countersunk m3 screws for everything except the plate which uses normal button head m3 screws.

Important Info (READ BEFORE ORDERING):

• I do not offer any sort of warranty for this, nor can I be held liable if something goes wrong.

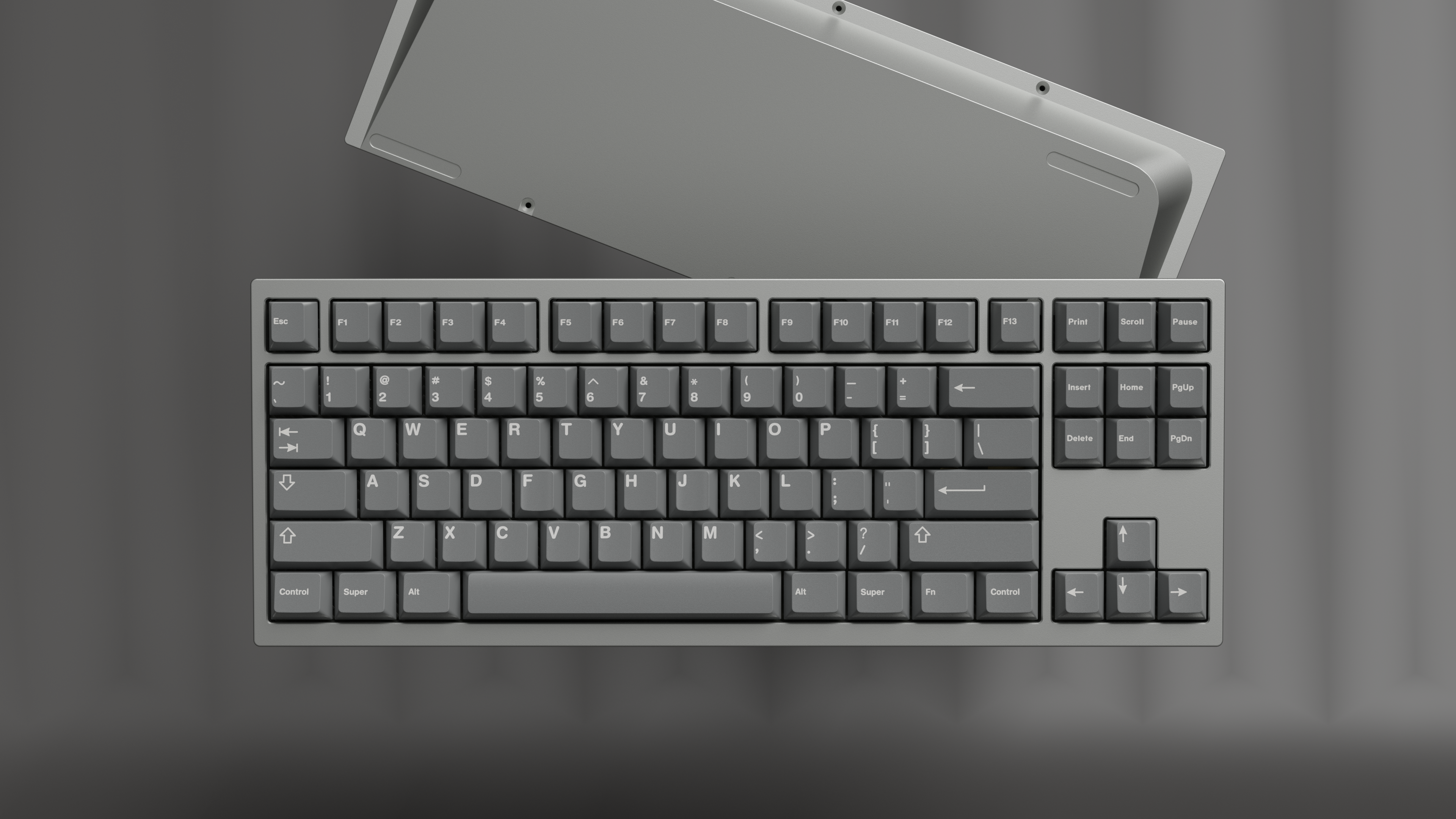

• Renders are not fully representative of the final product.
• Please, PLEASE look over the design before you do anything with it, it's possible and very likely that there are some errors, I'm just a human.

If you use this as a template for your own design, please give credit(same goes for renders).
