README

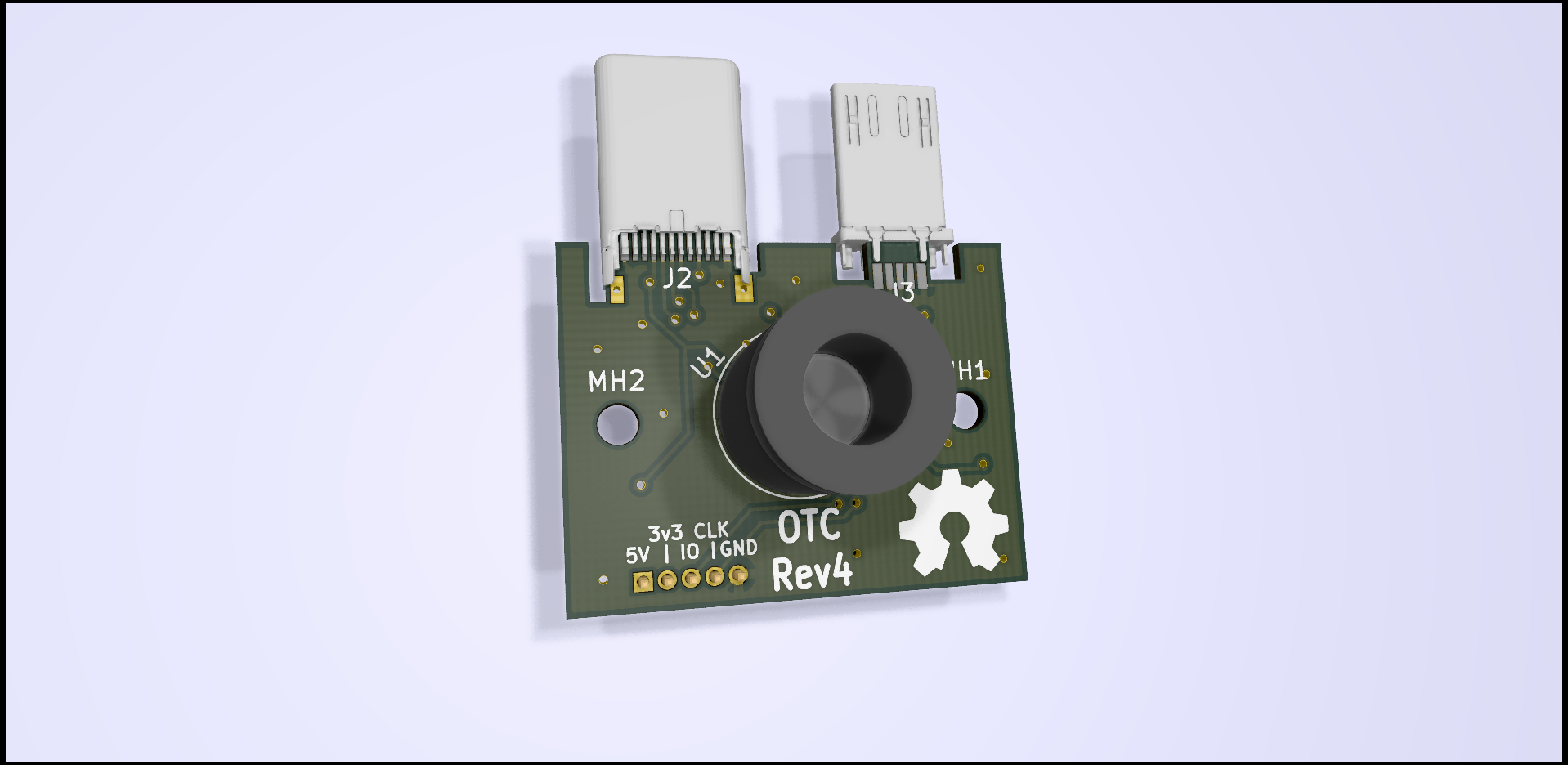

Open Thermal Camera - KiCad PCB

This repository contains KiCad source files for Open Thermal Camera PCB.

The PCB is 2 layer, thickness of 0.8mm (To accommodate the edge TypeC / MicroUSB connector)

Under releases you can find:

  • Interactive BOM (.html)
  • KiCost BOM (.xlsx)
  • Gerbers
  • Position files (.pos & .rpt)
