OtterCastAudioV2

OtterCast is an open-source audio streaming device running Linux. Based on a Sochip S3 SoC, featuring a Webinterface, shairport-sync, snapcast, Spotify Connect and pulseaudio sink/source.

How do I get one?

We are currently planning a small batch production run, stay tuned. No we are not, sorry

You don't want to wait? You can of course run a small batch on your own! Please have a look into the production folder, a batch size of just 5 (and up to 30) boards is supported by JLC.

Installation & Configuration

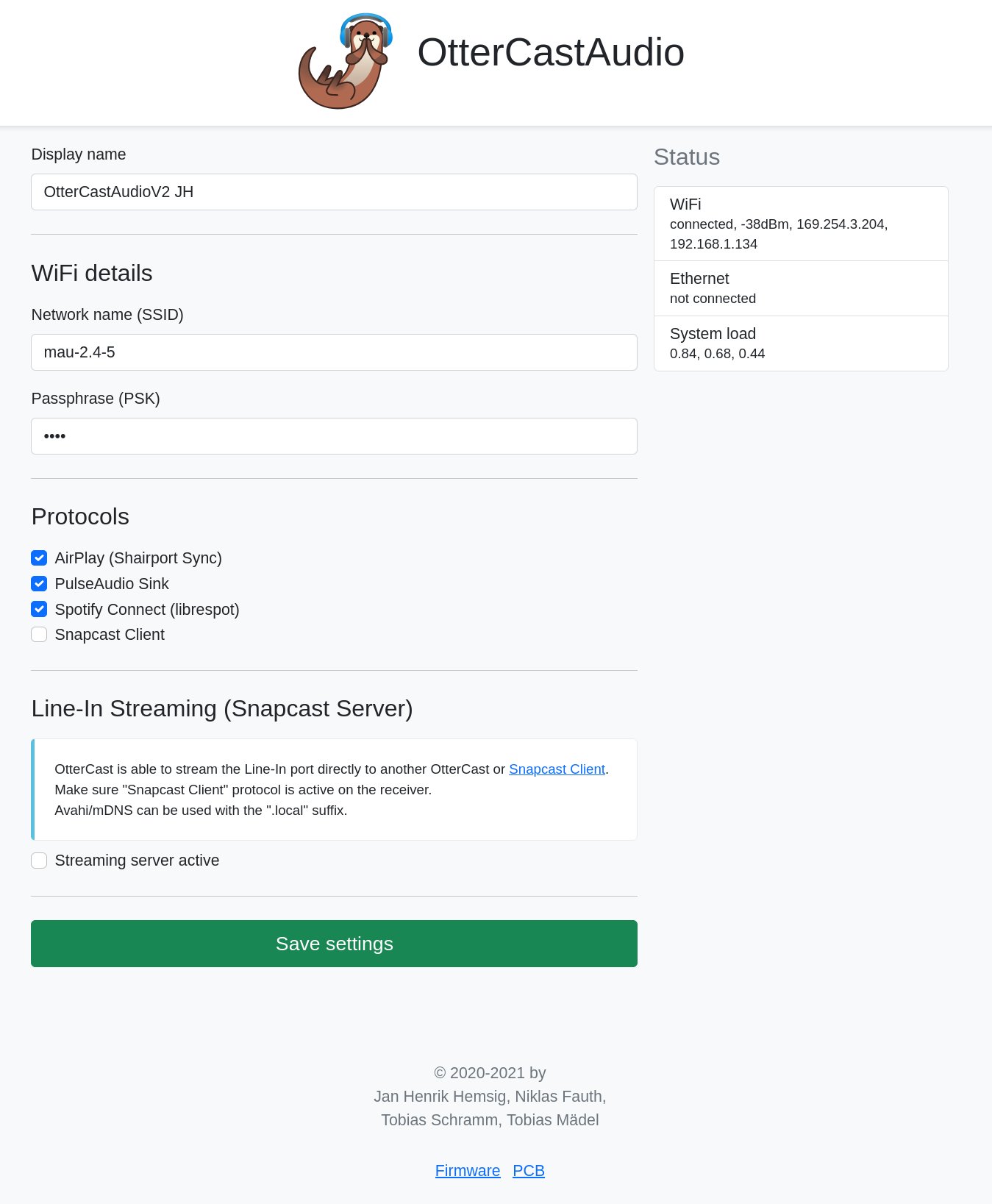

After downloading and flashing the image, OtterCastAMP can either be configured via the config.ini file or via the web-interface.

Check out our Documentation for more information!

Schematics?

Schematics!

Team

• @lucysrausch Hardware - OtterCastAmp
• @janamarie Hardware - OtterCastAudio
• @Toble_Miner Software - Embedded Linux
• @Manawyrm Software - Frontend & OTA

What happened to OtterCastAudioV1?

Nobody shall ever know

Status

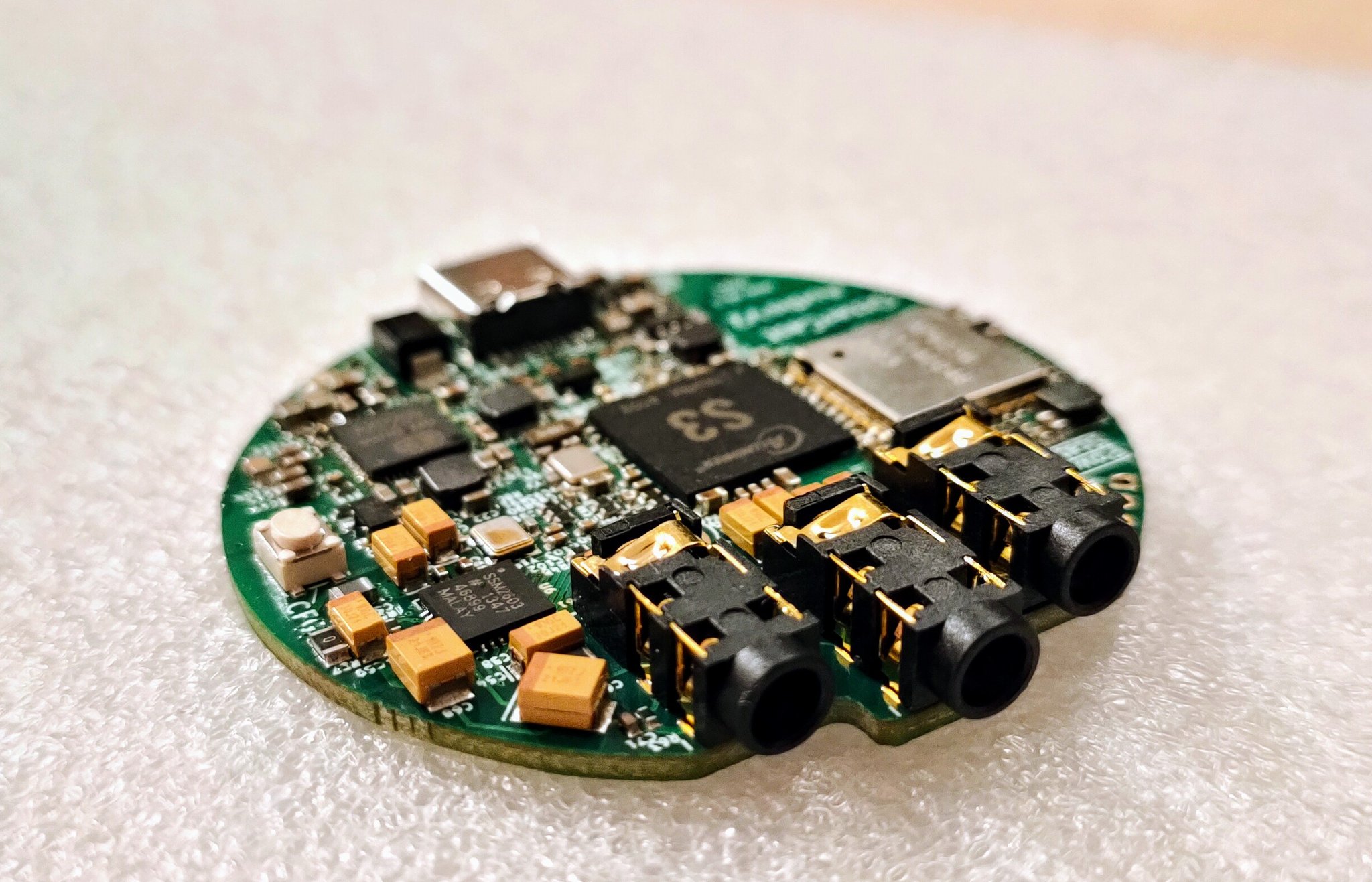

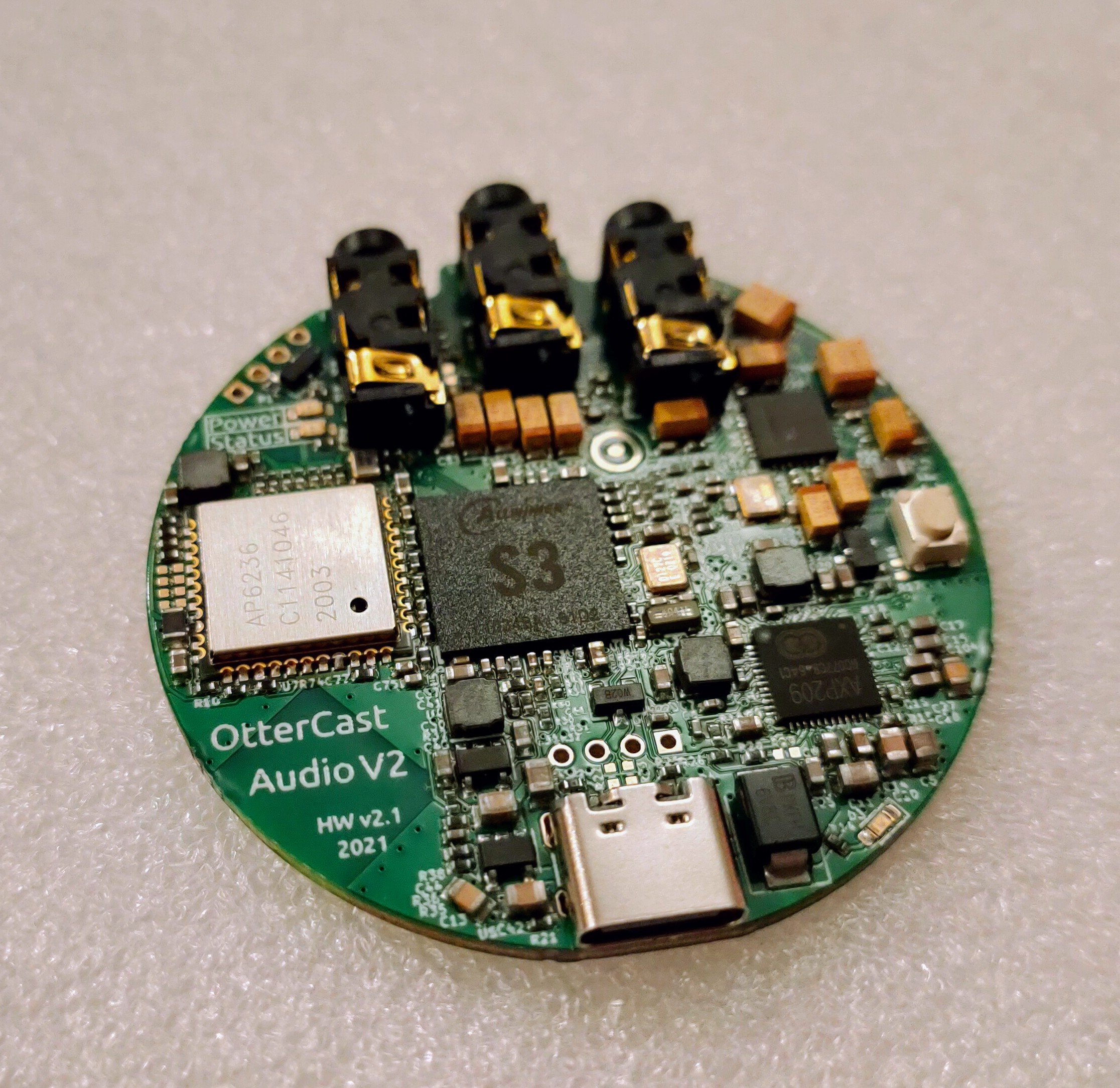

HW v2.1 is tested and works!

• Audio Line Out

• Audio Headphone Out

• Audio In

• WiFi

• Ethernet

• USB Sound card mode

• Webinterface (config)

• Shairport-sync

• Pulseaudio sink/source

• snapcast server/client

• Spotify Connect (librespot)

License
