hw-gimletlet

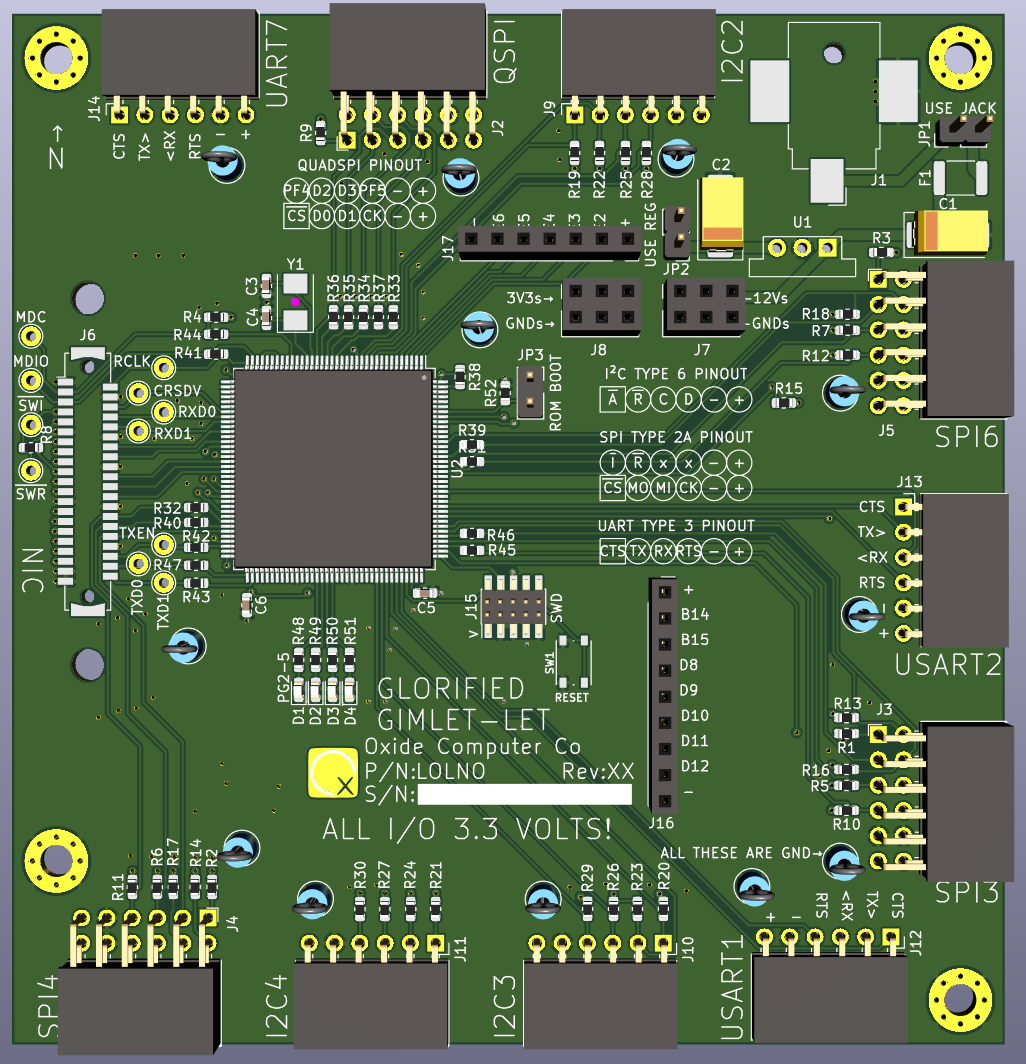

More full-featured breakout board for the STM32H7, including many expansion headers for daughter boards.

In active use for Hubris development and as a Swiss Army Knife around the lab. Generally when someone is speaking about a "gimletlet" the mean gimletlet2 "Glorified Gimletlet" as a vanishingly small number of gimletlet1's were built and used for some very early network bring-up.

Some design notes for gimletlet2 More design notes for gimletlet2

Some mechanical specs

Bonus boards

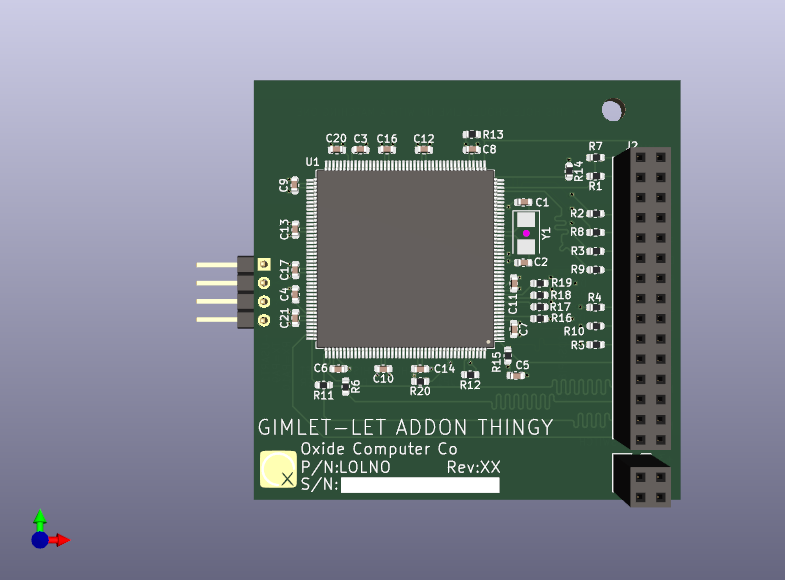

gimletlet-1

The OG gimletlet. Same CPU, nothing else is the same :)

very limited use, very limited quantity

Subfolder

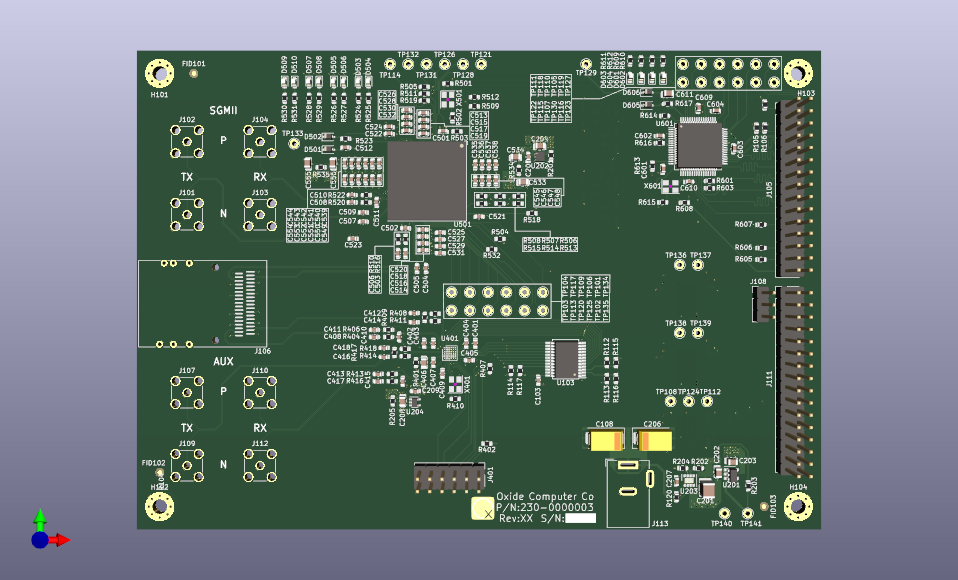

management network bringup

very limited use, very limited quantity

Pairs with the gimletlet-1
