README

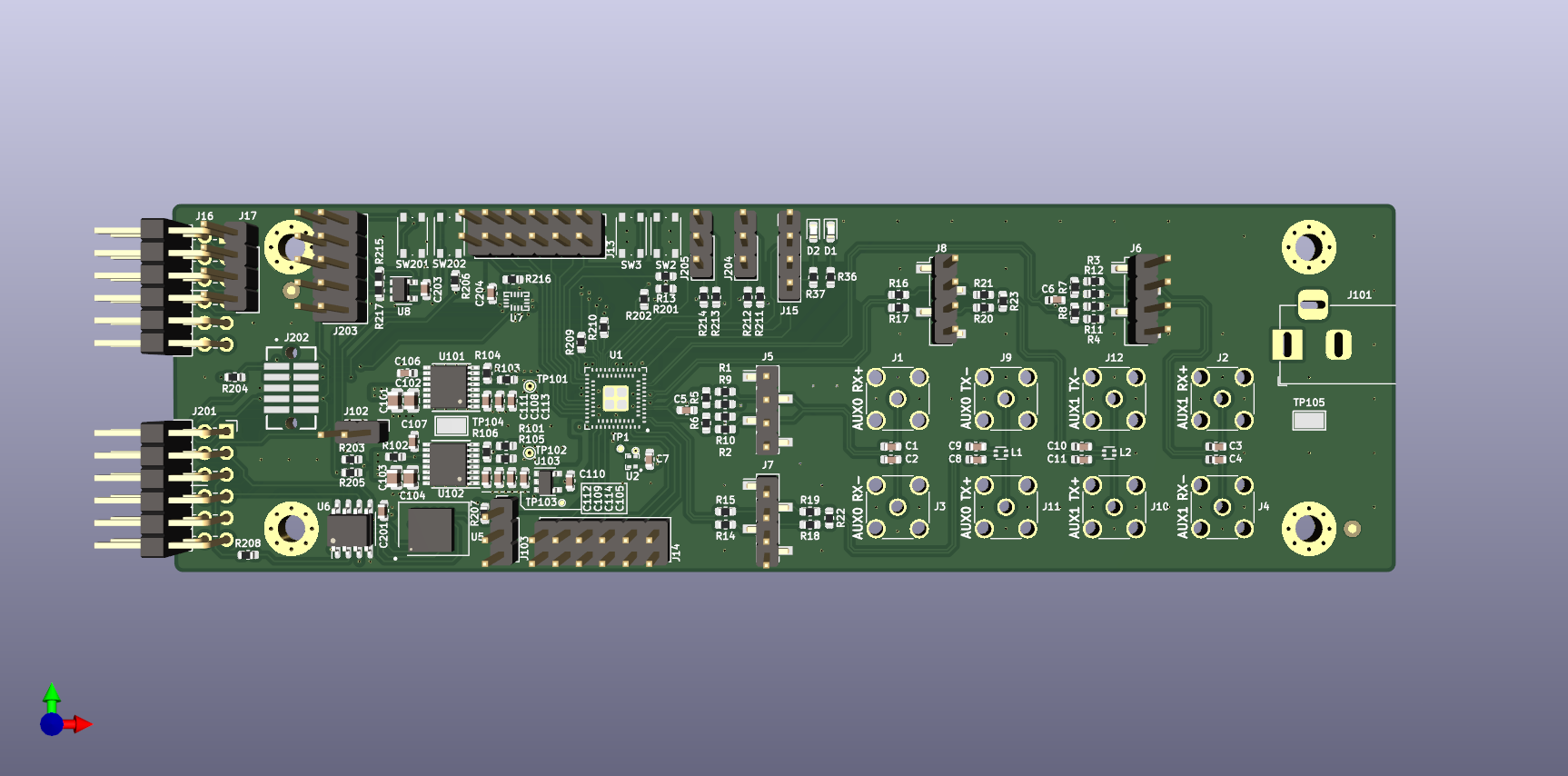

hw-ignitionlet

Breakout board for the ice40 FPGA with SPI PMOD interface

Bonus boards

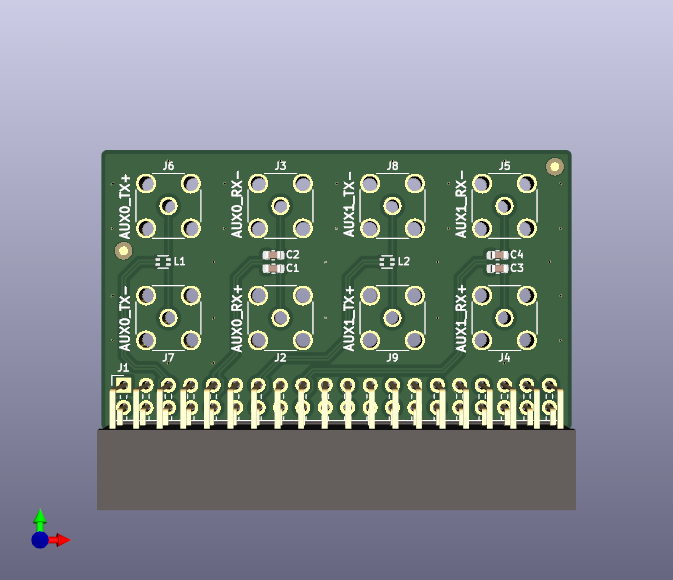

There is a lvds_sma_adaptor included which breaks out the LVDS pairs with a compatible pinout to the Lattice ECP5 Dev Kit

Status

No known required rework. See schematic notes for required jumper settings.
