tim-s-i2c-intelligent-dc-motor-driver-kicad Schematic SVG view

Imported from GitHub: Palingenesis/Tim-s-I2C-Intelligent-DC-Motor-Driver-KiCad · commit 19d024c · license GPL-3.0

Description

Tim-s-I2C-Intelligent-DC-Motor-Driver-KiCad This is my Intelligent I2C DC Motor Driver It is an STM8S103F3P6 cofigured as an I2C Slave to control a DC Motor using a H Bridge. It can recives signals from Quadratic Encoder to determin...

README

Tim-s-I2C-Intelligent-DC-Motor-Driver-KiCad

publicGPL-3.0

tim-s-i2c-intelligent-dc-motor-driver-kicad

@palingenesis

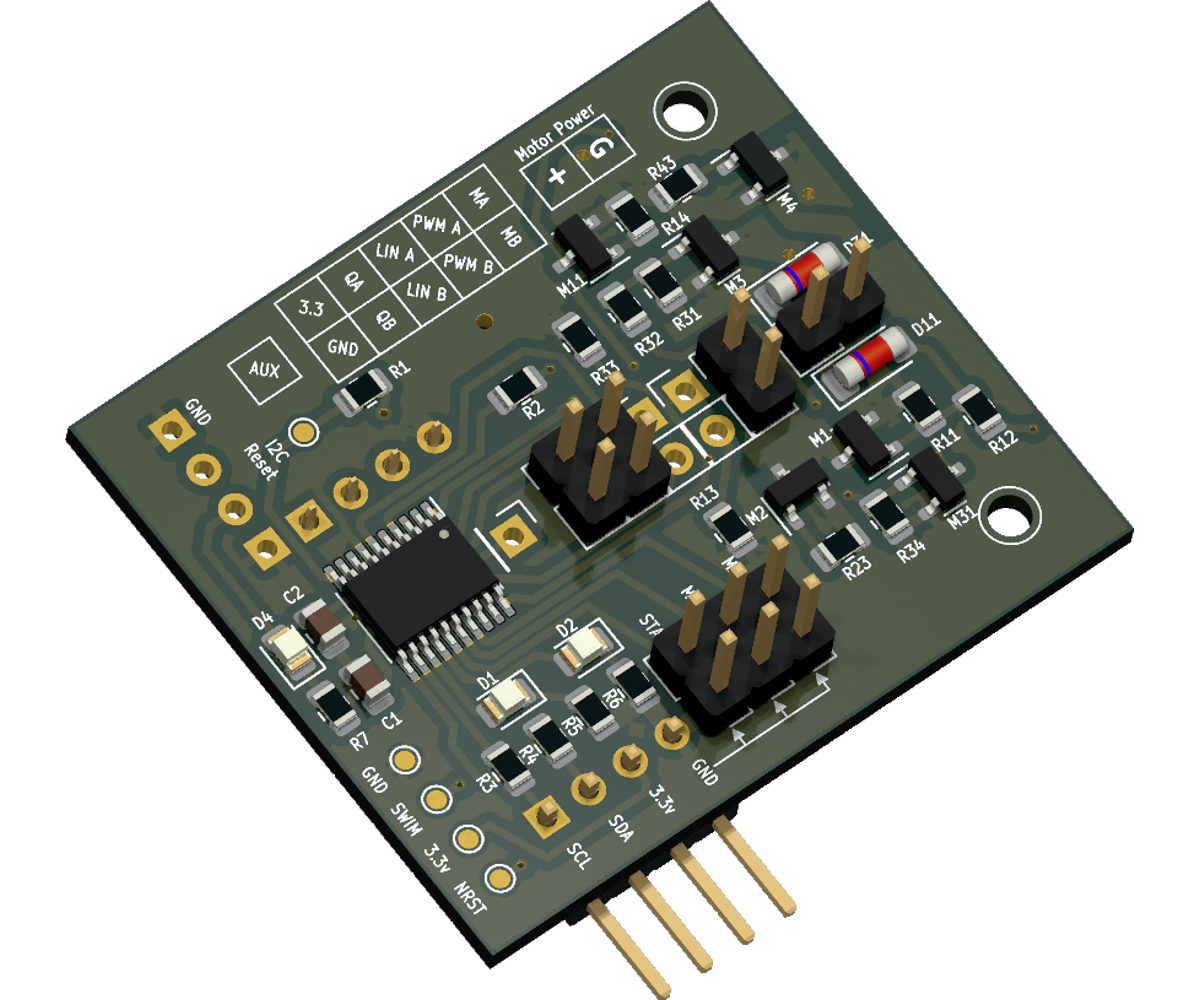

Tim-s-I2C-Intelligent-DC-Motor-Driver-KiCad<br> <br> This is my Intelligent I2C DC Motor Driver<br> It is an STM8S103F3P6 cofigured as an I2C Slave to control a DC Motor using a H Bridge.<br> It can recives signals from Quadratic Encoder to determin...
