README

VFODialHID

Proposal for a standard HID descriptor for radio interface device (dial, knob, keypad, ...)

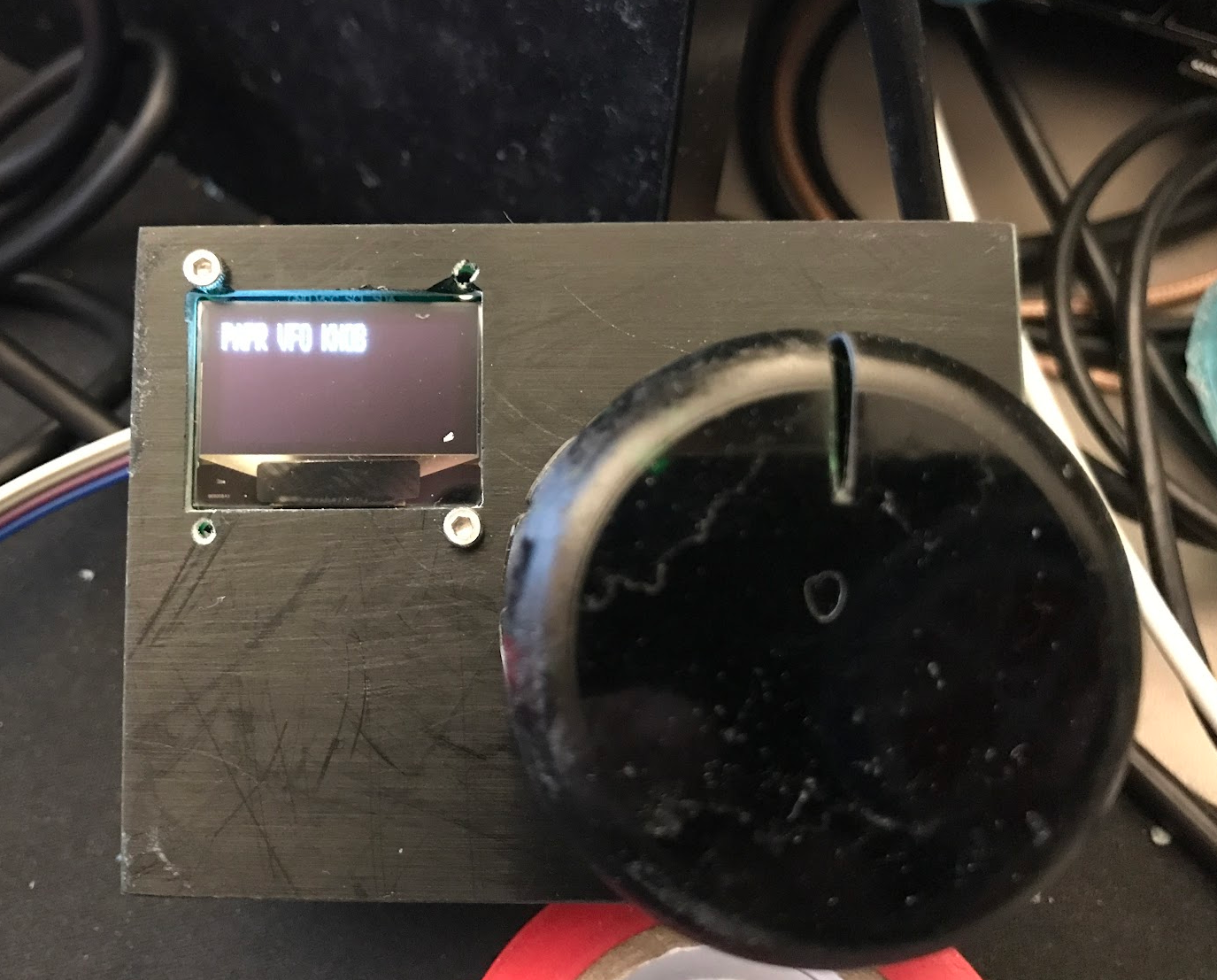

Prototype

First prototyp is being made and is based on a Arduino Pro Micro clone and use a LPD3806 rotary encoder. It relies heavily on https://github.com/NicoHood/HID projects. More informations can be found at https://wiki.rfporn.org/doku.php/wiki:projects:vfo_knob
