Description

Voltage glitching automation tool to break protection on NXP LPC microcontrollers.

README

GlitchBob LPC

Voltage glitching automation tool to break protection on NXP LPC microcontrollers.

The glitch circuit can be controlled by a Raspberry Pi Pico or other low-cost development board.

TODO

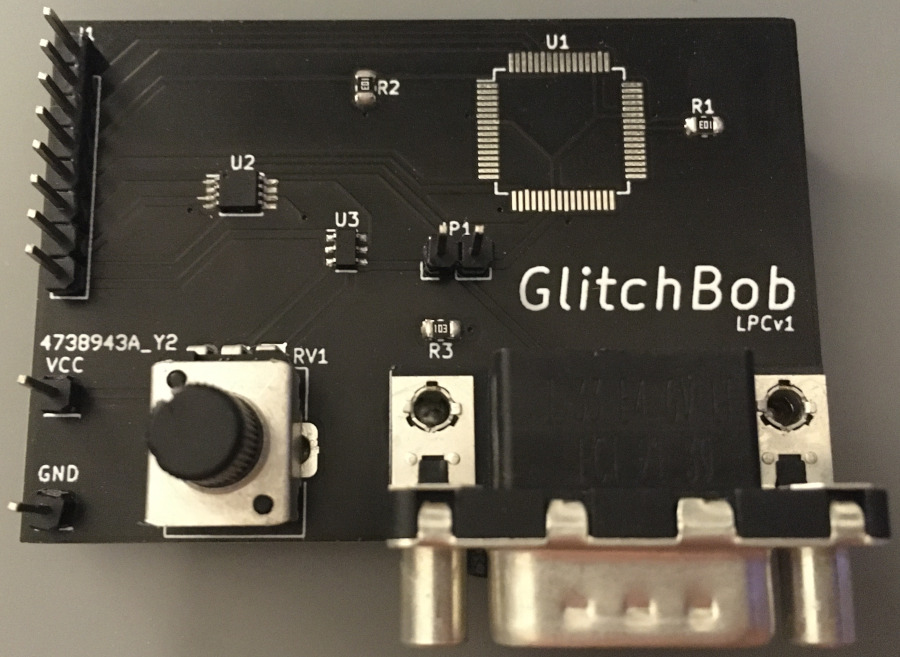

These are issues identified in the prototype:

• Add bypass caps to all ICs.
• Add pull-up resistor to 74LVC1G3157 switch input.
• Add pull-down resistors to 74LVC2G66 switch inputs.
• Move target closer to I/O header to reduce the trace length for the oscillator I/O.
  • Shorter traces have lower impedance and will be capable of faster clock frequency (up to target max, e.g. 12 MHz).
• The potentiometer polarity is swapped.
  • 0v should be fully counterclockwise, and +VCC should be fully clockwise.
• The potentiometer is upside down.
  • Rotate the footprint 180 degrees.
• No good place to put the rubber feet.
  • Move through-hole components or find smaller feet.
• Still has some wasted surface area with traces spread out.
  • Change 8-pin header pinout to optimize routing.
  • Move traces closer together to prevent ground plane islands.
• R3 is a bit too close to the serial port.
  • Move R3 so it is more easily reachable for assembly.

And this is a wish-list for improvements:

• Replace 8-pin header with Raspberry Pi Pico header footprint.
• Add a 7-segment display for glitch-voltage display and other info.
  • 7-Segment driver can be inexpensively built with:
    • 74LVC244 or 74HC244 - Octal buffer/line-driver.
    • 74LV4052 or 74HC4052 - 4-channel analog multiplexer/demultiplexer.
    • LTC-5723HR - 4-digit 7-segment display with common cathode.
• Optional ADC for potentiometer measurement.
  • Using Raspberry Pi Pico's ADC for target voltage up to 3.3v VRL.
  • A standalone ADC will allow a second power rail for the target voltage, e.g. up to 5v VRL with TLA2021 - 12-bit ADC, I2C.
• Replacing the analog potentiometer with a digital encoder + DAC can allow finer adjustment of the glitch-voltage.
  • No ADC is required with this setup.
  • Fully software-controlled; E.g. allows ignoring rotations while automated search is running.
  • Example components:
    • PEC12R-4215F-S0024 - Contact incremental encoder with switch, 2-bit quadrature code, 24 pulses per rotation.
    • 1106 Knob for encoder, black and blue.
    • MCP47CVB21 - 12-bit DAC, I2C.
  • Encoder switch can be used to change the sensitivity.
    • Debounce in software.
    • Operation is software controlled. E.g. push to switch to next in a list of two or more settings, push-and-hold to start automated search, etc.
    • Sensitivities are software controlled. E.g. 0.25v per pulse, 0.01v per pulse, etc. As low as VRL/4096 (limited by DAC resolution).
