Arduino - HomeAssistant irrigation controller

README

Irrigation 32

Irrigation 32 is an irrigation controller project programmed with Arduino that runs on an ESP32-C3. It is integrated with Home Assistant via MQTT-Discovery. Additionally, a custom PCB has been designed to control four solenoid valves.

Irrigation 32 is a DIY project with the following main features:

• HomeAssistant integration
• Support for four solenoid valves
• OLED display
• Manual control via buttons
• Custom PCB intended to connect to a battery/solar power source PCB preview

Documentation

Detailed documentation is available in the doc folder in Spanish. The documentation source is not well formatted on GitHub, it can be compiled with Sphinx or read at https://blog.20cones.org/manuales/irrigation32

HomeAssistant integration

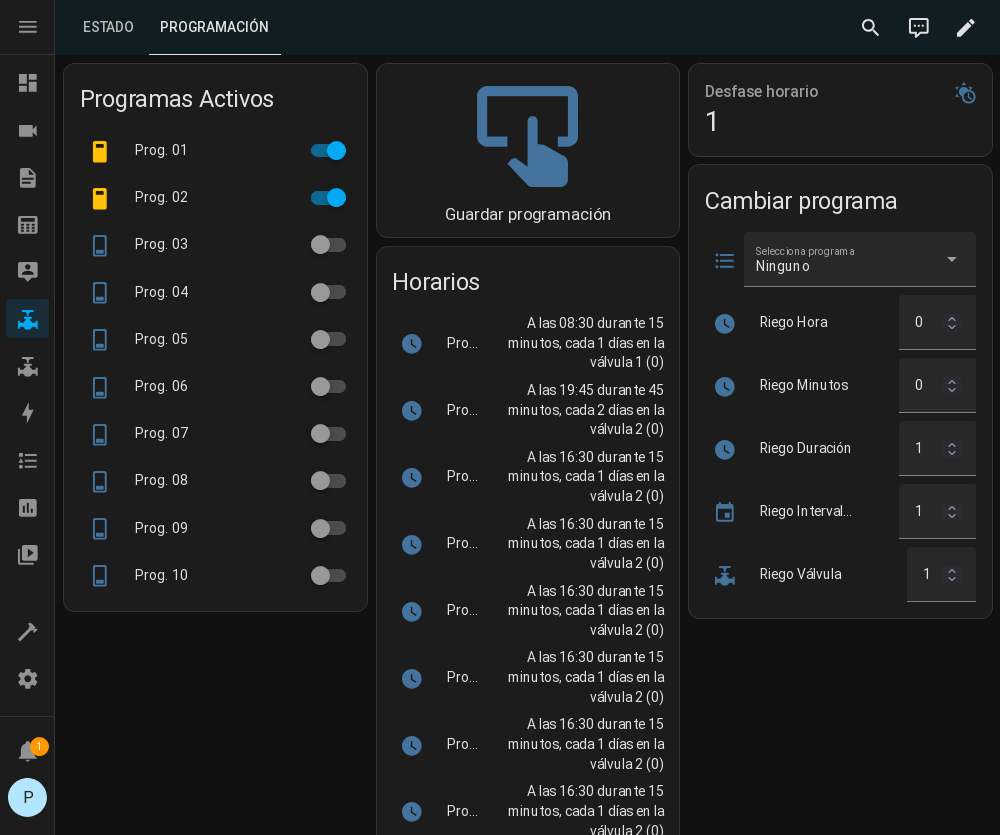

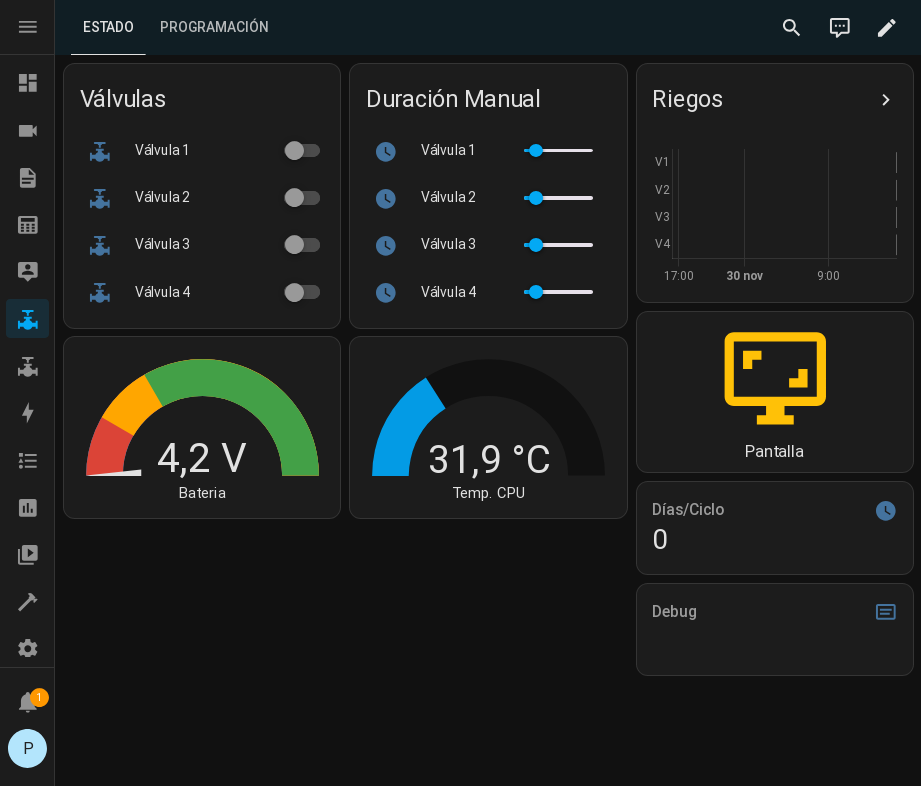

The images below show a custom dashboard imported from a YAML file dashboard.yaml. The dashboard is in Spanish but it is easy to translate.

All the entities are automatically discovered by HomeAssistant via MQTT-Discovery when the device is connected to the network and the MQTT broker is configured.

Preview
