Description

A minimal Gateron LP column staggered build

README

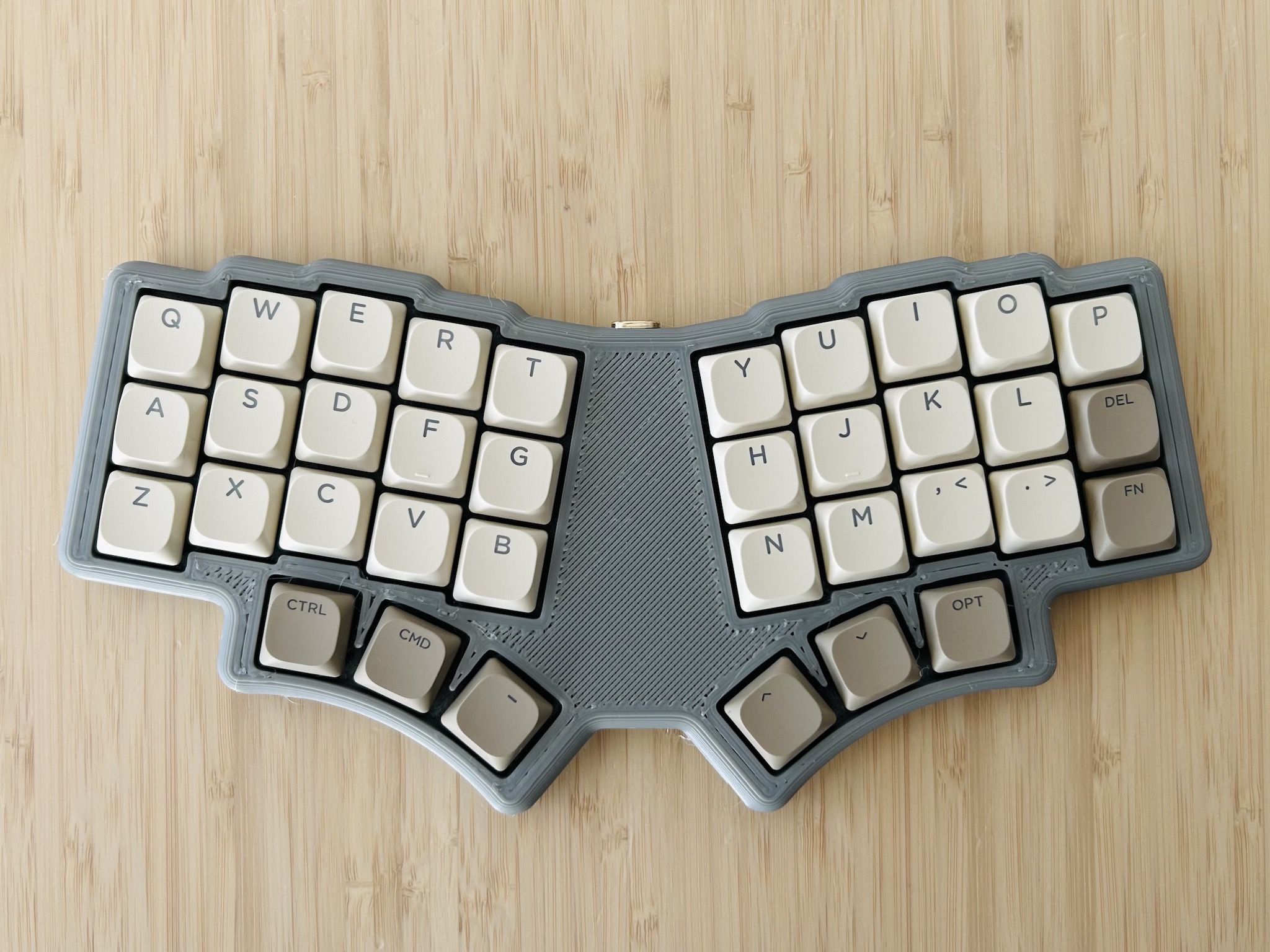

LoremIpsum36 - A minimal Gateron LP column staggered keyboard

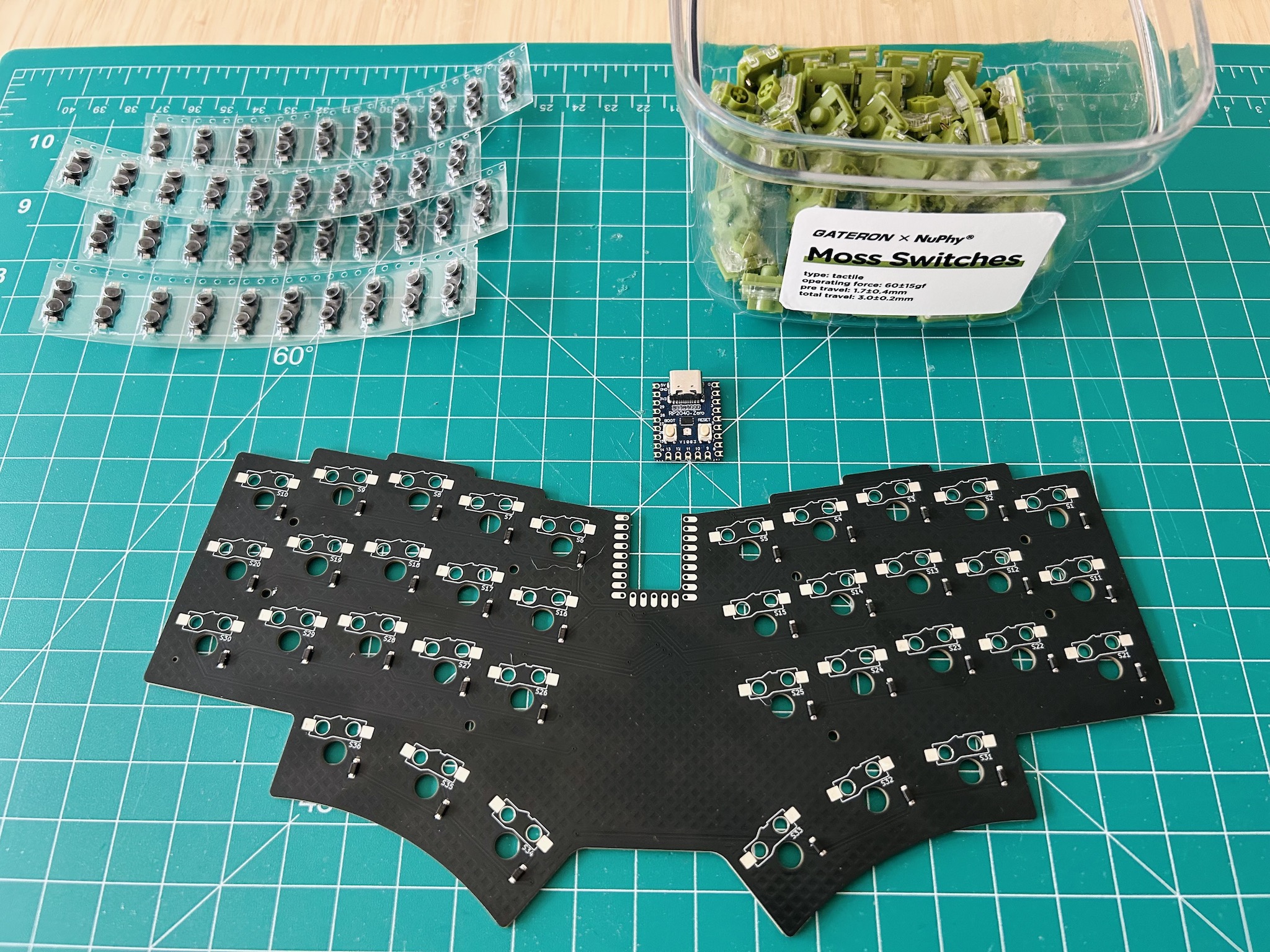

Bill of Materials (BOM)

Quantity	Item
1	RP2040-Zero
1	LoremIpsum36 PCB
36	Gateron LP switches and keycaps
36	KS-33 sockets
36	1N4148SOD-123 diodes
1	LoremIpsum36 case
10	M2×3 heat-set threaded inserts
10	M2×12 countersunk screws

Production Files

To place an order for the LoremIpsum36 PCB:

• Use the Gerber files available in the production/ folder.
• The BOM and CPL files can be used with a PCBA service -- especially if you prefer to avoid soldering small diodes.

All components (except the MCU) are soldered to the back (bottom) side of the board.

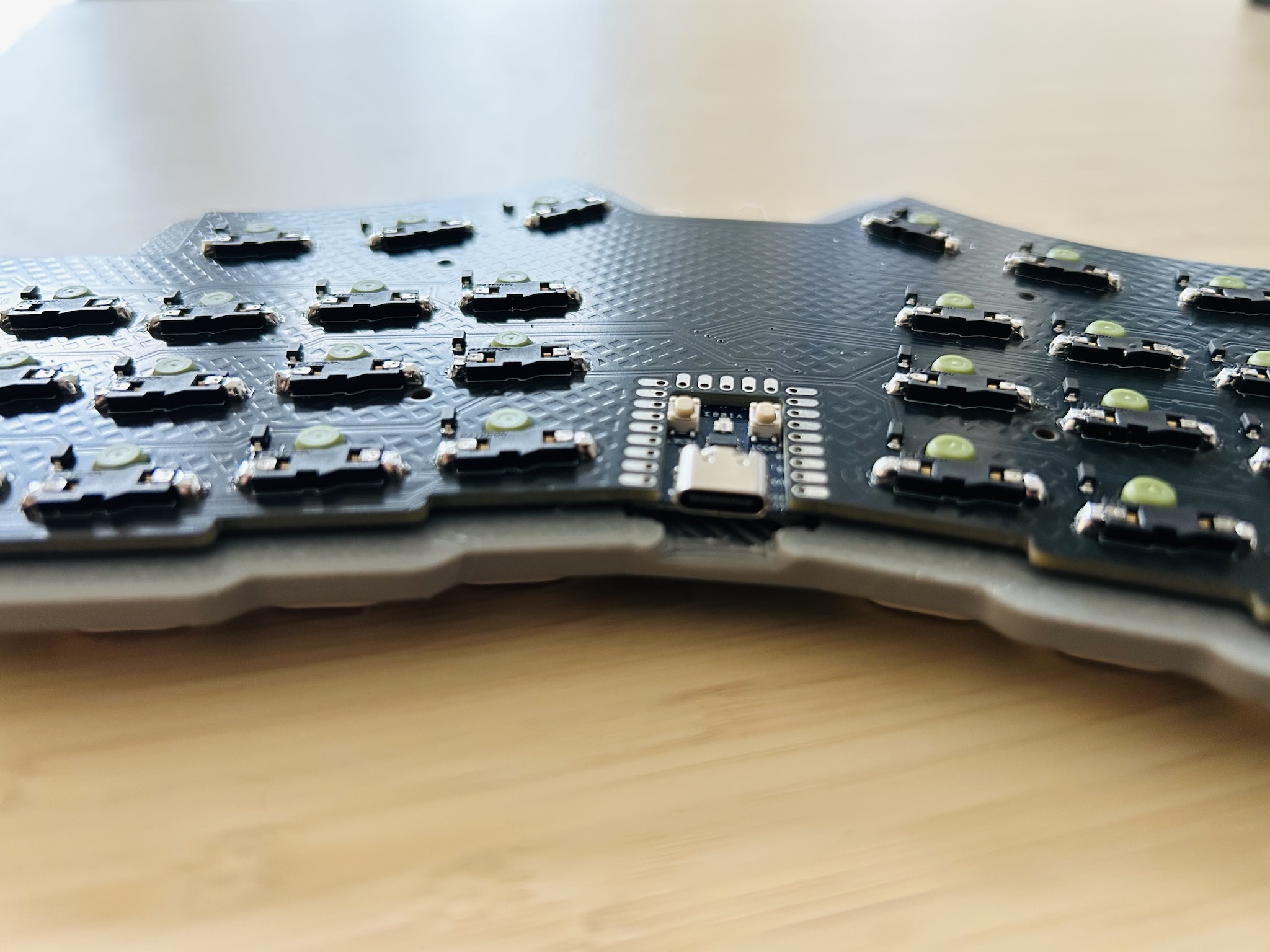

[!CAUTION] To maintain the low profile of the board, the MCU (RP2040-Zero) must be soldered on the front (top) side of the PCB, with its components facing downwards.

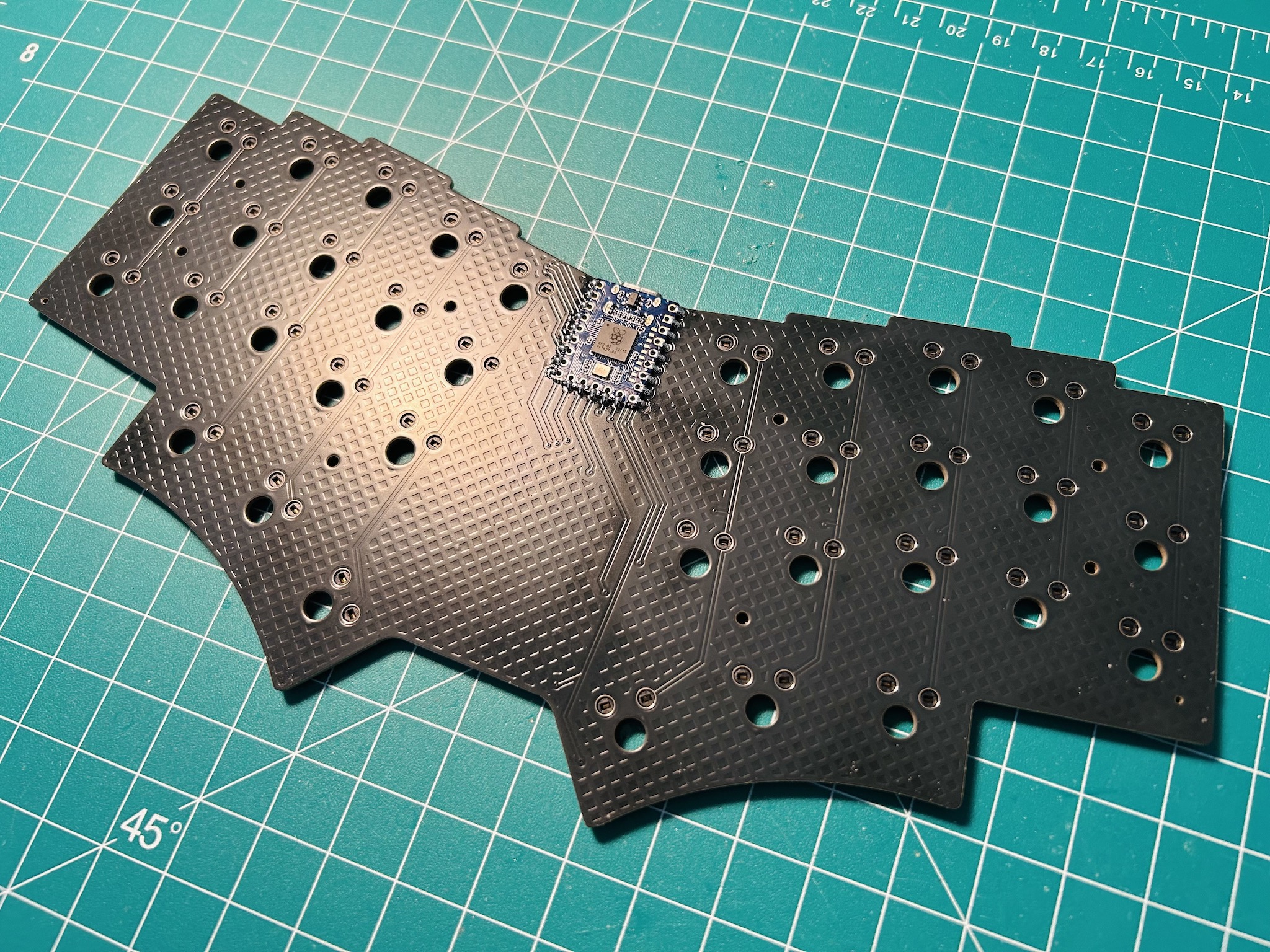

The boot/reset button should face the bottom side of the keyboard. Double-check alignment before soldering to avoid incorrect placement:

The complete PCB design project is available in the kicad/ folder.

3D Printable Files

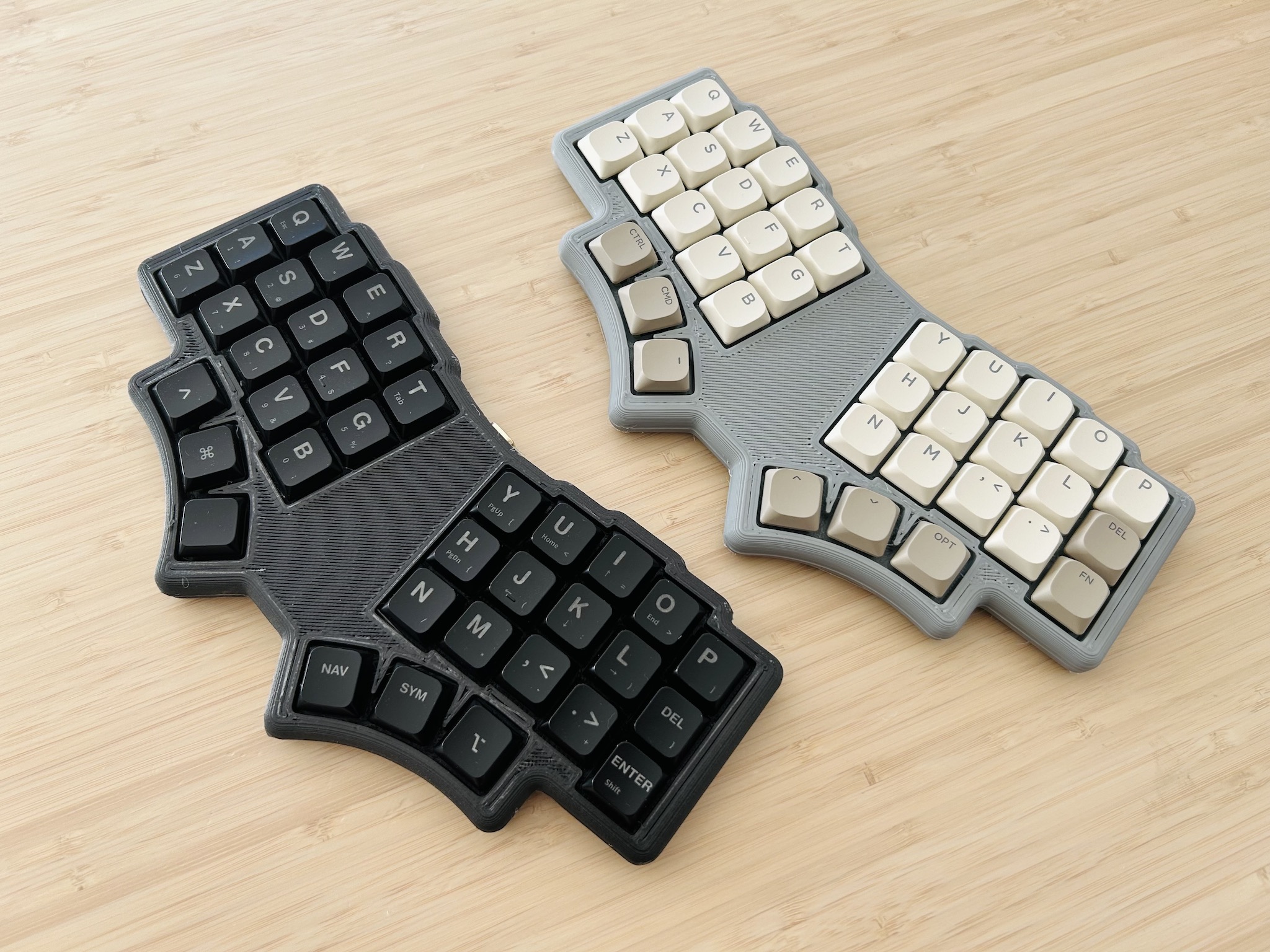

Print the loremipsum36-top and loremipsum36-bottom case using the provided STL files, along with the threaded inserts and M2 screws.

If you prefer to use the keyboard without a case, you will need to print the plate loremipsum36-plate, or laser cut a plate using the provided DXF file.

Firmware

Precompiled VIA-enabled firmware:

• Flash penk_loremipsum36_default.uf2 under firmware/ to the RP2040 MCU.
• Load the via.json file in the Design tab for VIA configuration.

The QMK source is available under firmware/QMK/keyboards/penk/loremipsum36.

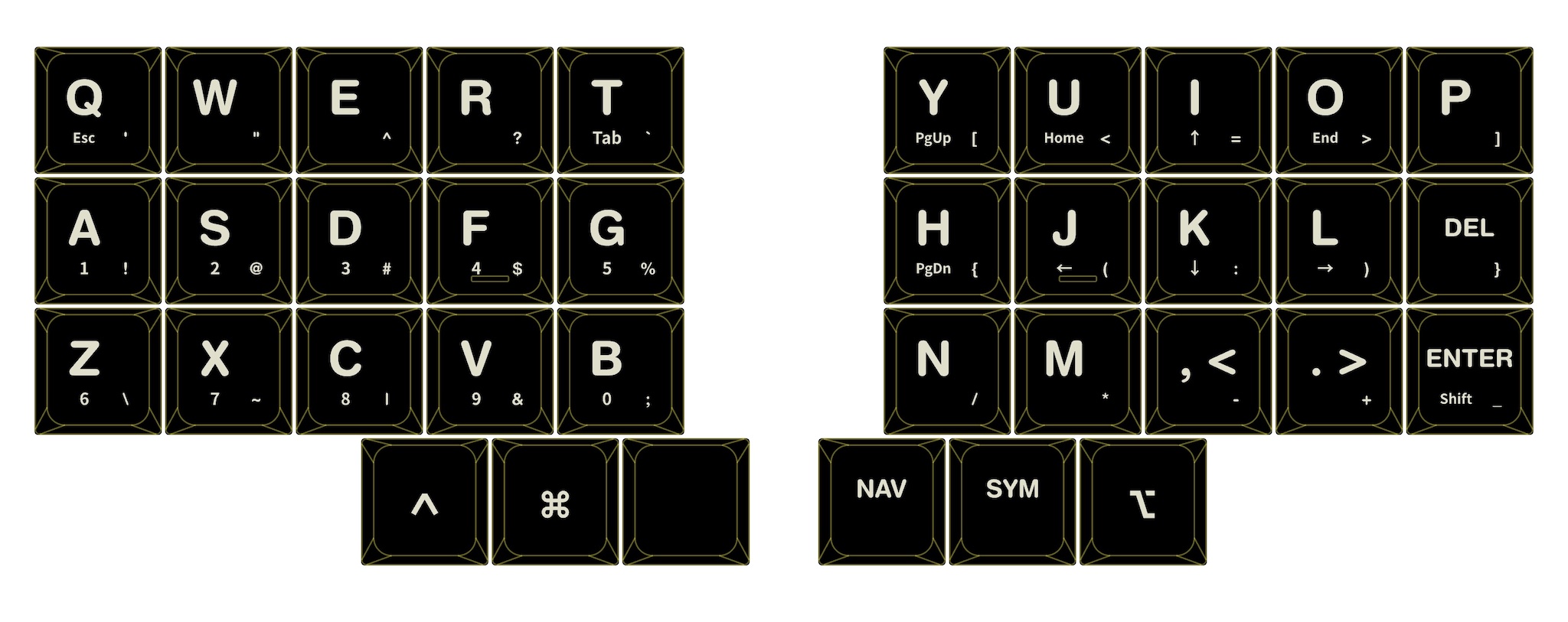

Default Keymaps

The keymap is based on Rico's rsta layout, and the custom keycaps are made by FK Keycaps.

You can order the same keycap set or customize yours at https://fkcaps.com/custom/D7829J.

Copyright and License

Copyright (c) 2025 Penk Chen. All rights reserved.

All files are licensed under the MIT license. For more information, see the LICENSE.
