README

Form Neo

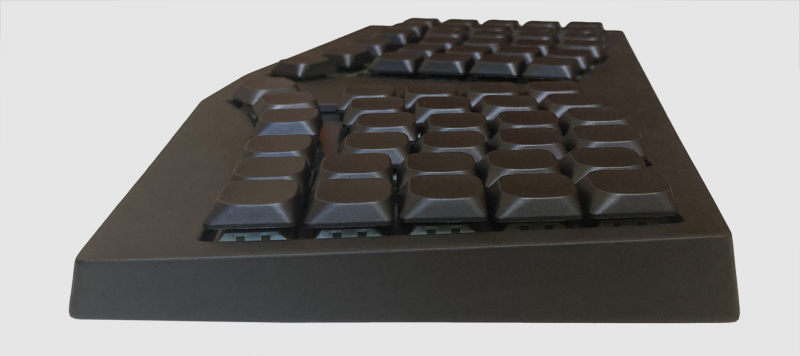

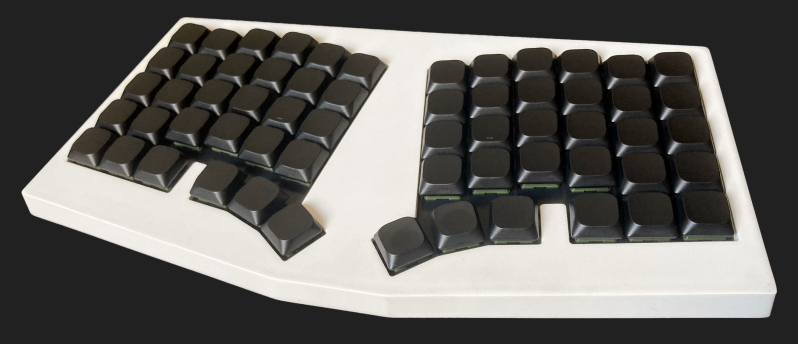

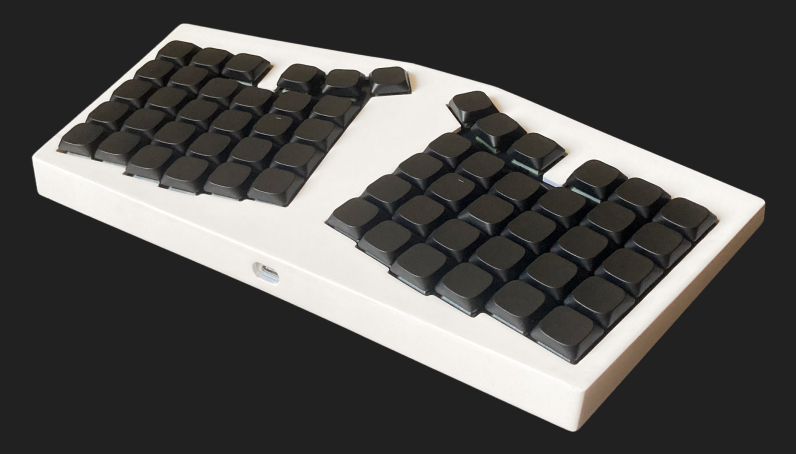

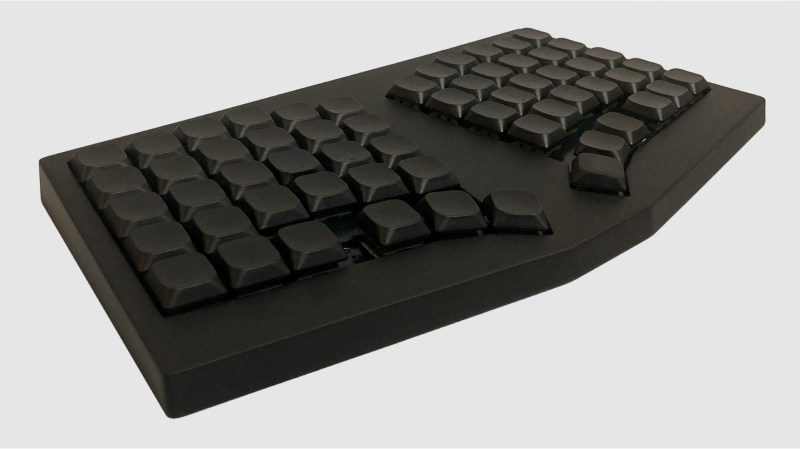

5x12 low profile monoblock split keyboard.

Form Neo is a low profile, monoblock split keyboard inspired by the Cornelius by foostan.

Features

  • Gasket-mounted.
  • Hotswap PCB + daughterboard.
  • Options for dedicated arrow keys.
  • Clean and minimal design.

DIY friendly

Build guide

See build

Sponsors

JLCPCB

JLCPCB has always been my go-to for 3D printing and PCB manufacturing. They also provided the keyboard plate, 3D printed case, and PCB for this project. If you're looking to build your own board, I highly recommend their services.

Beekeeb

The folks at beekeeb were super nice and provided the switches and keycaps for this project. I haven't bought anything from them yet, but I've only heard good things from the community. If you're looking for keyboard kits/prebuilts/parts, definitely check them out!
