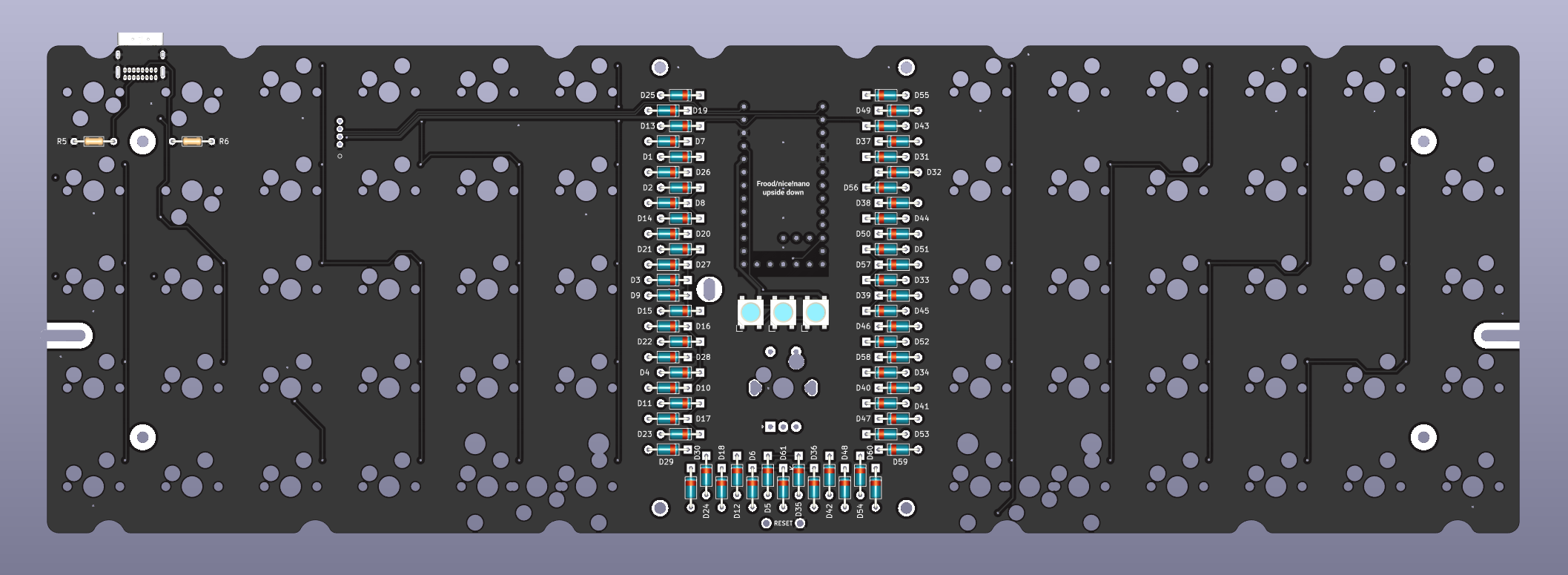

Lumberjack is a hotswap split 5x12 ortholinear keyboard PCB based on the Frood or nice!nano controllers, and using mostly through-hole components.
The goal of this project is to build a hotswap ortholinear PCB that fits in many standard 60% tray mount cases.
Inspired by the Plaid keyboard.
Complete kits can be purchased at 42. Keebs
See the Bill of materials for a detailed list of the required parts.
PCBs can be manufactuered by a variety of online PCB fabricators. You can use PCBShopper to search for the best price.
The zip file in the releases contains the gerber files your fabricator will need to make the PCB.
When uploading the gerber zip files, use the default PCB settings.
Note that when uploading to JLCPCB, the upload tool may not detect the dimensions of the PCB from the gerber files and may not generate a preview image. This appears to be an issue with JLCPCB and you can manually enter the PCB size as 94.6x285mm.
If you want to use a plate, there are gerbers for an FR4 plate. You will need two plates, one for each half of the keyboard.
Solder all the components onto the top side of the PCB except the USB connector which should be on the back of the board. Leave the larger components until last so that the board will lie flat upsidedown while you solder the resistors and capacitors.
Ensure that the diodes are installed in the correct orientation. The square pad is for the side with the black stripe.
See the build guide for more information.
Have questions or need help, reach out via the 42. Keebs Discord server where you will find many helpful Lumberjack owners.
Firmware is available in our QMK/Vial fork.
Follow the QMK firmware instructions to build and flash the firmware.
To put the controller into bootloader mode so it is ready to recieve firmware, do the following:
Once the controller enters the bootloader mode, it will present itself as a USB mass storage device ("USB flash drive"). To flash the firmware .uf2 file, simply copy it to the drive.
Cut a piece of 2mm thick acrylic to size (95x57mm) and drill 4 m2 holes in the corners for the standoffs. Use the PCB or cover.dxf as a guide for the hole positions, you can also use cover.dxf for laser cutting the correct size acrylic.
Affix the 4 standoffs to the PCB with screws from underneath the PCB. Use the remaining 4 screws to attach the acrylic to the top of the standoffs.
