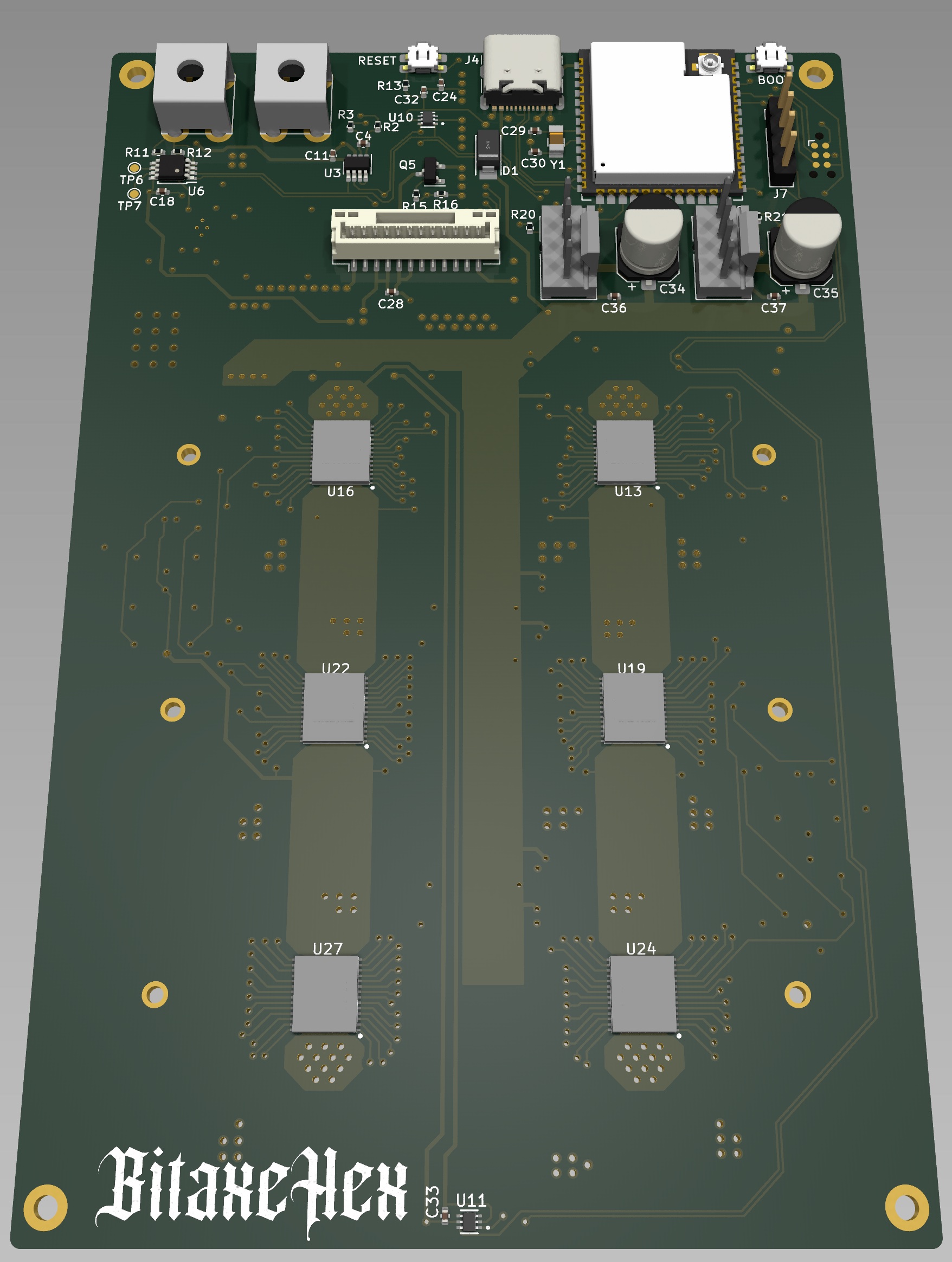

TI TPS546D24ARVFR buck regulator steps down the 12V input to power the chain of BM1366
TMP1075 measures inlet and outlet PCB temperature.
Microchip EMC2302 Controls dual fans
Header for optional status LCD
BM1366
The BM1366 is a undocumented SHA256 mining ASIC from Bitmain. It's mostly used in the Antminer S19XP and S19K Pro
Bitmain claims the BM1366 has 21.5 W/TH efficiency
The BM1366 is available (new) for around $15 each.
Current Status
v302 hardware is working! Hash rate is fluctuating between 2.4 TH/s and 3.0 TH/s.
Power draw is around 50W @12V.
ESP32 miner firmware will configure the power supply to run at the proper voltage.
This is an advanced build! If you don't have experience building boards, you should probably go build a single ASIC bitaxe first to get the technique down.
Revision List
V302 is the current working version of this board. If you want to build this, pull down this git tag.
V301 does not work, the power supply maintains voltage, but overheats in a drastic way
V300 does not work, the power supply cannot maintain voltage when a load is applied
Heatsink 90mm long variant. This will need to have threaded M3 mounting holes added. See the KiCad board file for the pattern
Fans At least one 80x80mm 12V 4-pin fan. Like the Noctua NF-A8 PWM. Possibly two.
Enclosure (several sellers) 130mm long variant. The bitaxeHex needs to be run inside an enclosure to force air through the heatsink and effectively cool the BM1366s
All of the parts on the board are listed in the KiCad BOM
Software
ESP-Miner is still being updated to support multiple ASICs
Power Supply Requirements
bitaxeHex takes 12V DC input via screw terminals. Power supply should be capable of 100W
This 120W Brick technically works, but gets a little warmer than it should. You'll need to change the end.
