HealthyPi Move Hardware Repository

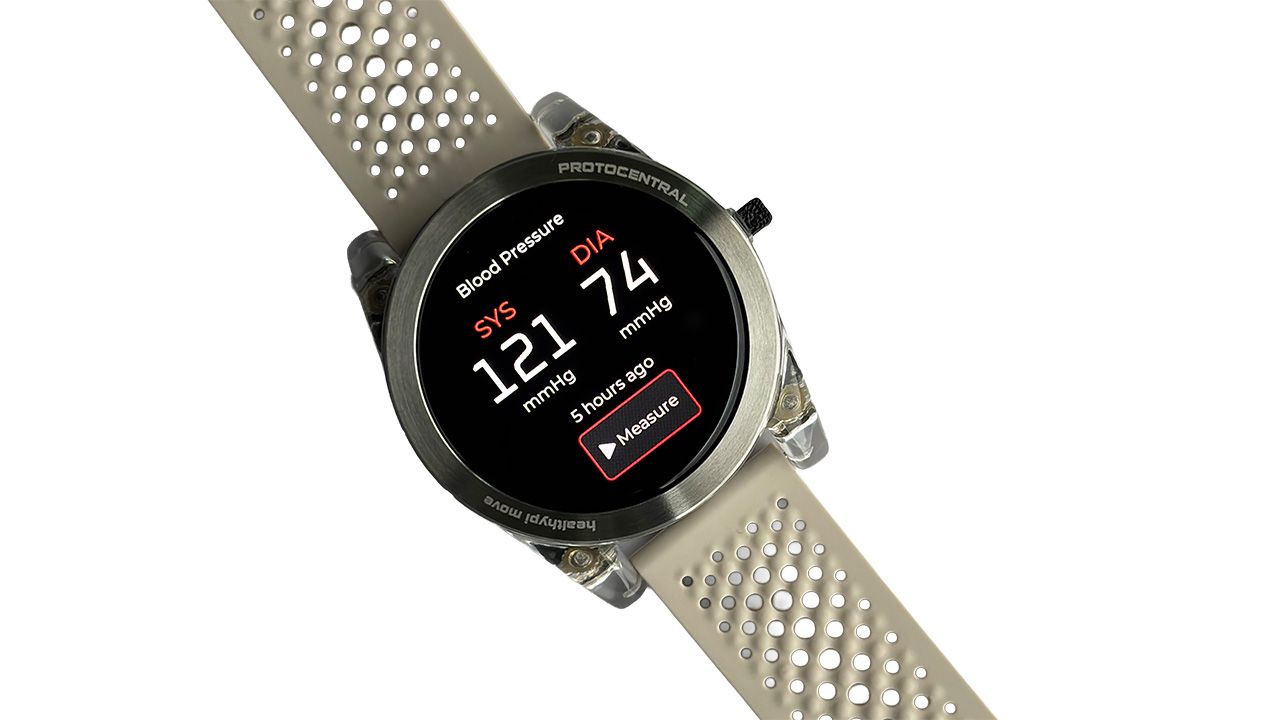

An open-source biometric monitor in a watch form factor

HealthyPi Move is a revolutionary open-source wearable device that provides clinical-grade biometric monitoring in a sleek watch form factor. Designed with the principles of data ownership, repairability, and customization at its core, HealthyPi Move offers comprehensive health tracking capabilities without the limitations of proprietary systems.

Project Status

** Successfully Funded & Shipping!** - HealthyPi Move reached 329% of its funding goal on Crowd Supply and is now shipping to backers worldwide.

• Campaign Status: Funded and In Stock
• Availability: Shipping now - Order on Crowd Supply
• Price: $299 USD

Key Features

Comprehensive Biometric Monitoring

• ECG (Electrocardiogram): Single-lead ECG for heart rhythm analysis
• Dual PPG Sensors: Wrist and finger-based photoplethysmography
• SpO₂ Monitoring: Blood oxygen saturation measurement
• Blood Pressure Trending: Cuffless BP monitoring via finger sensor
• EDA/GSR: Galvanic skin response for stress monitoring
• Heart Rate Variability (HRV): Advanced cardiac health metrics
• Respiration Rate: ECG-derived breathing pattern analysis
• Body Temperature: Contact-based temperature sensing
• Activity Tracking: 6-axis IMU for motion and activity monitoring

Technical Specifications

• Processor: Nordic nRF5340 dual-core ARM Cortex-M33 SoC
• Memory: 512 KB RAM, 128 MB QSPI flash storage
• Display: 1.2" round AMOLED (390×390 pixels) with capacitive touch
• Battery: 300 mAh Li-Po with 5-day typical usage life
• Connectivity: Bluetooth Low Energy 6.0, USB Type-C
• Charging: USB Type-C with Power Delivery support
• Dimensions: 43mm diameter × 13mm thickness
• Strap Compatibility: Standard 22mm watch straps

Open Source Advantages

• Own Your Data: No cloud dependency, all data stored locally
• User Programmable: Based on Zephyr RTOS and nRF Connect SDK
• Repairable Design: Modular components, no glue assembly
• Custom Applications: Full access to develop your own algorithms
• OTA Updates: Over-the-air firmware updates via BLE or USB

Repository Contents

Hardware Design Files

• /pcbs/main board/ - Main board PCB designs (KiCad and Eagle formats)
  • Latest: kicad_pc_healthypi_move_nRF5340_v12/ (KiCad)
  • Legacy versions: v1-v5 (Eagle format)
• /pcbs/sensor board/ - Sensor board PCB designs
  • Latest: kicad_pc_healthypi_move_sensor_v9/
• /pcbs/finger sensor board/ - Finger sensor PCB designs
  • Latest: pc_healthypi_move_sensor_connector_v4/
• /pcbs/bottom board/ - Bottom board PCB designs
  • Latest: pc_healthypi_move_bottom_pcb_v4/
• /enclosure/ - 3D printable and injection-molded enclosure designs
  • /enclosure/fusion/ - Autodesk Fusion 360 source files
  • /enclosure/stls/ - 3D printable STL files
• /docs/ - Documentation and images

Related Repositories

• HealthyPi Move Firmware - Zephyr RTOS-based firmware
• HealthyPi Move Mobile App - Flutter-based companion app (Android/iOS)

Sensor Details

ECG (Electrocardiogram)

• IC: MAX30001 ECG and bio-impedance front-end
• Configuration: Single-lead ECG (Lead-II equivalent)
• Electrodes: Back electrode (wrist contact) + top bezel electrode (finger contact)
• Sampling Rate: Up to 512 Hz
• Features: Real-time heart rate, HRV calculation, respiration rate derivation

PPG (Photoplethysmography) - Dual Configuration

Wrist PPG Sensor

• IC: MAX86141 with MAX32664C biometric sensor hub
• LEDs: 2× Green, 1× Red, 1× Infrared
• Photodiodes: 2× photodiodes for improved signal quality
• Use Cases: Continuous HR monitoring, SpO₂ measurement

Finger PPG Sensor (Optional)

• IC: MAX30101 with MAX32664D biometric sensor hub
• LEDs: Red and Infrared
• Use Cases: High-accuracy SpO₂, blood pressure trending, pulse transit time
• Connection: USB Type-C port with custom connector board

Additional Sensors

• IMU: BMI323 6-DoF (accelerometer + gyroscope)
• Temperature: MAX30208 body temperature sensor
• EDA/GSR: Custom electrodes for galvanic skin response

Enclosure Design

The HealthyPi Move features a thoughtfully designed enclosure that prioritizes repairability and modularity:

Key Design Principles

• Screw Assembly: No glue used - completely serviceable
• Modular Construction: Separate main board, sensor board, and battery modules
• Standard Straps: Compatible with any 22mm watch strap
• Material: Biocompatible ABS-type injection-molded plastic

Chassis System

• 4-Screw Design: Easy access to internal components
• Component Protection: Isolated battery compartment for safety
• Display Replacement: User-replaceable AMOLED display
• Sensor Access: Removable sensor boards for upgrades/repairs

Applications & Use Cases

Personal Health Monitoring

• Continuous Monitoring: 24/7 heart rate, activity, and sleep tracking
• Stress Management: Real-time EDA/GSR feedback for stress awareness
• Cardiovascular Health: ECG recording and HRV analysis
• Fitness Tracking: Advanced metrics beyond basic step counting

Research & Development

• Clinical Research: IRB-approved studies with institutional oversight
• Algorithm Development: Platform for custom biometric algorithms
• Data Collection: High-resolution, multi-modal biometric datasets
• Educational Use: Teaching platform for biomedical engineering

Healthcare Applications*

• Remote Monitoring: Patient monitoring with healthcare provider integration
• Chronic Disease Management: Long-term tracking for conditions like AFib
• Telehealth Integration: Data export for virtual consultations
• Clinical Trials: Research-grade data collection platform

*Requires appropriate regulatory approvals (FDA, CE, etc.) for medical use

🛠️ Development Environment

Firmware Development

• OS: Zephyr RTOS with nRF Connect SDK
• Language: C/C++
• IDE: VS Code with nRF Connect extension
• Debugging: SWD via USB Type-C DAM
• OTA Updates: BLE and USB DFU support

Mobile App Development

• Framework: Flutter (Dart)
• Platforms: Android, iOS, macOS, Windows, Linux
• Communication: Bluetooth Low Energy
• Data Format: JSON, CSV, PDF export capabilities

Hardware Customization

• PCB Design: KiCad (latest versions) and Eagle (legacy)
• Enclosure: Autodesk Fusion 360 source files
• 3D Printing: STL files provided for rapid prototyping
• Manufacturing: Gerber files and assembly documentation included

📚 Documentation & Support

Visit our Documentation Site for detailed guides.

⚖️ Regulatory Information

Important Disclaimers

⚠️ Medical Device Notice: HealthyPi Move is NOT a certified medical device. It is designed for:

• Consumer wellness and fitness tracking
• Research and educational applications
• Development of medical devices (with proper certification)
