README

Converter Yaesu BCD to Icom CI-V band data

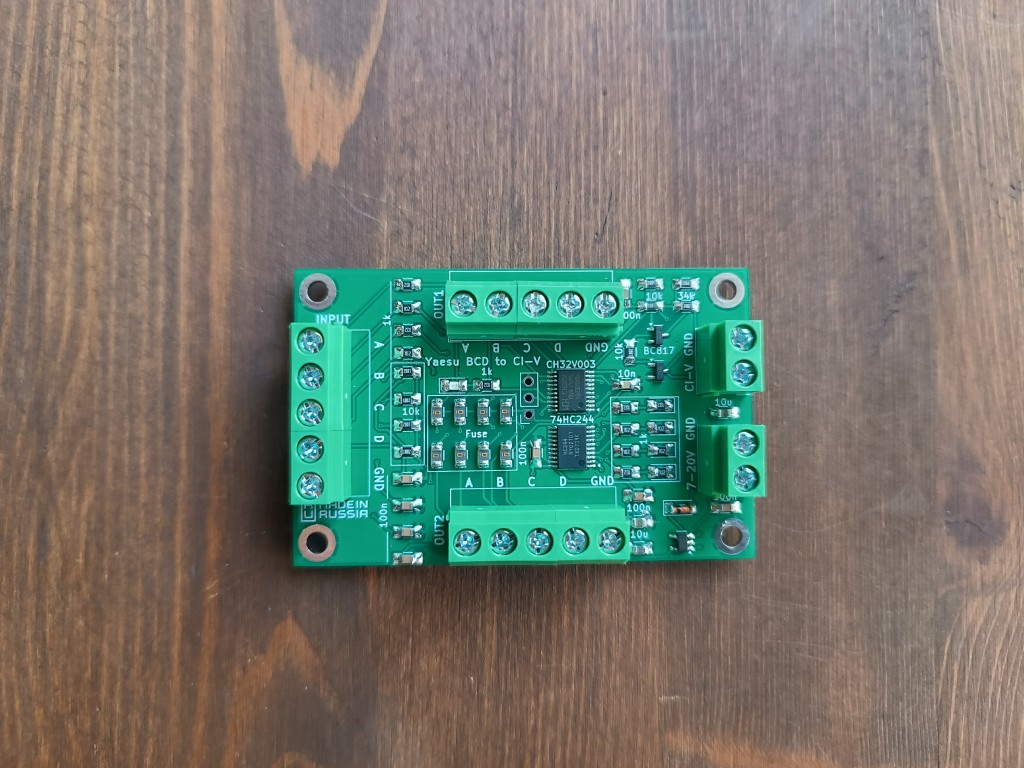

A simple board is based on risk-v MCU CH32V003F4P6.

  • Dimensions: 70*45 mm
  • Consumption current: 20 mA
  • Power supply: from 7 to 20VDC
  • CI-V address: 0x7A
  • Baud rate for EW3MM tuner: 9600 kb/s
  • Baud rate for DJ0ABR controller: 4800 kb/s

Firmware for EU3MM tuner

Firmware for DJ0ABR controller

More information - https://ra0sms.com/bcd2civ

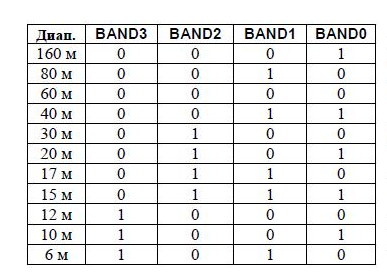

Yaesu BCD band data:

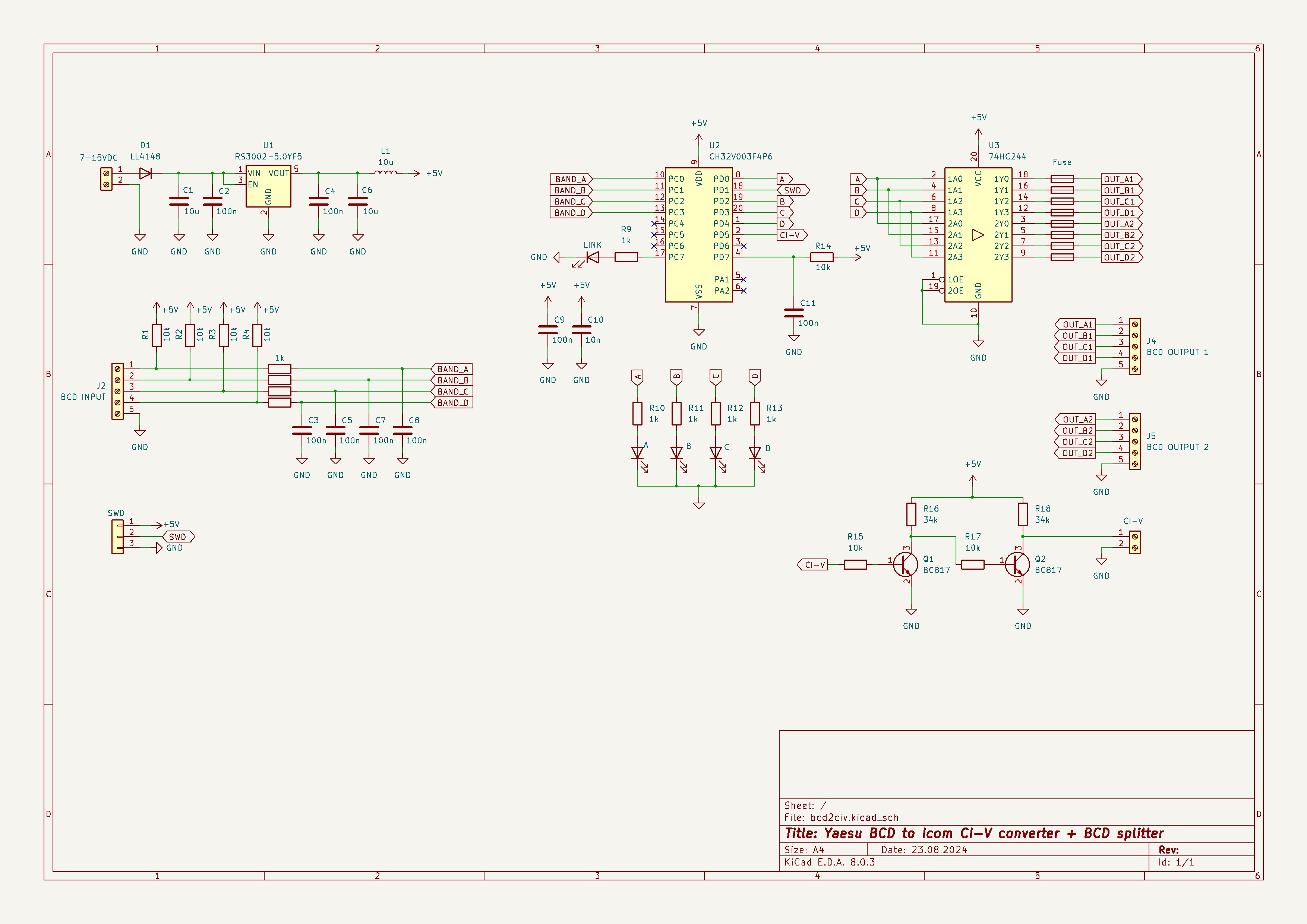

Schematic:
