Open Source Nibble Release
Follow the assembly guide here:

Meshtastic Config (Compile your own firmware)
RP2040: https://github.com/Sparkling-Ice/retia-boards/tree/main/variants/retia-nibble/nibble-rp2040
ESP32s3: https://github.com/Sparkling-Ice/retia-boards/tree/main/variants/retia-nibble/nibble-esp32
The Nibble is a small, open source LoRa radio node designed to be your first piece of off-grid infrastructure. It was created by Kody Kinzie and the Retia team (Zac Beran, Felix Orozco) for the 2024 Chaos Communication Congress in Germany and released as open hardware at the 2025 Hackers On Planet Earth conference.
Over 500 Nibbles have been made worldwide, and the design is shared here so you can build your own. The board is sized to fit inside a 1 inch PVC pipe, making it easy to weatherproof and deploy as a permanent or portable infrastructure node.

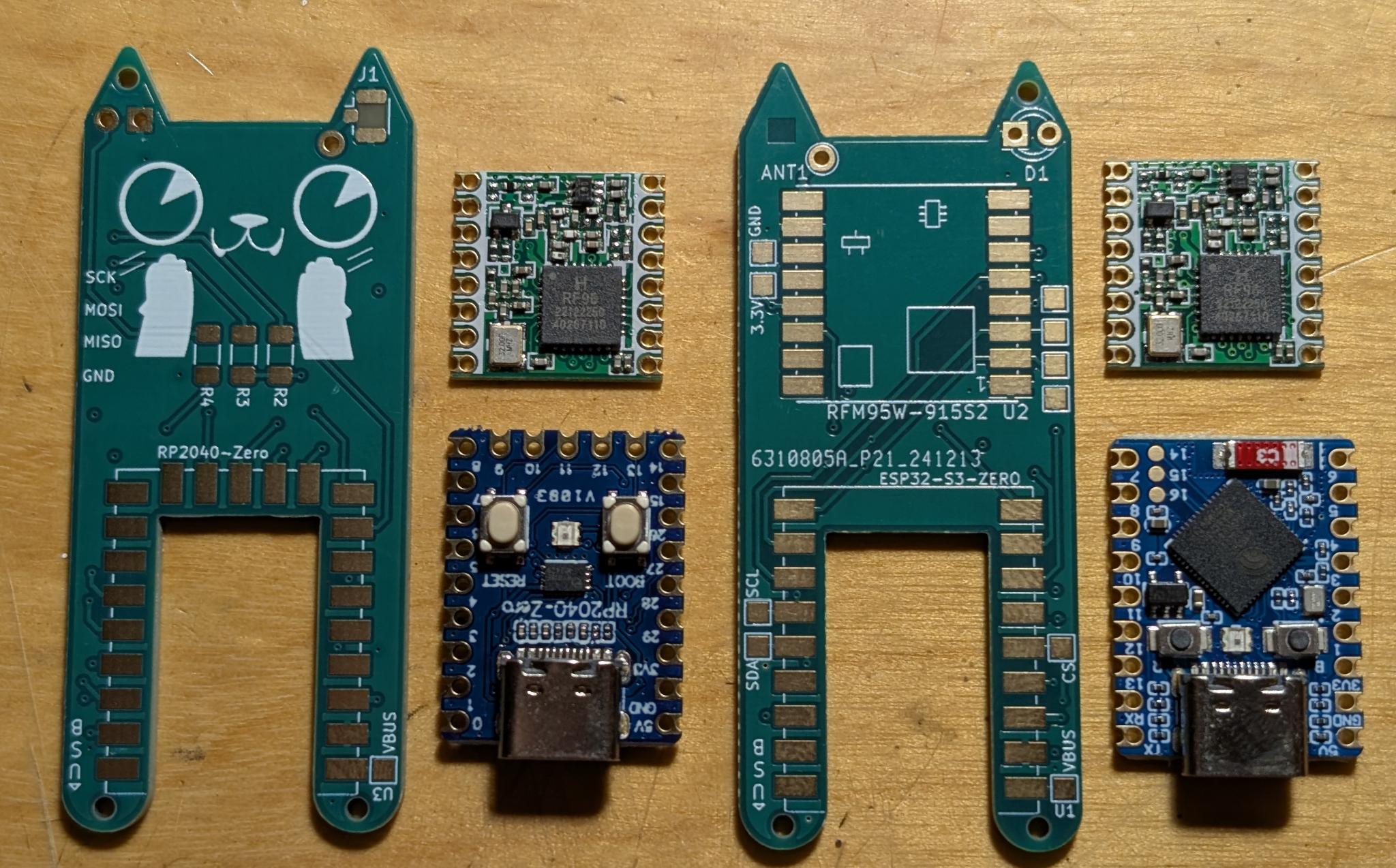

Tools required: soldering iron, solder, tweezers or pliers, and a laptop with USB-C cable.
⚠️ Important: Always connect an antenna before powering or transmitting. Running the board without one can permanently damage the radio.
.uf2 firmware from the Retia GitHub release page..uf2 file onto the drive. The board will reboot automatically.123456.
