README

RP2040-PICO-BOOT

The RP2040 PICO BOOT allows you to build your own IPL replacement modchip，It is a modified version of the Raspberry Pi Pico.

Features

  • Includes all the functions of Raspberry Pi Pico
  • Without any driver, you can burn the program through Type-C cable
  • Add a 'Reset' button

Pictures

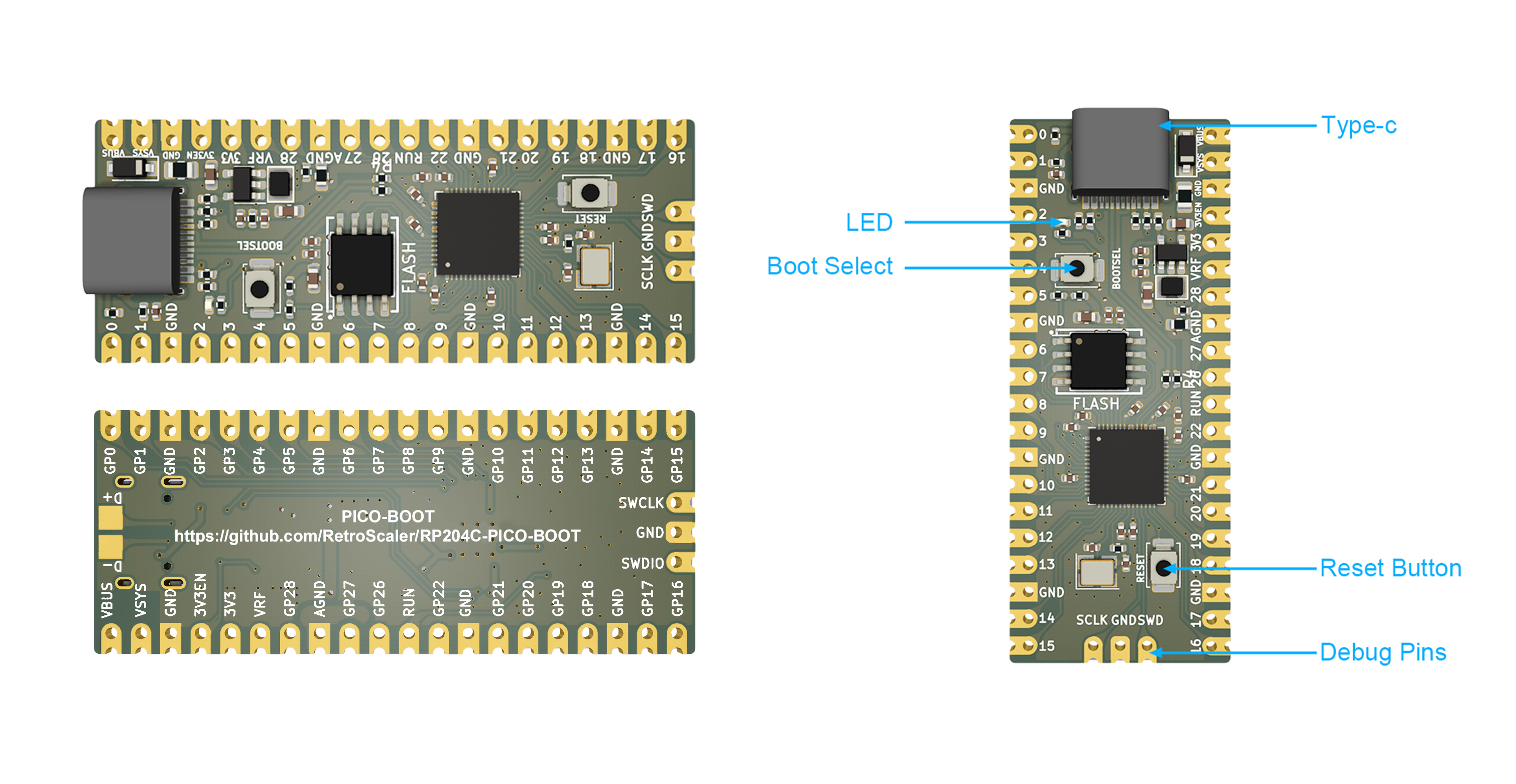

3D Picture of PCBA

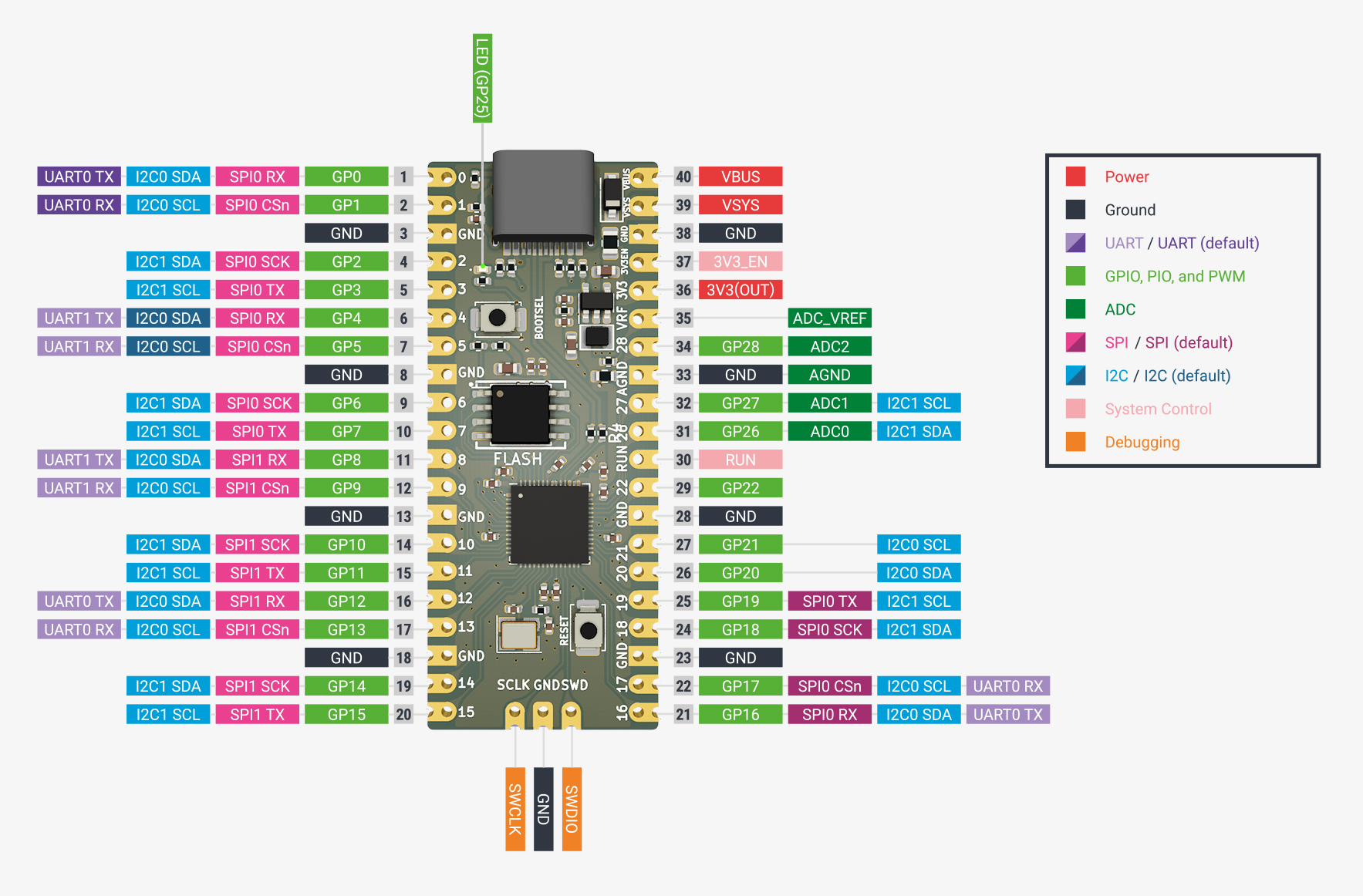

The pinout

🤝 Support

Contributions, issues, and feature requests are welcome!

if you like this project, stay tuned !

You can quickly purchase the finished product with this link：Go to AliExpress shopping platform
