Description

Replica of a Pong game as part of a Digital Electronics kit

README

DigiKit Tennis Replica

While watching my regular YouTube channels, I saw a digital electronics kit from the 70s called Tennis from the company DigiKit, shown on the Tech Time Traveller. This is a neat little board with a fun game that looks useful for beginners to learn digital electronics. The provided schematic had a lot of bugs and was very incorrect.

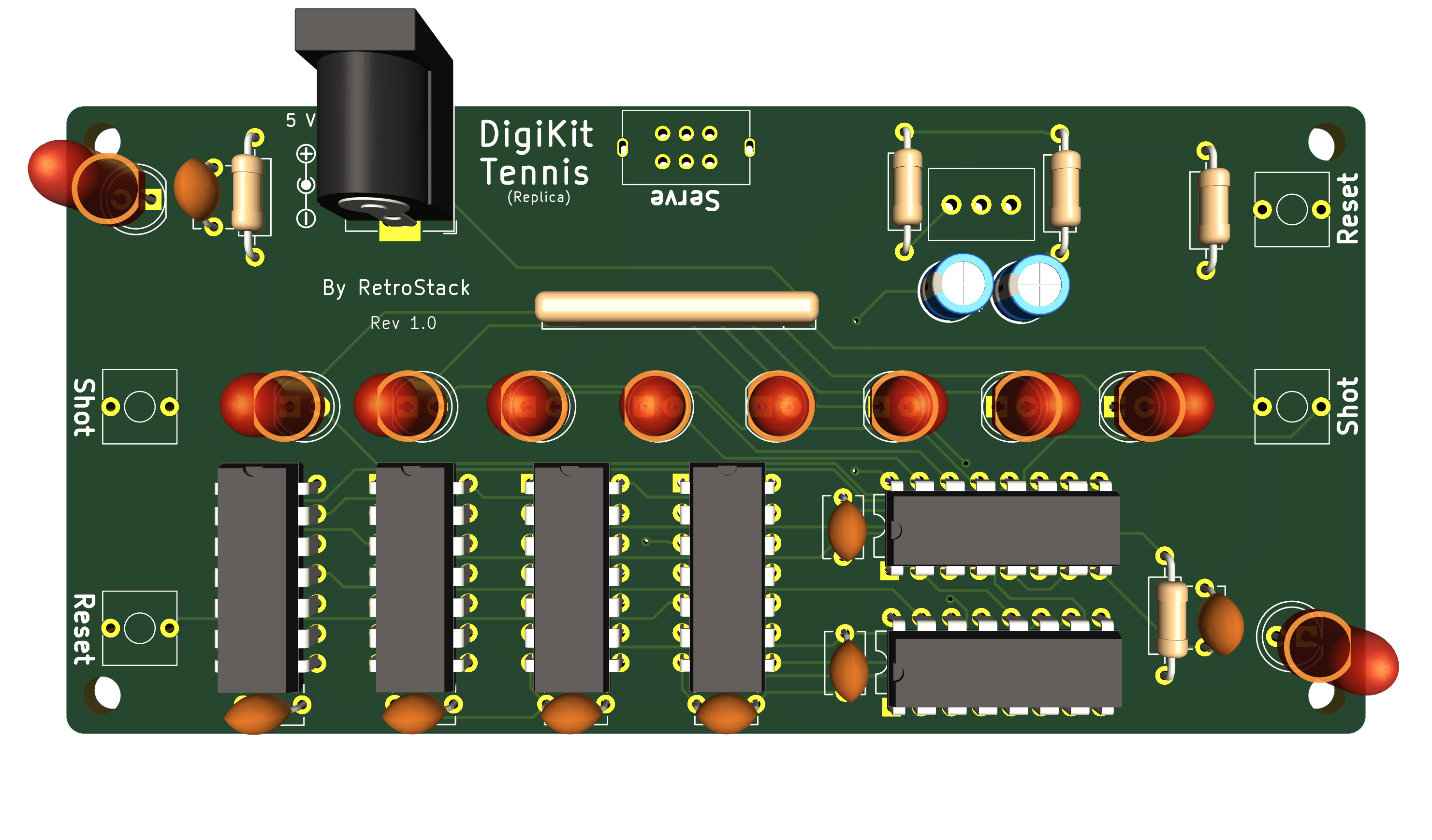

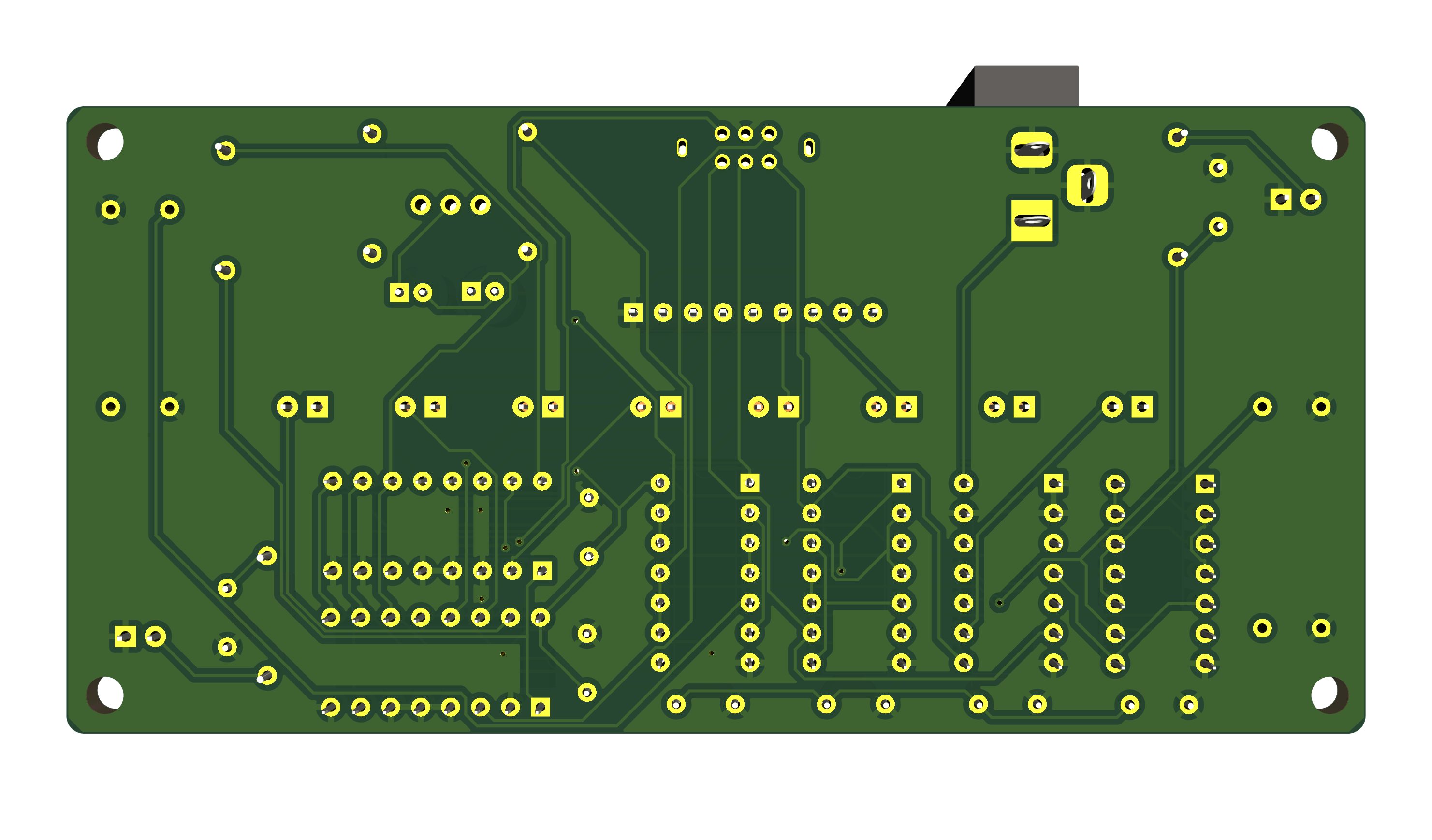

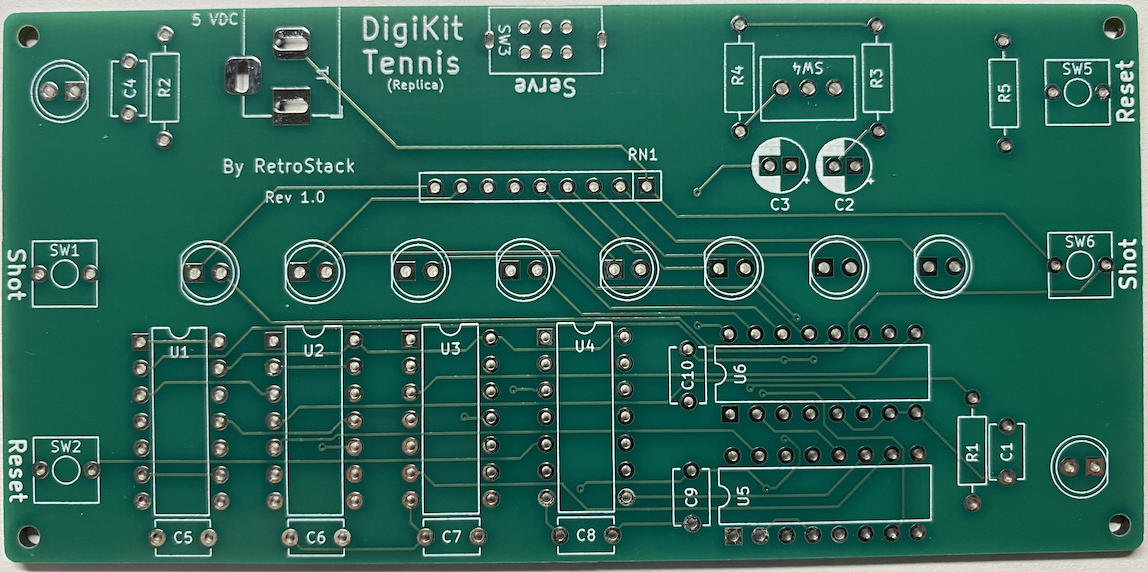

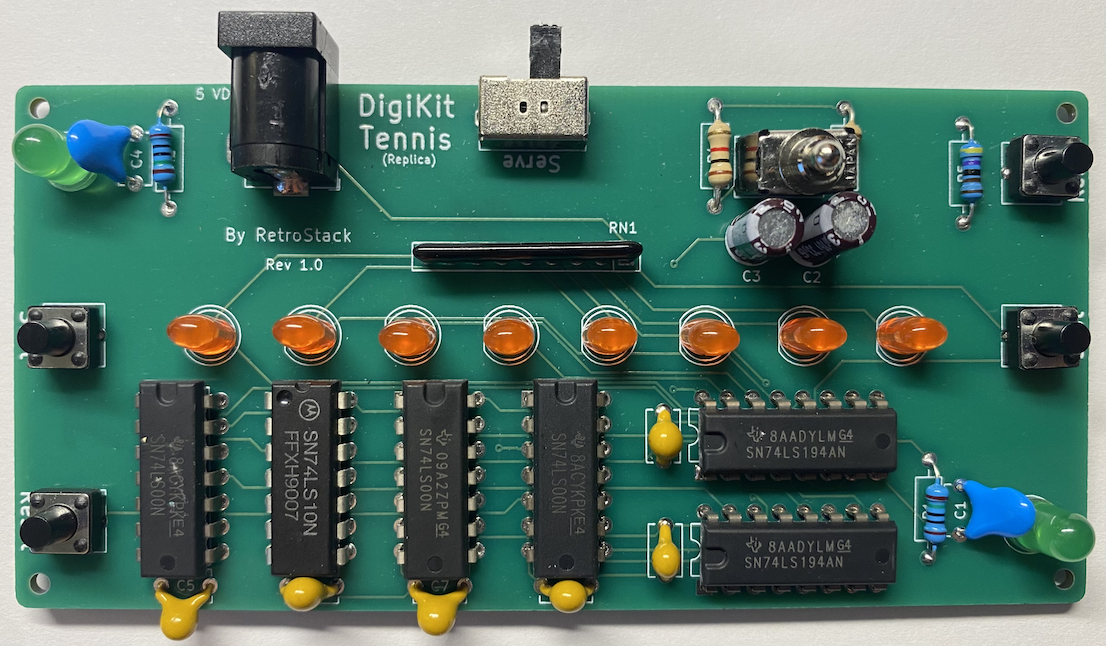

I spent some time reverse engineering it from screenshots of the YouTube video, and the result is this board.

Latest Files

In the "Latest" folder, you'll find the most up-to-date design files, including:

• Gerber files suitable for popular online PCB manufacturers like PCBWay and JLCPCB. Most manufacturers should be fine with either.
• A Bill of Materials (BOM) in both CSV and PDF formats.
• The full schematics of the board.

How to Play

This is a simple game of Pong where the lights in the center of the board are used to indicate the path of the "ball." The goal of the game is to hit the ball back to the other player. When the player on the receiving end misses the ball, a point is given to the one sending it. The counting needs to be done independently and is not done on the board.

How to set it up?

1. The first option to set is the toggle switch, which defines the speed of the ball. It should remain the same for the duration of the game.
2. Next, select who should serve the first ball. Switch the "Serve" slide switch to the side of the player who should serve. Then, press any "Reset" button. If the green light is not on the correct side of the person serving, switch it by pressing the "Shot" button from the other side. This will toggle the light.

Play

When everything is set up, the serving player should press the "Shot" button on their side. (A red light and a green light should be lit on the same side!) As soon as "Shot" is pressed, a simulated "ball" is animated across the lights in the center. When the last light is reached, the other player needs to return it by pressing "Shot" in time on their side.

Implementation

The replica has been implemented using KiCAD 8. The KiCAD project files are included in this repository.

Bill of Materials (BOM)

Below is a list of materials needed to assemble the PCB.

Reference	Qty	Description	Footprint	Datasheet
C1,C4	2	2nF	Capacitor_THT:C_Disc_D5.1mm_W3.2mm_P5.00mm
C2,C3	2	33uF	Capacitor_THT:CP_Radial_D5.0mm_P2.00mm
C5,C6,C7,C8,C9,C10	6	0.1uF	Capacitor_THT:C_Disc_D5.1mm_W3.2mm_P5.00mm
D1,D10	2	Green	LED_THT:LED_D5.0mm
D2,D3,D4,D5,D6,D7,D8,D9	8	Red	LED_THT:LED_D5.0mm
J1	1	Barrel_Jack_Switch	Connector_BarrelJack:BarrelJack_Horizontal
R1,R2,RN1	2	150	Resistor_THT:R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal
RN1	1	150	8 Resistors; 9 pins
R3,R4	2	1k	Resistor_THT:R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal
R5	1	4.7k	Resistor_THT:R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal
SW1	1	Player A	RetroStackLibrary:SW_SPST_Push
SW2	1	Reset A	RetroStackLibrary:SW_SPST_Push
SW3	1	Serve	RetroStackLibrary:SW_DPDT_Slide_RightAngle
SW4	1	Speed	RetroStackLibrary:SW_SPDT_Toggle
SW5	1	Reset B	RetroStackLibrary:SW_SPST_Push
SW6	1	Player B	RetroStackLibrary:SW_SPST_Push
U1,U3,U4	3	74LS00	Package_DIP:DIP-14_W7.62mm	http://www.ti.com/lit/gpn/sn74ls00
U2	1	74LS10	Package_DIP:DIP-14_W7.62mm	http://www.ti.com/lit/gpn/sn74LS10
U5,U6	2	74LS194	Package_DIP:DIP-16_W7.62mm	http://www.ti.com/lit/gpn/sn74LS194

RetroStack Libraries

To work with this KiCAD project, you'll need the RetroStack libraries for KiCAD. Please follow this link to access and install these libraries.
