Description

A simple game to learn digital electronics

README

DigiMind

As part of an introduction in digital electronics workshop at VCF SW 2024, I prepared this design of a Masterm*nd like game to teach digital electronics.

Latest Files

In the "Latest" folder, you'll find the most up-to-date design files, including:

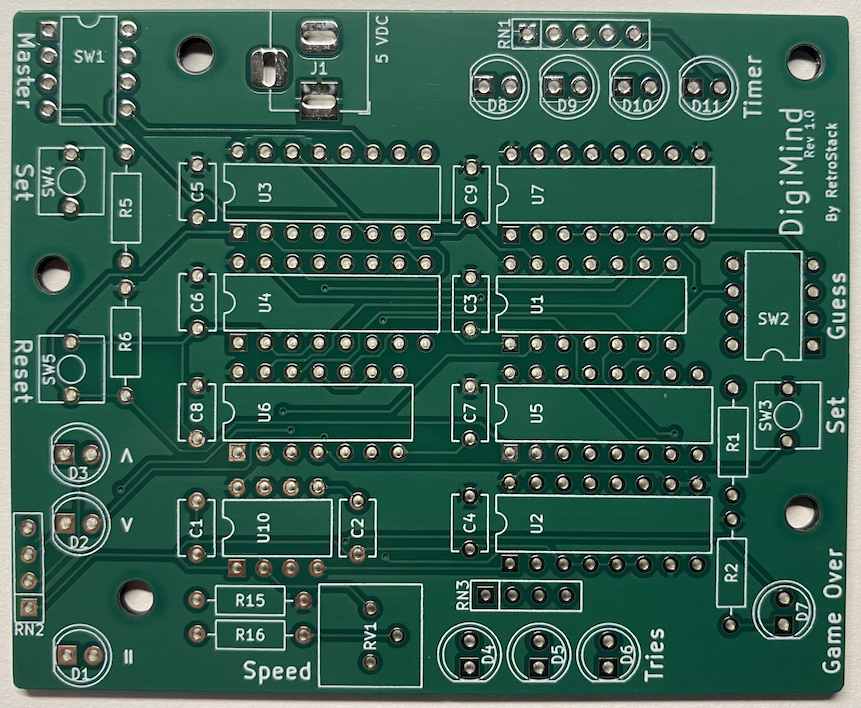

• Gerber files suitable for popular online PCB manufacturers like PCBWay and JLCPCB. Most manufacturers should be fine with either.
• A Bill of Materials (BOM) in both CSV and PDF formats.
• The full schematics of the board.

Implementation

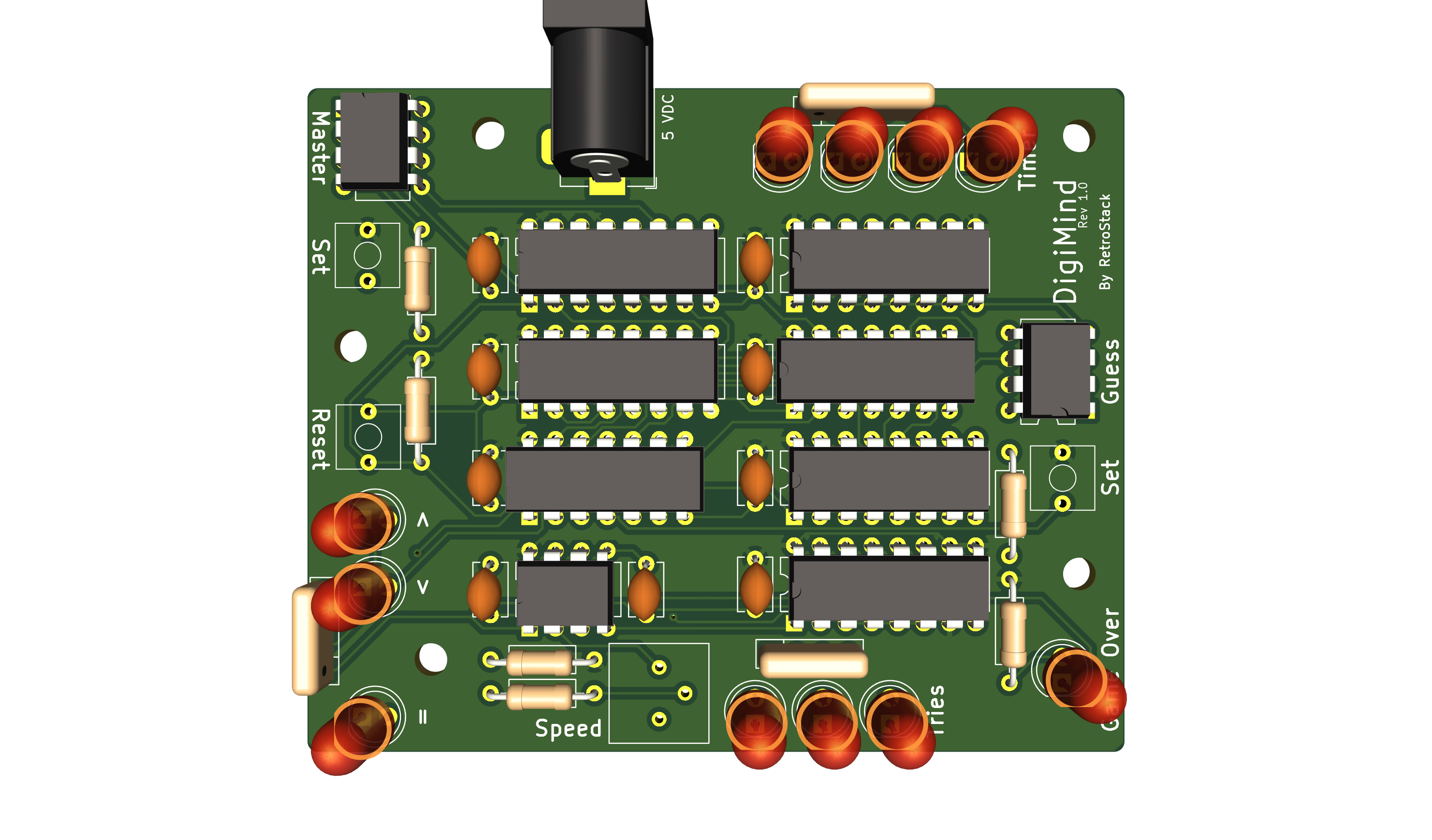

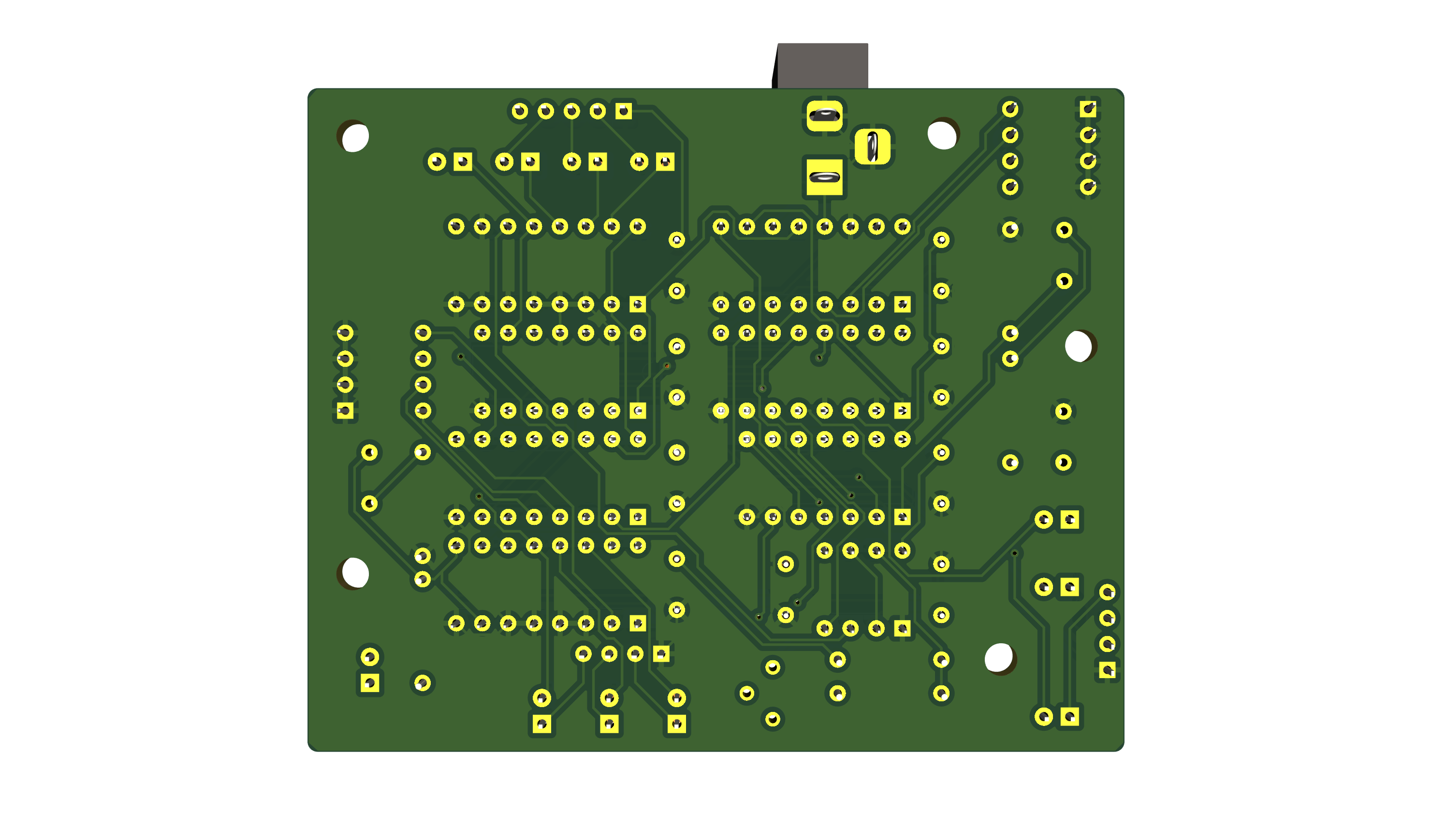

The board has been implemented using KiCAD 8. The KiCAD project files are included in this repository.

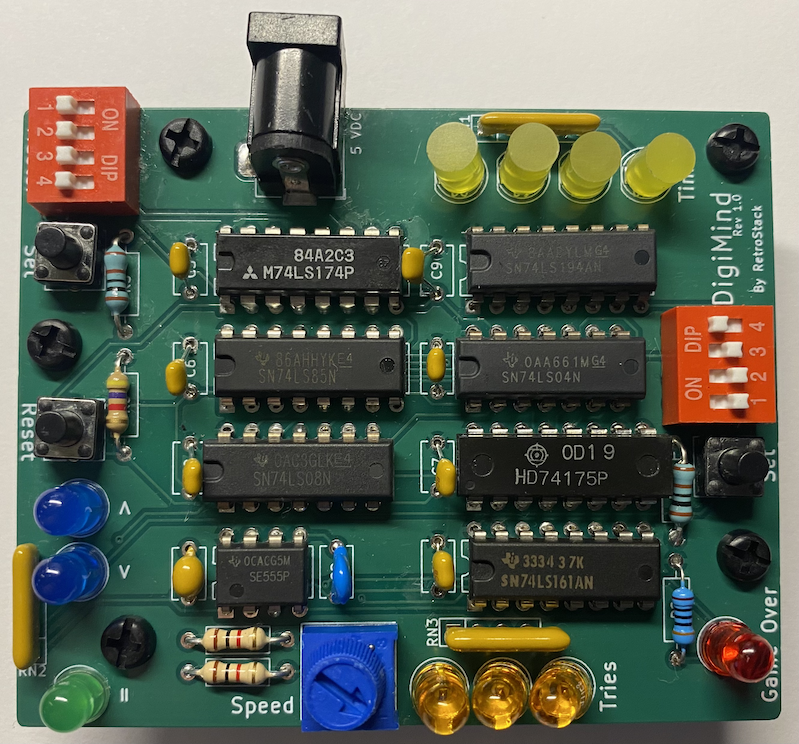

How to Play

There are two players for this game:

• A person guessing the master code
• A person defining the master code

Before starting the game, the person defining the master code hits the "Reset" button to reset the game's state. Then, they enter the code using the DIP switches labeled "Master." When completed, the "Set" button must be pushed to set the master code. After that, the master code can be cleared from the DIP switches as it has been read into the memory.

As soon as the "Set" button is pressed, a timer labeled "Timer" starts running down. When the last light turns off, the game is over (if the master code was not found). The potentiometer labeled "Speed" can increase the time a player has to guess the master code.

The guesser needs to enter a code into the DIP switch on the other side, labeled "Guess." The "Set" button right next to it can be pressed to trigger a guess attempt. Each attempt is recognized and counted up with the "Tries" lights. When reaching a binary 8, the game is over.

In either case, when the time runs out or when 8 guesses have been made and the guess was wrong, the "Game Over" light indicates the game is over. This light will turn on regardless of whether the master code was found or not (to simplify the logic). What is important is the "=" light that indicates if the guess was correct.

If the guess was wrong, the board indicates if the master code is higher or lower than the entered guess. These indicators are labeled "<" and ">".

Known Issues

Some decisions were made to keep the diagram somewhat readable for beginners. For example, the "Game Over" light will turn on regardless if the guess was found or not. There is also an issue when entering guesses where a bouncing of the "Set" button causes multiple guesses to register. This can be fixed by a debouncing circuit.

Bill of Materials (BOM)

Below is a list of materials needed to assemble the PCB.

Reference	Qty	Description	Footprint	Datasheet
C1	1	10uF	Capacitor_THT:C_Disc_D5.1mm_W3.2mm_P5.00mm	~
C2	1	0.01uF	Capacitor_THT:C_Disc_D5.1mm_W3.2mm_P5.00mm	~
C3,C4,C5,C6,C7,C8,C9	7	C	Capacitor_THT:C_Disc_D5.1mm_W3.2mm_P5.00mm	~
D1	1	Green	LED_THT:LED_D5.0mm	~
D2,D3	2	Yellow	LED_THT:LED_D5.0mm	~
D4,D5,D6,D7,D8,D9,D10,D11	8	Red	LED_THT:LED_D5.0mm	~
J1	1	Barrel_Jack_Switch	Connector_BarrelJack:BarrelJack_Horizontal	~
R1,R5,R6	3	R	Resistor_THT:R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	~
R2,R15,R16	3	1k	Resistor_THT:R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal	~
RN1	1	R_Network04	Resistor_THT:R_Array_SIP5	http://www.vishay.com/docs/31509/csc.pdf
RN2,RN3	2	R_Network03	Resistor_THT:R_Array_SIP4	http://www.vishay.com/docs/31509/csc.pdf
RV1	1	1M	Potentiometer_THT:Potentiometer_Bourns_3386P_Vertical	~
SW1,SW2	2	SW_DIP_x04	Package_DIP:DIP-8_W7.62mm	~
SW3,SW4,SW5	3	SW_Push	RetroStackLibrary:SW_SPST_Push	~
U2	1	74LS161	Package_DIP:DIP-16_W7.62mm	http://www.ti.com/lit/gpn/sn74LS161
U3	1	74LS174	Package_DIP:DIP-16_W7.62mm	http://www.ti.com/lit/gpn/sn74LS174
U4	1	74LS85	Package_DIP:DIP-16_W7.62mm	http://www.ti.com/lit/gpn/sn74LS85
U5	1	74LS175	Package_DIP:DIP-16_W7.62mm	http://www.ti.com/lit/gpn/sn74LS175
U6	1	74LS08	Package_DIP:DIP-14_W7.62mm	http://www.ti.com/lit/gpn/sn74LS08
U7	1	74LS194	Package_DIP:DIP-16_W7.62mm	http://www.ti.com/lit/gpn/sn74LS194
U8	1	74LS02		http://www.ti.com/lit/gpn/sn74ls02
U10	1	NA555P	Package_DIP:DIP-8_W7.62mm	http://www.ti.com/lit/ds/symlink/ne555.pdf

RetroStack Libraries

To work with this KiCAD project, you'll need the RetroStack libraries for KiCAD. Please follow this link to access and install these libraries.
