README

jackrabbit

RP2040 16-channel 100 MHz logic analyzer

Description

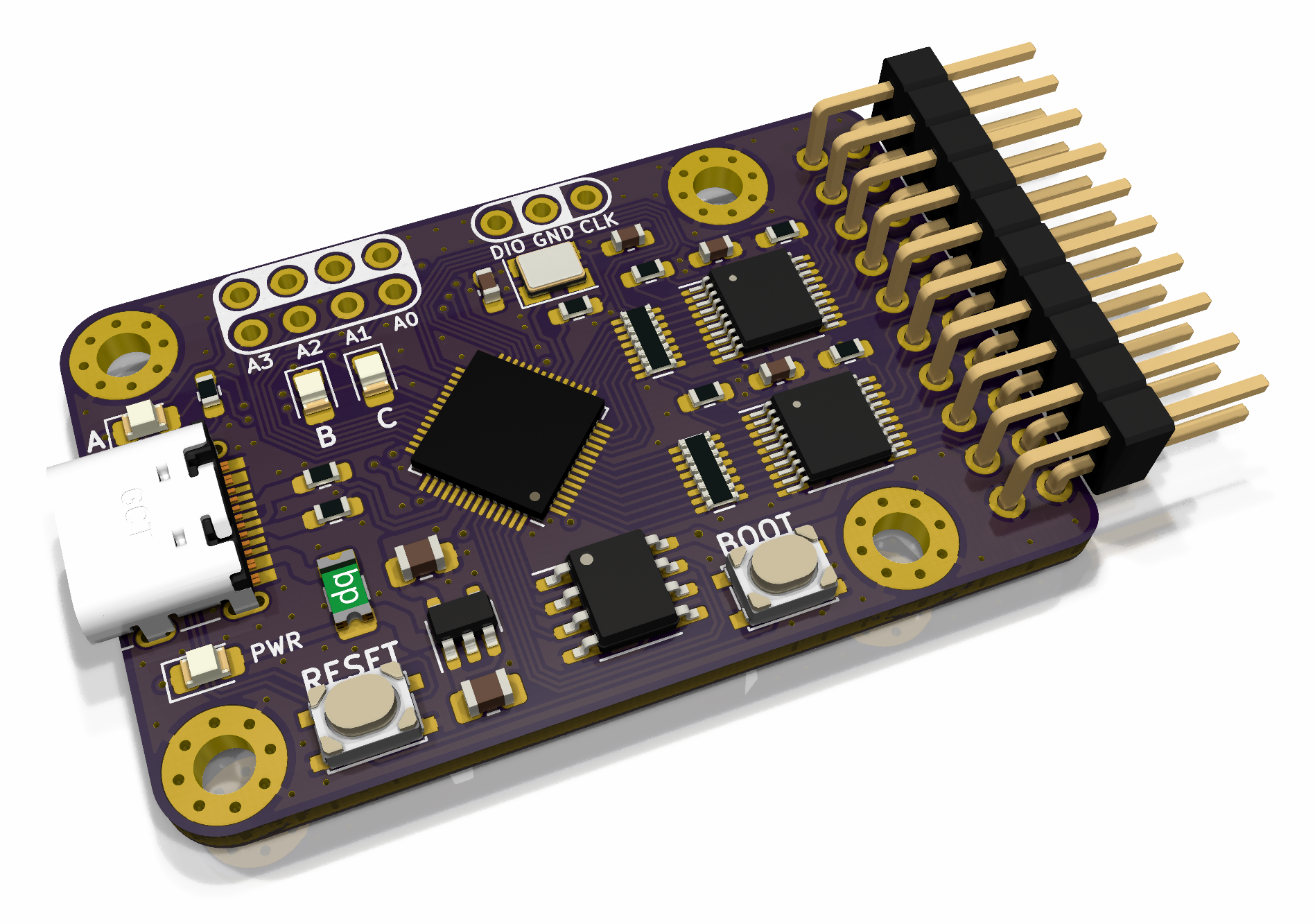

Jackrabbit is a RP2040-based 16-channel logic analyzer in a tiny 1.8" by 1.2" form factor. All digital inputs are buffered for compatibility with both 3V3 and 5V logic. Boot mode select and reset buttons are provided for convenience, and the ADC inputs and SWD pins are broken out. A USB-C connector is present for firmware updates and serial data.

Documentation

Contributors

  • Brian Cruz - BS EE, Caltech, 2023
  • Brandon Gong - BS CECS, USC, 2024
  • Ray Sun - BS EE, Caltech, 2020; PhD EE, USC, 2026

Licensing

This project is released under the terms of the MIT License.
