soundspy

Real-time multi-node sound monitoring system for ESP32

---

ESP32 nodes with I2S microphones sample audio, perform 6-band frequency analysis, and publish to a web dashboard via MQTT. Designed to monitor when audio production might be disturbing neighbors through shared walls.

Requirements

Hardware (per node)

• ESP32 development board
• ICS-43434 or INMP441 I2S MEMS microphone

Software

• Docker + Docker Compose
• Arduino CLI (for firmware builds) — or Arduino IDE

Setup

1. Configure environment

cp .env.example .env
# Edit .env with your WiFi credentials and server IP

2. Start services

docker compose up -d

Dashboard: http://<server-ip>:8091

3. Build and flash firmware

./scripts/build_firmware.sh
# Initial flash via USB:
arduino-cli upload -p /dev/ttyUSB0 --fqbn esp32:esp32:esp32 \
  --input-file builds/soundspy_latest.bin

Subsequent updates can be done via OTA from the dashboard.

Hardware wiring (I2S mic → ESP32)

Mic Pin	ESP32 GPIO
VDD	3.3V
GND	GND
SD	GPIO32
WS	GPIO25
SCK	GPIO33
L/R	GND

Development

Project structure

node_firmware/node_firmware.ino   — ESP32 firmware
dashboard/dashboard.py            — Flask + SocketIO backend
dashboard/templates/dashboard.html — Web UI
dashboard/threshold_monitor.py    — Alert service
scripts/build_firmware.sh         — Build script
scripts/deploy_ota.sh             — OTA deploy script

OTA deploy to a node

./scripts/deploy_ota.sh <chip_id>
# chip_id visible in dashboard or serial output on boot

Useful commands

docker logs -f soundspy_dashboard   # Dashboard logs
docker logs -f soundspy_monitor     # Alert service logs

Documentation

Full documentation is available on the project wiki:

• Architecture
• Hardware Wiring
• Firmware Setup
• Dashboard
• Adding Nodes
• Troubleshooting

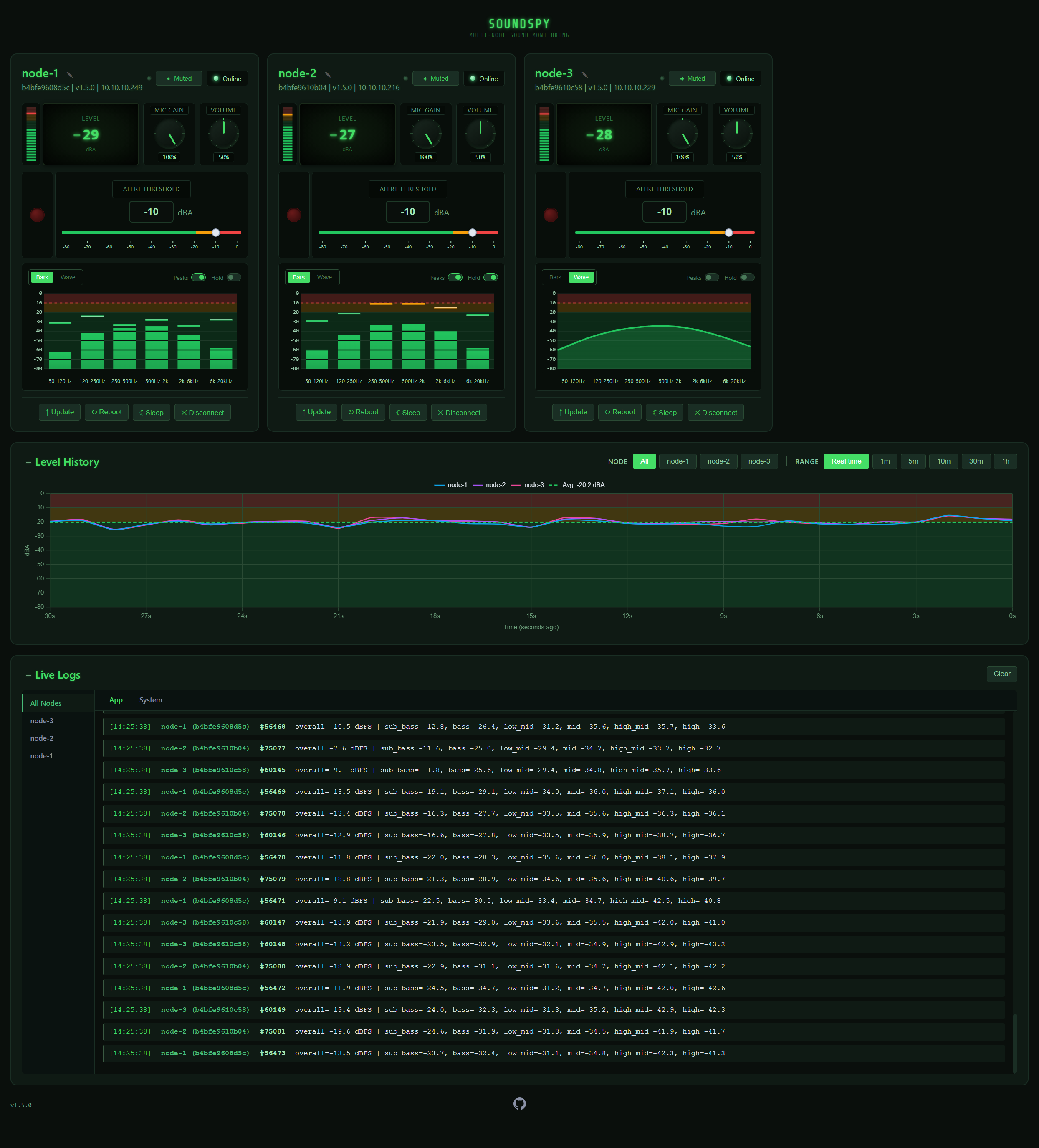

Screenshot

License

AGPL-3.0
