README

HBR/MK2

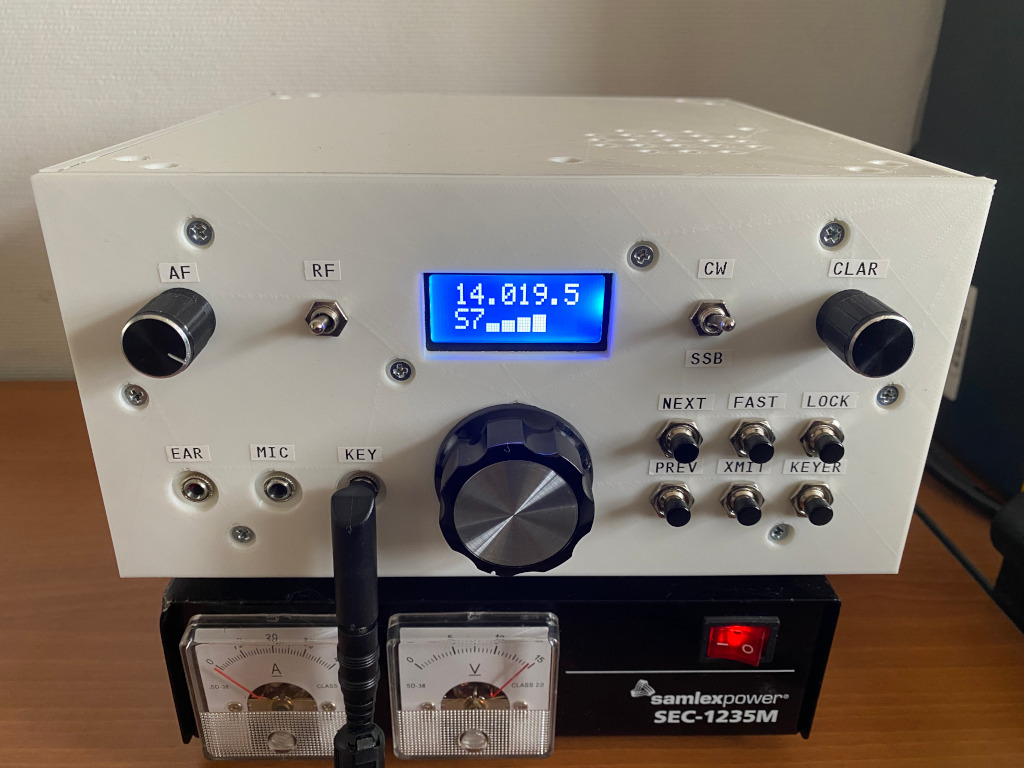

All HF bands QRP CW/SSB transceiver "HomeBrew Radio, Mark 2".

  • Covers 80, 40, 30, 20, 17, 15, 12 and 10 meters
  • Classical single IF superheterodyne design
  • Effective IF derived AGC
  • Voice compression
  • Supports RIT and XIT
  • 10-30 WPM Elekey-B type keyer + straight key mode
  • Keyer supports record and playback, programmable with paddles
  • Five favorite frequencies per band (press NEXT/PREV in FAST mode)
  • Class AB amplifier provides 5-10W in both CW and SSB
  • Has a S-meter and a SWR meter
  • Open-source firmware, schematic and 3D-printable enclosure
