RFID-Gwent

Electronic Gwent Game from the Witcher Series

Better Idea

  • individual reading antennas
  • connected to an rf-switch / multiplexer with an sma connector
  • Single Controller saves cost and is easier expandable
  • maybe one module for each row is managable?

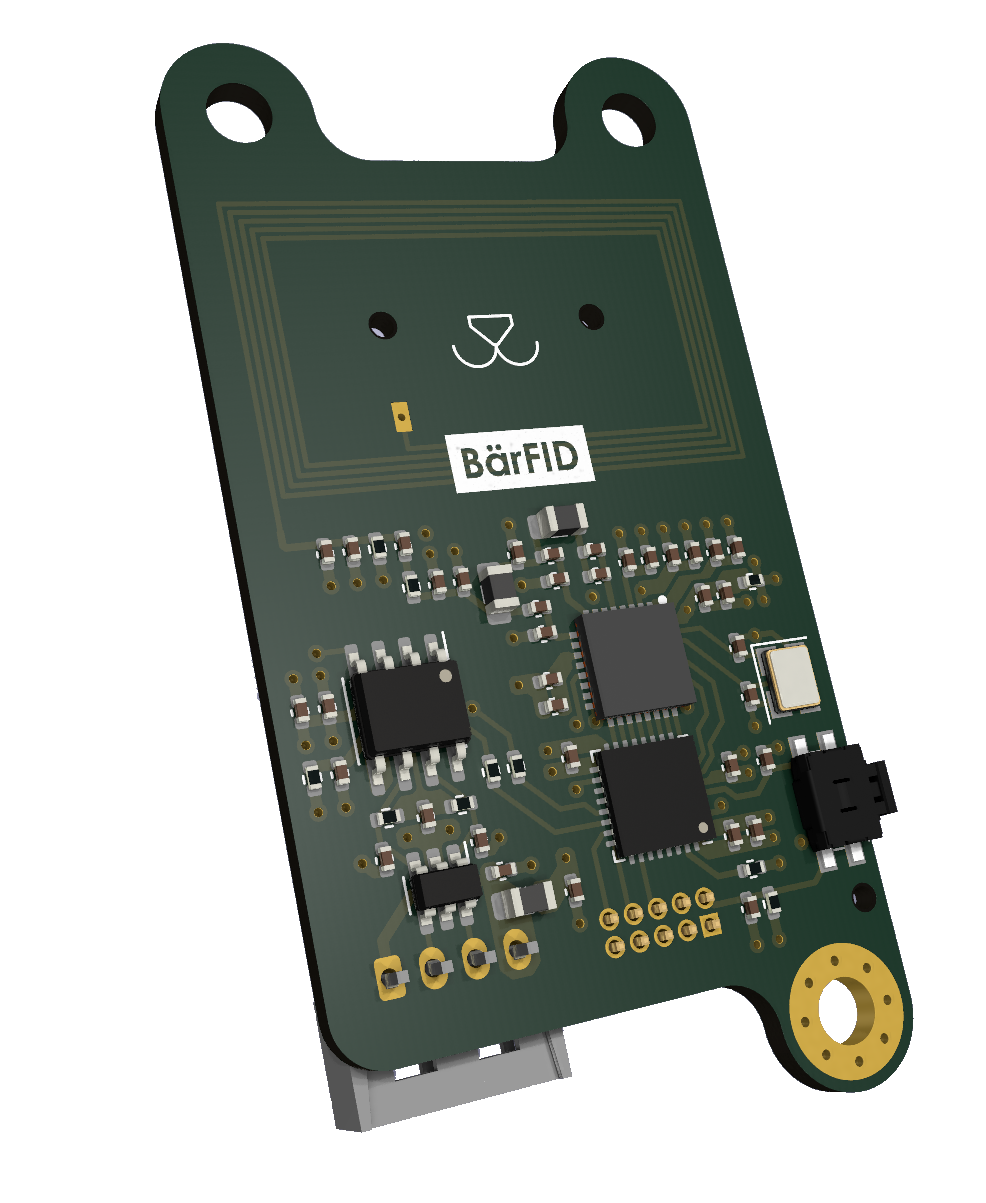

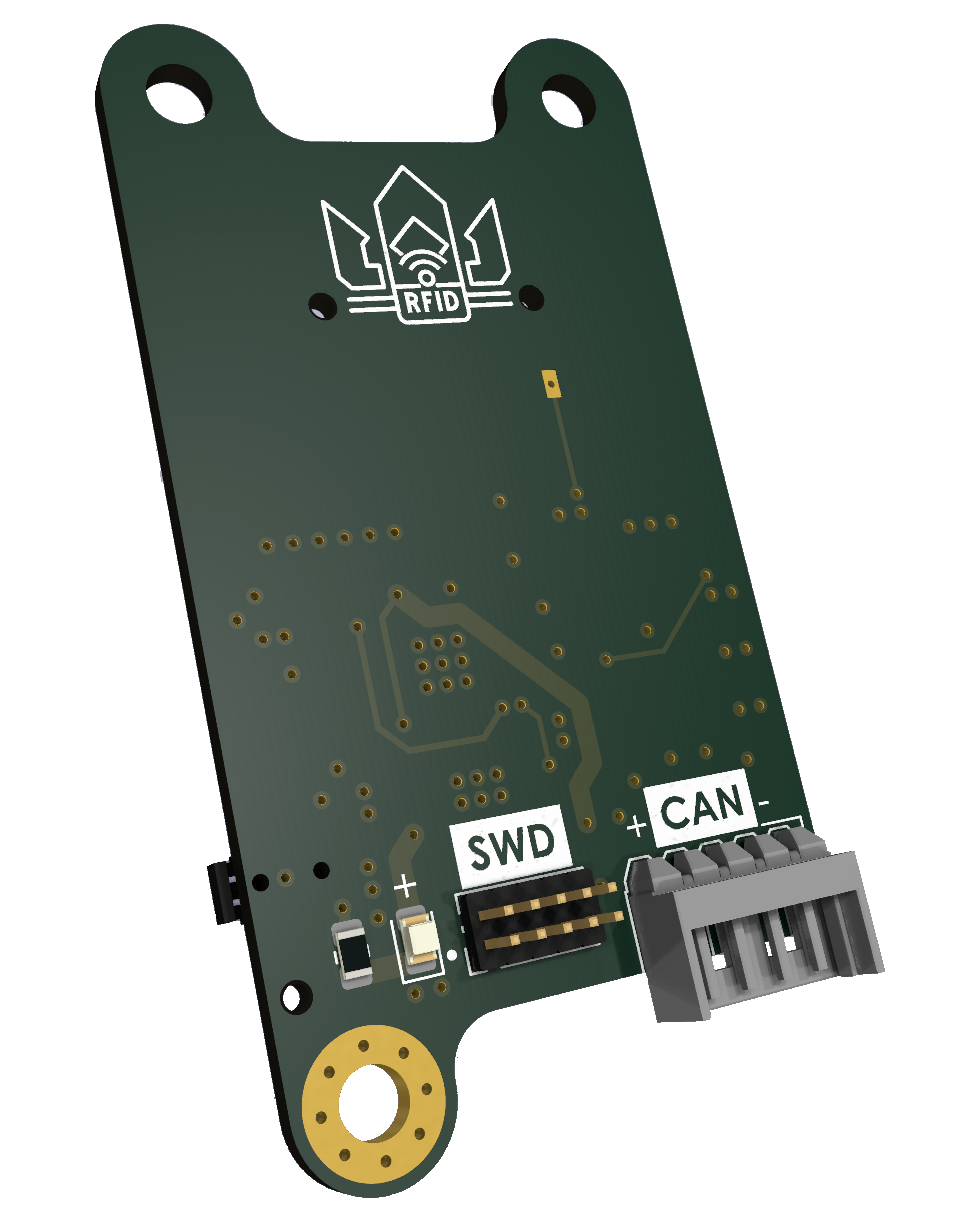

Card Slot Reader Module PCB

Top PCBBottom PCB
