kicad-accl-magn-pmod accl_magn_pmod view

Description

Imported from GitHub: s59mz/kicad-accl-magn-pmod · commit fa3f444 · license GPL-3.0

Description

Pmod module for ADXL345 Accelerometer and HMC5883L Magnetometer

README

accl_magn_pmod

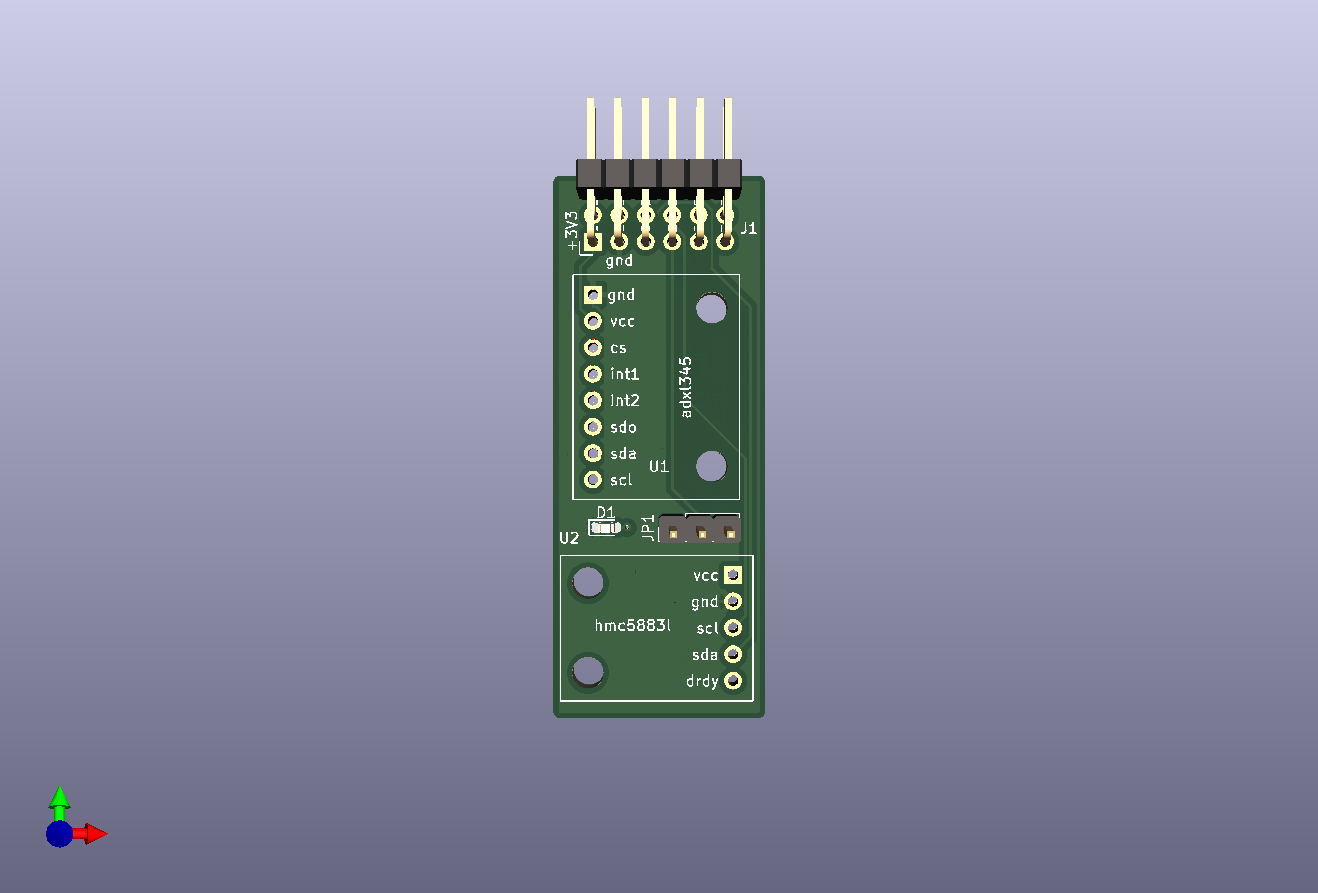

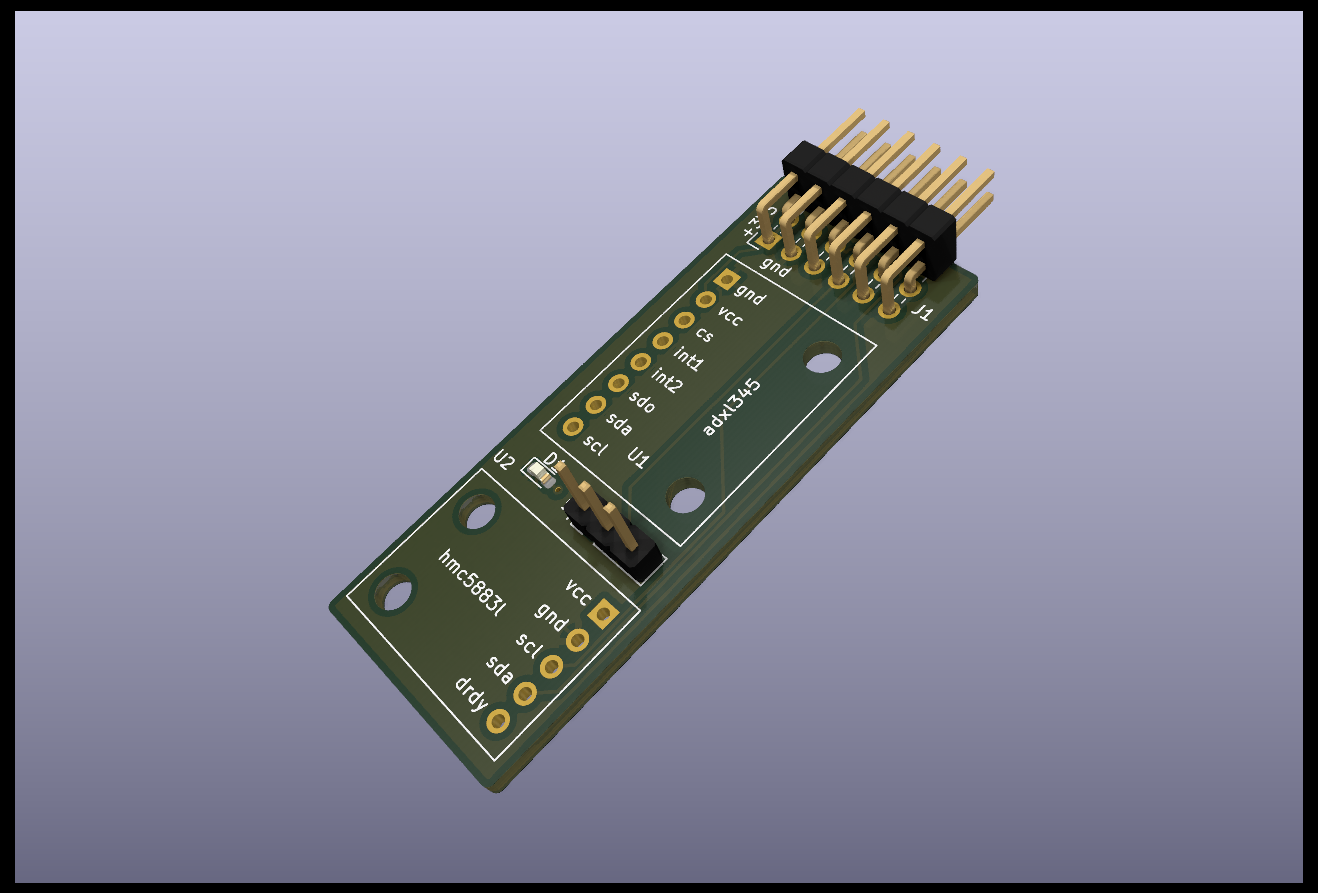

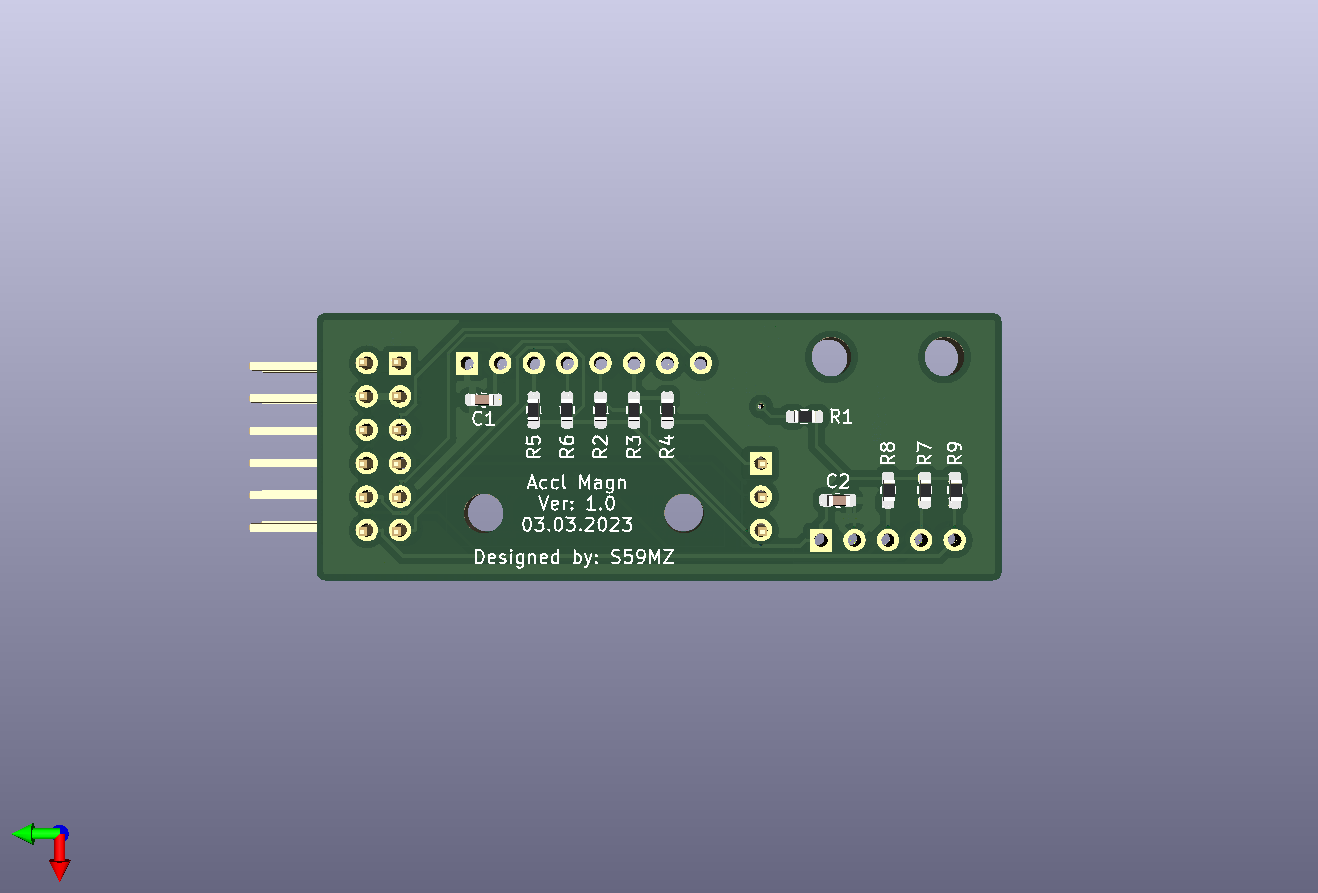

PMOD PCB module for ADXL345 Accelerometer and HMC5883L Magnetometer

alt text

alt text

alt text

Schematic: accl_magn_pmod.pdf

BOM: accl_magn_pmod.csv

Gerbers: gerbers.zip

Comments

Sign in to comment

No comments yet. Be the first to ask about this board.

publicGPL-3.0

kicad-accl-magn-pmod

@s59mz

Pmod module for ADXL345 Accelerometer and HMC5883L Magnetometer

20.32 × 52.07 mm · 1.6 mm · 2 layers · rev 1.0
