Autumn 2023
This repository contains three folders: electrical, software, and docs which contain all the project deliverables for this project. The project summary with my perspectives on this project is located at the bottom of this page.
The smart pot is designed as a completely autonomous plant pot that gives you the ability to be a plant parent without the trouble of remembering to water it on a regular basis. It gives water to the plant when it actually is thirsty. Now you can travel without being worried about watering your plant!
To learn more about the product, visit the following folders:
docs: contains the product brief, product requirements, product design document, bill of materials, bringup plan, and unit tests documentelectrical: contains the detailed KiCad schematic and PCB layoutsoftware: contains the software for the Smart PotThe fully functional board appears as follows:

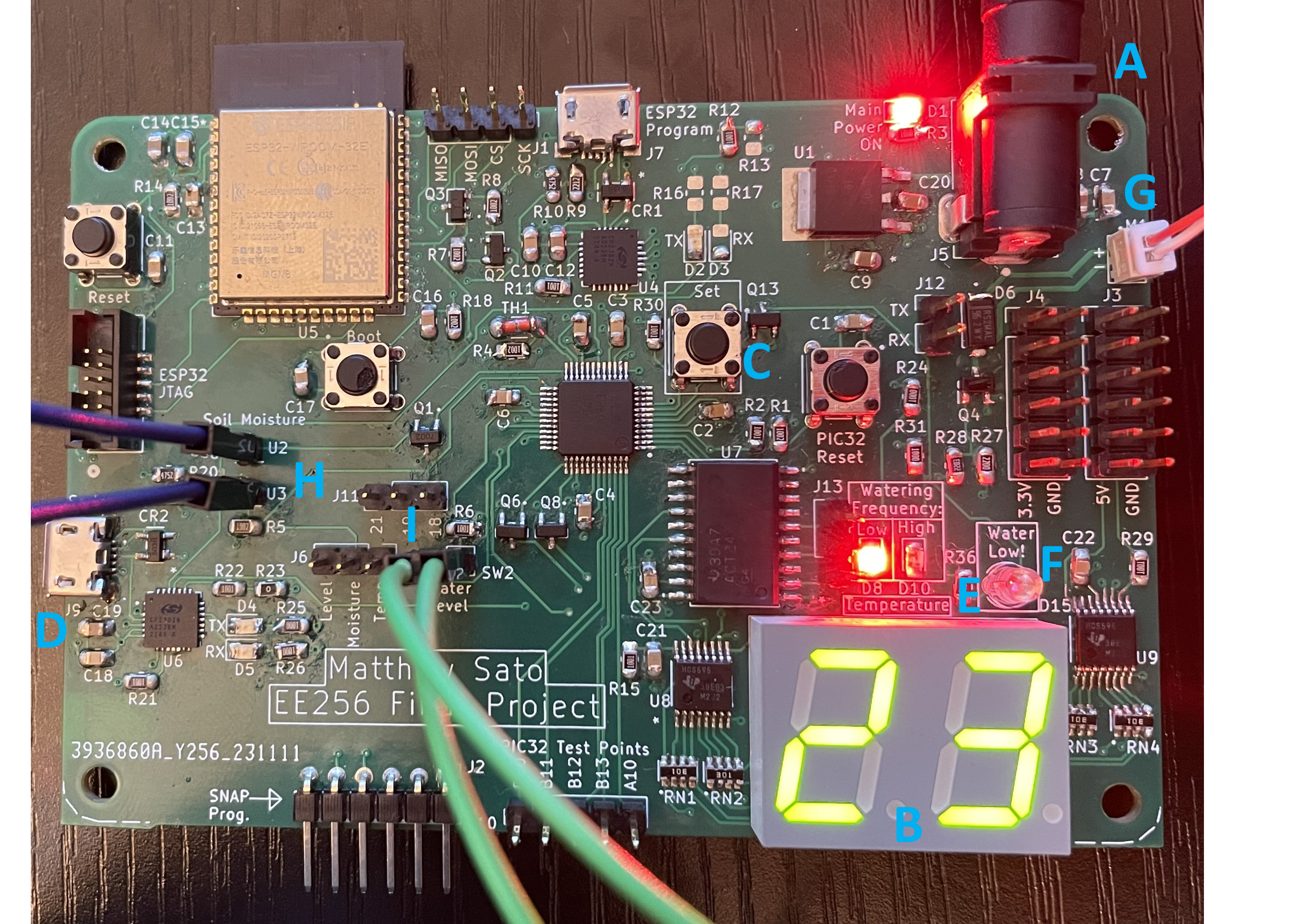

A. The power supply barrel jack. Insert 5V DC only.
B. The display for the product. Can show temperature in F/C, or the soil moisture percentage
C. The function button. Short pressing once will switch the watering frequency to between the low threshold and the high threshold. A long press will activate the pump. A double press activates selection mode. In selection mode, you can click the button to select Fahrenheit units, Celsius Units, or Soil Moisture to display. After 5 seconds of inactivity in selection mode, the display will show the desired quantity.

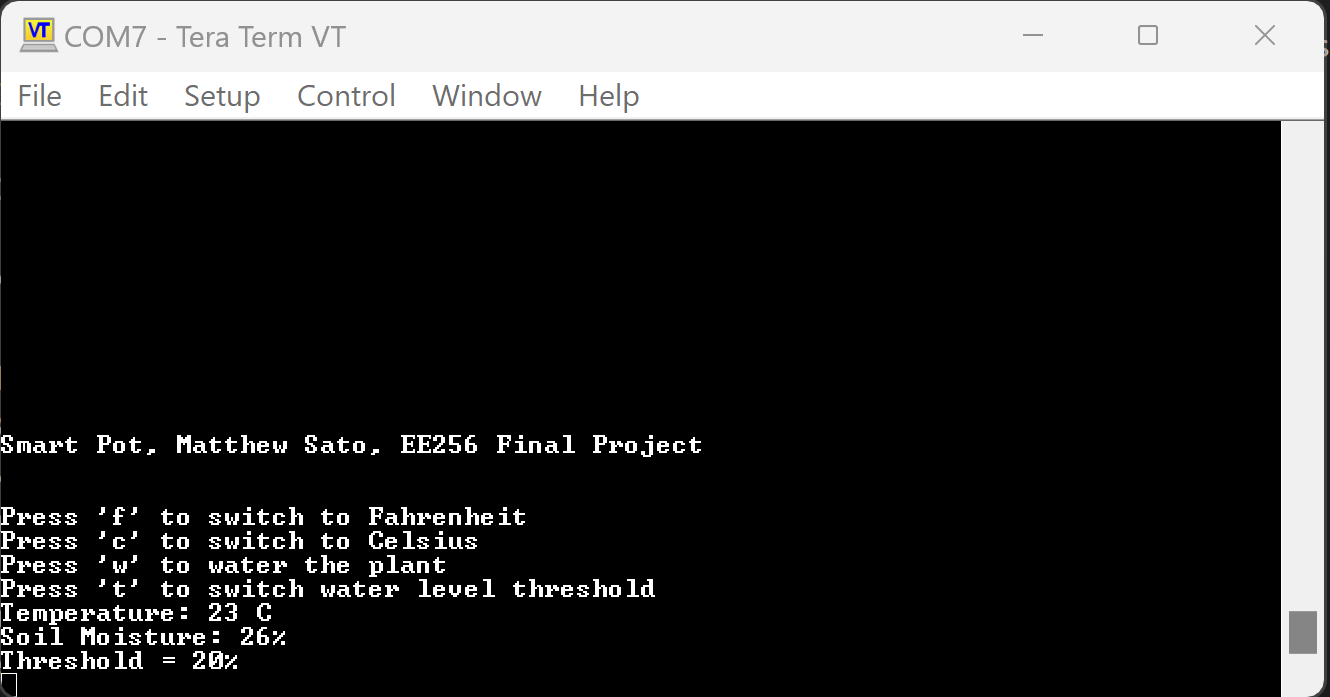

D. The serial output. Connect this USB-Micro port to your computer and see the current data using a baud rate of 115200. I recommend TeraTerm, and the proper driver for a CP2102 USB-UART driver must be installed on your machine. The output looks like the following:
E. These two LEDs indicate if the low soil moisture threshold or high soil moisture threshold are selected.

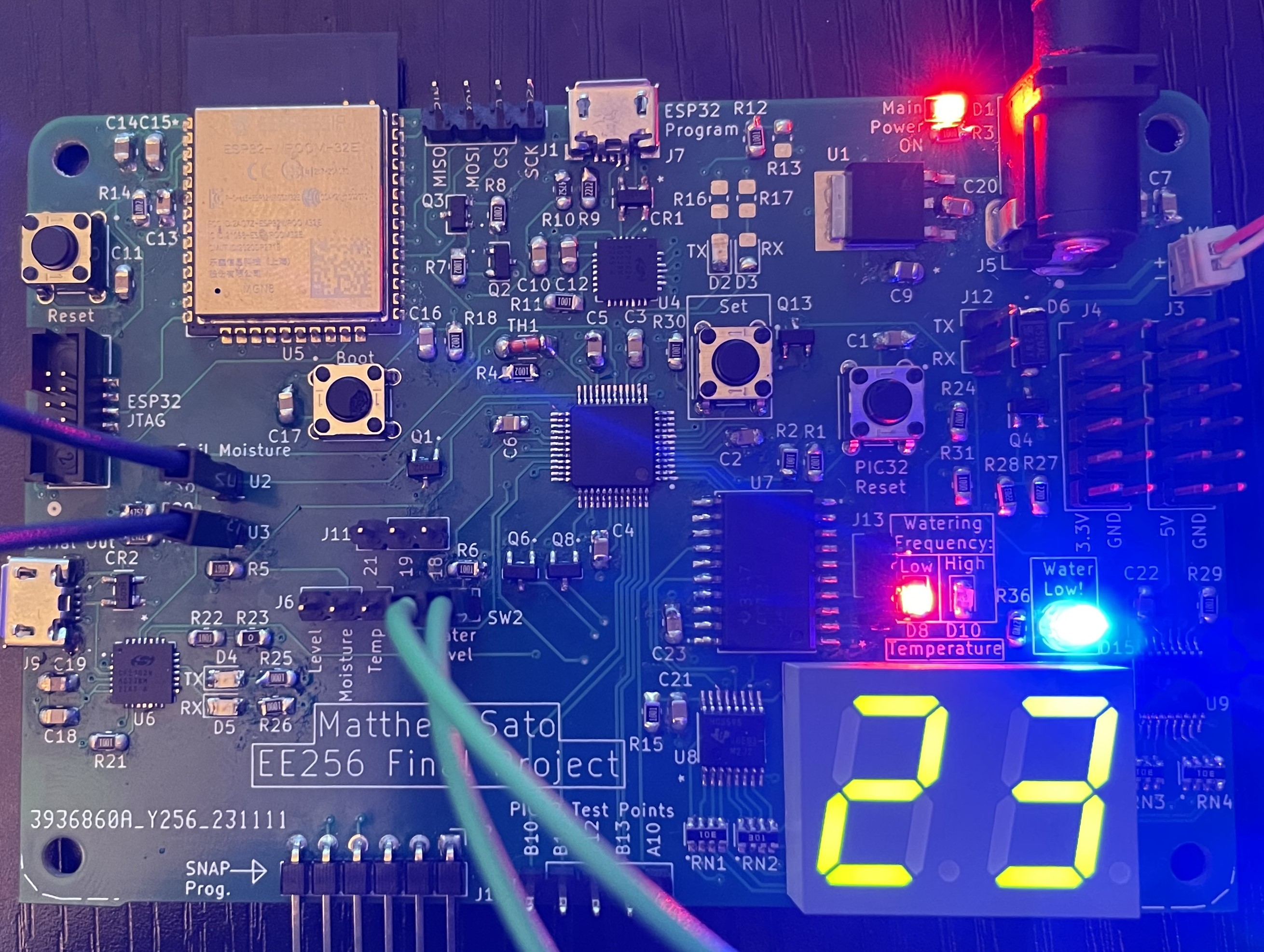

F. This blue LED indicates when your water tank is low:
G. The port for the pump

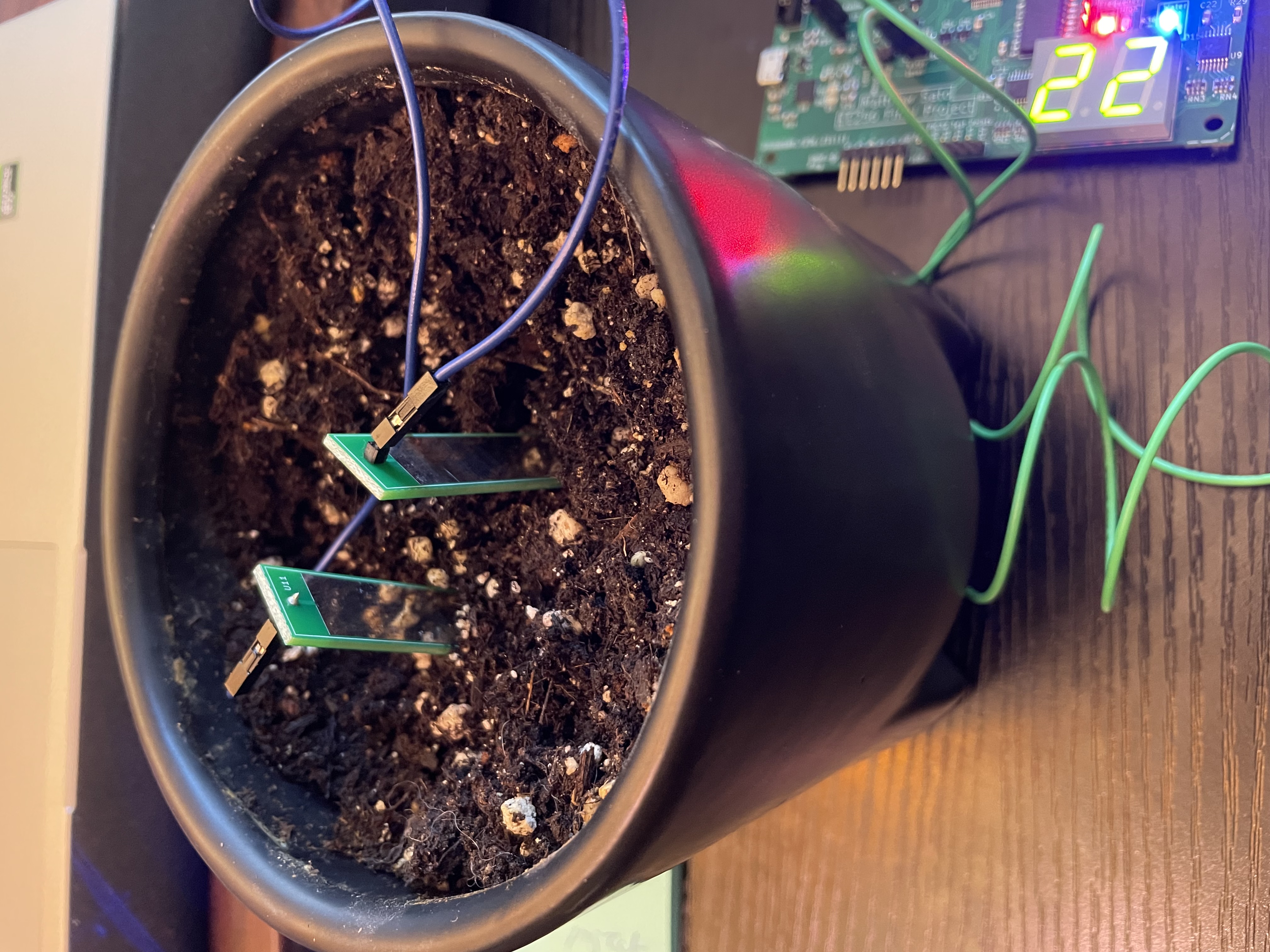

H. The ports for the soil moisture probes. The probes should be placed in the pot approximately one inch apart:

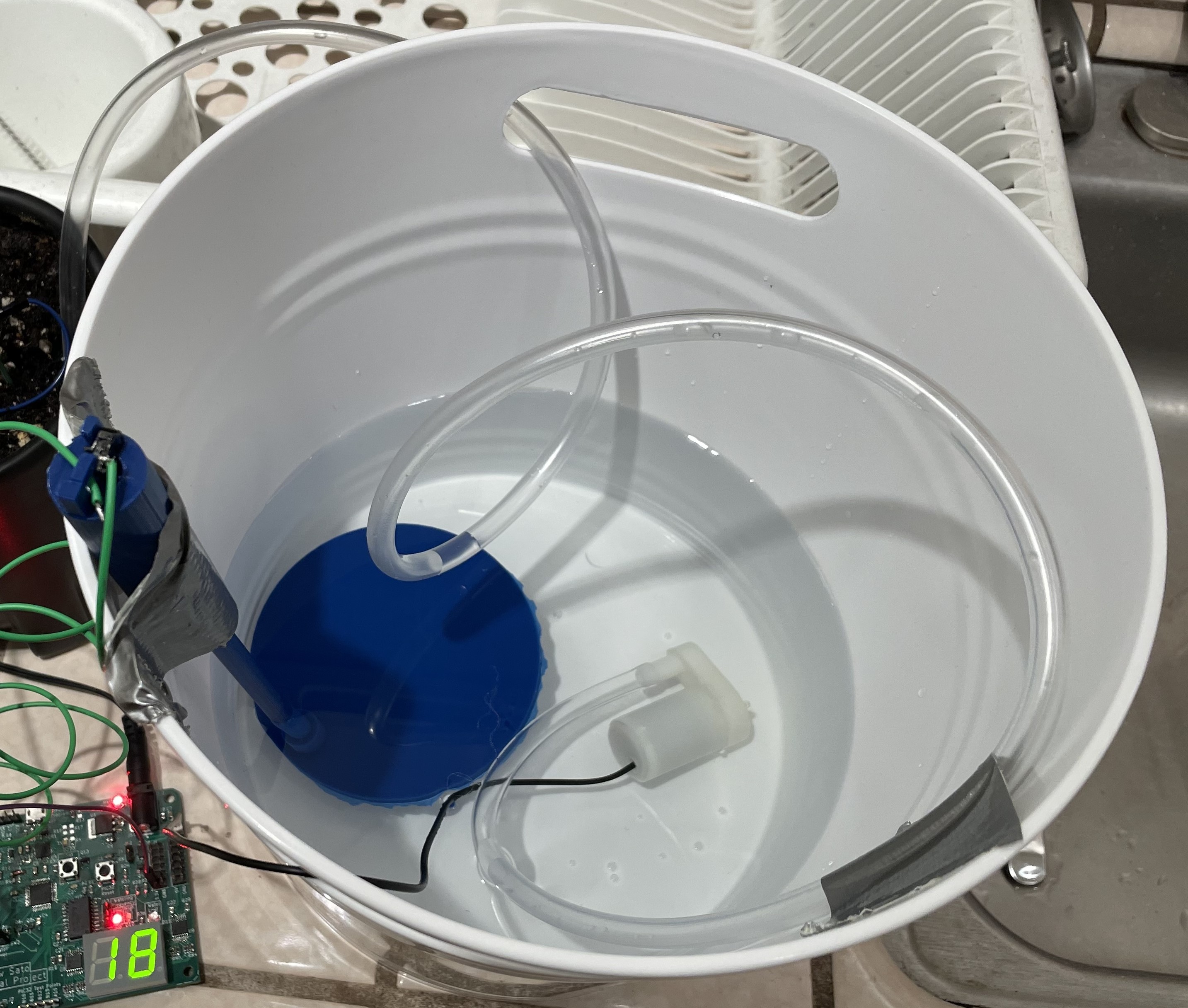

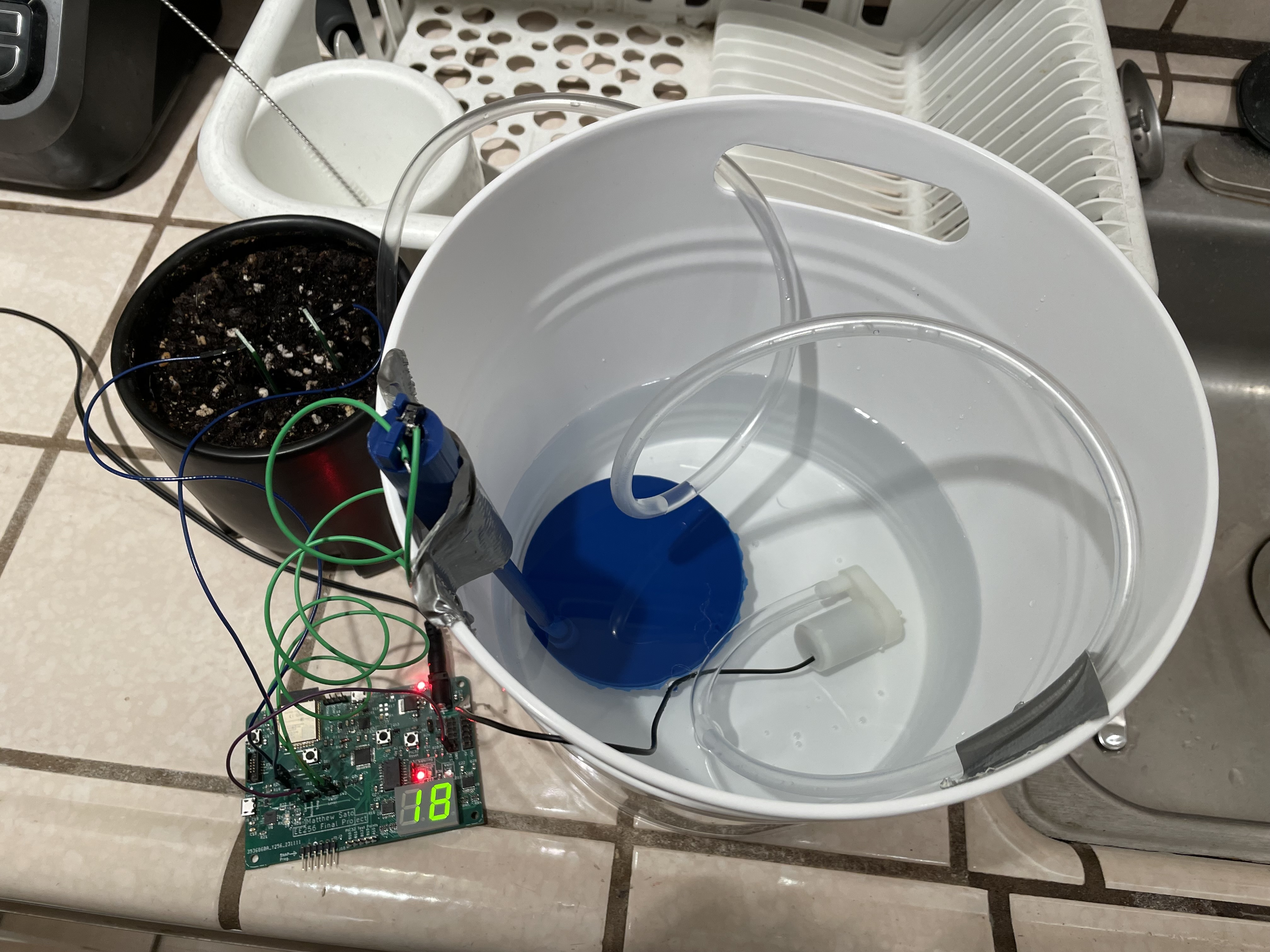

I. The ports for the water tank level sensor. The sensor can be mounted as follows:
The unit should be turned on for approximately 5 minutes before a reliable temperature can be maintained.

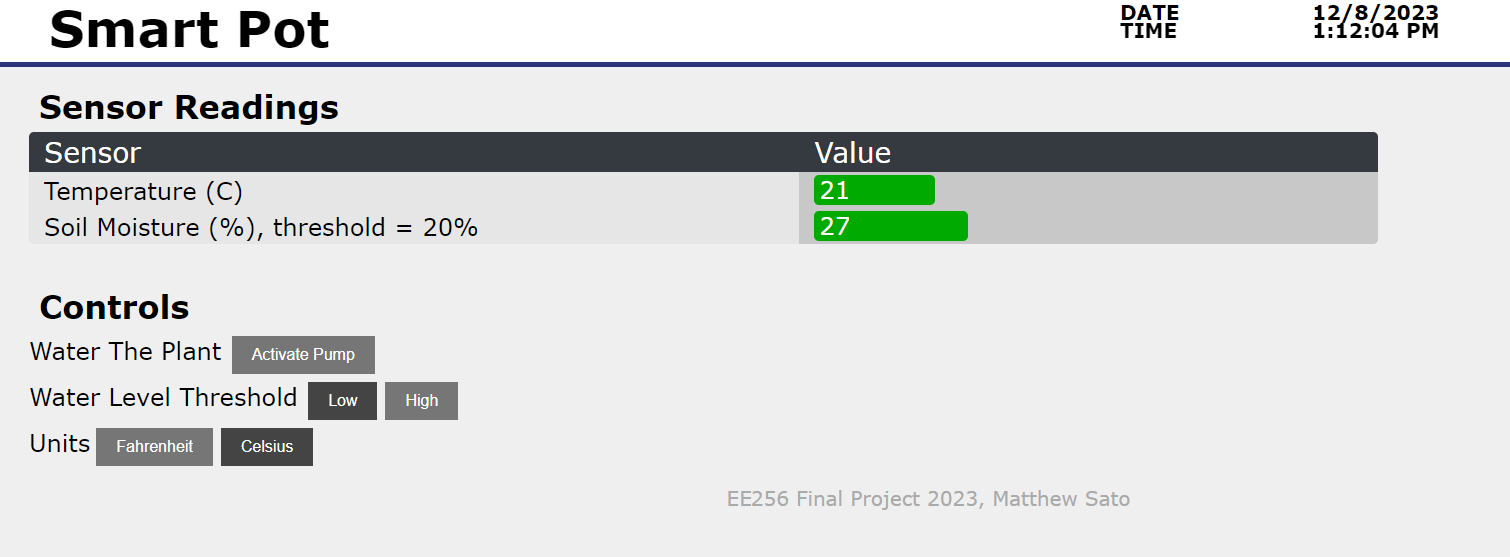

All data can also be viewed on a web browser:
