README

IR Volume Control

Volume control using DigiPot controlled by infrared remote control.

IR Controllable Digipot

This part of the project is a what is actually controlling sound volume. It is a digipot which is controlled by an infrared remote controller (similar to the ones used by TVs).

The design and firmware files are in the IR-Digipot folder.

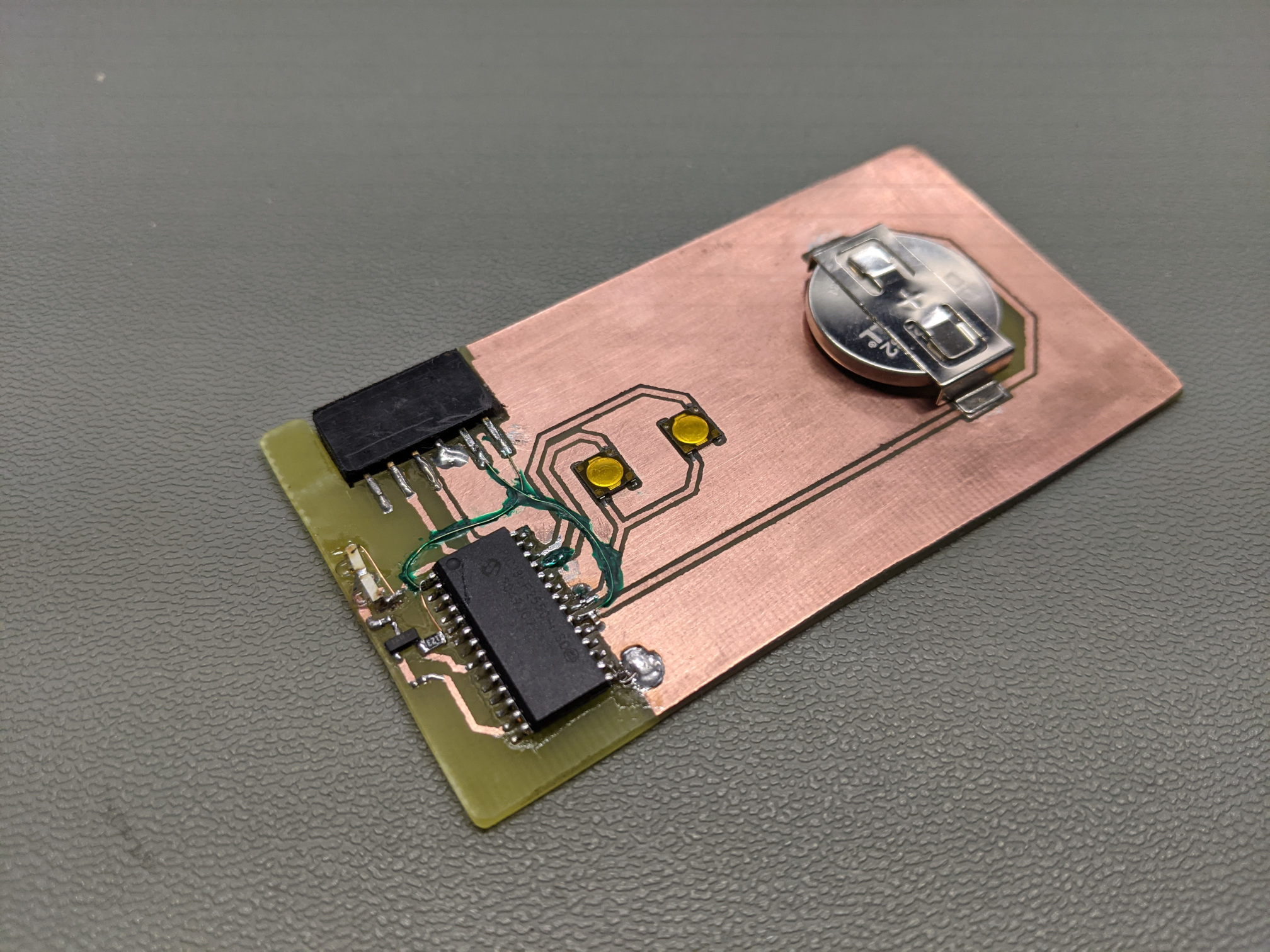

IR Controller

This is a minimalistic implementation of infrared remote controller. It talks to the IR-Digipot. Can be easily extended with more buttons to consolidate all the remote controllers in the house!

Licensing

All the work done and implemented for this project is licensed under the terms of MIT license.
