smartWatch

is a simple, digital wristwatch that uses LEDs to indicate the position of each clock arm.

Smart Features

The smartWatch incorporates an nRF52810 for handling BLE connectivity to send the monitored data regularly to the host device.

PCB Design

The PCB was designed using KiCad.

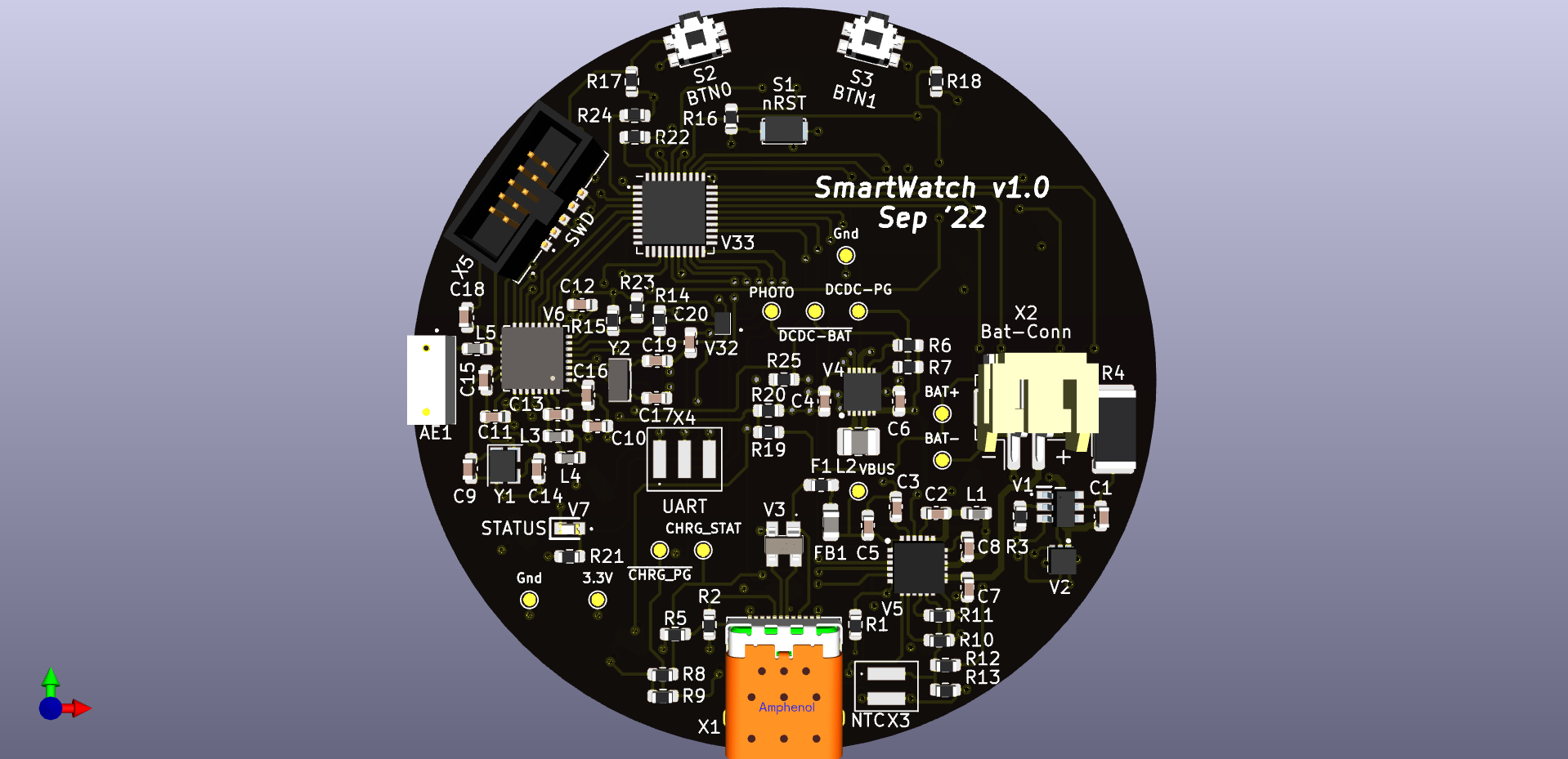

PCB front-side

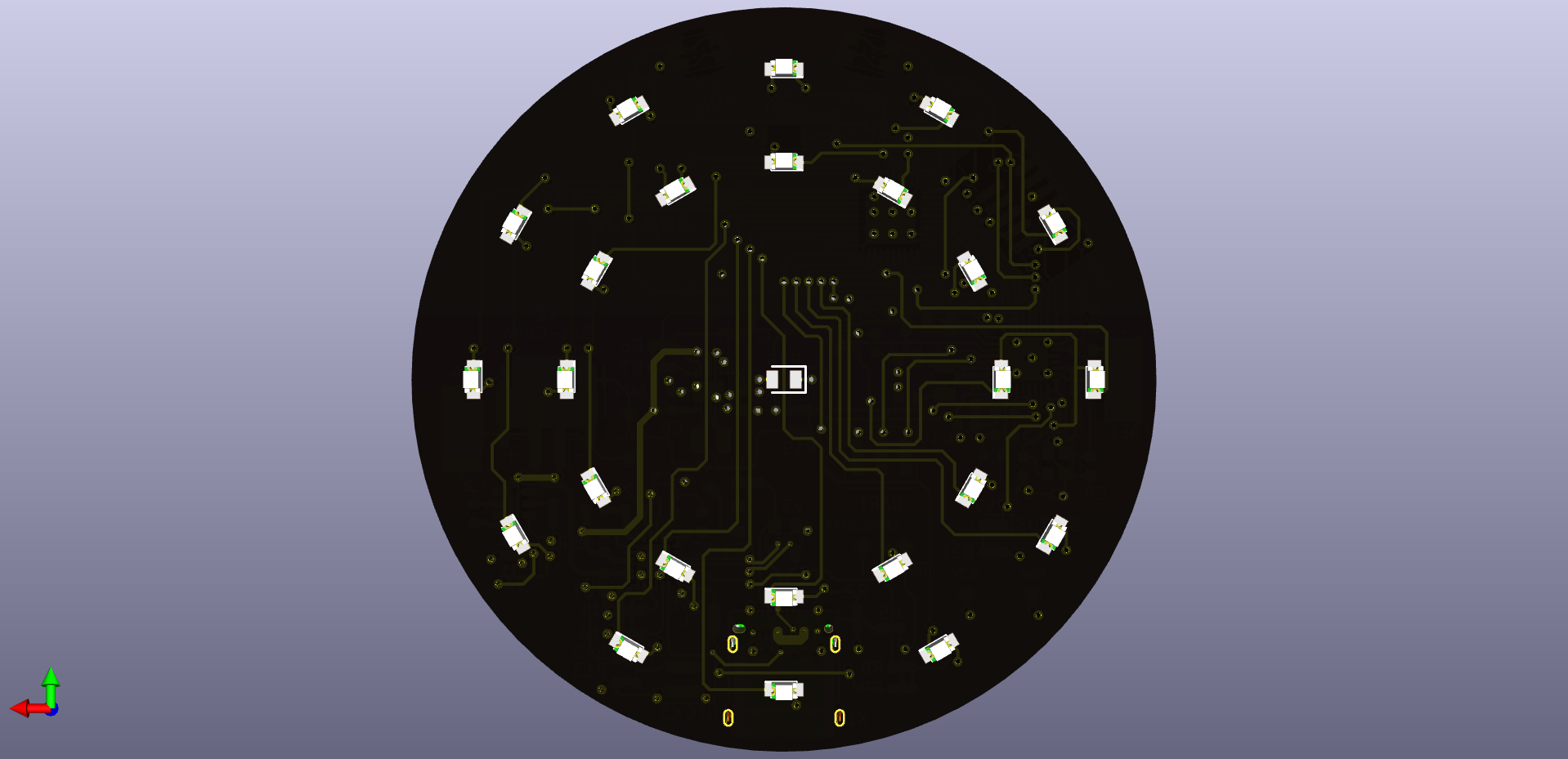

PCB back-side

Future Features

A future revision will include a biomedical sensor to enable even more smart functionalities i.e. SpO2 and heart-rate measurements.
