The goal of this project is to build a 6502-based portable machine, running my own operating system.
See the complete implementation plan and progress here: Implemementation Plan

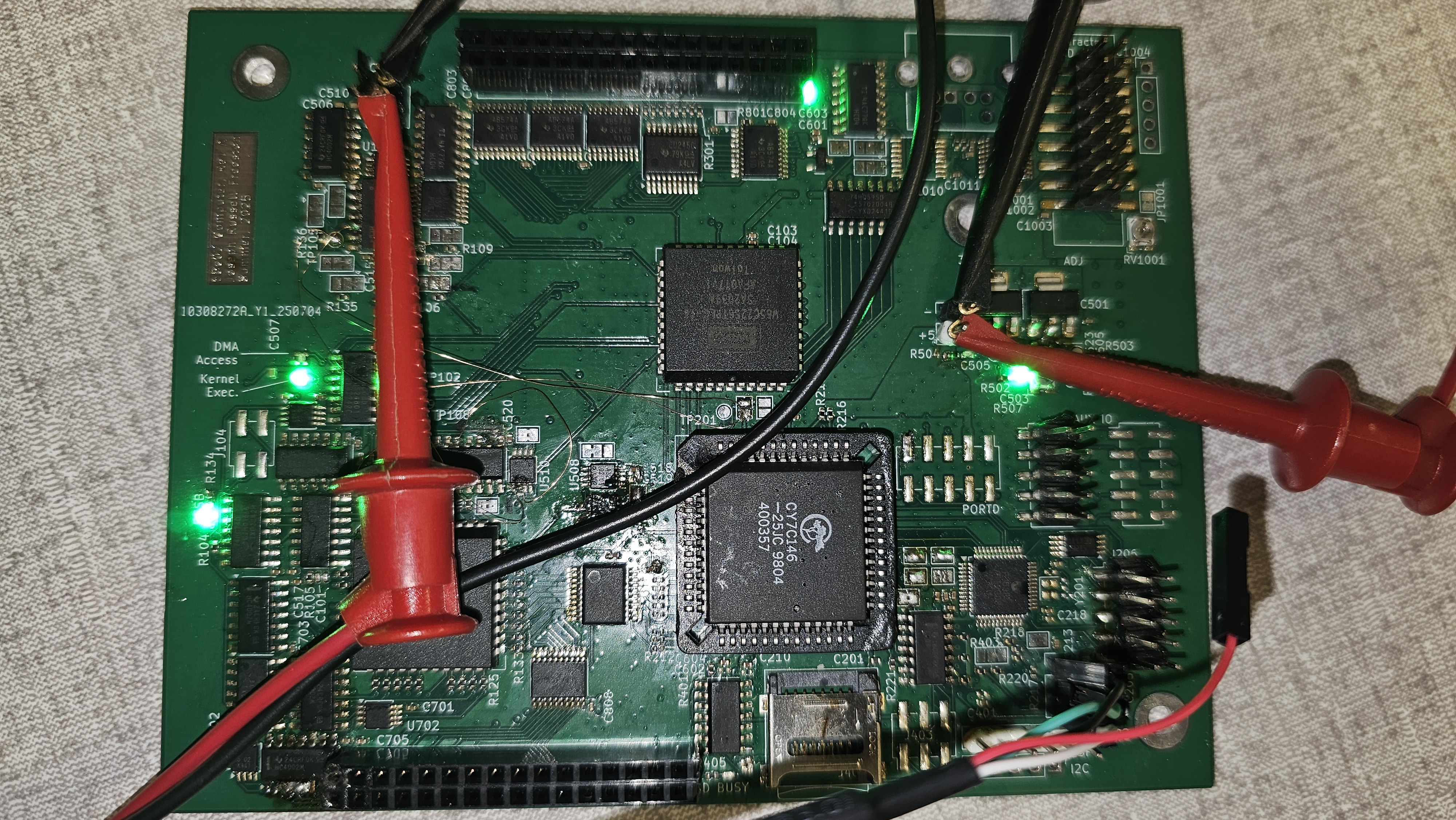

PCB assembled, PIC is able to load code for the 6502 to execute, the 6502 can read/write to the 2-port SRAM.
These are some general points; for the full hardware specification, see here: Hardware Specification
I want the following end goals to categorize the machine as "useful":
Faults will be detected by hardware and trigger a RESET, and the kernel will terminate the process.
A hardware timer using the 65c22 will be used to interrupt processes with an NMI. The kernel will maintain a global clock for user timing needs.
The PIC peripheral coprocessor may, perhaps, feature a watchdog timer to restart the kernel in the event of a crash.
There are many resources that have proven themselves indispensible to the progress of his project.
Here is a small subset of such resources:
