Description

Replaces the PROM that is used to convert pixel colors represented as a 4 bits value (pastel, red, green, blue) and a supplemental bit for blanking signal, into a RGB-222 value and a supplemental trigger signal for the builtin analog video incrustation feature (requires a specific extension) of the Thomson MO5.

README

Replacement of I03 (color PROM) for the Thomson MO5

[WARNING] Please read carefully this note before using this project. It contains important facts.

Content

1. What is Replacement of I03 (color PROM) for the Thomson MO5, and when to use it ?
2. What should you know before using Replacement of I03 (color PROM) for the Thomson MO5 ?
3. How to use Replacement of I03 (color PROM) for the Thomson MO5 ?
4. Known issues
5. Miscellanous

1. What is Replacement of I03 (color PROM) for the Thomson MO5, and when to use it ?

Replacement of I03 (color PROM) for the Thomson MO5 replaces the PROM that is used to convert pixel colors represented as a 4 bits value (pastel, red, green, blue) and a supplemental bit for blanking signal, into a RGB-222 value and a supplemental trigger signal for the builtin analog video incrustation feature (requires a specific extension) of the Thomson MO5.

Licence

Replacement of I03 (color PROM) for the Thomson MO5 is published under the Creative Commons CC0 license. You can find a copy of the licence there : https://creativecommons.org/publicdomain/zero/1.0/legalcode

You can copy, modify, distribute and perform the work, even for commercial purposes, all without asking permission.

Replacement of I03 (color PROM) for the Thomson MO5 is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

Release notes

Release v2.0.0

• Resolves #6 : Add a breakout connector with R[1..2], V[1..2] and B[1..2] for adding custom DAC mods

Contains schematics in PDF files, gerber archive, and the JED file.

Release v1.0.0

Contains schematics in PDF files, gerber archive, and the JED file.

Release v1.0.0-rc1

Hardware only

Contains schematics in PDF files, and gerber archive.

2. What should you know before using Replacement of I03 (color PROM) for the Thomson MO5 ?

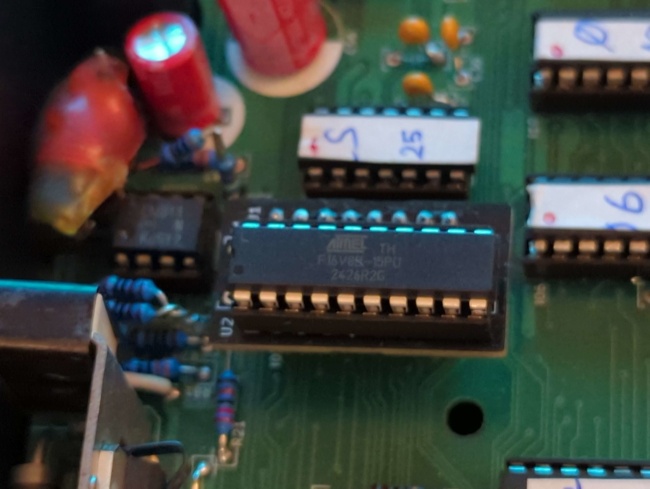

Replacement of I03 (color PROM) for the Thomson MO5 is made of an hardware part to hold a GAL16v8 (or its current available compatible component ATF16v8) hereafter called "GAL", and a fusemap to be flashed onto said GAL.

• The hardware part is a Kicad 8 project describing the adapter from original chip socket in the computer motherboard
• The fusemap part is a source to be compiled by relevant tool to obtain a suitable JED fusemap.

Do not use Replacement of I03 (color PROM) for the Thomson MO5 if this project is not suitable for your project.

3. How to use Replacement of I03 (color PROM) for the Thomson MO5 ?

From sources

To get the latest available work, one must clone the git repository.

git clone --recurse-submodules https://github.com/sporniket/kicad-conversions--thomson-mo5--i03-replacement.git

Then, open the project with Kicad 8.

To produce the fusemap... TO BE WRITTEN

4. Known issues

See the project issues page.

5. Miscellanous

Report issues

Use the project issues page.
