Description

20x2 Character Display with HPDL-1414 modules & ESP32

README

HPDL-1414-20x2-ESP32

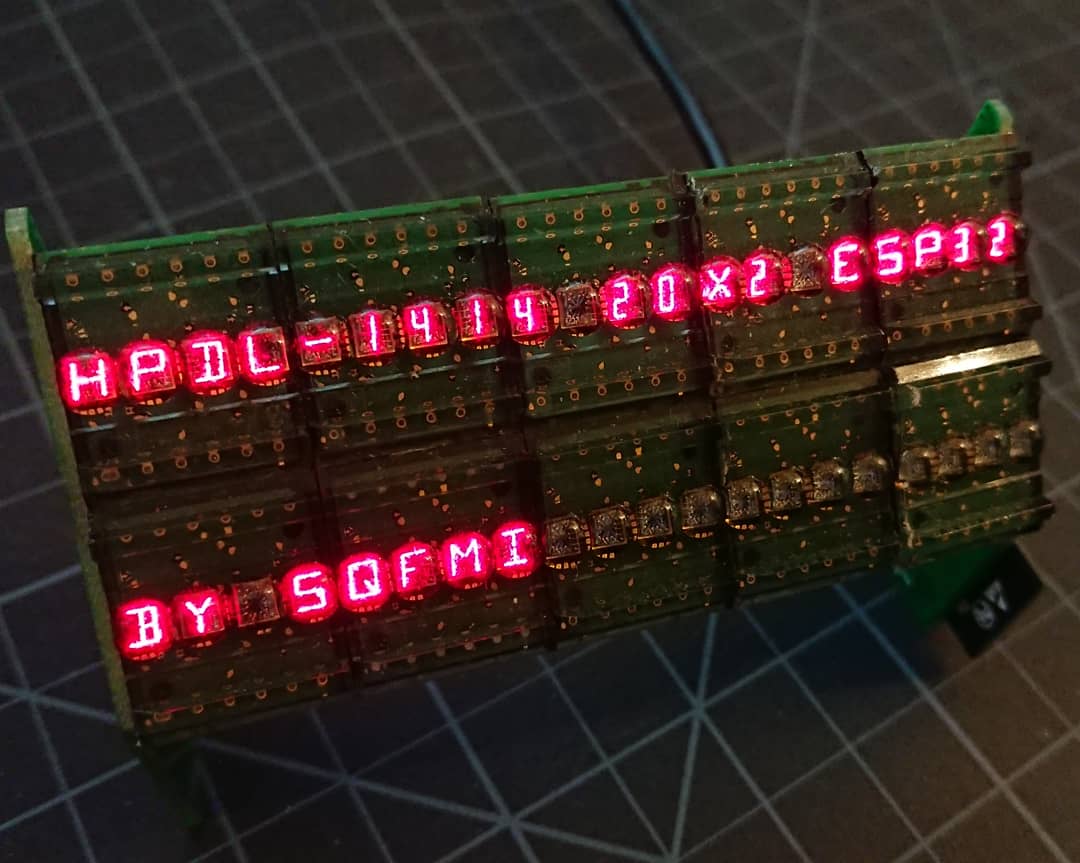

• 20x2 Character Display with HPDL1414 modules & ESP32

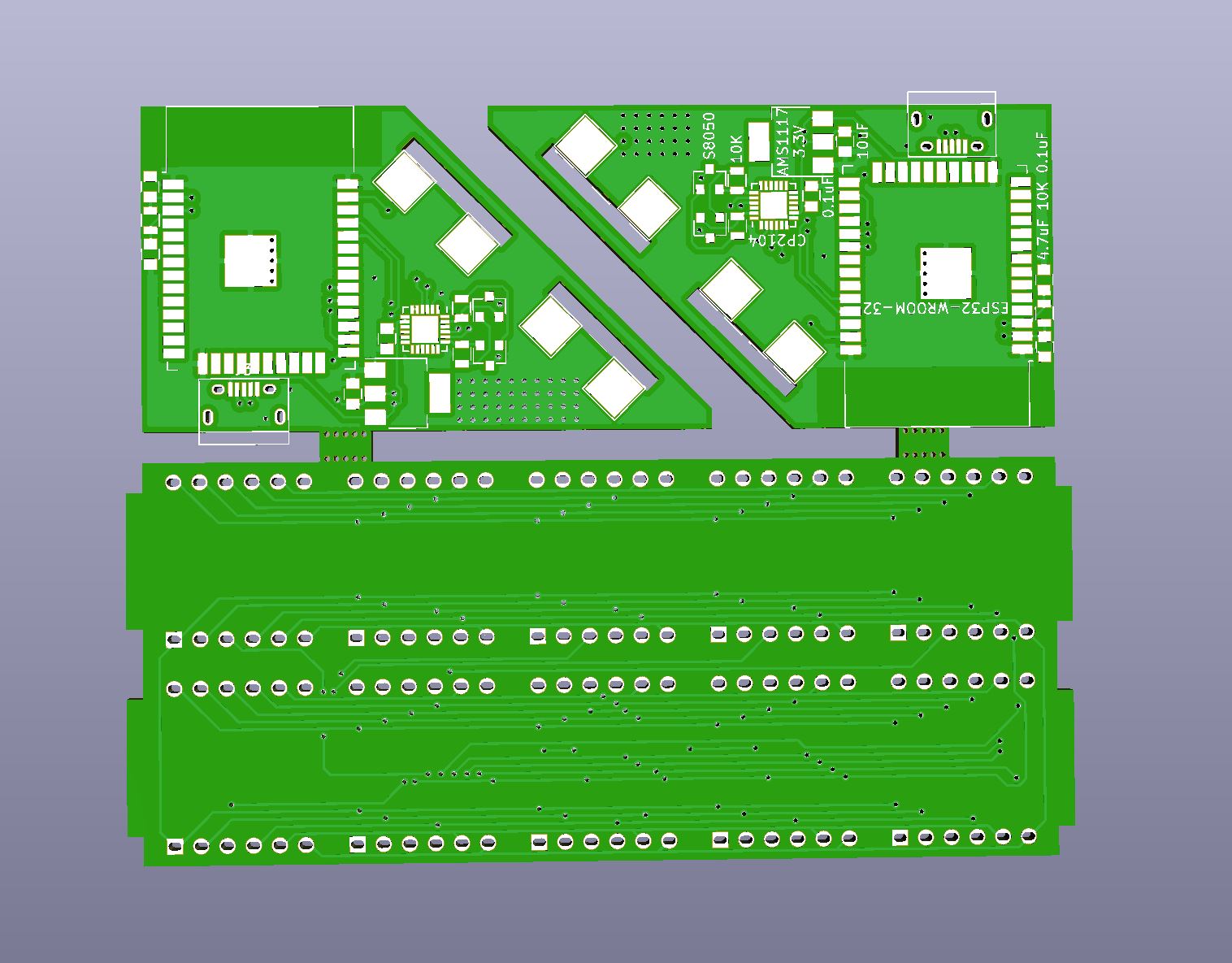

• PCB Structure
• Arduino Library 👉 https://github.com/sqfmi/HPDL1414-74HC595-Arduino
• OSHWA Certified US000625

Bill of Materials

Component	Quantity	Link
HPDL1414	10	https://www.aliexpress.com/item/32604004029.html
ESP32-WROOM-32D	1
CP2104	1
AMS1117-3.3V	1
74HC595 SOIC-16	3
0.1uF 0805	15
4.7uF 0805	1
10uF 0805	1
Micro USB Connector	1
S8050 SOT-23	2
10K 0805	4

License

Designed by SQFMI. Creative Commons Attribution/Share-Alike. See LICENSE for additional information.
