arduino micro as isp attiny/atmega programmer

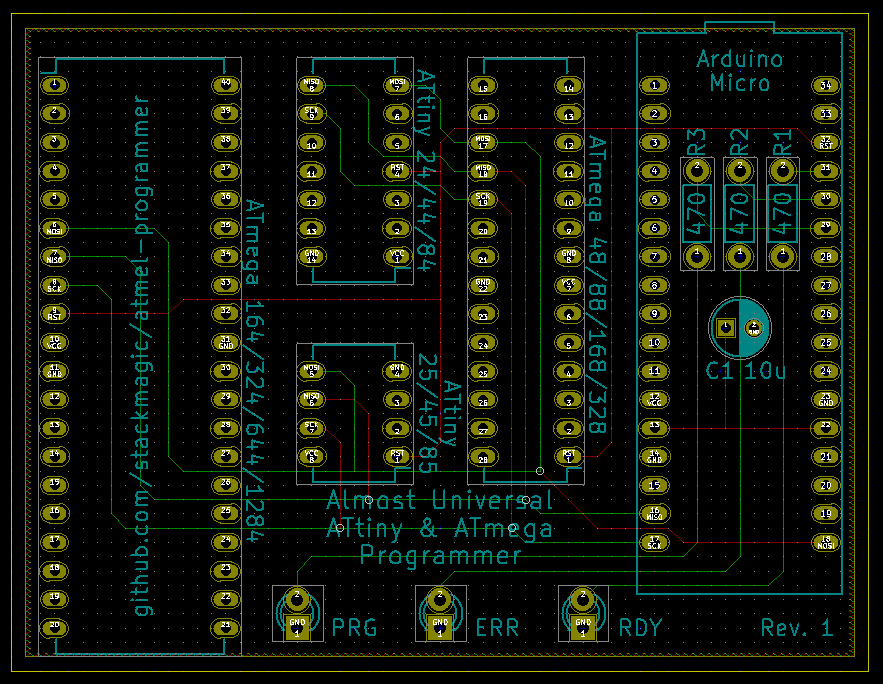

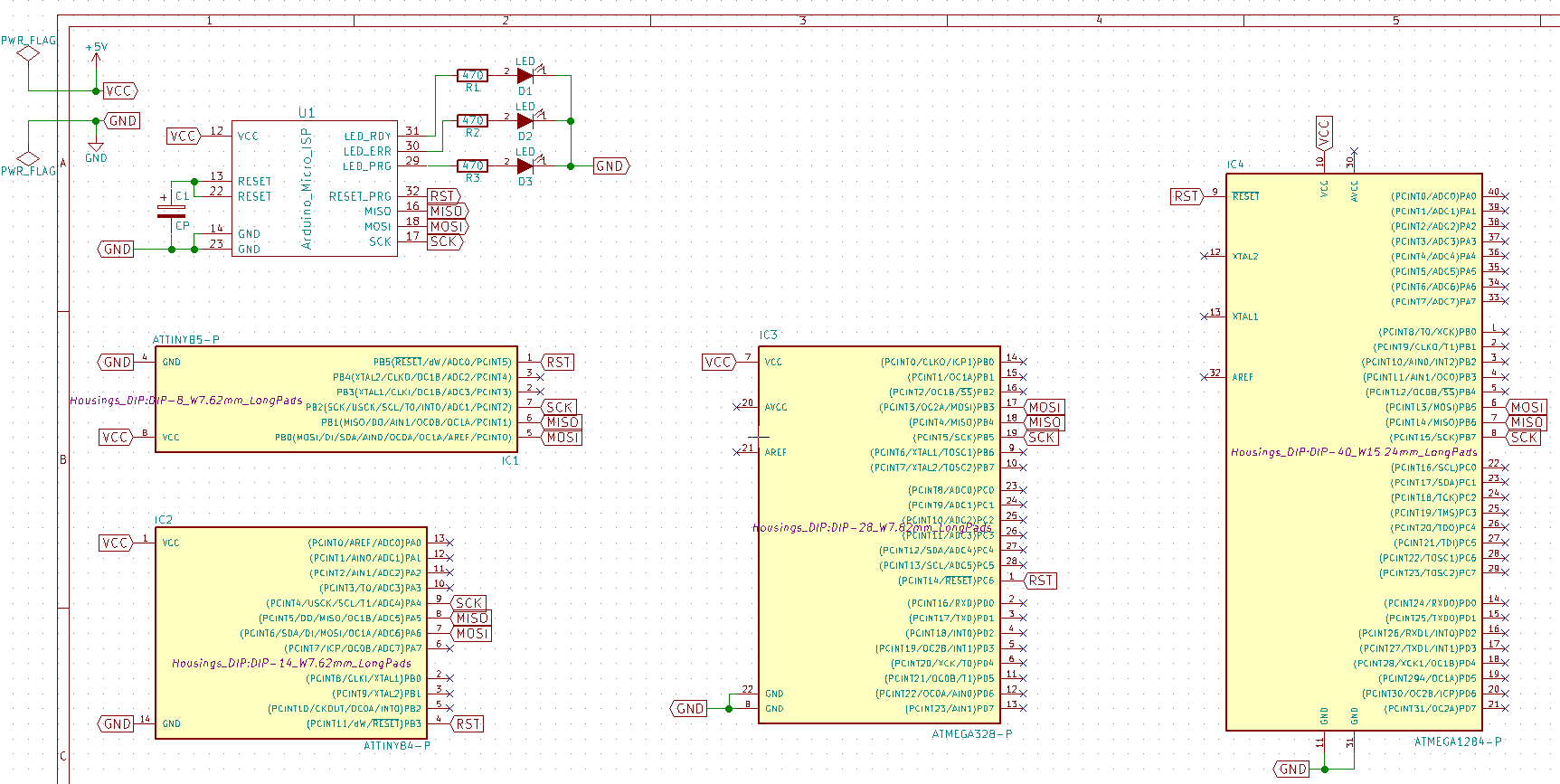

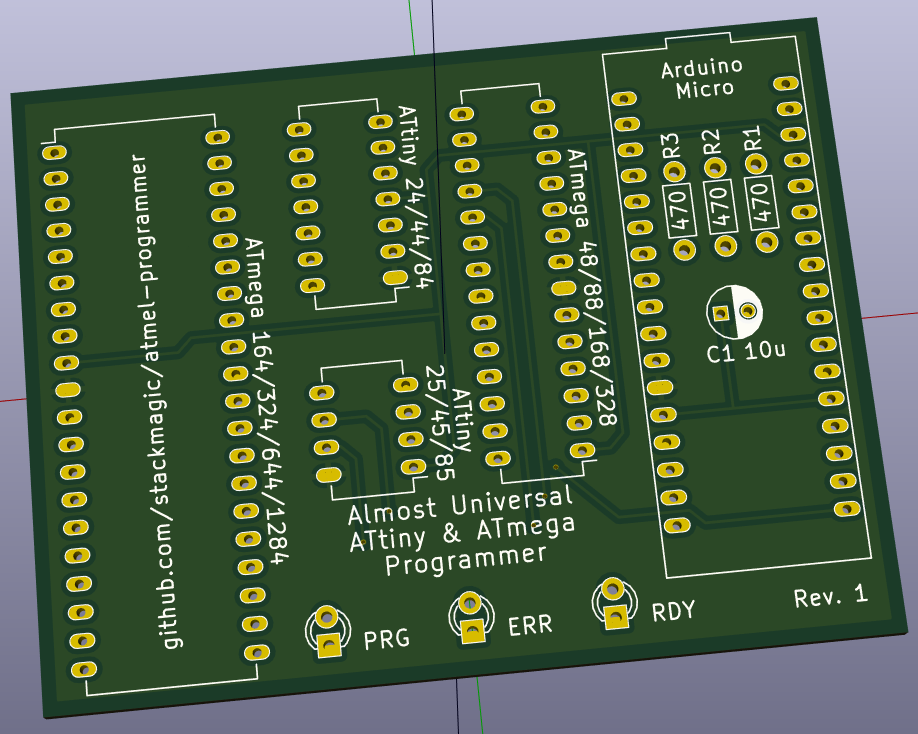

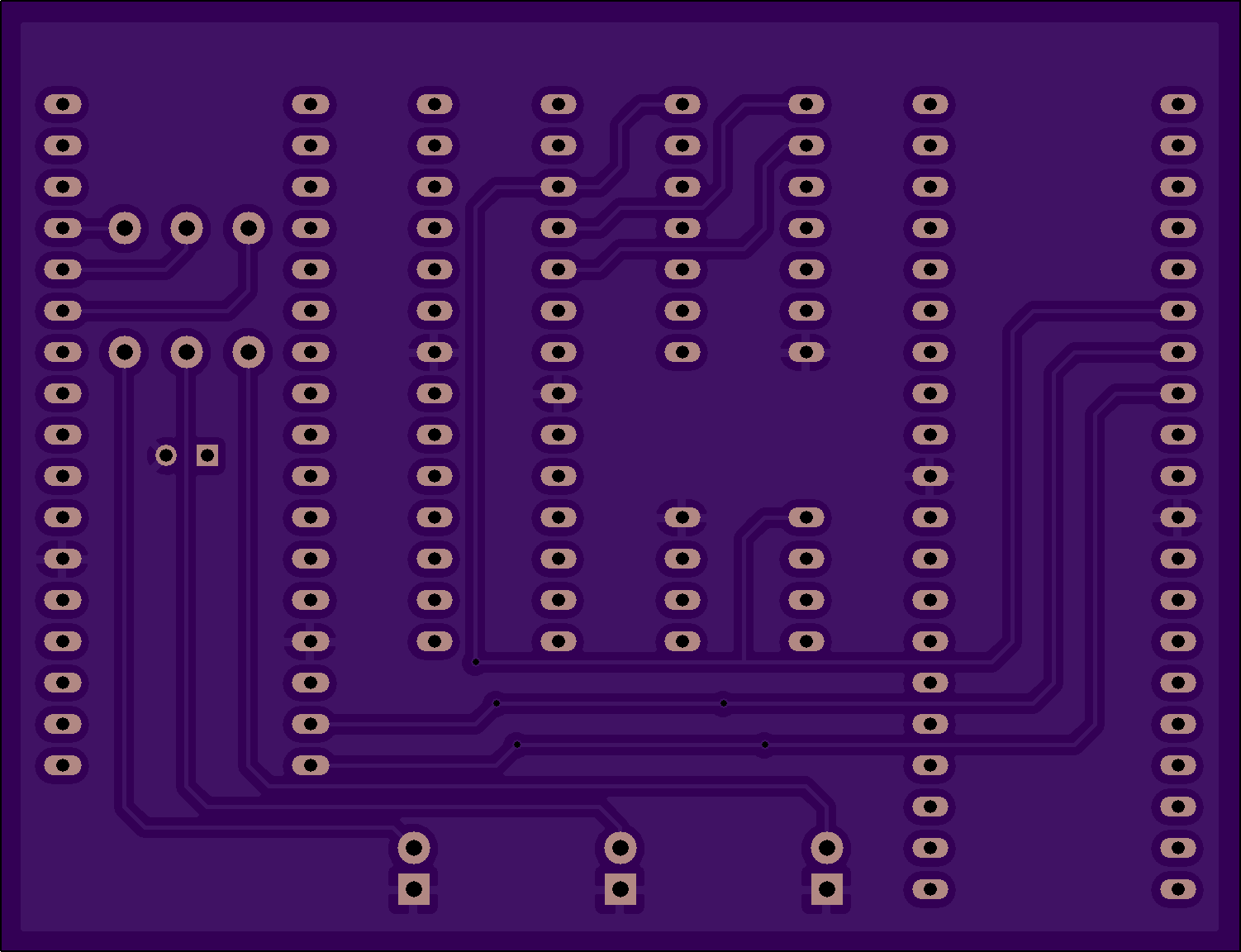

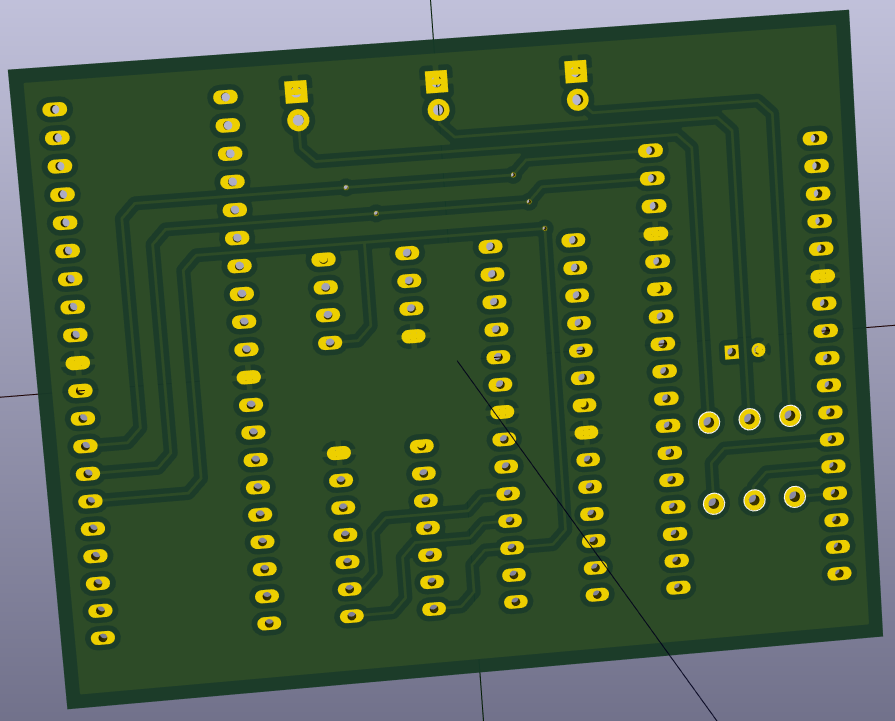

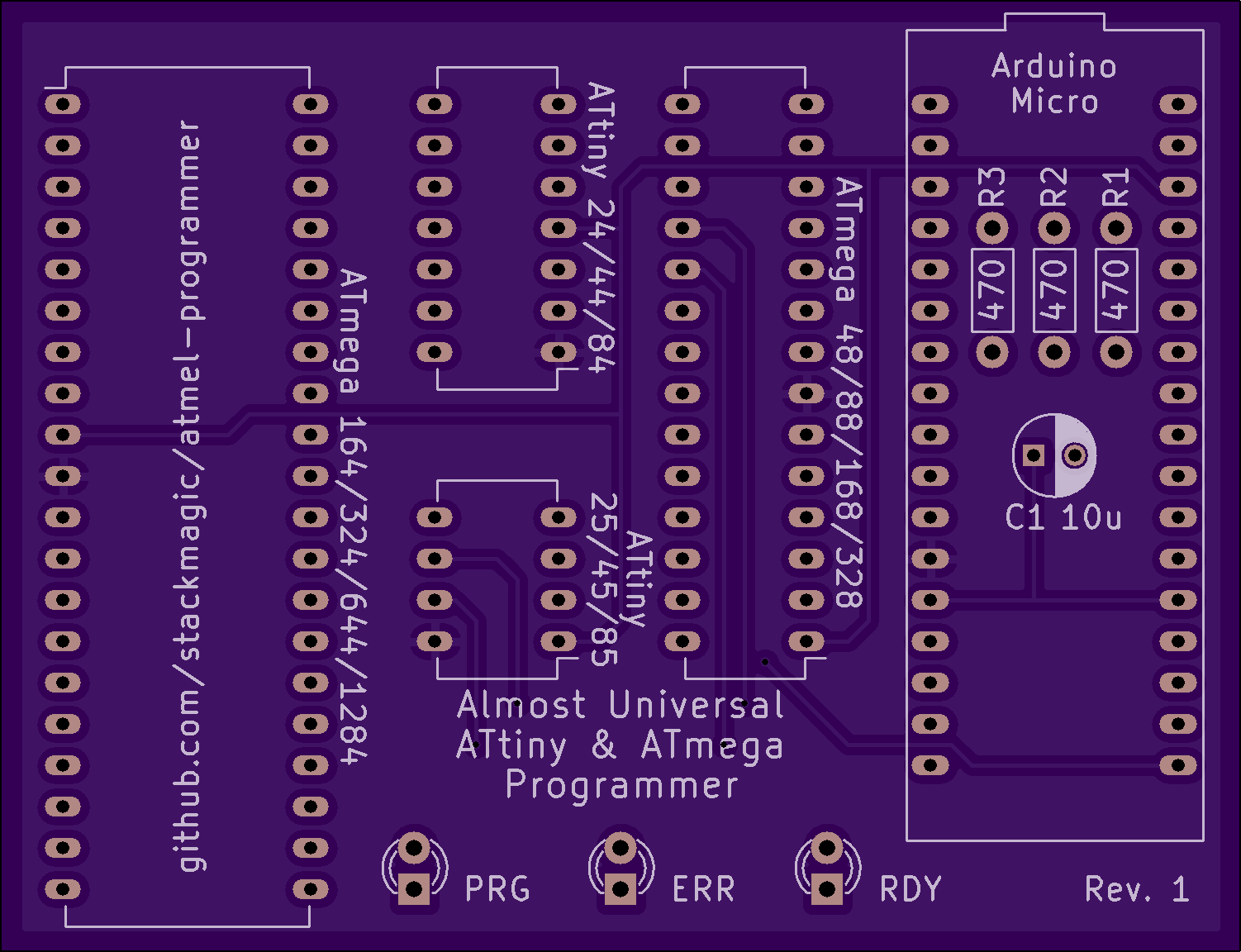

a simple pcb with a few sockets to program attiny/atmega microcontrollers from an arduino micro used as isp programmer

supported atmel chips

Microcontroller
ATtiny 24/44/84	http://www.atmel.com/devices/ATTINY84.aspx
ATtiny 25/45/85	http://www.atmel.com/devices/ATTINY85.aspx
ATmega 48/88/168/328	http://www.atmel.com/devices/ATMEGA328.aspx
ATmega 164/324/644/1284	http://www.atmel.com/devices/ATMEGA1284.aspx

usage

all steps below include the use of the Arduino IDE: https://www.arduino.cc/en/Main/Software (1.6 or higher).

Add the following URLs in File > Preferences for the setting Additionals Boards Manager URLs:

ATtiny25/45/85 & ATtiny24/44/84 families:

(Supports only 45/85 & 44/84)

https://raw.githubusercontent.com/damellis/attiny/master/package_damellis_attiny_index.json

ATmega48/88/168/328 family:

(Supports only 168/328)

https://raw.githubusercontent.com/stackmagic/atmega/master/package_carlosefr_atmega_index.json

Note: Once the PR at https://github.com/carlosefr/atmega/pull/4 is merged, use the official URL: https://raw.githubusercontent.com/carlosefr/atmega/master/package_carlosefr_atmega_index.json)

ATmega164/324/644/1284 family:

https://mcudude.github.io/MightyCore/package_MCUdude_MightyCore_index.json

If you want to program a Non-P version (for example an ATmega1284 instead of an ATmega1284p), you need to open your avrdude.conf and add a Section like below. The non-P versions are essentially the same as the P versions and they can be cloned. The plain 644 is supported out of the box (with avrdude 6.0.1).

#------------------------------------------------------------
# ATmega1284
#------------------------------------------------------------

part parent "atmega1284p"
    id               = "m1284";
    desc             = "ATmega1284";
    signature        = 0x1e 0x97 0x06;
  ;

#------------------------------------------------------------
# ATmega324
#------------------------------------------------------------

part parent "m324p"
    id               = "m324";
    desc             = "ATmega324";
    signature        = ???????????????????????;
  ;

#------------------------------------------------------------
# ATmega164
#------------------------------------------------------------

part parent "m164p"
    id               = "m164";
    desc             = "ATmega164";
    signature        = ?????????????????????????
  ;
