Sound Source Localization Robot — Hardware

Hardware design files and firmware for a mobile robot used in cubical microphone-array sound-source localization. The platform combines a three omni-wheel holonomic base with an eight-channel mic harness routed through custom KiCad PCBs. Signal processing (GCC-PHAT, grid search, real-time demos, etc.) lives in the companion software repository.

---

Table of contents

• System overview
• Mechanical construction
• Electronics (PCBs)
• Embedded software (robot base)
• Assembly & integration
• Repository layout
• License

---

System overview

The robot was built to support 3D sound-source localization using a cubical array: one microphone channel is associated with each vertex of a rigid cube, so delays between channels carry direction-of-arrival information. The acquisition side (USB audio interfaces, streaming, and localization code) is described in the Sound-Source-Localization repo; this repository holds:

1. Per-channel breakout boards for cabling from each mic location.
2. Controller / array interconnect PCBs that bundle eight mic lines toward the digitizer stack.
3. AVR firmware for the three omni-wheel mobile base (holonomic drive).

Experimental context and notation are given in the ISCRAM 2020 publication linked above.

---

Mechanical construction

1. Holonomic base

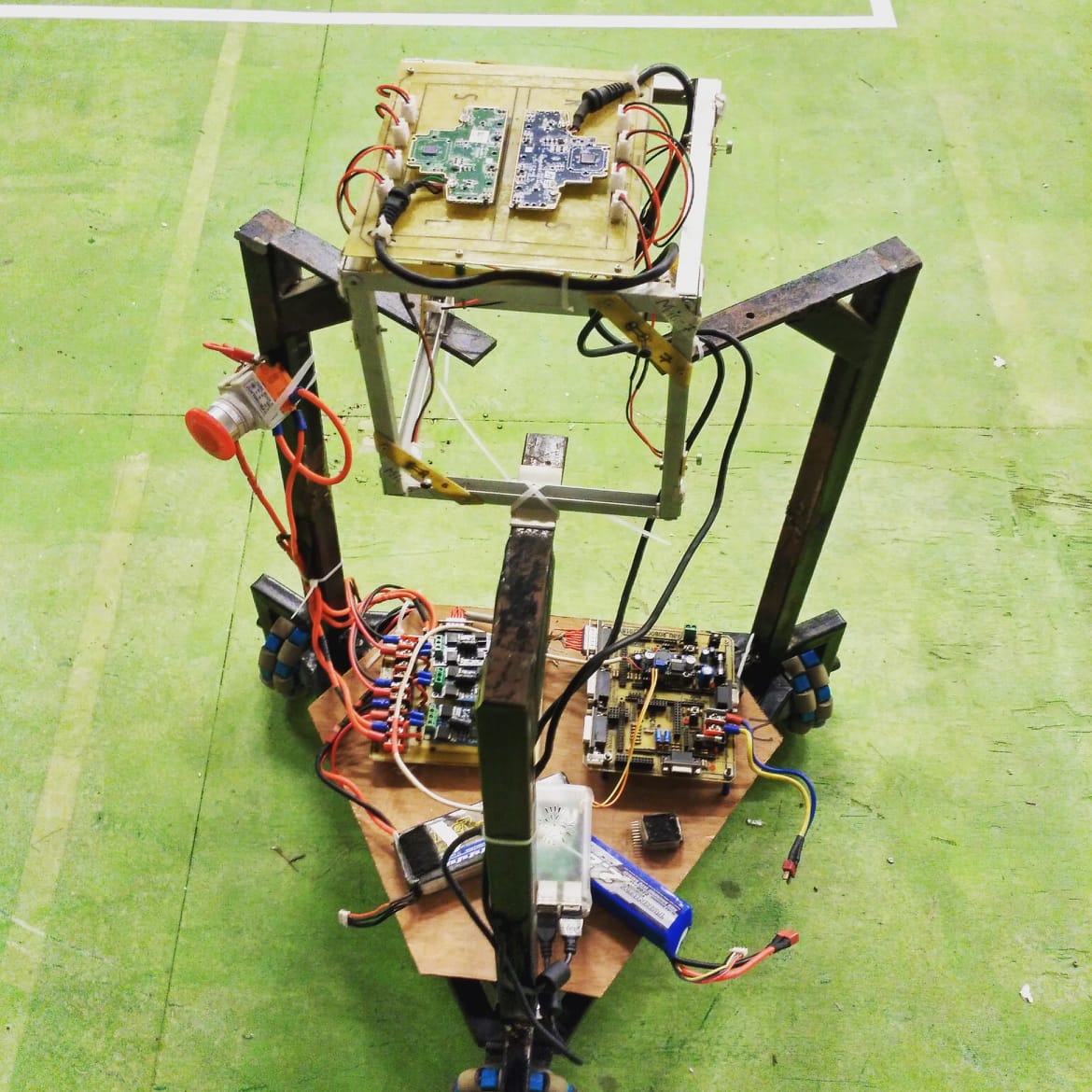

   The robot stands on three omni wheels arranged for omnidirectional motion. Each wheel is driven by a DC motor with encoder/driver electronics (exact brackets and chassis cad are not stored in this repo; use the photograph and the ISCRAM paper as a reference for proportions and wiring clearance).

2. Cubical microphone frame
   A rigid cube (or cubic frame) mounts above the base. Eight microphone capsules are placed at the corners of the cube so that pairwise time differences match the geometry used in the software (GCC-PHAT / grid search over candidate directions).

3. Cable routing
   From each vertex, a short harness runs to a local breakout (see Individual array/), then longer runs converge on the Mic_Array controller board mounted near the compute stack. Keep pair lengths symmetric where possible and avoid running mic wires parallel to motor leads without shielding to reduce EMI.

4. Stack
   The upper tray typically carries USB audio devices (multi-channel), power distribution, and the small-form PC or embedded computer used in the software repo’s notebooks and real-time scripts.

---

Electronics (PCBs)

All boards were designed in KiCad (legacy .sch / .kicad_pcb + cache libs). For fabrication, open the .kicad_pcb in a current KiCad release, run DRC, and export Gerbers; SVGs in each folder are convenient for documentation and quick visual checks.

Individual array/ — single-channel adapter

Artifact	Purpose
Individual_mic.sch / Individual_mic.kicad_pcb	One microphone MIC footprint wired to a 2-pin header and a JST EH-style 2-pin cable footprint (JST_CONN) for removable harness segments.

Use one small circuit board per microphone site (or per edge entry point, depending on your mechanical layout) so cube wiring can be unplugged for service.

Array_Ckt/ and Controller_Mic/ — eight-channel routing

Artifact	Purpose
Mic_Array.sch / Mic_Array.kicad_pcb	Consolidates eight microphone channels: connectors are labeled Mic1–Mic4 in two symmetric groups (covering all eight physical channels—see schematic nets MicN vs MicN_chip). Each channel uses two CONN_01X02 headers: one faces the harness/array side, one faces the digitizer / preamp side.
Mic_Array-brd.svg, Mic_Array-B.Cu.svg, drawing.svg	Board artwork and copper preview for assembly notes.

Array_Ckt/ and Controller_Mic/ are two KiCad project folders; compare Gerber outlines if you only need one physical board revision for your build.

---

Embedded software (robot base)

Folder: 3_Omni_Base/

Item	Description
3_Omni_Base.atsln, 3_Omni_Base/*.cppproj	Microchip Studio (Atmel Studio) solution targeting an AVR device (16 MHz F_CPU in headers.h).
main.cpp	Initializes a Wheel controller and runs a control loop: read command data, compute wheel speeds, update PWM to three motors.
Wheel.cpp / Wheel.h	Holonomic mixing: 3×3 coupling matrix maps robot (vx, vy, ω)-style commands to three wheel velocities; Motor objects abstract per-wheel drive; get_joystick_data() reads UART packets (rcvdata[]), derives azimuth / elevation in preprocess_data(), and sets velocity_robot[] before calculate_wheel_velocity() and update_wheel_velocity().
uart.cpp / Motor.cpp	Low-level serial I/O and motor timing (MAX_RPM defined in Wheel.h).
Debug/*.hex	Built firmware images (verify target MCU and fuse bits before flashing).

Typical workflow: open the solution in Microchip Studio, select the correct AVR part and programmer, build, then flash the hex to the base microcontroller. Confirm wheel rotation signs match your mechanical mounting before driving under joystick control.

---

Assembly & integration

1. Fabricate Individual_mic and Mic_Array PCBs; populate headers and JST (or substitute compatible connectors).
2. Mount mic elements on the cube; solder or connect flex leads to each Individual_mic board.
3. Route eight channels into Mic_Array; from there, feed multicapture USB (see software repo) or your own AFE.
4. Mount the base MCU and motor drivers; connect encoders/PWM as per your driver boards (not all motor electronics are in this repository).
5. Flash 3_Omni_Base firmware and verify UART commands move the robot as expected.
6. Run Sound-Source-Localization notebooks/scripts with the same geometry as the physical cube (channel order must match code).

---

Repository layout

Path	Contents
Individual array/	KiCad single-mic breakout (MIC + JST + header).
Array_Ckt/	KiCad Mic_Array routing + SVG artwork.
Controller_Mic/	Second Mic_Array KiCad project (compare with Array_Ckt/ for your chosen revision).
3_Omni_Base/	AVR holonomic base firmware (Atmel / Microchip Studio).
LICENSE	MIT license.

---

License

This hardware description, design files, and firmware are provided under the MIT License (Copyright 2013–2020 Subash Timilsina).

For algorithm details, datasets, and SSL code, use the companion repository:
https://github.com/subashtimilsina/Sound-Source-Localization.
