README

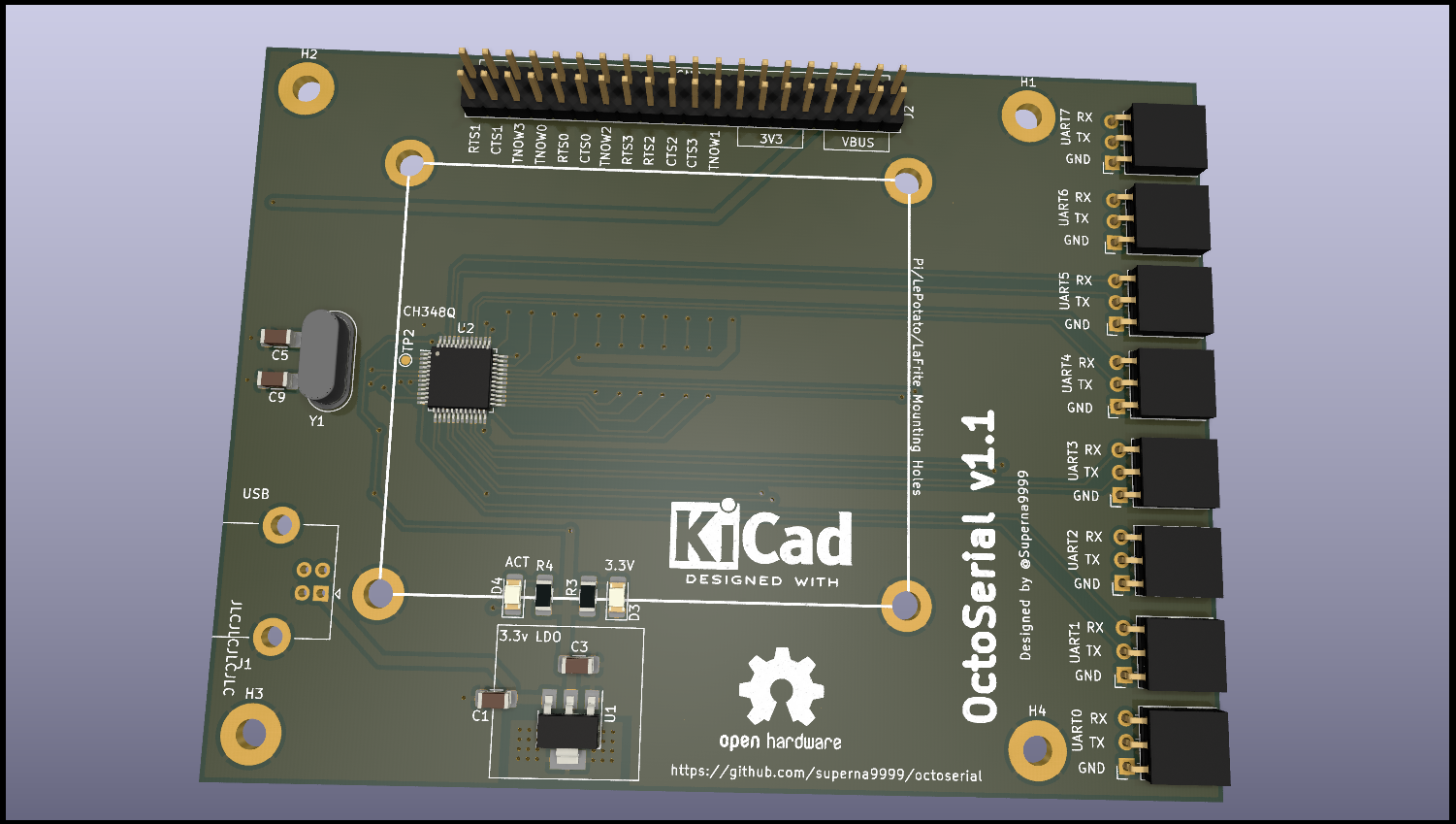

OctoSerial

USB High-Speed to 8x RS-232 TTL level with the CH348Q IC.

Schematics: octoserial.pdf

Changelog

Version 1.1:

  • Production version with 40pins headers with GPIOs + 3v3 + VBUS & GND

Version 0.1:

  • Initial prototype with CH348Q samples

LICENCE

Apache License Version 2.0
