MokyaLora

An open-hardware standalone Meshtastic feature phone built around the RP2350B dual-core MCU, with a 36-key physical keyboard, 2.4″ IPS display, SX1262 LoRa radio, and GNSS. Licensed under CERN-OHL-S-2.0 (hardware) and CC-BY-SA-4.0 (documentation).

Project Status

Hardware

Revision	Status
Rev A	Bringup complete (2026-04, Steps 1–26) — see `docs/bringup/rev-a-bringup-log.md`

All Rev A subsystems validated on hardware: power rails, MCU boot, USB CDC, I2C sensors (LIS2MDL mag, LSM6DSV16X IMU, LPS22HH baro, BQ25622 charger, BQ27441 fuel gauge, LM27965 LED driver), Teseo-LIV3FL GNSS (NMEA + RF diagnostics), ST7789VI TFT (PIO 8080 + DMA), 6×6 keypad (PIO scan), W25Q128JW flash + APS6404L PSRAM (8 MB at 75 MHz cached XIP), SX1262 LoRa (Meshtastic mesh validated), J-Link SWD debug, NAU8315 audio, IM69D130 PDM mic. Audio + mic to be removed in Rev B per current product direction; the rest carry forward.

Firmware (Phase 2 — RP2350B productisation, active)

Component	Status
Core 0 — Meshtastic modem (Arduino-Pico + single-core FreeRTOS)	Live on Rev A — `rp2350b-mokya` variant of Meshtastic 2.7.21, IPC byte bridge to Core 1 owns USB CDC, `meshtastic --info` round-trip ~4.5 s
Core 1 — FreeRTOS + LVGL + UI (separate Apache-2.0 image at flash 0x10200000)	Live — TinyUSB CDC, doorbell-driven IPC, all I2C/sensor drivers, GNSS, ST7789VI display + LVGL v9, keypad → LVGL view router. UI page coverage post D-series 2026-05-01: D-1/D-2/D-3/D-4 ✅, D-5 ✅ 部分 (GNSS-only save; manual lat/lon editor v2), D-6 ✅ 部分 (no waypoint nav target). Only ⏳ pages left are Z-1/Z-2/Z-3 SOS (blocked on power button driver + low-batt state machine). See `docs/ui/01-page-architecture.md` for the full row-level table
MokyaInput Engine (MIE)	Phase 1.6.1 on hardware — Smart Zh/En + Bopomofo, MIEF unicode font (19 320 glyphs), MIE4 v4 dictionary in flash, 128-entry LRU cache (flash-persisted), 120/120 host tests passing
IPC protocol	3 SPSC rings + GPS double-buffer in 24 KB shared SRAM — RX_TEXT, NODE_UPDATE, TX_ACK, SEND_TEXT, GET/SET/COMMIT_CONFIG (LoRa subset) all wired; full `IPCPhoneAPI` subclass deferred
GPS bridge	Phase 1 — `IpcGpsBuf` end-to-end — Core 1 owns Teseo, NMEA streamed to Core 0's `IpcGpsStream` adapter; Phase 2 (real Teseo NMEA into ring) deferred

Phase 2 milestones M1–M3 ✅, M5 Phase 1+2+3 ✅, B2 step 1 ✅. See docs/bringup/phase2-log.md for the full log.

System Overview

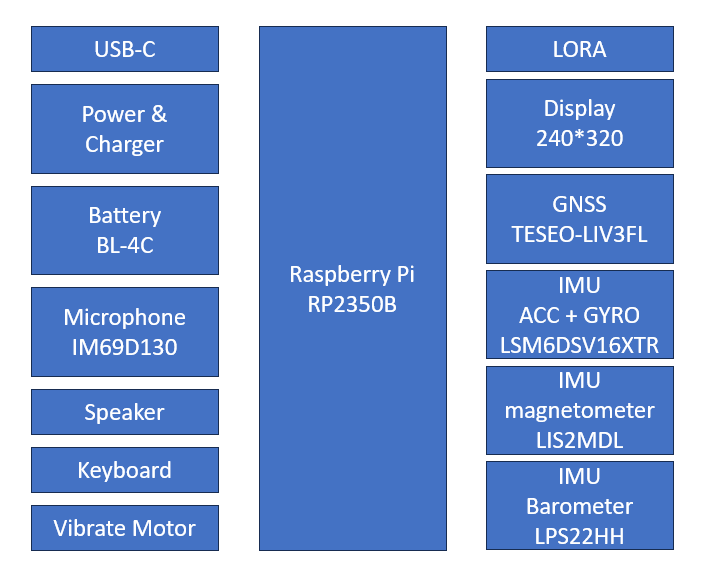

System Block Diagram

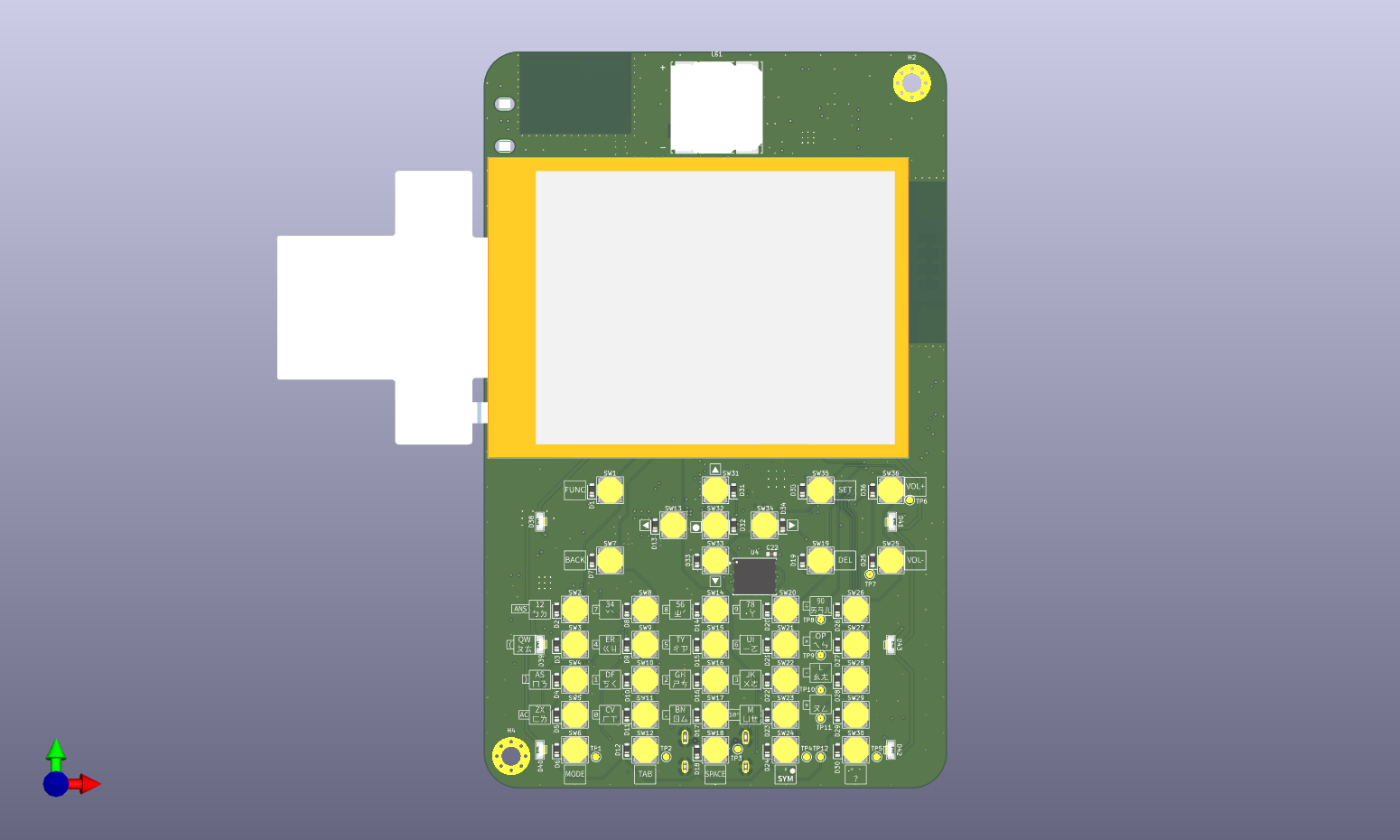

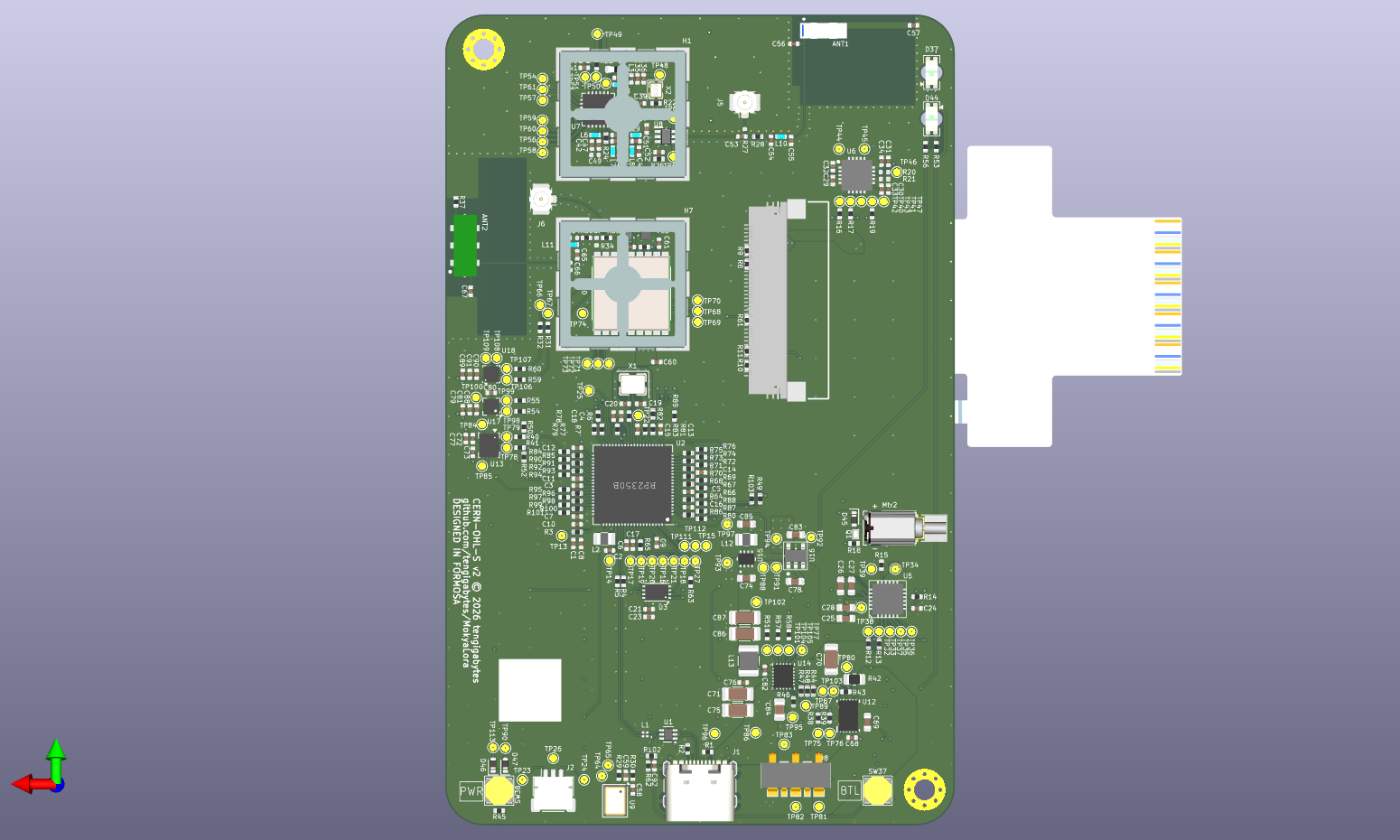

PCB Preview (Rev A)

Front	Back

Design Documents

Document	Description
Schematic (PDF)	Full schematic — all 13 sheets
Assembly Drawing (PDF)	Component placement drawing
Bill of Materials (CSV)	Rev A BOM
Board 3D Model (STEP)	Full-board STEP export
Gerber Files	Rev A fabrication outputs

Repository Layout

MokyaLora/
├── docs/
│   ├── assets/                         # Documentation images (block diagrams, etc.)
│   ├── requirements/                   # Requirements specifications
│   │   ├── system-requirements.md      # System-level spec, operating modes, mandatory HW rules
│   │   ├── hardware-requirements.md    # Full BOM, power tree, GPIO map, keypad matrix
│   │   └── software-requirements.md    # SRS (WHAT): driver needs, power states, UI/UX, IME
│   ├── design-notes/                   # Design decision records
│   │   ├── firmware-architecture.md    # HOW: memory map, IPC byte layout, build, boot sequence
│   │   ├── core1-driver-development.md # Required reading before adding any Core 1 driver
│   │   ├── core1-memory-budget.md      # Heap / stack / static-buffer ledger (must update on add)
│   │   ├── ipc-ram-replan.md           # Shared SRAM layout planning
│   │   ├── mie-architecture.md         # MIE module structure + roadmap
│   │   ├── mie-p1.6-lru-plan.md        # Personalised LRU cache design
│   │   ├── mie-smarten-ranking.md      # Smart-EN ranking analysis
│   │   ├── usb-control-protocol.md     # CDC#1 control protocol (M9, future)
│   │   ├── power-architecture.md       # Power tree, rail definitions, charger config
│   │   ├── rf-matching.md              # LoRa / GNSS RF frontend, TCXO coupling
│   │   └── mcu-gpio-allocation.md      # Full GPIO pin map, I2C bus allocation
│   ├── bringup/                        # Bring-up and debug logs
│   │   ├── rev-a-bringup-log.md        # Steps 1–26 (complete)
│   │   ├── phase2-log.md               # Phase 2 firmware milestones + Issues Log (P2-x, P3-x)
│   │   ├── mie-v4-status.md            # MIE Phase 1.6 hardware regression results
│   │   ├── tft-layouts.md              # LVGL view layouts
│   │   └── measurements/               # Oscilloscope / spectrum captures
│   └── manufacturing/                  # Manufacturing-related documents
│       ├── fab-notes.md                # PCB specification, Gerber list, assembly notes
│       └── compliance.md               # Regulatory notes (CE / FCC / NCC, deferred)
├── hardware/
│   ├── kicad/                          # KiCad 8 source design files (Rev A)
│   │   ├── MokyaLora.kicad_{pro,sch,pcb,sym}
│   │   ├── *.kicad_dbl                 # Component database libraries
│   │   ├── MokyaLora.pretty/           # Project footprint library (61 footprints)
│   │   ├── packages3D/                 # Component 3D models — see NOTICE for licensing
│   │   ├── FabricationFiles/           # KiCad fabrication output (source)
│   │   └── plots/                      # Schematic PDF + PCB renders
│   ├── production/                     # Released fabrication snapshots
│   │   └── rev-a/                      # Gerber + drill + PDF + BOM + STEP
│   └── mechanical/                     # Enclosure and stack-up drawings (future)
├── firmware/                           # Phase 2 active — dual-image RP2350B firmware
│   ├── CMakeLists.txt
│   ├── core0/                          # Core 0 modem firmware [GPL-3.0]
│   │   ├── meshtastic/                 # git submodule: tengigabytes/firmware @ feat/rp2350b-mokya
│   │   └── src/                        # RP2350B platform glue (variants/, radio init)
│   ├── core1/                          # Core 1 UI & application firmware [Apache-2.0]
│   │   ├── freertos-kernel/            # git submodule: FreeRTOS-Kernel V11.3.0 [MIT]
│   │   ├── m1_bridge/                  # CMake target — main_core1_bridge.c entry, IPC dispatch
│   │   └── src/                        # LVGL, drivers, MIE integration, view router
│   ├── mie/                            # MokyaInput Engine [MIT] — host-buildable static library
│   │   ├── include/mie/                # Public C headers
│   │   ├── src/                        # Trie-Searcher, IME-Logic
│   │   ├── hal/                        # IHalPort interface + rp2350 / pc adapters
│   │   ├── tools/                      # gen_font.py, gen_dict.py (data pipeline)
│   │   ├── data/                       # Generated .bin assets (gitignored)
│   │   └── tests/                      # 120 C++ host-only GoogleTest cases
│   ├── shared/
│   │   └── ipc/                        # Inter-core IPC protocol [MIT]
│   │       ├── ipc_protocol.h          # Sole shared header between Core 0 and Core 1
│   │       ├── ipc_shared_layout.h     # Shared-SRAM POD at 0x2007A000 (24 KB)
│   │       └── ipc_ringbuf.{c,h}       # SPSC ring helpers
│   └── tools/                          # Flash scripts and test utilities
├── scripts/                            # Build, flash, debug, test helpers
│   ├── build_and_flash.sh              # Primary workflow — builds both cores + J-Link flash
│   ├── ime_text_test.py                # MIE bench harness (SWD / RTT key-inject)
│   └── test_ipc_config.sh              # B2 IPC config soft-reload SWD-inject test
├── CLAUDE.md                           # Working-set entry point (this is what Claude Code reads)
└── .gitignore

Licenses

Component	Directory	License
Hardware design	`hardware/`	CERN-OHL-S-2.0
Documentation	`docs/`	CC-BY-SA-4.0
Core 0 firmware	`firmware/core0/`	GPL-3.0
Core 1 firmware	`firmware/core1/`	Apache-2.0
MokyaInput Engine	`firmware/mie/`	MIT
IPC protocol	`firmware/shared/ipc/`	MIT

See LICENSE for the full rationale. License files are also present in each component directory.

Authorship and Development Approach

Area	Authorship
Requirements — technical concepts and design decisions	Project owner
Requirements — document writing and formatting	Assisted by Claude Code
Hardware design (schematic, PCB layout)	Project owner
Documentation — organisation, formatting, and structure	Assisted by Claude Code
Firmware and software development	Assisted by Claude Code

All technical concepts, design decisions, and hardware choices originate with the project owner. Claude Code is used as a development tool; all AI-assisted output is reviewed and accepted by the project owner before being committed.

Disclaimer

This project is an experimental prototype. Use at your own risk.

Hardware

Prototype status — Rev A is an unverified first prototype. The design has not been independently tested, reviewed, or certified. Do not use this design as the sole basis for a production product without thorough independent validation.
RF and wireless regulations — This device incorporates a LoRa radio transmitter. Operation of radio transmitters is regulated by law in most jurisdictions (NCC in Taiwan, CE/RED in the EU, FCC Part 15 in the US, and equivalents elsewhere). The user is solely responsible for ensuring that any use of this design complies with applicable local wireless regulations. No regulatory certification (CE, FCC, NCC) has been obtained for this design.
Battery and electrical safety — This design includes a lithium-ion battery charging circuit. Improper assembly, use of incorrect components, or failure to follow safe lithium-ion handling practices may result in fire, injury, or damage to property. Always verify the design independently before assembly.
No warranty — This hardware is provided "as-is" without any warranty of any kind, express or implied. See CERN-OHL-S-2.0 Section 6 for the full disclaimer of warranties and limitation of liability.

Firmware

Phase 2 active development — Core 0 (Meshtastic 2.7.21 modem) and Core 1 (FreeRTOS
- LVGL UI) are under active development on Rev A hardware. The architecture is validated end-to-end (LoRa mesh, USB CDC over IPC bridge, IME on hardware, GPS bridge, scrollable message inbox, soft-reload config), but features are still landing — see docs/bringup/phase2-log.md for the milestone-by-milestone log and the Issues Log of resolved defects (P2-1 through P3-5).
MokyaInput Engine (MIE) — On-hardware Phase 1.6.1 with personalised LRU cache and MIEF unicode font. 120 host-side unit tests pass. Public C API stable.
Bringup tooling — Rev A hardware bringup is complete (Steps 1–26); the legacy bringup shell at firmware/tools/bringup/ is no longer the active entry point. Current development drives the dual-image firmware via scripts/build_and_flash.sh.
No warranty — All firmware is provided "as-is" under its respective open-source licence (GPL-3.0 for Core 0, Apache-2.0 for Core 1, MIT for MIE / IPC / shared / tools) without any warranty of fitness for a particular purpose.
