Zephyr CI Test Shield

README

Zephyr CI Test Shield

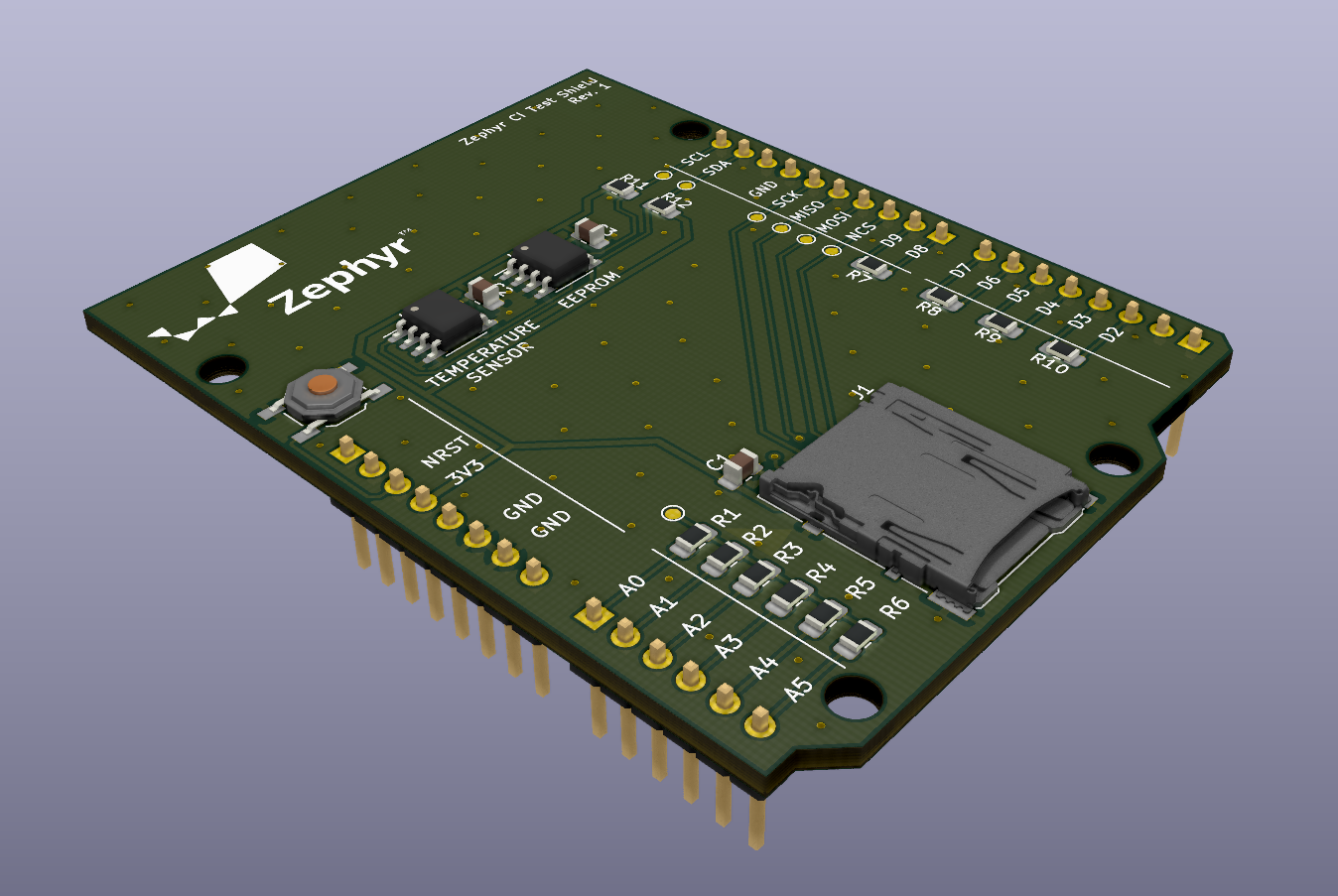

This repository contains the board design files for the Zephyr CI Test Shield. This board is a clone of the ARM mbed CI test shield.

What is included

• KiCad (5.x) schematic and board files
• Part numbers for JLCPCB assembly (only SMD parts)
• Part numbers from Mouser
• For every revision:
  • Schematic PDF
  • GERBER files
  • BOM and assembly files for JLCPCB
  • Interactive HTML BOM

Features

• Arduino R3 shield format
• microSD card slot to test SPI
• Resistor star network to test ADC
• EEPROM and temperature sensor to test I2C, EEPROM drivers and sensor drivers
• Loopback pins to test digital inputs, outputs, interrupts, PWM...
• Multiple accessible test points
