bbsensor

BBQ Sensor

The 8 is a simple temperature monitor intended for BBQ/Smoker. It has 8 inlets that can be used with PTC or Pt100 probes. The BBSensor is run by a ESP8266 Microcontroller (NodeMCU Lua Lolin V3 Modul). The temperature can be delivered either via the display or network.

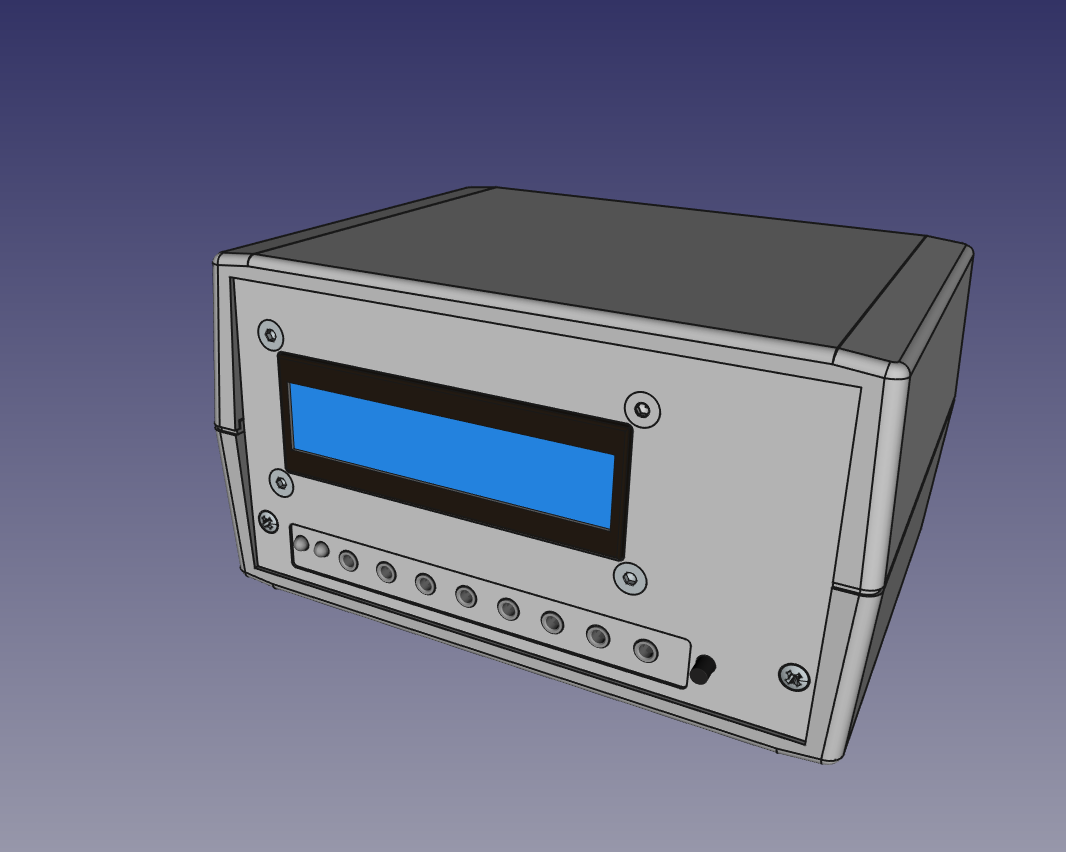

Front view

Back view

Top view
