README

난네모

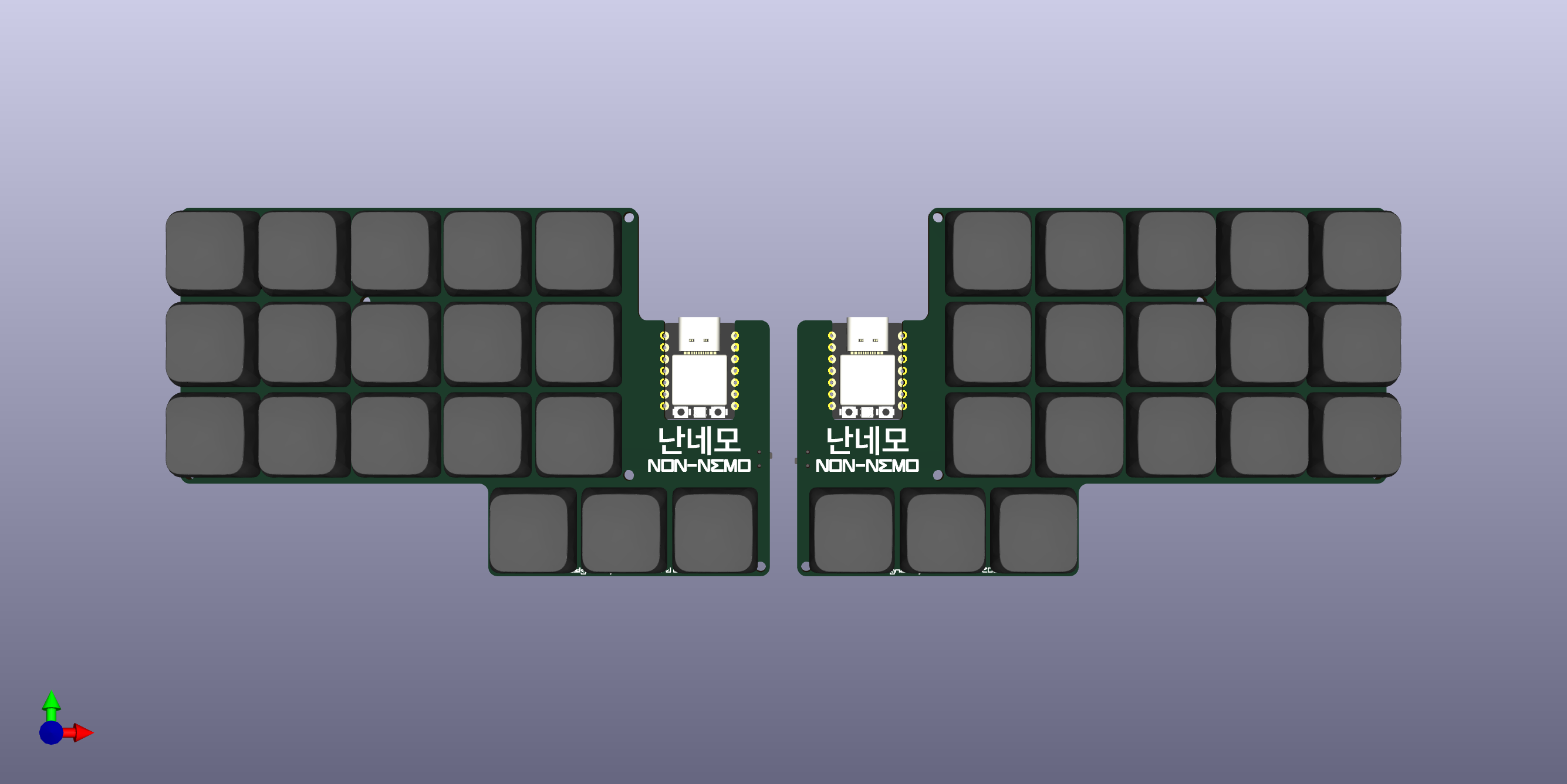

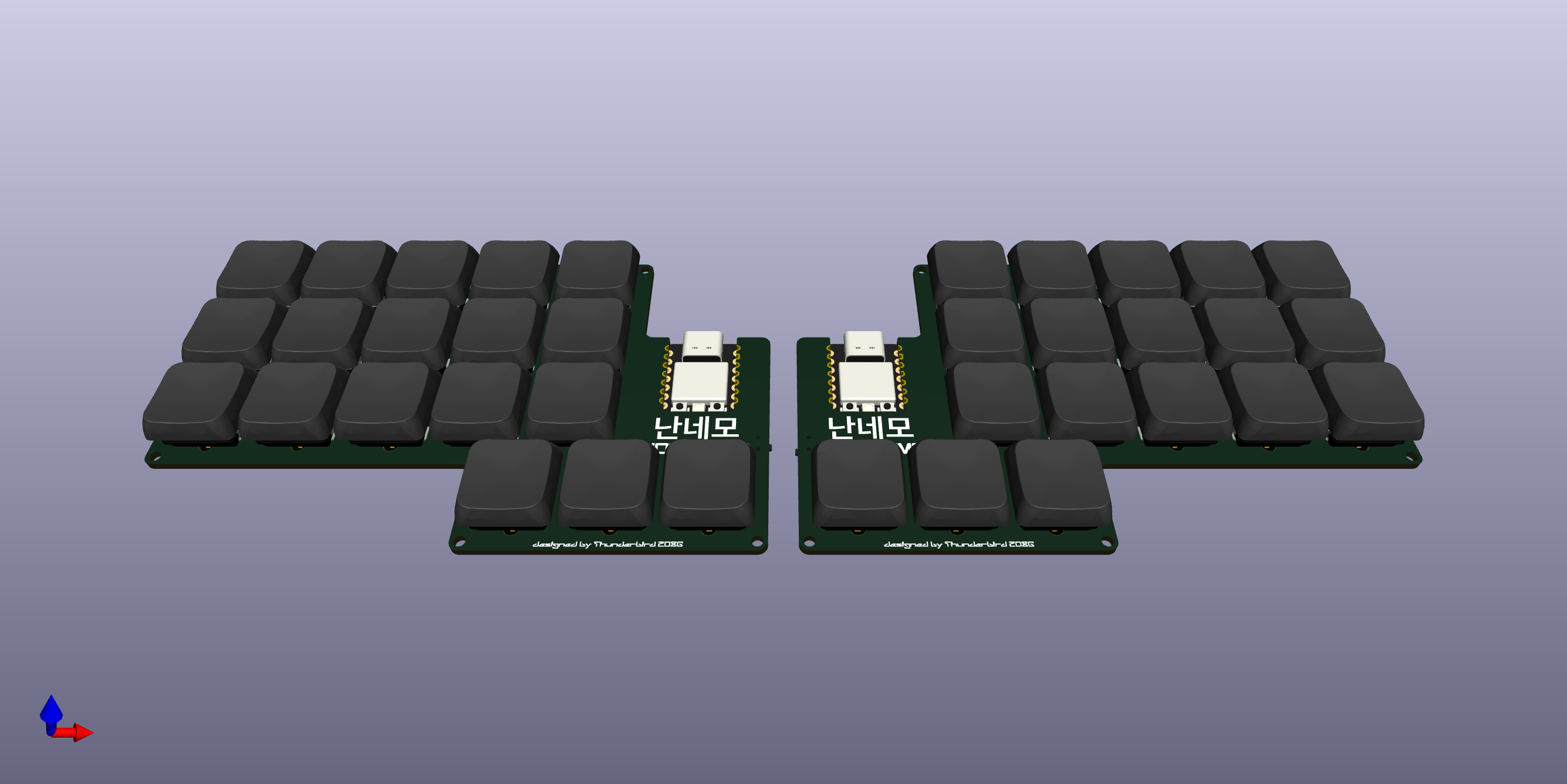

난네모 (Non Nemo) is an ortholinear 3x5 split keyboard. In Korean, 네모 (nemo) means 'rectangle,' and 난 (non) translates to 'I am.' So, together, it brings the idea: 'I am a rectangle.'
