Description

Tiny Tapeout breakout PCBs

README

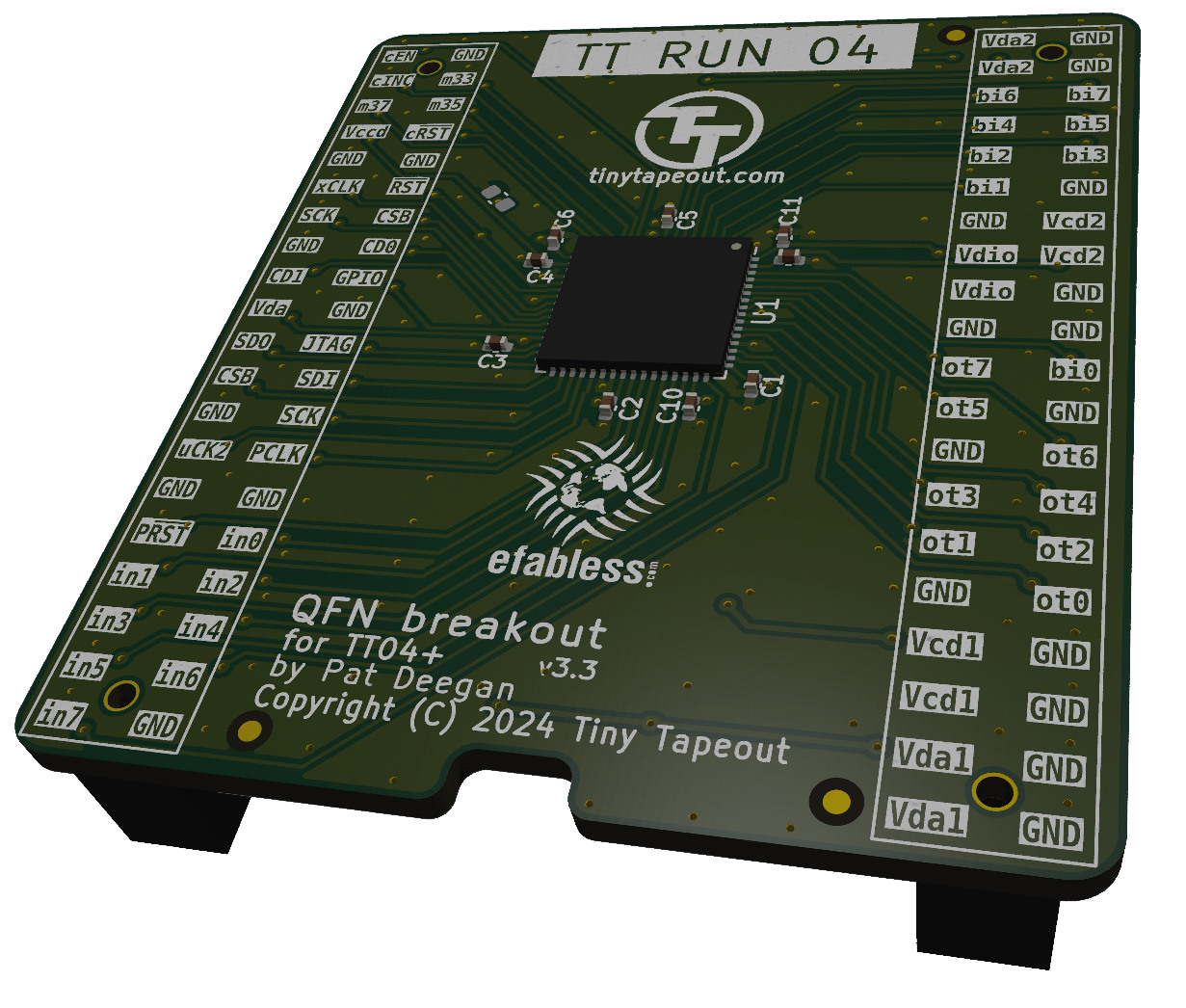

Tiny Tapeout QFN64 socket adapter (TT04+)

For testing Tiny Tapeout chips not yet soldered to a breakout board. Based on the TT04 QFN breakout board by Pat Deegan.

 

To be used with Chinese 9x9-64-0.5 QFN sockets, such as those available with these vendors: #1 / #2 / #3
