README

A new tool to break stuff! ⚒️

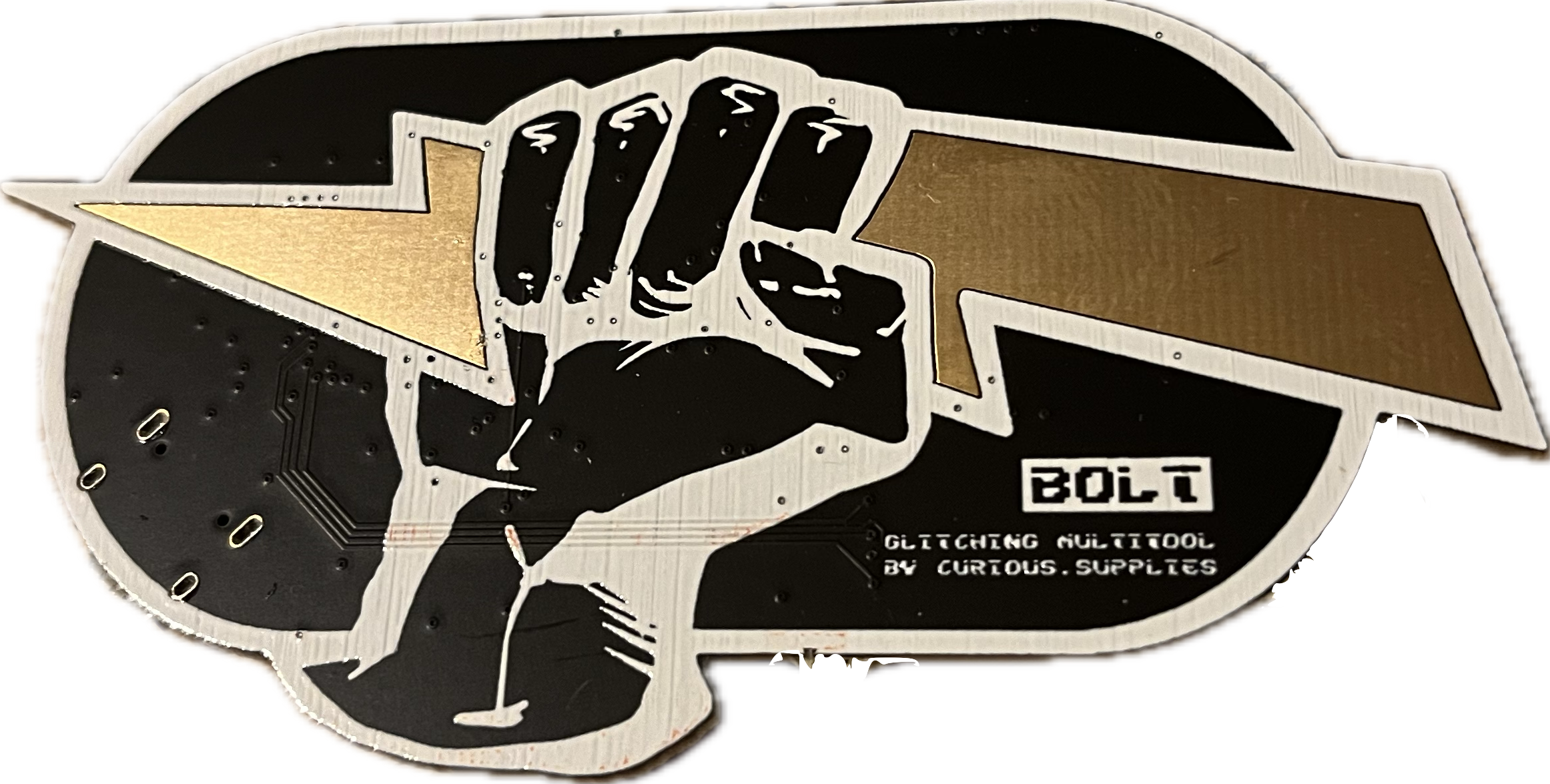

The Curious Bolt is a security multi-tool for getting started with hardware hacking. It is simultaneously:

  • a programmable crowbar voltage glitcher ⚡️
  • an 8-channel logic analyzer 👩‍💻
  • and a simple differential power analysis oscilloscope. 📉

How do you turn this on?

See the docs for how to set up and use your Bolt.

Acknowledgements

PulseView scope code by Jaroslav Kysela, extended to run in parallel with other functions by Joris Witteman (MIT License)

Software and hardware design by Joris Witteman for Curious Supplies (MIT License)

PCB art by ankhaneko.art for Curious Supplies
