README

STM32 USB device

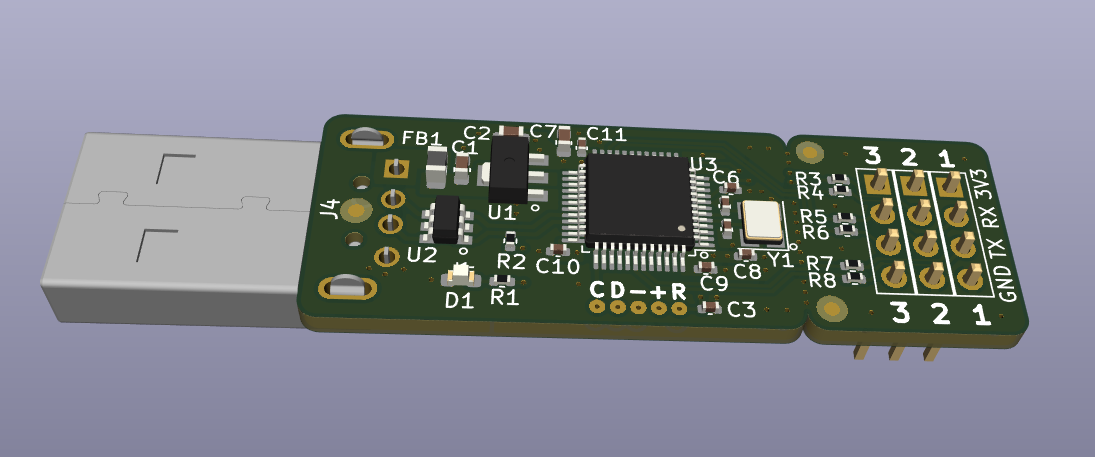

A simple PCB consisting of an STM32F103C8T6 microcontroller acting as a USB device and 3 UART pin headers connected to MCU's UART pins.
