README

conndom

WiP

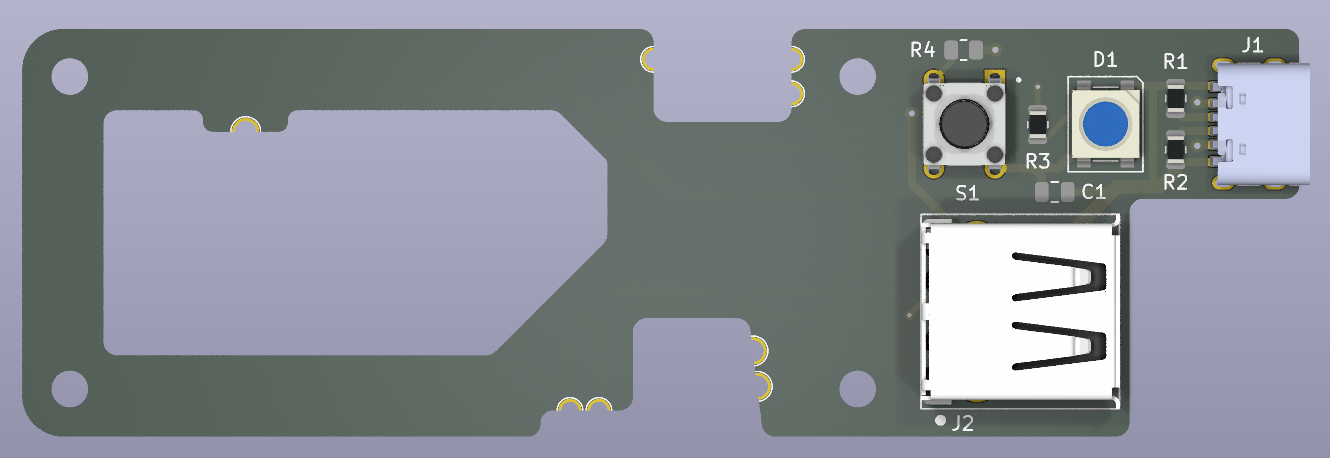

PCB

BOM

DesignatorQuantityDesignationMfr.Mfr. No.Comment
R1,R225.1 kohm--0805
J21USB A WIFISame SkyUJ2-AH-4-TH
J11USB C PWRSame SkyUJC-HP2-3-SMT-TR
S11PWR BTNSame SkyTS02-66-55-BK-260-LCR-D
R31500 ohm--0805
D11SK6812Adafruit165510 Pack

PCB Assembly

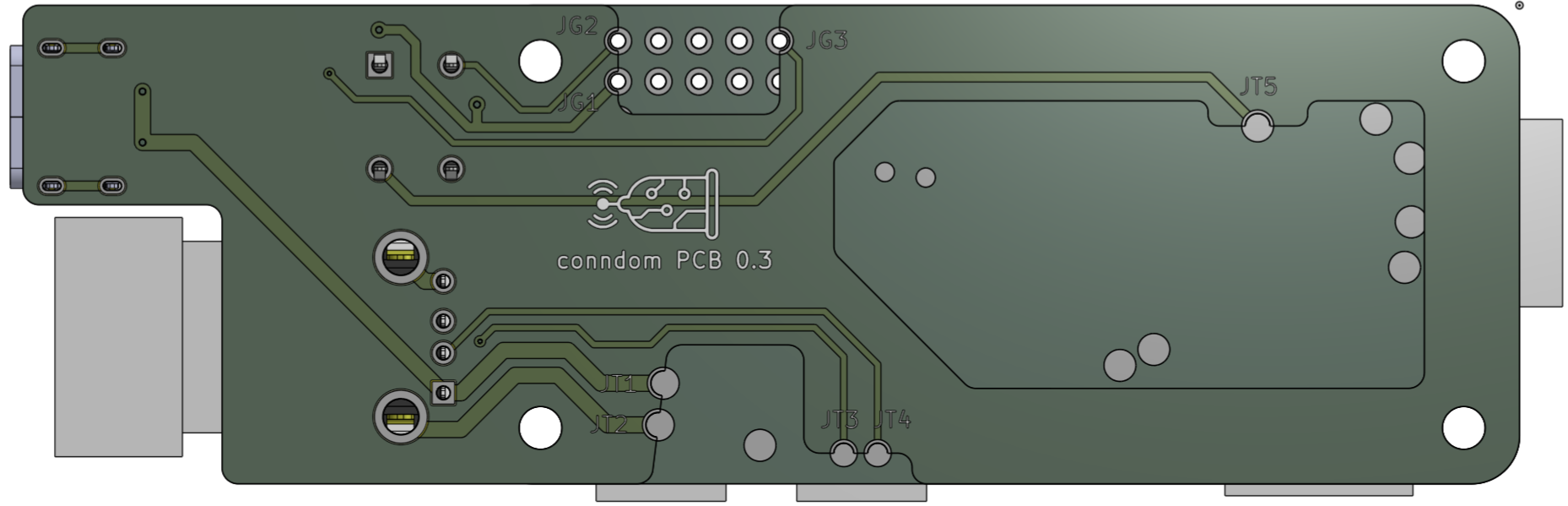

PCB Assembly Bottom
