blahaj keychain, perfect for presents :3
README
Blahaj Keychain
with glow-in-the-dark eye, purrfect for presents :3

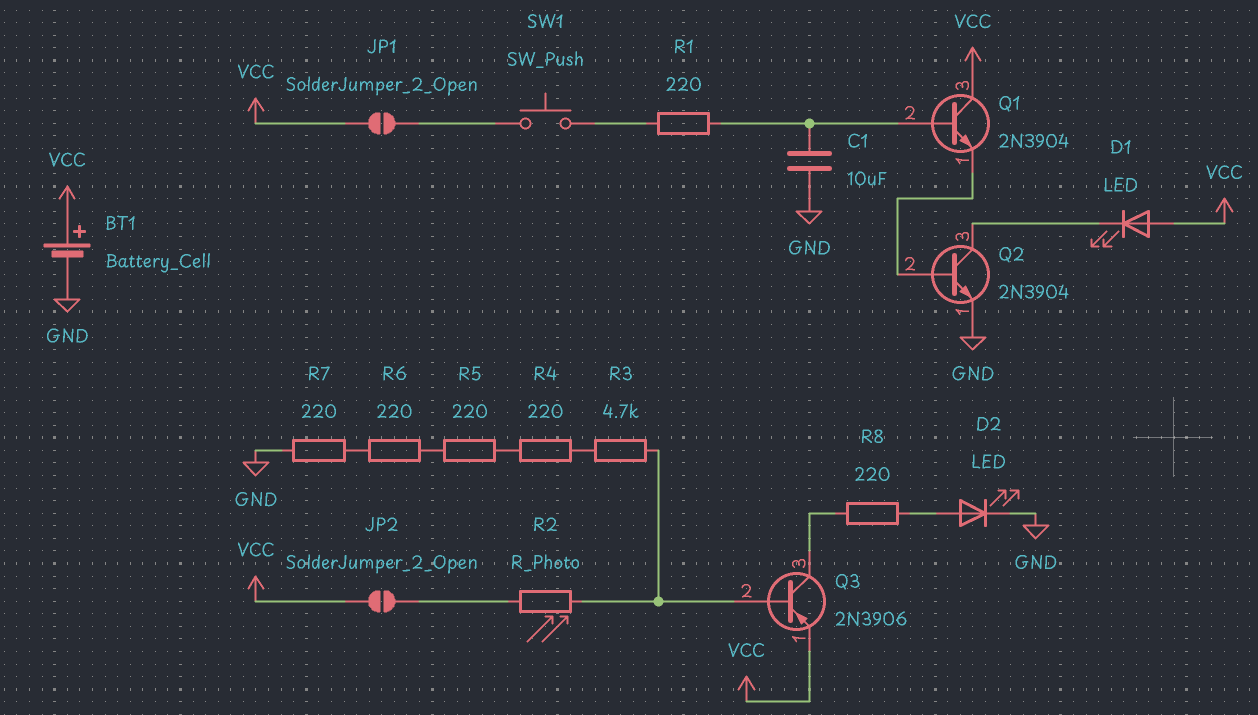

Schematic

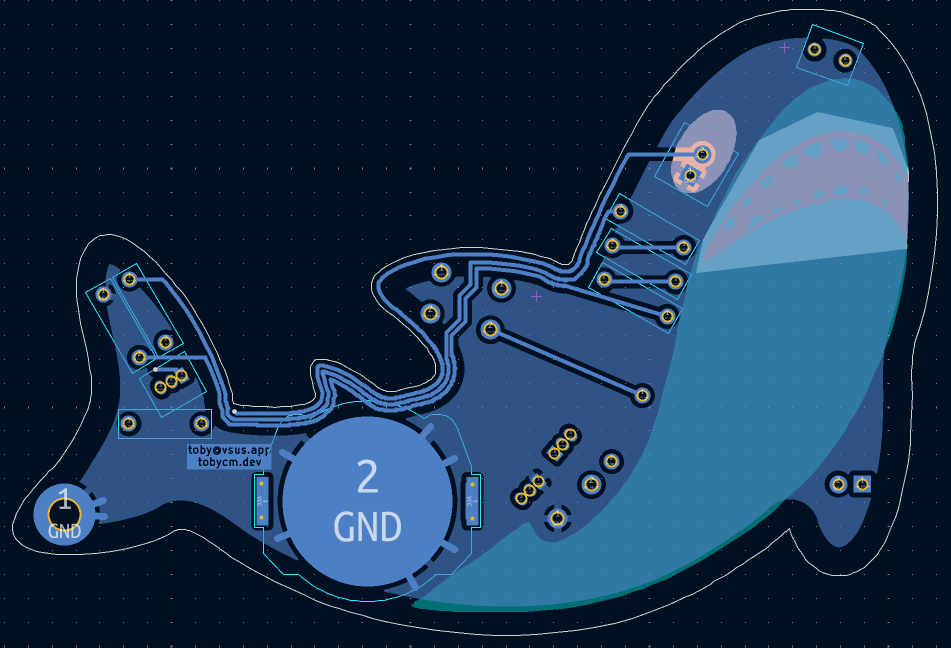

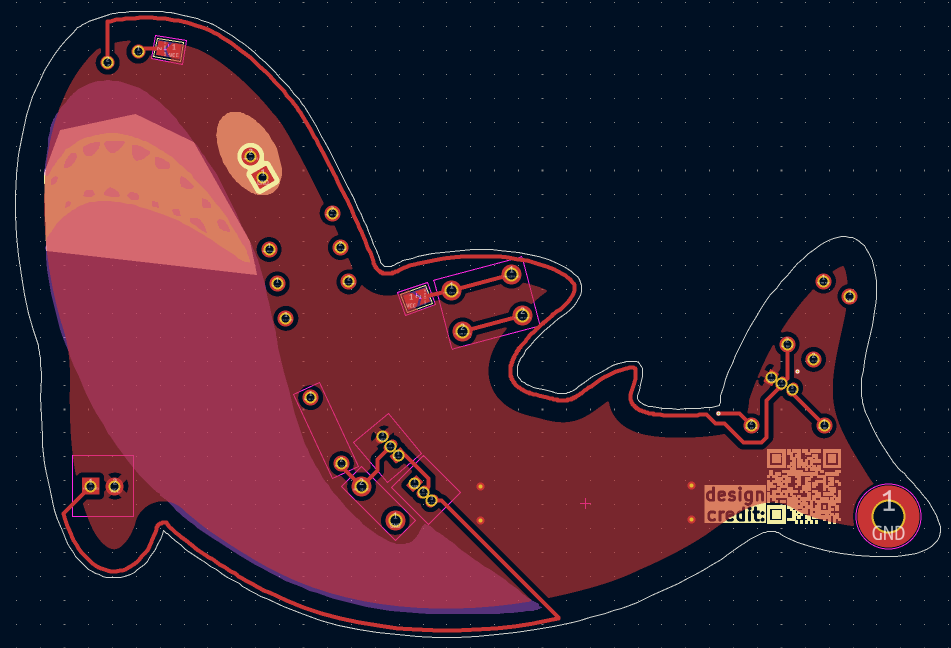

PCB
Features
- stay-on LED after pressing the button
- glow-in-the-dark eye
- shiny body
- very cute
BOM
| Part | Value | Quantity |
|---|---|---|
| Resistor | 4.7k | 1 |
| Resistor | 220 | 6 |
| Photoresistor | 1 | |
| LED | 2 | |
| Capacitor | 10uF | 1 |
| 2N3904 | 2 | |
| 2N3906 | 1 | |
| Battery Holder | 1 | |
| Button | 1 |
made by the one and only @tobycm :3 rawrrrr
readme copied inspired from https://github.com/cheyao/Open555
design ur own pcb at https://solder.hackclub.com
