Description
a very skibidi usb hub with ethernet and 3.5mm to clip on my laptop. helps fix my broken 3.5mm jack too. usb 3.2 gen 1 hub
README
skibidi thinkbook 14 hub
a very skibidi usb hub to clip on my laptop.
features:
- usb 3.2 gen 1 hub with gigabit ethernet
- 2 usb-a usb 3.2 gen 1 ports
- 2 usb-c usb 2.0 ports
- 3.5mm audio jack
powered by tusb8042a usb hub controller, rtl8153b gigabit ethernet controller, ch334 usb 2.0 hub controller, and pcm2704 usb dac.
designed in kicad 9

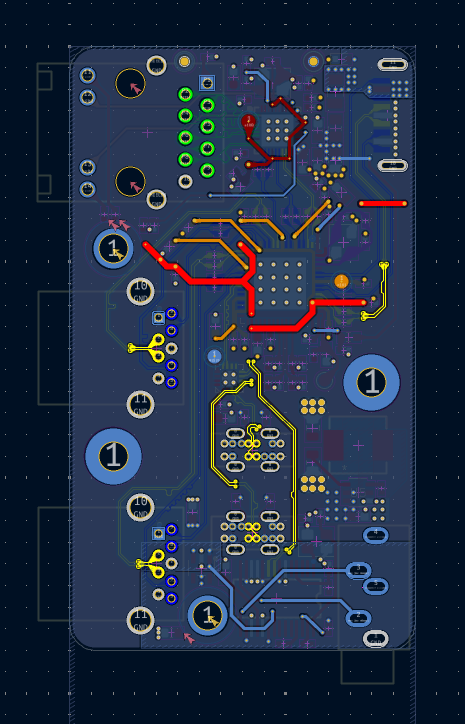

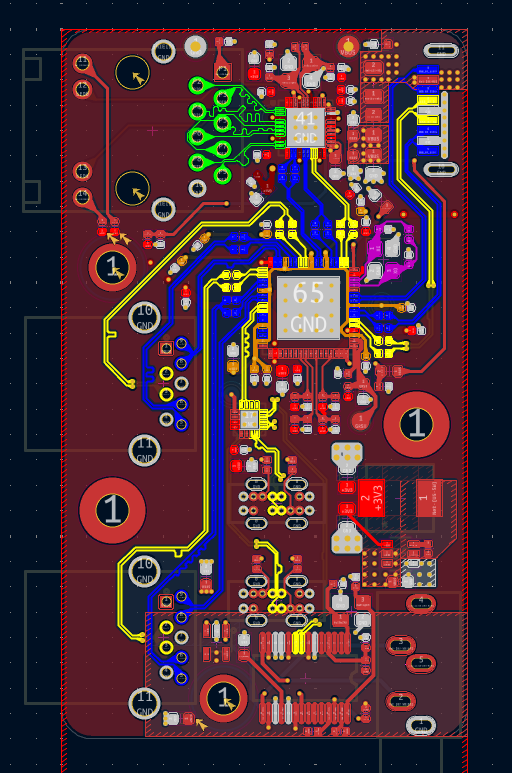

PCB

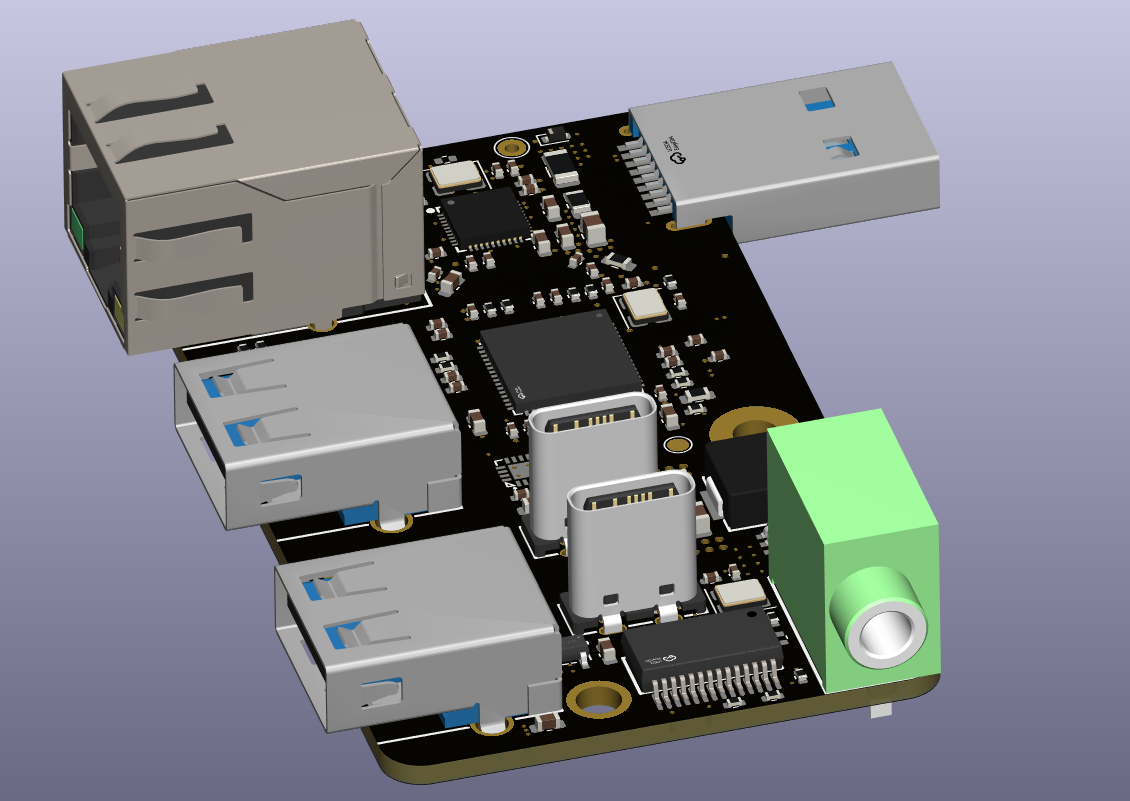

CAD

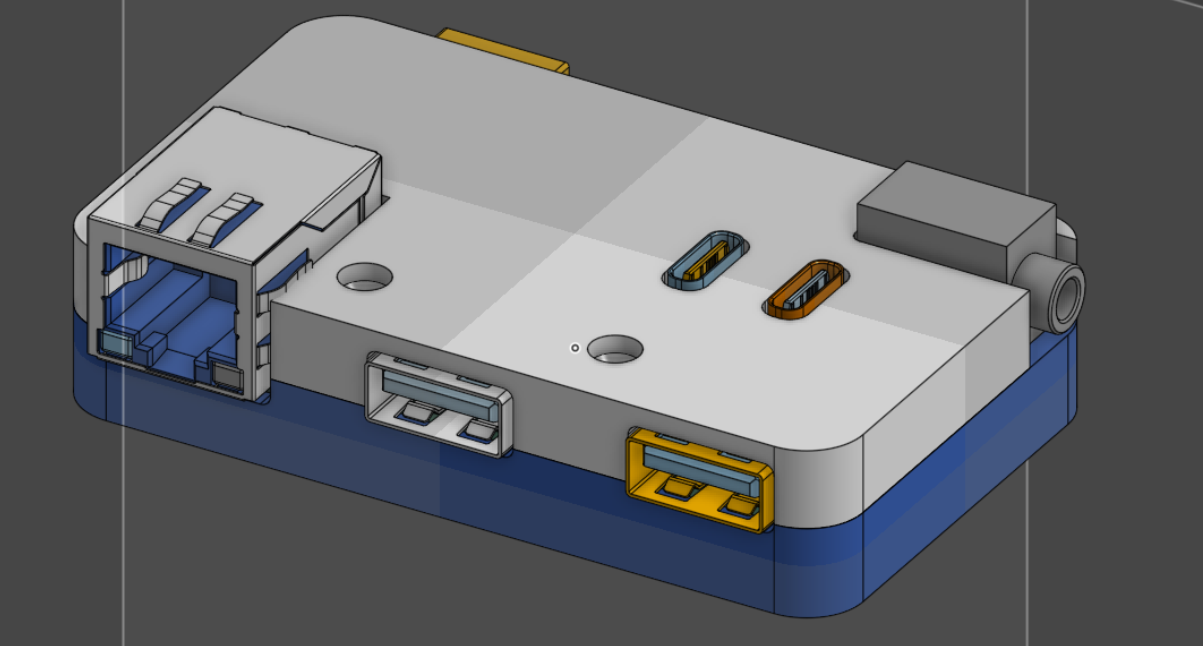

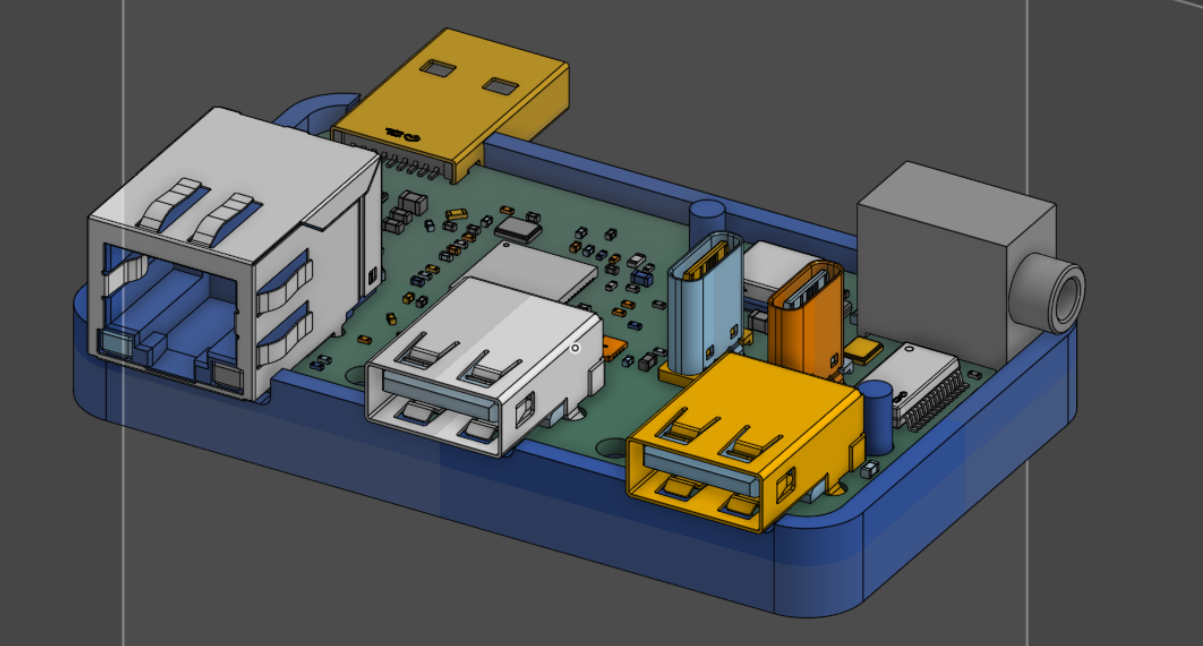

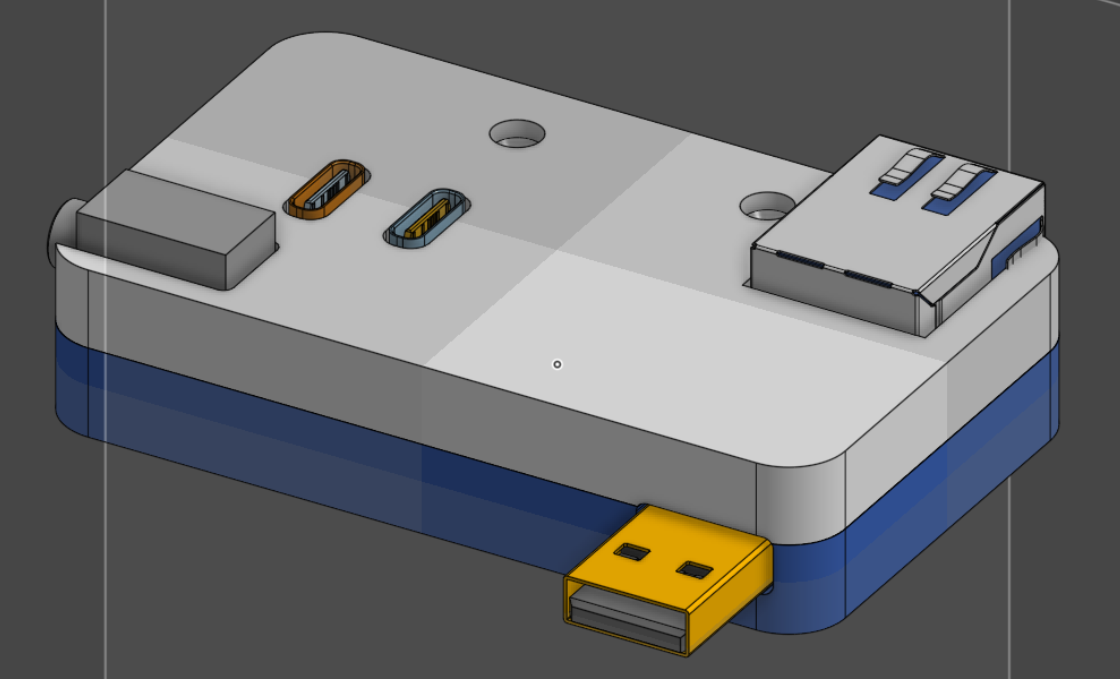

Case

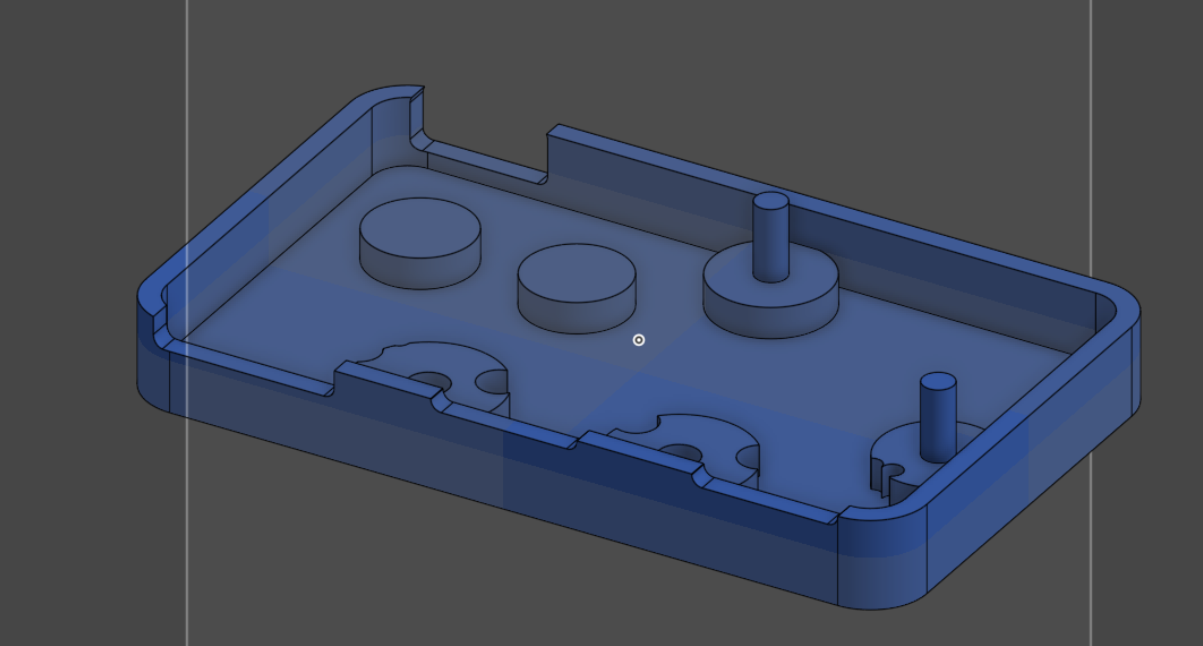

Body

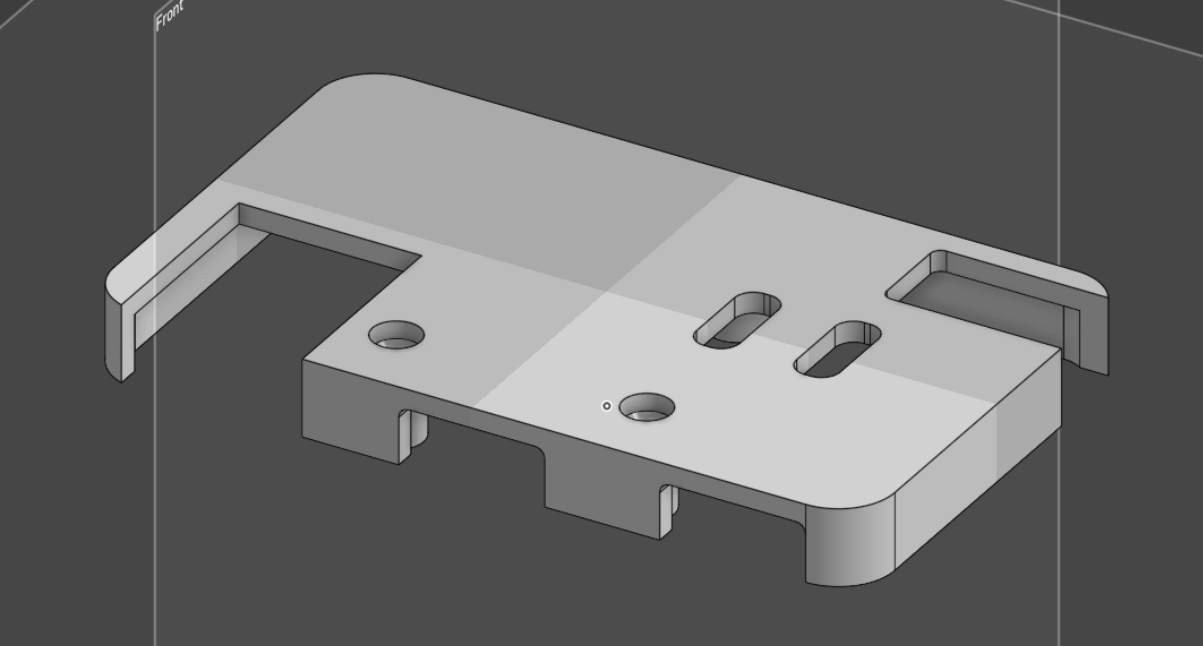

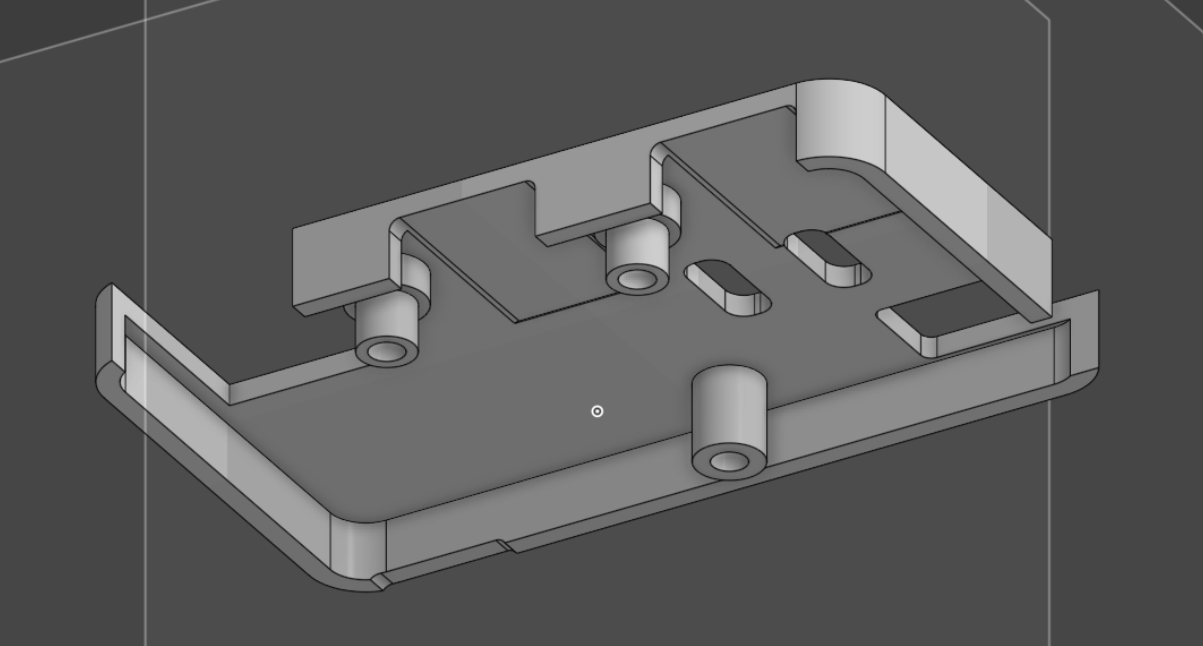

Top
BOM
| Item | Quantity | Total Cost | Vendor |
|---|---|---|---|
| PCB | 5 | $11.90 | JLCPCB |
| PCBA | 2 | $59.26 | JLCPCB |
| JLCPCB Shipping | 1 | $8.29 | JLCPCB |
| PJ-325C5-G | 5 | $0.90 | LCSC |
| ESD5Z5.0T1G | 20 | $0.67 | LCSC |
| BSMD1206-200-12V | 10 | $0.61 | LCSC |
| BLM21PG221SN1D | 50 | $0.83 | LCSC |
| HR911130C | 3 | $7.68 | LCSC |
| ME6211C33M5G-N | 10 | $0.47 | LCSC |
| 0603WAF4302T5E | 100 | $0.12 | LCSC |
| FRC0603F9531TS | 100 | $0.09 | LCSC |
| 0402WGF2491TCE | 200 | $0.12 | LCSC |
| HC-USB3.0-C26 | 5 | $0.53 | LCSC |
| CYA0650-4.7UH | 5 | $1.28 | LCSC |
| HC-ST-003-01-J | 20 | $2.49 | LCSC |
| TYPE-C 14PLC-H10.0 | 20 | $4.68 | LCSC |
| XL2EL89COI-111YLC-24M | 10 | $0.65 | LCSC |
| XL2EL89COI-111YLC-12M | 10 | $0.67 | LCSC |
| LCSC Shipping | 1 | $16.09 | LCSC |
| Round Hex Cap Screw kit M3 | 1 | $8.52 | Aliexpress |
| Brass Threaded Insert Nut Kit M3 | 1 | $10.54 | Aliexpress |
| Grand Total | - | $136.39 | - |
