Canis Measure

Air Quality Monitor

https://github.com/user-attachments/assets/3cffaff6-82ad-4612-b39e-0665e6a29b27

Features

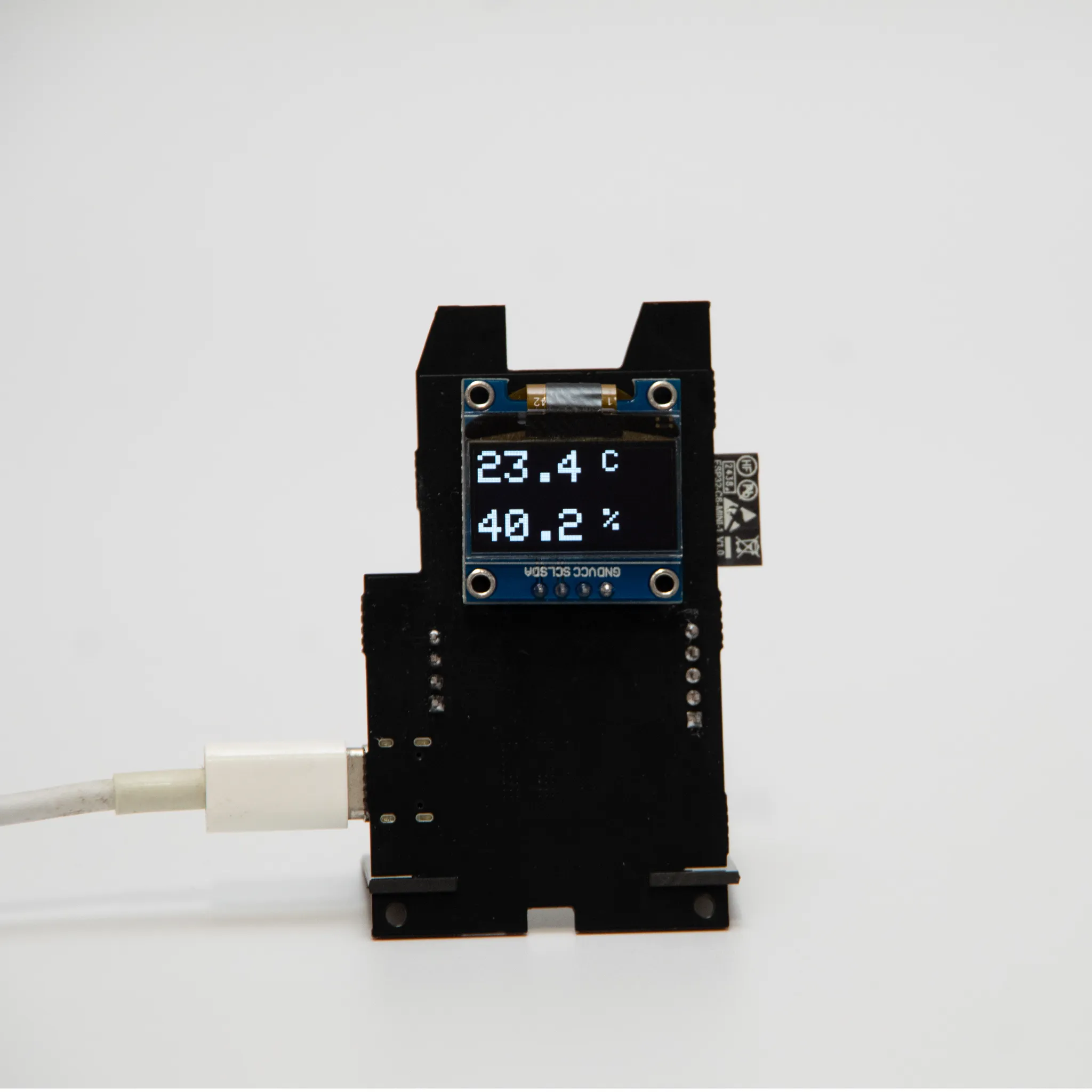

Temperature and Humidity

Temperature and humidity sensor is the SHT30.

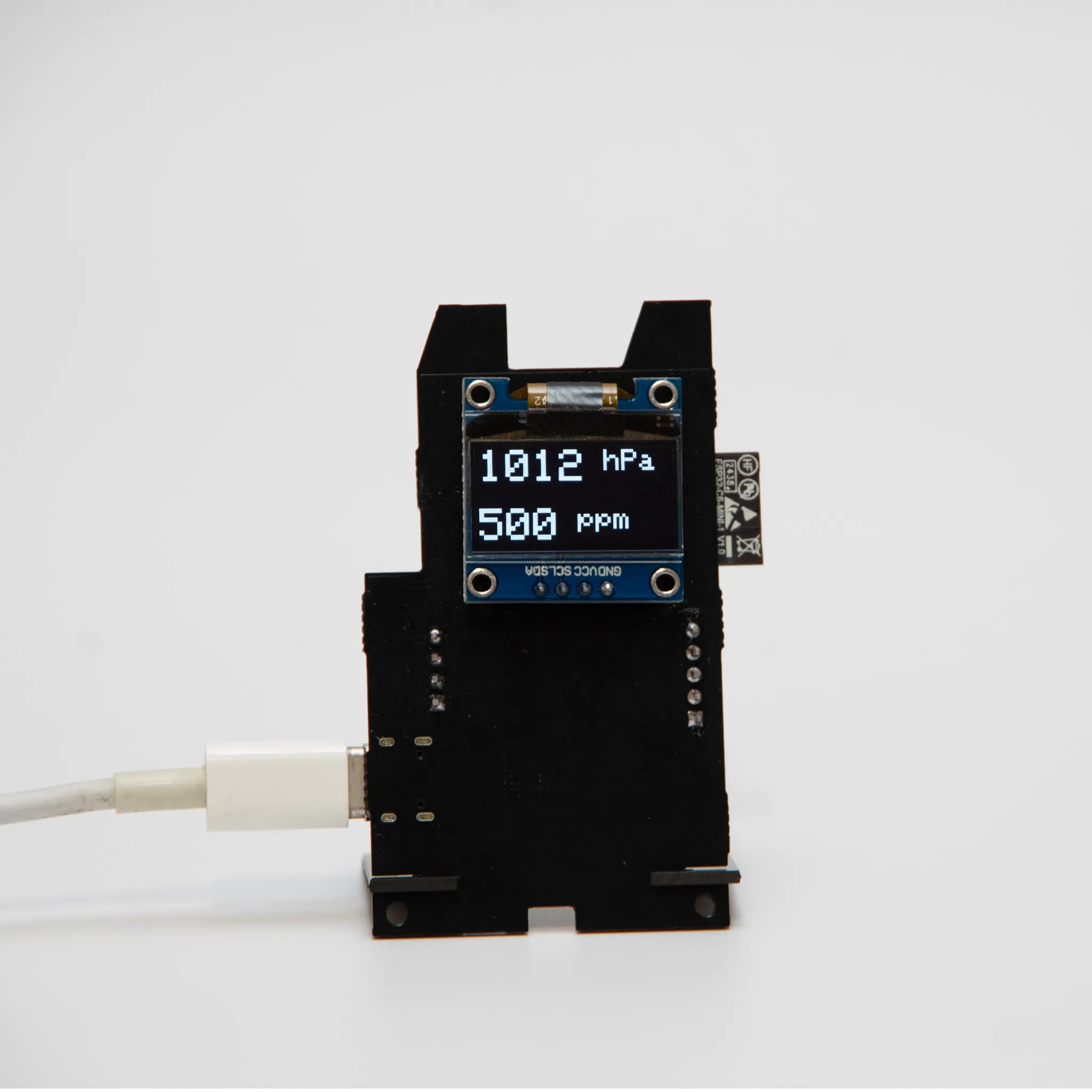

Pressure, CO2

Pressure sensor is the BMP280, CO2 sensor is the MH-Z19B.

Specification

Schematic

https://github.com/toms74209200/canis_measure/blob/master/pcb/EAQM-250201.pdf
