README

140 MHz Band-Pass Filter KiCAD PCB Files

This repository contains the files associated with the creation of a Band-Pass Filter ideal for NOAA APT Satellite and UHF Amateur Radio reception.

Bill of Materials

  • SMA PCB Mount connectors, available from various online sellers
    • Specific to this project, SMA Female Jack Right Angle PCB Mount RF Connectors were used
  • 140-BPF+ chip from MiniCircuits

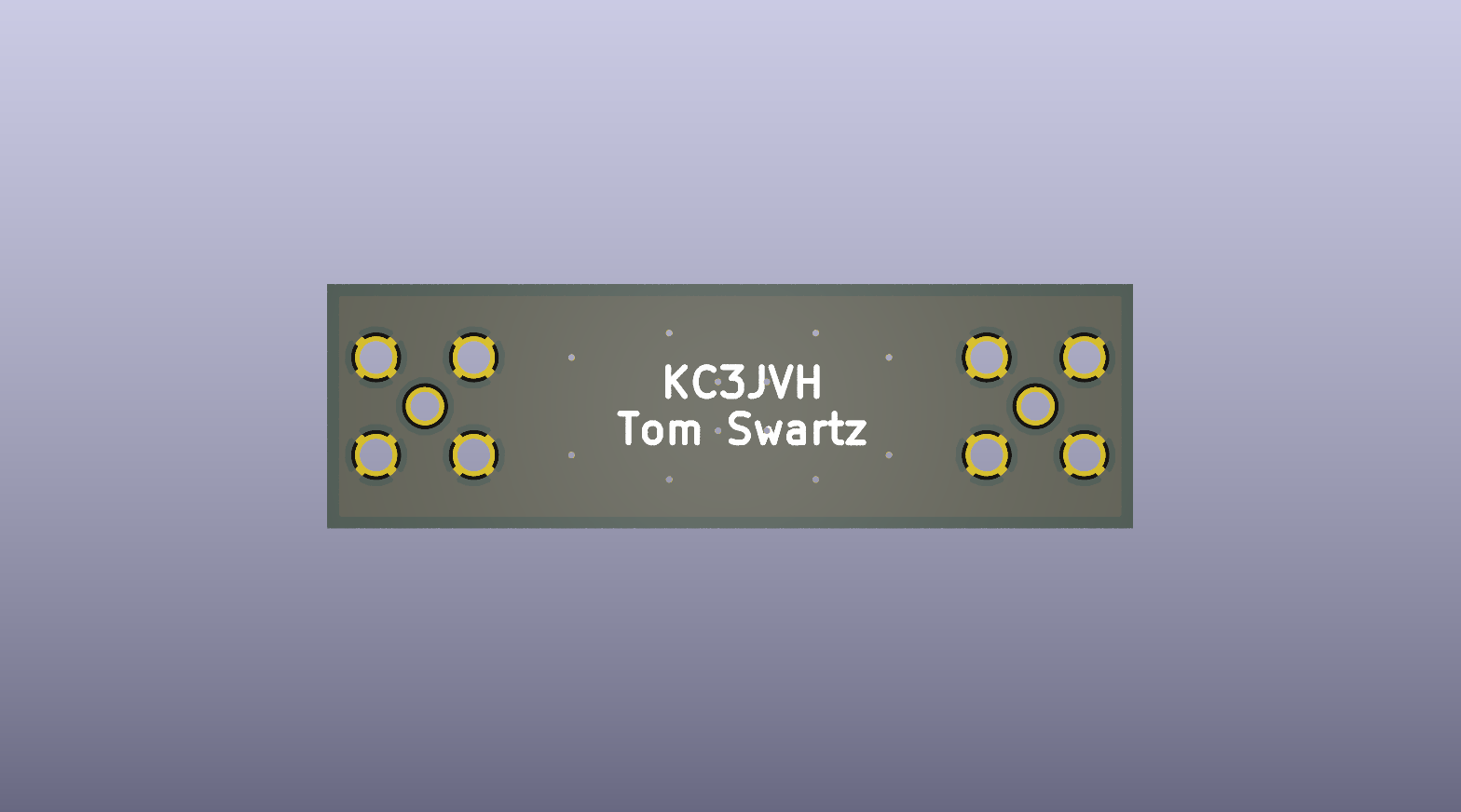

Board Images

Analysis

The board performs extremely closely to the manufacturer's specifications.

The 140-BPF+ datasheet can be reviewed above, but the analysis has been independently validated with the following results:
